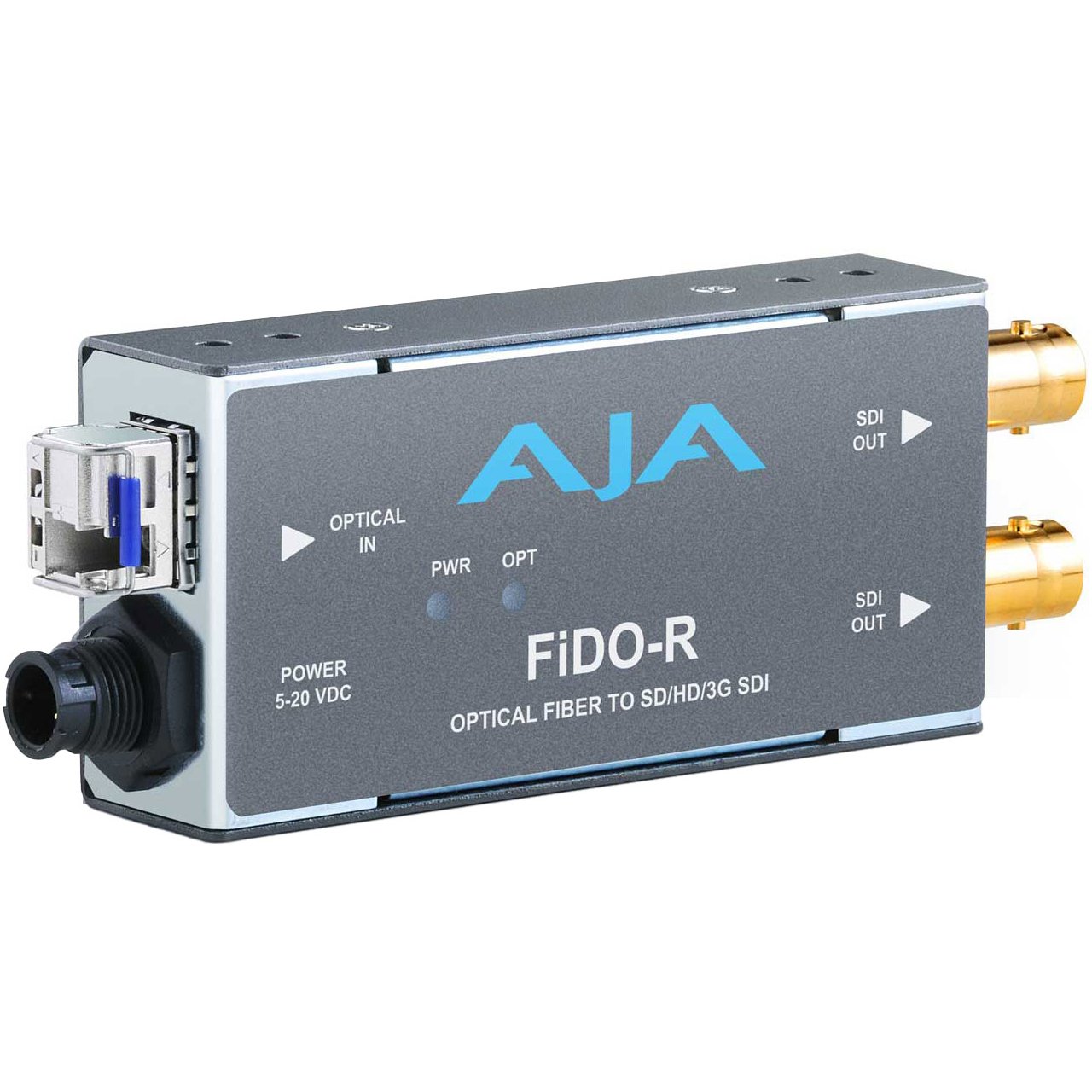

AJA FiDO-R 1-Channel Single-Mode LC Fiber to 3G-SDI Receiver with Dual SDI Outputs

ITEM #: AJA-FIDO-R MFG #: FIDO-R

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$559.00

Availability: In Stock
iAvailability Description Popup


    FIDO-R - Overview

    2-Channel Single Mode LC Fiber to 3G-SDI Receiver

    AJA FiDO-R offers unmatched flexibility and cost efficiency for SDI-Fiber conversion, allowing for long cable runs up to 10 km (32,808 ft) with electrical isolation - useful for eliminating ground loop problems.

    FiDO converters use a compact, low profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera. All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world and a locking power connector that can't be accidentally pulled loose!

    • Features:

      • 2-Channel Single Mode LC Fiber to 3G-SDI Receiver

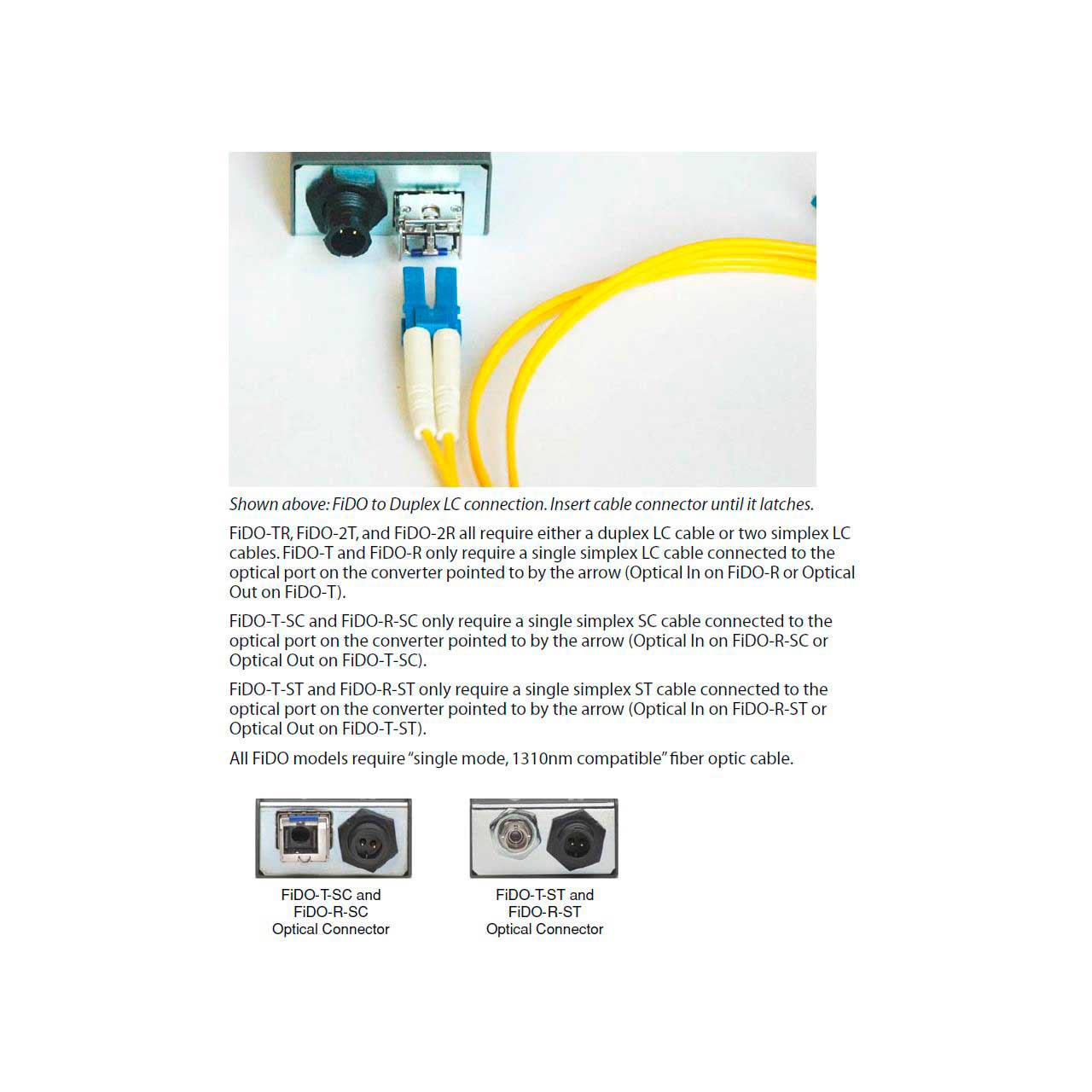

      • Duplex connection (LC connector)
      • Dual, independent 3G/HD/SD-SDI outputs
      • Both Fiber-to-SDI paths are completely independent
      • Uses 5-20VDC power (DWP-U-R1 universal power supply included)

    • Specifications:

      • Video Formats
      • 150 Mbps - 3 Gbps, format agnostic

        Video Input Digital
      • 2-Channel independent Single Mode LC Fiber Outputs, SMPTE-297
      • Nominal Wavelength: 1260 - 1620 nm
      • Optical Sensitivity: -18 dBm (min)
      • Overload Power: -3 dBm (min)

        Video Output Digital
      • 2-Channel independent 3G-SDI BNC Outputs, SMPTE-259/292/424

        Reclocking
      • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
      • All other rates are passed through and not reclocked

        Size (w x d x h)
      • 4.6 inches x 1.71 inches x .85 inches (117 x 43.5 x 21.6mm)

        Weight
      • 0.5 lb (0.3 kg)

        Power
      • 3 watts max
      • Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)

        Environment
      • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
      • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
      • Operating Relative Humidity: 10-90% noncondensing
      • Operating Altitude: <3,000 meters (<10,000 feet)

    • Warranty:

      • 5 Year Warranty

    • GTIN:

      0892448000960
