SWIT S-4605 3G/HDSDI to Optical Converter

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

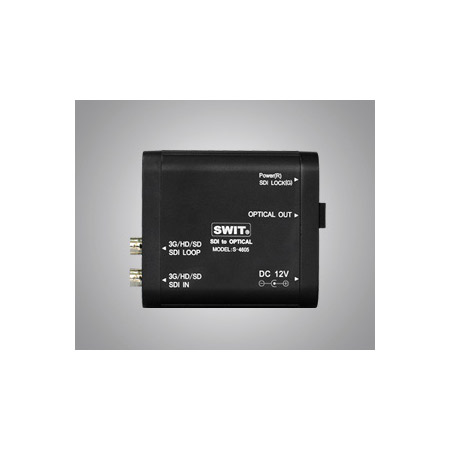

    SWIT S-4605 3G/HDSDI to Optical Converter

    Item #: SWIT-S-4605   •   MFG #: S-4605



    List Price:$480.00
    Our Price:$440.00

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.


    • Special Order Item: non-cancelable, non-returnable, non-refundable.


    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The S-4605 is a portable 3G/HD/SD-SDI to optical fiber converter. The single-mode fiber ensures max 20km reliable transmission, and support hot swap of optical module.
    The S-4605 is heavy duty housing design, protecting the BNC connectors well, and supplied various screw threads in the bottom, for convenient installing.


    • Features

      • Portable 3G/HD/SD-SDI to Optical Fiber Converter
      • 1 SDI input, 1 Optical output, and 1 SDI loop through output
      • Single-mode fiber, max 20km reliable transmission
      • Support hot swap of optical module
      • Power/SDI status indicator
      • Heavy duty housing
      • Bottom screw threads for installing

    • Specifications

      • Input 3G/HD/SD-SDIx1
      • Output OPTICALx1, 3G/HD/SD-SDI loopx1,
      • Format SDI
      • SMPTE-425M1080p (60 / 59.94 / 50)
      • SMPTE-274M 1080i (60 / 59.94 / 50)
      • 1080p (30 / 29.97 / 25 / 24 / 23.98)
      • SMPTE-RP211 1080PSF (30 / 29.97 / 25 / 24 / 23.98)
      • SMPTE-296M 720p (60 / 59.94 / 50)
      • SMPTE-125M 480i (59.94)
      • ITU-R BT.656 576i (50)
      • OPTICAL SMPTE 297-2006 Output wavelength: 1310nm
      • Max SDI cable length 100 meters
      • Max SM fiber length 20 kilometers
      • Power = 3W
      • Working Voltage DC 6-18V
      • Working Environment
      • Temperature: 0 °C -+70 °C, Humidity:10%-90%
      • Dimension 98x84x29 mm
      • Net weight 220g

    • Item Includes

      • SWIT S-4605 & power adaptor

    • GTIN:

      6948193501123
