SWIT S-4607 Bi-directional HDSDI/Optical Converter
  • SWIT S-4607 Bi-directional HDSDI/Optical Converter
  • SWIT S-4607 Bi-directional HDSDI/Optical Converter

Questions? Ask a Markertek Expert:
800-522-2025 Email

SWIT S-4607 Bi-directional HDSDI/Optical Converter

Item #: SWIT-S-4607   •   MFG #: S-4607



List Price:$680.00
Our Price:$630.00

free ship


Availability:
Direct Ship from manufacturer, contact us for availability
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.


  • Special Order Item: non-cancelable, non-returnable, non-refundable.

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

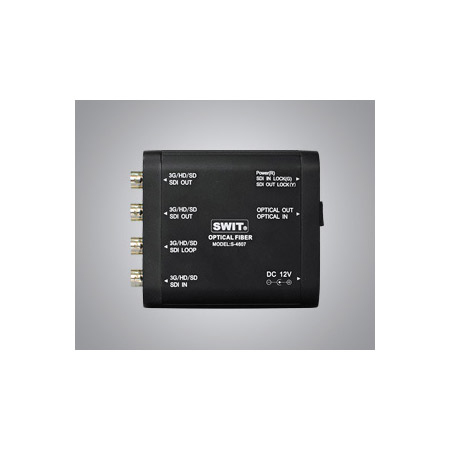

The S-4607 is a portable full-duplex bi-directional Optical fiber and 3G/HD/SD-SDI converter. It can convert SDI input to OPTICAL output, and convert OPTICAL input to SDI output. The single-mode fiber ensures max 20km reliable transmission, and support hot swap of optical module.

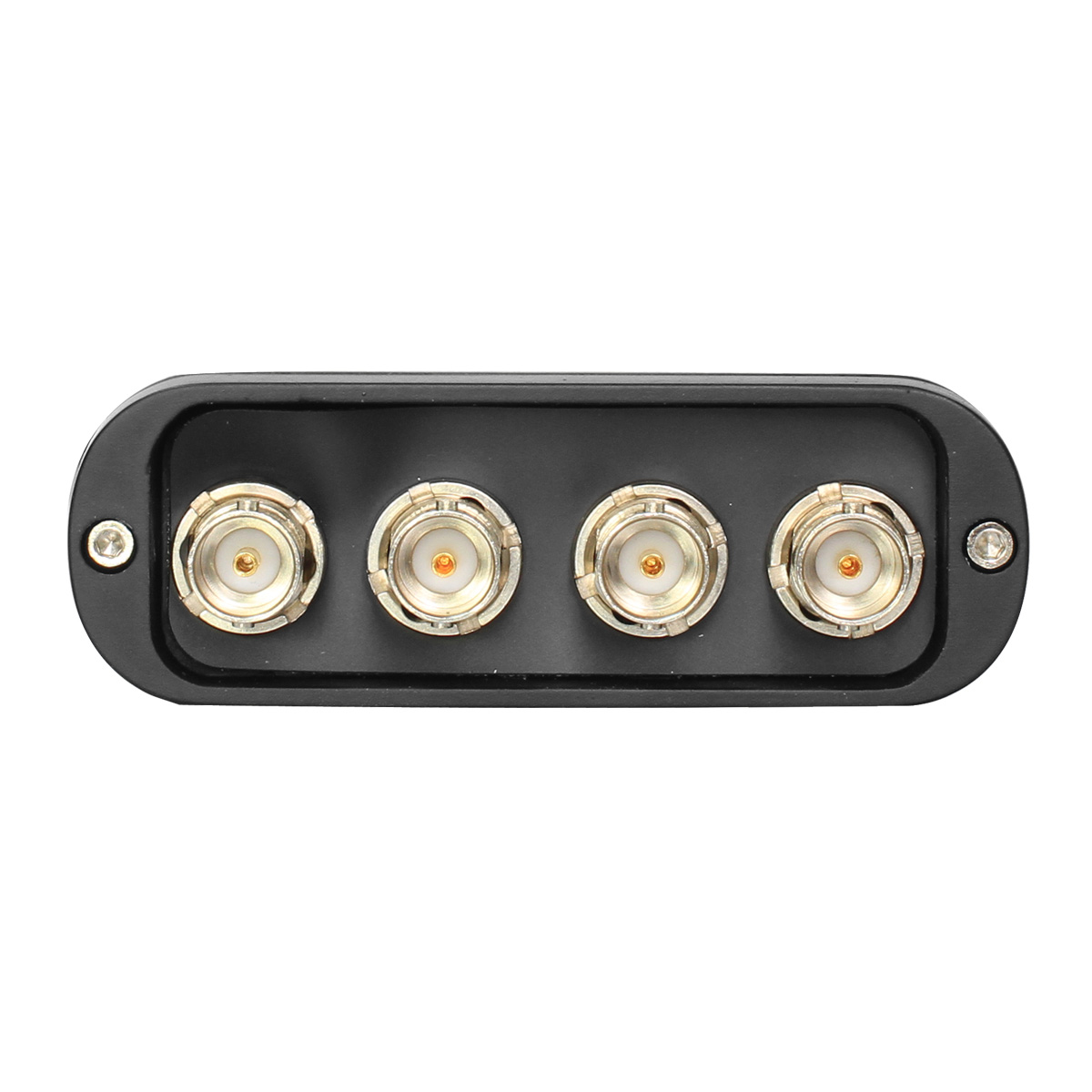

The S-4607 is heavy duty housing design, protecting the BNC connectors well, and supplied various screw threads in the bottom, for convenient installing.


  • Features

    • Portable full-duplex bi-directional converter
    • Convert 3G/HD/SD-SDI to OPTICAL
    • Convert OPTICAL to 3G/HD/SD-SDI
    • Single-mode fiber, max 20km reliable transmission
    • Support hot swap of optical module
    • Power/SDI status indicator
    • Heavy duty housing
    • Bottom screw threads for installing

  • Specifications

    • Portable full-duplex bi-directional converter
    • Convert 3G/HD/SD-SDI to OPTICAL
    • Convert OPTICAL to 3G/HD/SD-SDI
    • Single-mode fiber, max 20km reliable transmission
    • Support hot swap of optical module
    • Power/SDI status indicator
    • Heavy duty housing
    • Bottom screw threads for installing
    • Input 3G/HD/SD SDIx1 OPTICALx1
    • Output 3G/HD/SD SDI loop out x1, OPTICAL convert out x1
    • 3G/HD/SD SDI convert out x2
    • Format
    • OPTICAL SMPTE 297-2006
    • Input wavelength: 1260-1580nm
    • Output wavelength: 1310nm
    • SDI SMPTE-425M 1080p (60 / 59.94 / 50)
    • SMPTE-274M 1080i (60 / 59.94 / 50)
    • 1080p (30 / 29.97 / 25 / 24 / 23.98)
    • SMPTE-RP211 1080PSF (30 / 29.97 / 25 / 24 / 23.98)
    • SMPTE-296M 720p (60 / 59.94 / 50)
    • SMPTE-125M 480i (59.94)
    • ITU-R BT.656 576i (50)

  • Item Includes

    • SWIT S-4607 & power adaptor

  • GTIN:

    6948193501147
