SWIT S-4914 TC/S-4914RA 700m 3GSDI/HDMI Wireless Transmission System: T w/ Canon BP-900 Series Plate & R w/ Gold-mount

ITEM #: SWIT-S4914TCSRA MFG #: S-4914 TC/S-4914RA

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SWIT-S4914TCSRA

S-4914 TC/S-4914RA - Overview

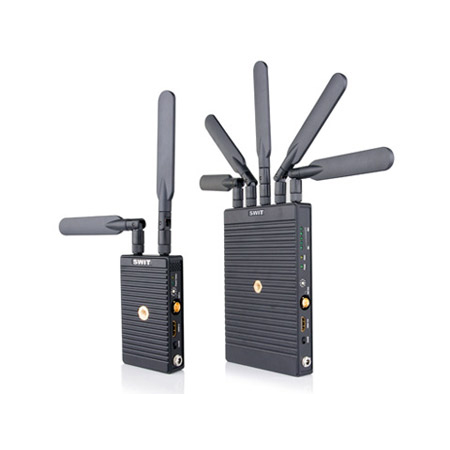

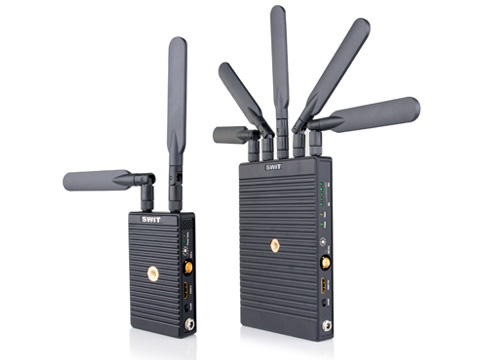

S-4914 is the broadcast industry wireless system, includes an S-4914TC transmitter and an S-4914RA receiver, with WHDI (OFDM) technology, supports uncompressed 3G/HD/SD-SDI and HDMI signals wirelessly transmitted up to 700 meters (2296 ft) with less than 1ms latency. It supports resolutions up to 1080p60/50 uncompressed SDI and HDMI with two channels of embedded audio
The S-4914 wireless system operates on a license-free frequency 5.1GHz-5.9GHz. The frequency bands are user configurable and support at 4 wireless channels in one location. It also supports multicast function that 1 transmitter to multi receivers. S-4914TC transmitter is compact designed with Canon BP-900 series plate and S-4914RA receiver built with Gold mount plate. Both transmitter and receiver also can be powered via pole DC input of 6.5-17V. The transmitter S-4914TC features:
3G/HD/SD-SDI input ×1
HDMI ×1
The receiver S-4914RA features:
3G/HD/SD-SDI output ×1
HDMI x1
The receiver offers simultaneous SDI and HDMI outputs
If both SDI and HDMI are being input to transmitter, the receiver will give priority to SDI output.

  • Features:

    • Professional WHDI (MIMO/OFDM) technology
    • Uncompressed 3G/HD-SDI and HDMI wireless
    • 2-ch SDI/HDMI embedded audio transmission
    • 700 meters (LOS) transmission distance
    • Less than 1ms latency
    • 5.1-5.9GHz license-free operation frequency
    • User configurable frequency bands
    • Multicast - 1 transmitter to multi receivers
    • Less than 63mW radio power
    • AES 256bit encryption
    • Mini transmitter designed for HDV camcorder
    • Canon BP-900 series plate on transmitter
    • Gold mount plate on receiver.
    • All-metal housing, durable
    • Pure hardware connection; Plug and Play


  • Specifications:

    • Wireless frequency: 5.1~5.9GHz
    • Radio modules: OFDM 16QAM
    • Max Transmission distance: Approx 700m(2296ft) LOS
    • Latency: ≤1 millisecond
    • Power consumption: ≤6.5W on both transmitter and receiver
    • Radio power Max: transimitter: 21dBm (63mW)
    • Input voltage: DC / Battery:6.5~17V for both transmitter and receiver
    • Working environment Temperature: 0°C -+40°C
    • Dimension: transmitter 2.8x4.7x1.5 inch (71×120×37 mm) / receiver 5.1x7.4x1.9 inch (130×188×47 mm)
    • Net weight(with antenna): transmitter 0.7 lb(300g) / receiver 1.8 lb(797g)


  • Item Includes:

    • The wireless system package provides:
    • 1x S-4914TC Transmitter with Canon series Plate
    • 1x S-4914RA Receiver with Gold mount plate
    • 7x Antennas
    • 1x Articulating arm trestle
    • 1x Crab clamp
    • 1x D-tap to 5.5/2.1mm pole cable
    • 1x 5.5/2.1mm pole power adaptor
    • 2x Flat screwdriver (for band configuration)


  • GTIN:

    6948193501741
