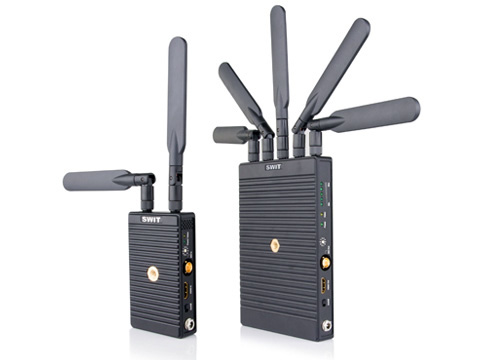

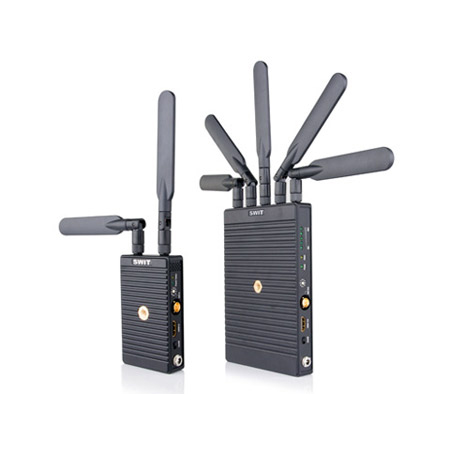

S-4914 is the broadcast industry wireless system, includes an S-4914Ti transmitter and an S-4914RA receiver, with WHDI (OFDM) technology, supports uncompressed 3G/HD/SD-SDI and HDMI signals wirelessly transmitted up to 700 meters (2296 ft) with less than 1ms latency. It supports resolutions up to 1080p60/50 uncompressed SDI and HDMI with two channels of embedded audio
The S-4914 wireless system operates on a license-free frequency 5.1GHz-5.9GHz. The frequency bands are user configurable and support at 4 wireless channels in one location. It also supports multicast function that 1 transmitter to multi receivers. S-4914Ti transmitter is compact designed with JVC SSL-JVC50 plate and S-4914RS receiver built with Gold-mount plate. Both transmitter and receiver also can be powered via pole DC input of 6.5-17V. The transmitter S-4914Ti features:
3G/HD/SD-SDI input ×1
The receiver S-4914RA features:
3G/HD/SD-SDI output ×1
The receiver offers simultaneous SDI and HDMI outputs
If both SDI and HDMI are being input to transmitter, the receiver will give priority to SDI output.
