    SWIT S-4914 TU/S-4914RS 700m 3GSDI/HDMI Wireless Transmission System: T w/ Sony BP-U60 Plate & R w/ V-mount Plate

    Item #: SWIT-S4914TUSRS   •   MFG #: S-4914 TU/S-4914RS



    List Price:$4,850.00
    Our Price:$4,650.00

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov

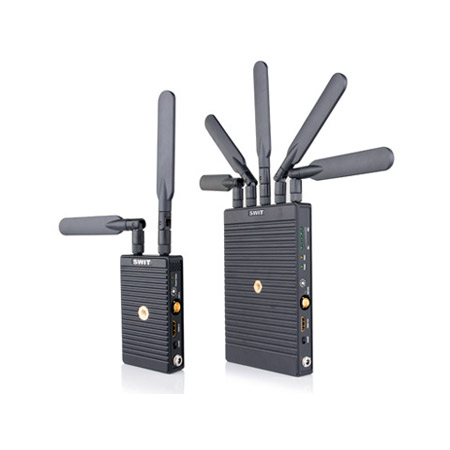

      S-4914 is the broadcast industry wireless system, includes an S-4914TU transmitter and an S-4914RS receiver, with WHDI (OFDM) technology, supports uncompressed 3G/HD/SD-SDI and HDMI signals wirelessly transmitted up to 700 meters (2296 ft) with less than 1ms latency. It supports resolutions up to 1080p60/50 uncompressed SDI and HDMI with two channels of embedded audio
      The S-4914 wireless system operates on a license-free frequency 5.1GHz-5.9GHz. The frequency bands are user configurable and support at 4 wireless channels in one location. It also supports multicast function that 1 transmitter to multi receivers. S-4914TU transmitter is compact designed with Sony BP-U60 plate and S-4914RS receiver built with V-mount plate. Both transmitter and receiver also can be powered via pole DC input of 6.5-17V. The transmitter S-4914TU features:
      3G/HD/SD-SDI input ×1
      HDMI ×1
      The receiver S-4914RS features:
      3G/HD/SD-SDI output ×1
      HDMI x1
      The receiver offers simultaneous SDI and HDMI outputs
      If both SDI and HDMI are being input to transmitter, the receiver will give priority to SDI output.


      • Features

        • Professional WHDI (MIMO/OFDM) technology
        • Uncompressed 3G/HD-SDI and HDMI wireless
        • 2-ch SDI/HDMI embedded audio transmission
        • 700 meters (LOS) transmission distance
        • Less than 1ms latency
        • 5.1-5.9GHz license-free operation frequency
        • User configurable frequency bands
        • Multicast - 1 transmitter to multi receivers
        • Less than 63mW radio power
        • AES 256bit encryption
        • Mini transmitter designed for HDV camcorder
        • Sony BP-U60 plate on transmitter
        • V-mount plate on receiver.
        • All-metal housing, durable
        • Pure hardware connection; Plug and Play

      • Specifications

        • Wireless frequency: 5.1~5.9GHz
        • Radio modules: OFDM 16QAM
        • Max Transmission distance: Approx 700m(2296ft) LOS
        • Latency: ≤1 millisecond
        • Power consumption: ≤6.5W on both transmitter and receiver
        • Radio power Max: transimitter: 21dBm (63mW)
        • Input voltage: DC / Battery:6.5~17V for both transmitter and receiver
        • Working environment Temperature: 0°C -+40°C
        • Dimension: transmitter 2.8x4.7x1.5 inch (71×120×37 mm) / receiver 5.1x7.4x1.9 inch (130×188×47 mm)
        • Net weight(with antenna): transmitter 0.7 lb(300g) / receiver 1.8 lb(797g)

      • Item Includes

        • The wireless system package provides:
        • 1x S-4914TU Transmitter with Sony BP-U60 Plate
        • 1x S-4914RS Receiver with V-mount plate
        • 7x Antennas
        • 1x Articulating arm trestle
        • 1x Crab clamp
        • 1x D-tap to 5.5/2.1mm pole cable
        • 1x 5.5/2.1mm pole power adaptor
        • 2x Flat screwdriver (for band configuration)
