The Phabrix Sx2 Series brings 12G-SDI test and measurement into a handheld instrument. Signal generation, analysis and monitoring sit in one unit built for the field, the machine room and the OB truck.

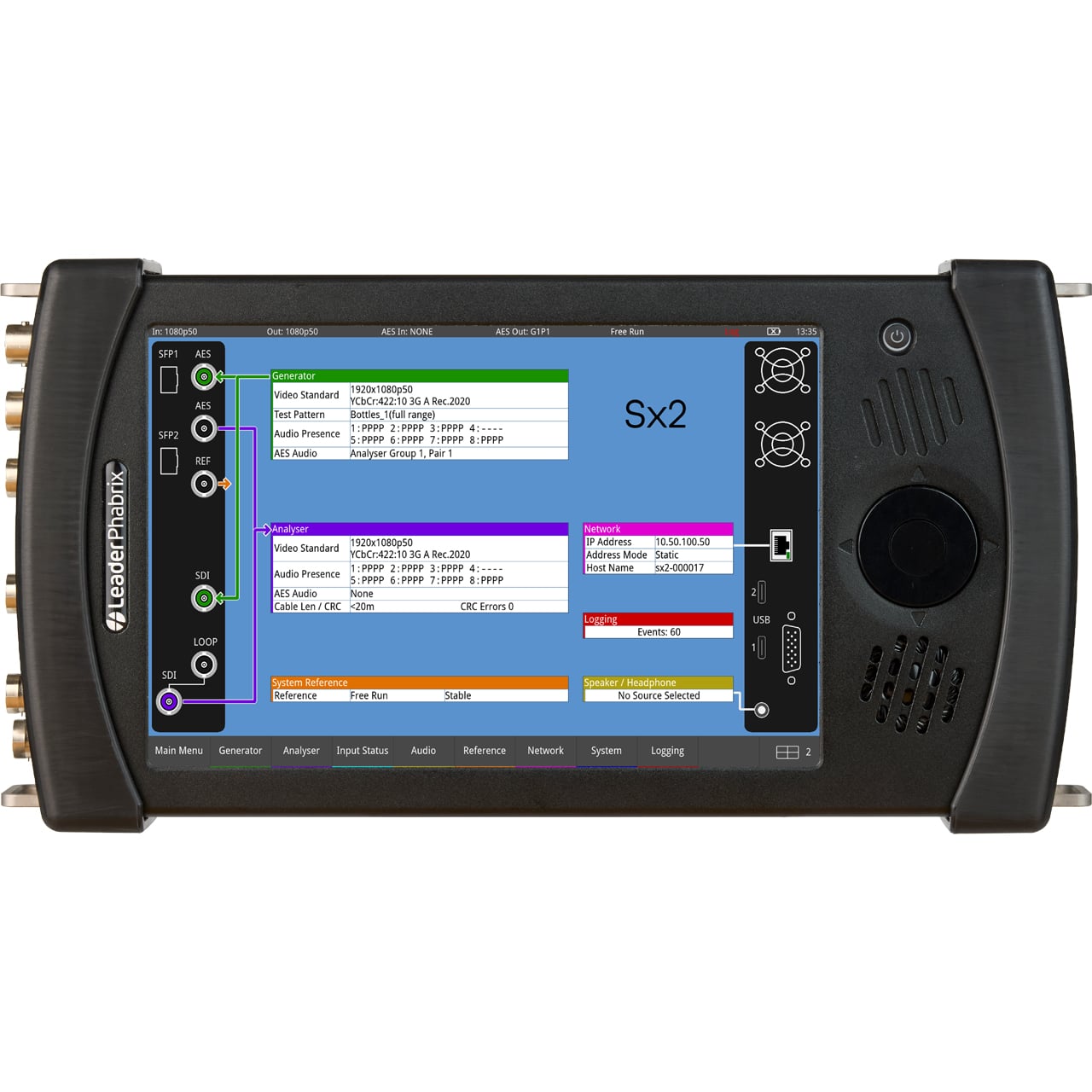

Two models make up the series. The Sx2 covers 12G, 6G, 3G, 1.5G and 270M-SDI generation and analysis across 4K, UHD, HD and SD. The Sx2E adds SDI physical layer analysis with RTE Real-Time Eye technology, jitter measurement and a 12G loop out. Full 4K UHD analysis runs over a single coaxial interface, so setup stays simple and signal integrity stays intact. A 1920 x 1200 touchscreen, precision rotary control and saveable presets put every toolset within reach.
The Sx2 Series is built on the engineering heritage of both Leader and PHABRIX. The renowned handheld design elements from PHABRIX products meet Leader's record for precision, accuracy and reliability.
Support For High-Performance 12G-SDI Workflows
The Sx2 delivers the bandwidth required for high-resolution media workflows. Full 4K UHD signal analysis runs over a single coaxial interface, so you cut cabling and setup time without losing accuracy. Support spans 12G, 6G, 3G, 1.5G and SD-SDI, covering 4K, UHD, HD and SD.
Handheld HDR Measurement And Analysis
The optional SX2-HDR toolset adds HDR measurement to a handheld form factor. BT.709, BT.2020, BT.2100 HLG, PQ, Sony S-Log3 and SR Live are all supported. A Cd/m² nits graticule, BT.2408 diffuse white markers and a seven-band programmable heatmap give you the precision to evaluate luminance, color gamut and transfer characteristics.
Multi-Channel Audio Analysis

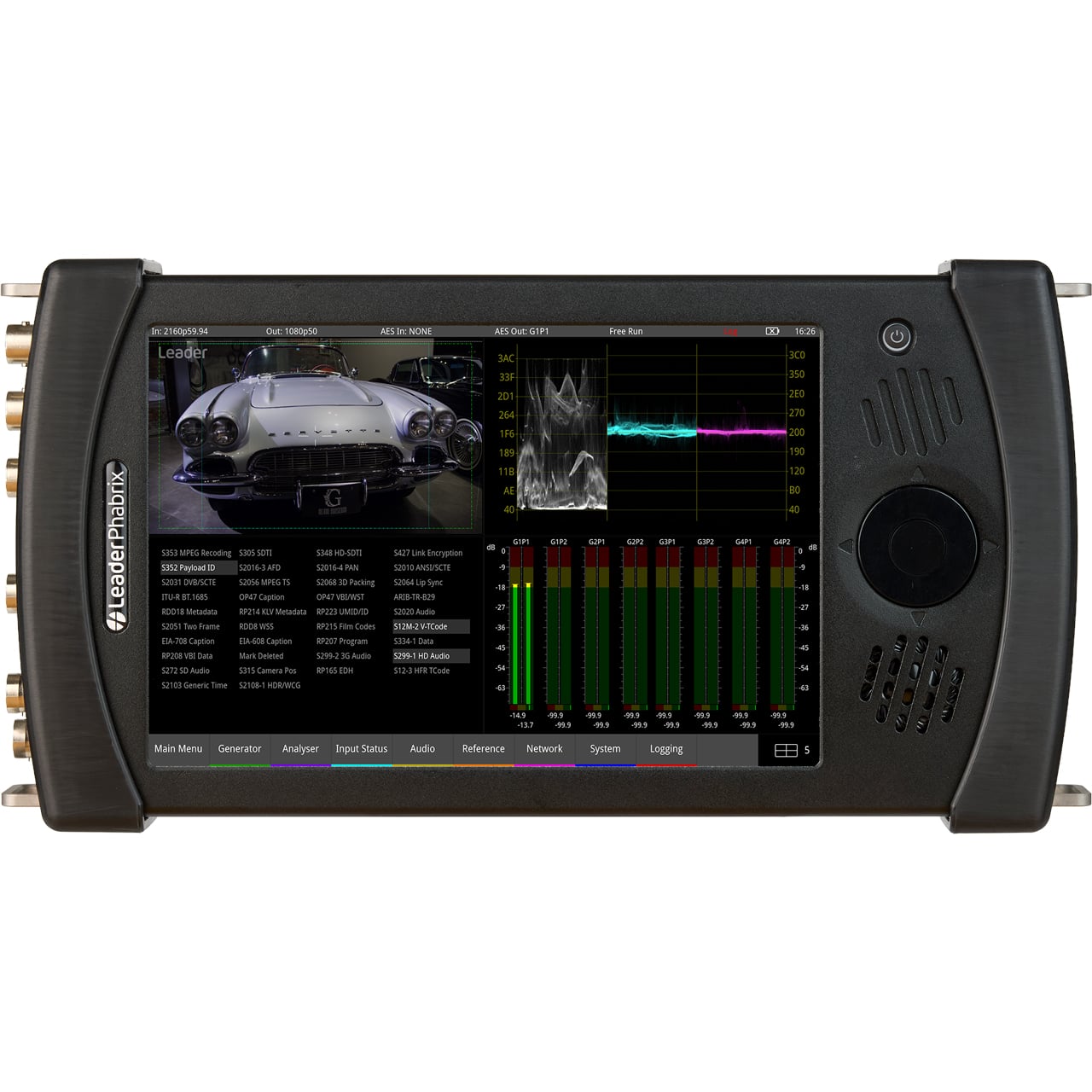

Meter 16 channels at a time from selectable SDI audio groups, drawn from up to 128 embedded channels depending on SDI format. Two AES and two analog input channels are also metered. Dolby E, Dolby Digital, Dolby Digital Plus and Dolby ED2 detection is included as standard.
