    PHSXOS - Overview

    This option allows a series of pre-defined actions to be run within the PHABRIX Sx range using a script stored in internal memory and a report created if selected.
    Applications include repeated test sequences as required by manufacturer Test Departments, R&D Departments, Systems Integrators and Commissioning/Support Engineers and those requiring support documentation using the report feature.

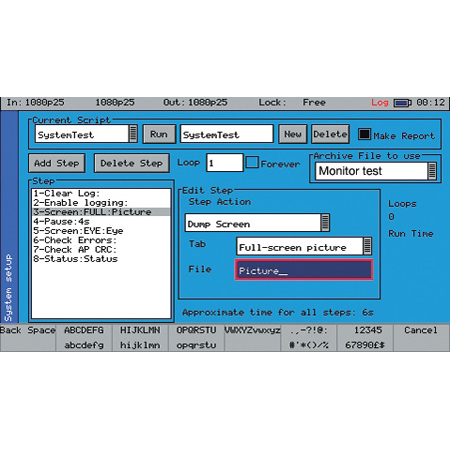

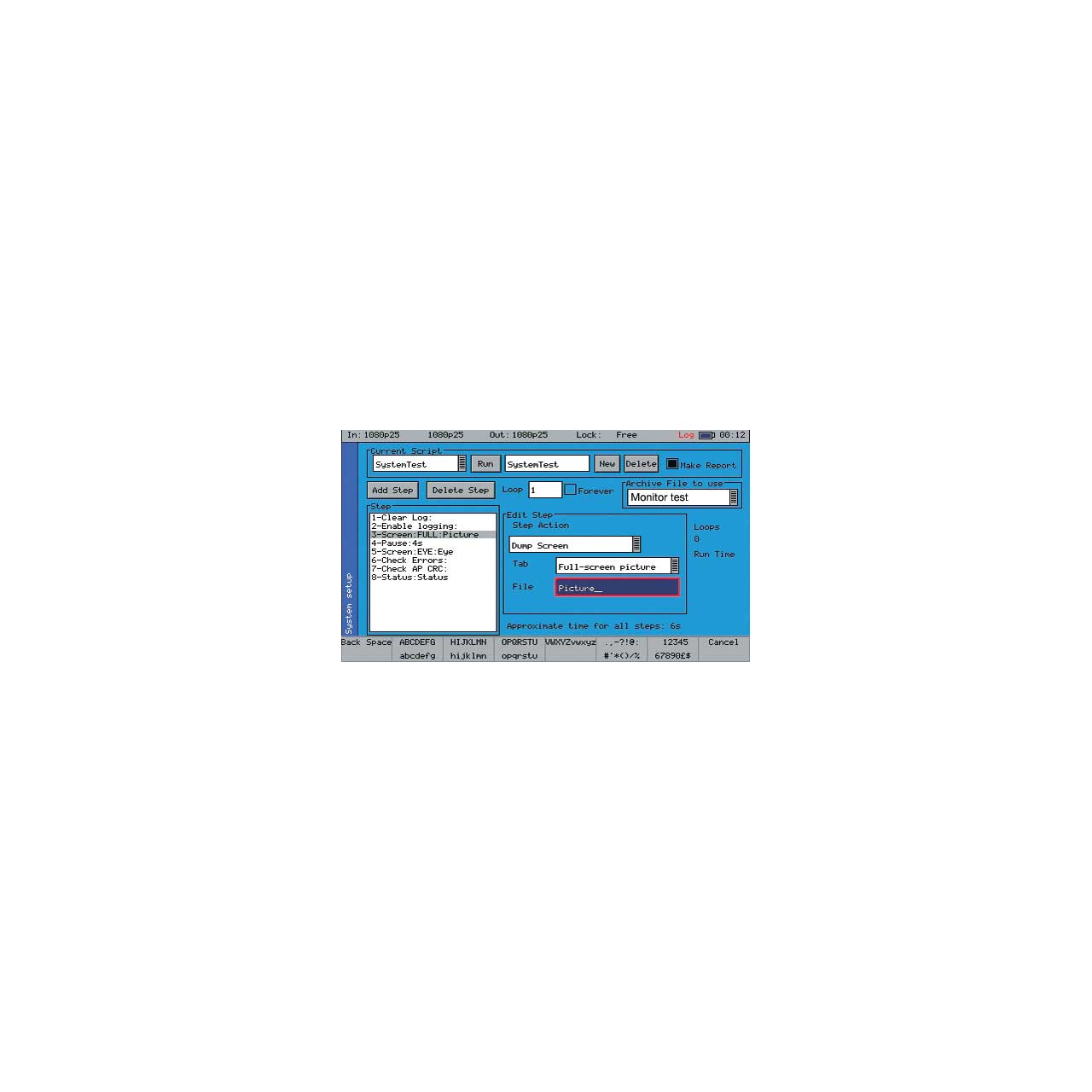

    In use it can automatically step through a sequence of instrument states, controlling the generator, analyser and the logging functions. Additionally a `screen dump' can be created. If required the instrument will prompt the user before going onto a subsequent state. By activating `Make report' the Sx will create a web page which the user can later print off by connecting via FTP or web browser from a PC. The report configured by the command script can include screen images if described in the script action.
    The reports feature is a powerful function linking user defined actions to a range of instrument parameters which can be saved and later printed from the web page created.

    • Features:

      • Recall memory: Loads the memory specifiedin the memory field
      • Check in/out errors: Check for EDH/CRC errors in the steptime. Errors will be sent to the log file
      • Check active picture CRC: Checks CRC value stays constant
      • Check AES I/P: Checks AES I/P for errors
      • Dump status: Saves user specified settings to report/xml file
      • Prompt user: Requires action from theoperator to continue
      • Enable/Disable event: Activates or disables the log file
      • Clear error counts: Clears all EDH/CRC errors
      • Pause: Defines a wait time
      • Loop: Allows the script to run untilstopped.
      • Dump screen: Records the instrument displayimage file to disk
