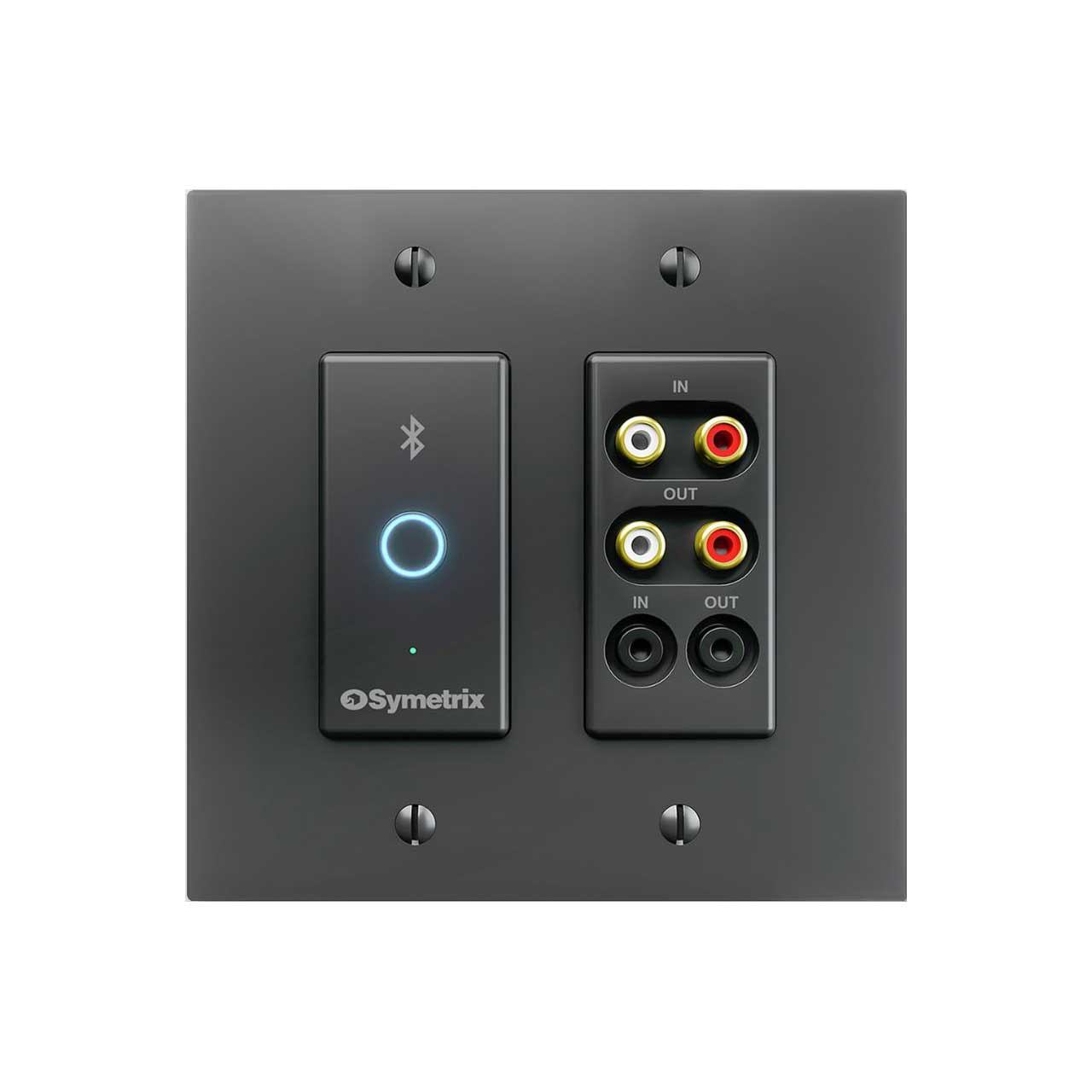

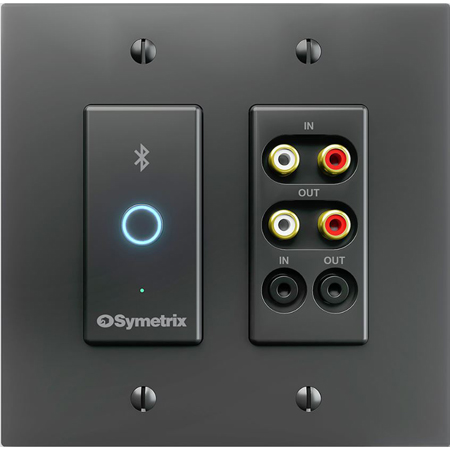

Symetrix XIO BLUETOOTH 4x4 Dante I/O Endpoint - Bluetooth Media In/Stereo RCA/Stereo 3.5mm/PoE/Decora Dual Gang - Black

Name: Symetrix XIO BLUETOOTH 4x4 Dante I/O Endpoint - Bluetooth Media In/Stereo RCA/Stereo 3.5mm/PoE/Decora Dual Gang - Black
Brand: Symetrix
SKU: SYX-XIOBTRCA35BK
Price: 1279.00 USD
Availability: InStock

ITEM #: SYX-XIOBTRCA35BK MFG #: 80-0191

Symetrix

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Required Accessories

Recommended Accessories

80-0191 - Overview

The Symetrix xIO Bluetooth family of PoE-powered Dante endpoints are the perfect addition to any Symetrix Composer based installation needing flexible wall mounted connectivity with world-class audio performance.

Available in black or white, the xIO Bluetooth family has a clean, sleek design and is compatible with standard Decora faceplates. The family consists of two models: the xIO Bluetooth for those needing simple convenient Bluetooth IO in a single gang form factor, and the xIO Bluetooth RCA-3.5 which adds additional flexibility in the form of stereo RCA and 3.5 analog IO for the connection of user supplied devices. Using a modern, full-featured Bluetooth 5.0 chipset, the xIO Bluetooth family offers extended range, a stable connection, and world-class audio quality.

Perfect for Conferencing, Hospitality, Education, or House of Worship use, all aspects of the device can be controlled using Symetrix remotes, SymVue touchscreens panels, or user devices. And complete configuration is fast and efficient from within Symetrix Composer software.

xIO Bluetooth and xIO Bluetooth RCA-3.5 require Symetrix Composer software for configuration and a Symetrix Dante DSP for operation.

Features:
- Dual gang Bluetooth 5.0, stereo RCA, and stereo 3.5mm PoE Dante endpoint
- Stereo RCA and 3.5mm unbalanced analog inputs with flexible routing and summing
- Simultaneous and independent stereo RCA and 3.5 mm unbalanced analog outputs
- 4 channels of Dante IO
- Selectable Bluetooth modes: Media only, Phone only, Both
- PIN code Bluetooth security
- Selectable single or multiple memorized Bluetooth pairings
- LED blackout mode
- Powerful configuration from Composer with flexible control from Symetrix remotes, SymVue touchscreens panels, or user supplied devices
- Perfect for Conferencing, Hospitality, Education, House of Worship, or Residential use
- Available with black or white finishes
- Supports standard dual gang Decora faceplates
Specifications:
- Specifications
- Form Factor: 1-gang US wall mount
- Display: Blue LED: Pairing Status
- Green LED: Device Status
- Button: Pairing control
- Compatibility: Symetrix Composer™ - managed products.
- Ethernet Cable: Standard CAT5e or CAT6, maximum deviceto-device length = 100 meters.
- Maximum Devices Per System: 128 devices per site file

  Mechanical Data
- Space Required: 1-gang US or EU Wall Box
- WHD: 5.62 in x 4.5 in x 1.2 in
- Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections
- Electrical: PoE IEEE 802.3af Class 0, 15 Watts maximum. No line voltage switching required
- Ventilation: Maximum recommended ambient operating temperature is 50 C / 122 F. Avoid prolonged exposure to direct sunlight or strong ultraviolet light
- Shipping Weight: 1.00 lbs
- Certifications and Compliance: Safety - UL/CSA/EN 62368-1, EMC: FCC 15.107:2021, FCC 15.109:2021, ICES003:2020, Environmental - RoHS, CE Radio Equipment Directive (RED):EN 300 328 V2.2.2:2019, EN 301 489-1 v2.2.3:2019, EN 301 489-17 v3.2.4:2020, EN 55035, EN 55032
Item Includes:
- 1x xIO Bluetooth RCA-3.5
- 1x Dual gang Decora® wall plate (black or white)
- 4x #6-32 x 5/8" Phillips Countersunk screws
- 4x #6-32 x 1/4" Slotted Oval Headscrews (black or white)
- 1x Quick Start Guide
Warranty:
- 5 years
