Tannoy AMS 5DC Surface Mount Loudspeaker - White - Pair

Questions? Ask a Markertek Expert:
800-522-2025 Email

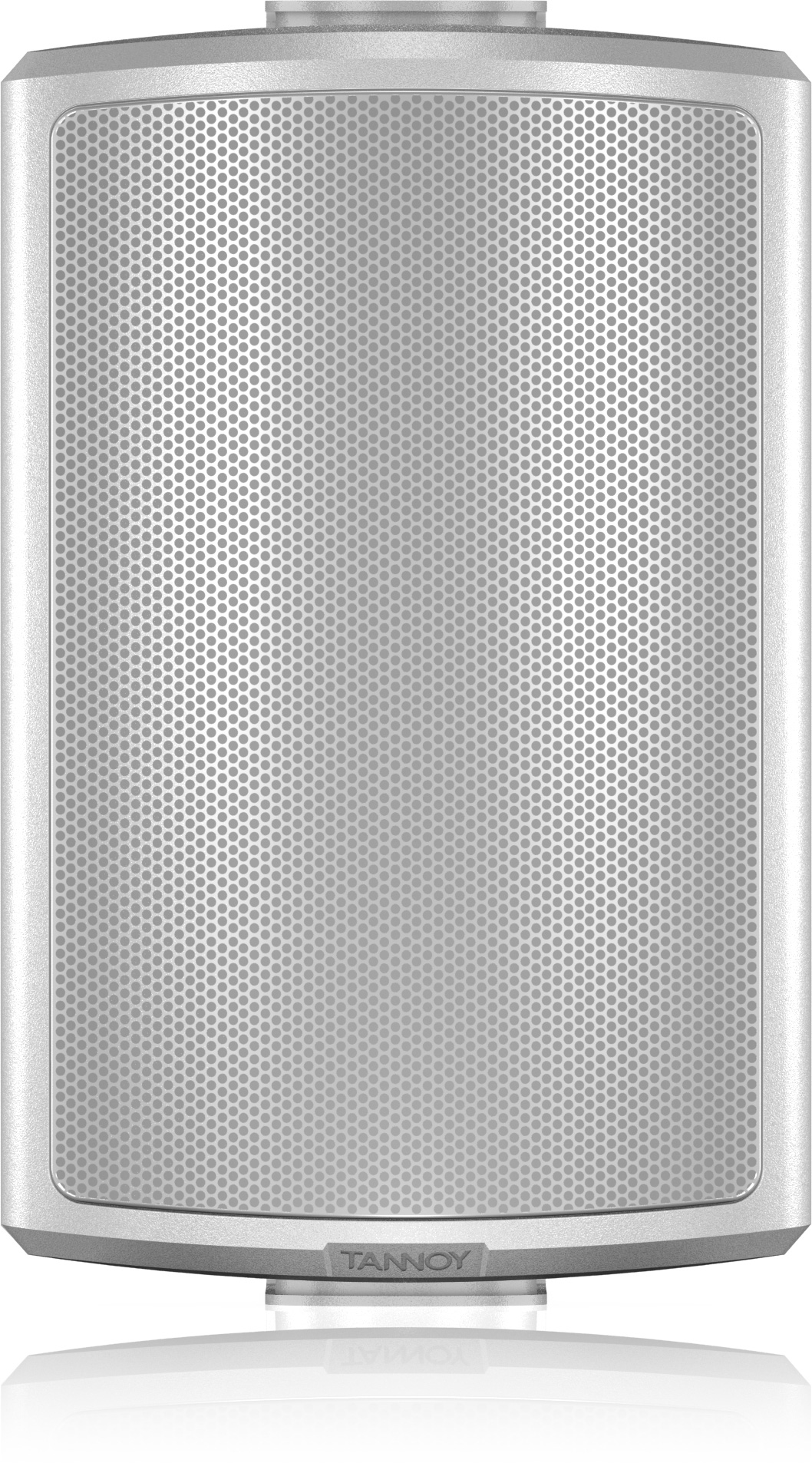

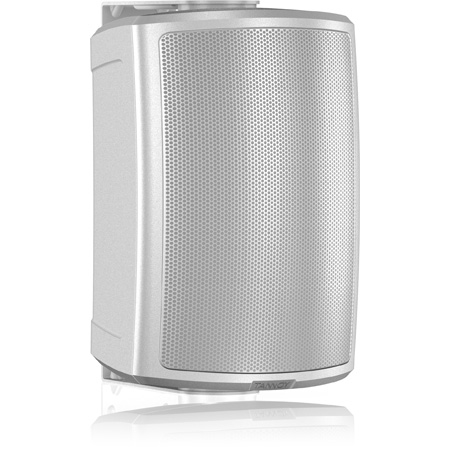

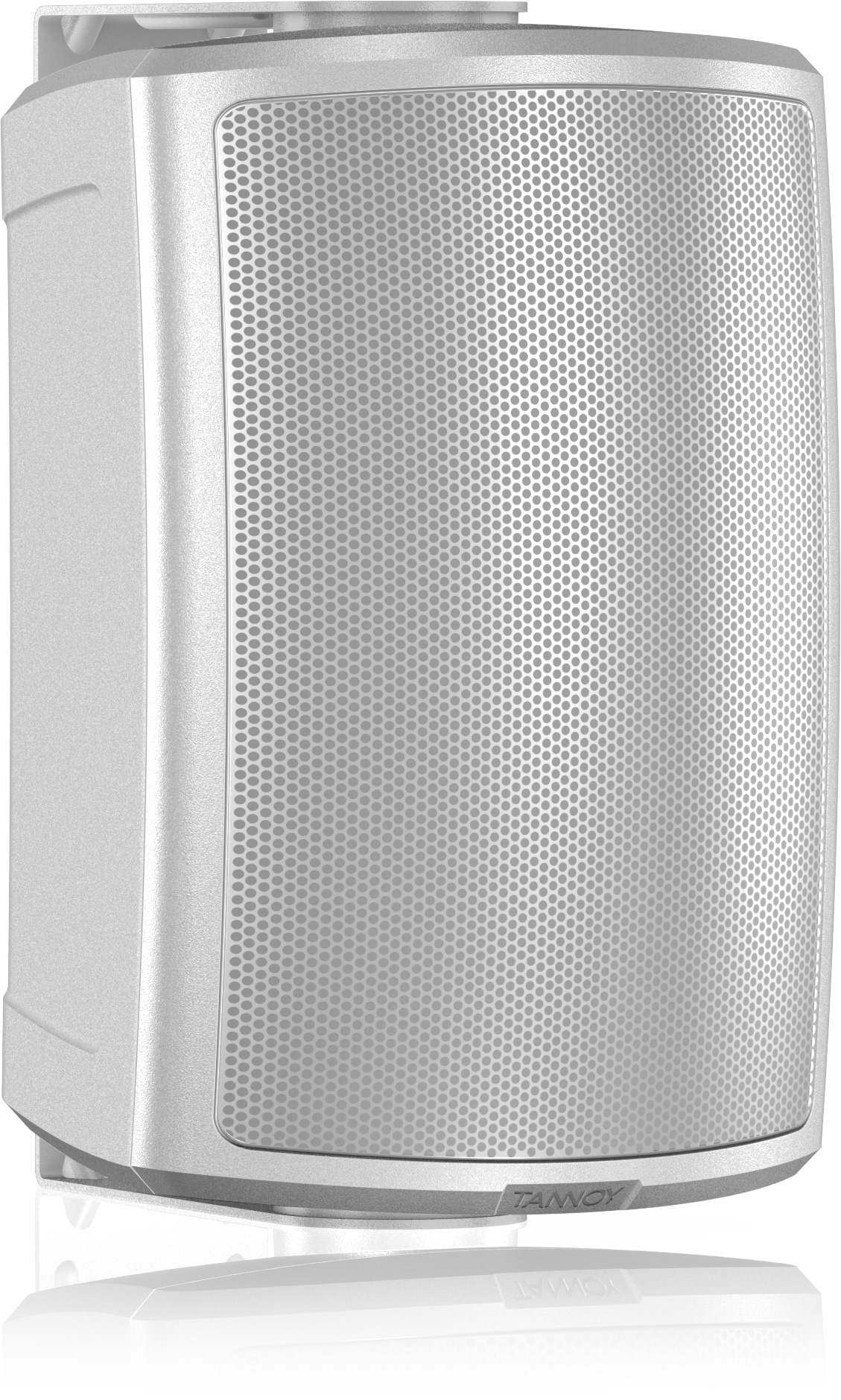

Tannoy AMS 5DC Surface Mount Loudspeaker - White - Pair

Manufacturer: Tannoy Ltd.

Item #: TAN-AMS-5DC   •   MFG #: AMS 5DC WHITE




Our Price:$400.00

free ship


Color:



Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.


    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The Tannoy AMS 5DC is a wide bandwidth, high power-handling and high sensitivity surface mount loudspeaker designed with an aesthetic that is perfect for the architectural considerations of building design. The elegantly styled moulded enclosures blend beautifully into any decor with custom colour available on special order. Additionally the AMS 5DC has undergone the most punishing environmental testing of any product in Tannoy's history - achieving an IP65 rating, which is among the highest in the industry for outdoor use.

    Behind the unobtrusive, smoothly formed, weather-resistant zinc-plated nickel grilles and higher temperature polymer mouldings lies the technical heart of Tannoy's Dual Concentric Driver's revolutionary Omnimagnet technology and a unique patent-pending Torus Ogive Waveguide device. Together these innovations provide more consistent and controlled directivity along with improved high frequency response, as well as much improved time alignment and greater coherence between the low frequency and high frequency drivers.

    This latest generation of Dual Concentrics have their genesis in many of the world's high end recording studios, with that classic signature Tannoy technology being used to mix and master a rich history of recording industry classics, including The Beatles' most treasured recordings in London's Abbey Road. By extension, the new AMS models ensure that playback of recorded material sounds exactly as the engineer intended when it was mixed in the studio, making them perfect for entertainment and hospitality venues, as well as areas where true sonic clarity and reliability is required.

    The AMS range utilises a 16 ohm driver, making it ideal for use in high performance low-impedance systems (with optimized performance when used in conjunction with Lab.gruppen LUCIA amplifiers). Alternatively, for constant voltage systems, Tannoy have specified as standard, high quality low insertion loss 30 W transformers featuring switching for taps at 30 W, 15 W and 7.5 W, with an additional 3.75 W tap for traditional systems.

    APPLICATIONS:
    Multi-zone foreground music and paging
    Boardrooms, offices and courtrooms
    Business music systems
    Airports, convention centres and hotels
    Auxiliary systems in houses of worship
    Lounges and bars
    Cruise ships


    • Features

      • Next-generation Dual Concentric driver featuring Omnimagnet technology
      • Torus Ogive waveguide for improved broadband directivity
      • 16-ohm drivers optimized for use with Lab.gruppen LUCIA amplifiers

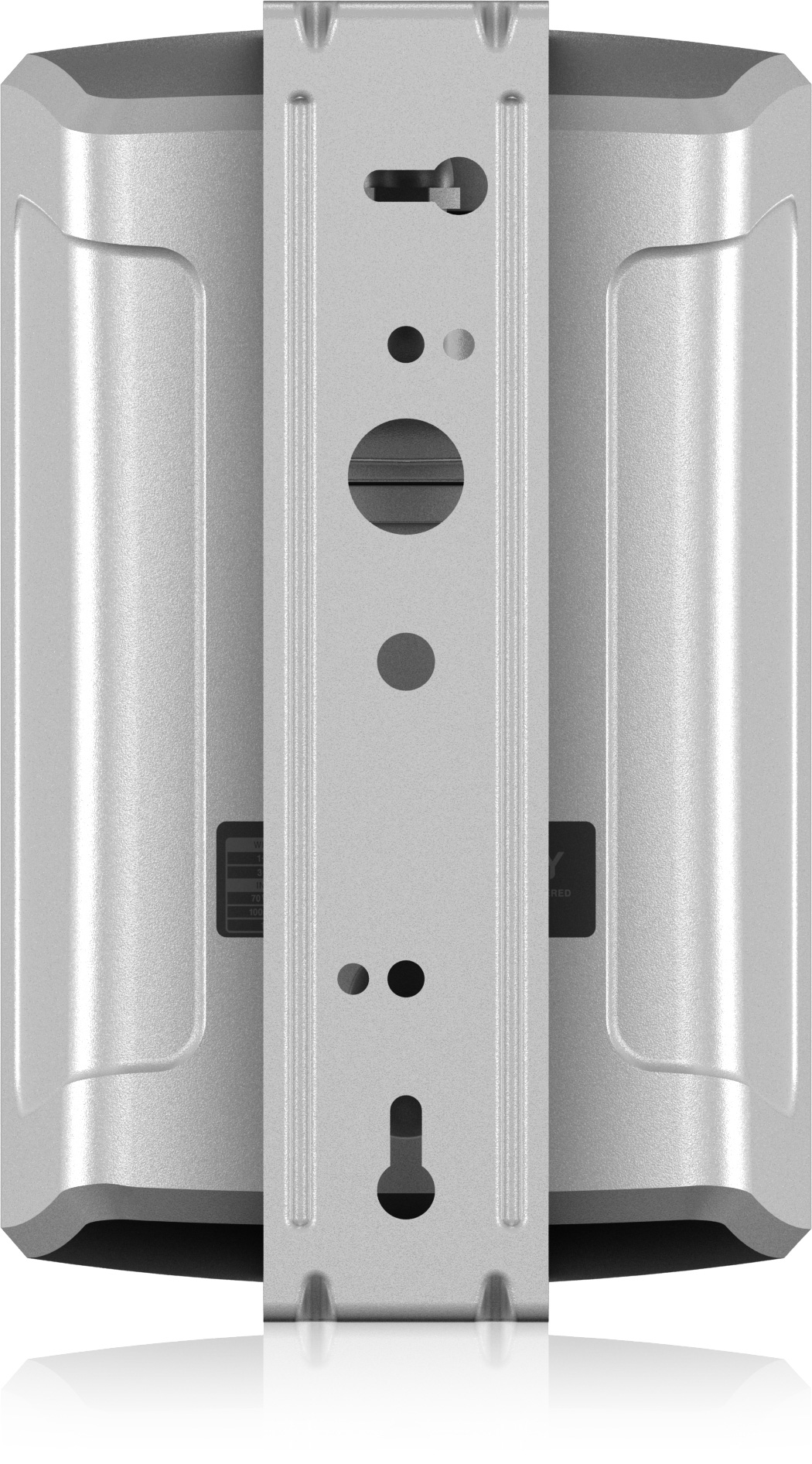

      • Yoke bracket included; optional any-angle accessory bracket available
      • Weather resistant rated IP65 to EN60529 (IEC529)
      • Thickened 4 mm high-temperature molded cabinets
      • Custom color options

    • Specifications

      • Frequency response (-3 dB): 90 Hz - 30 kHz
      • Frequency range (-10 dB): 80 Hz - 40 kHz
      • System sensitivity (1 W @ 1m): 87 dB (1 W = 4 V for 16 Ohms)
      • Nominal Coverage Angle: 90 degrees conical
      • Power Handling:
      • - Average 60 W
      • - Programme 120 W
      • - Peak 240 W
      • Recommended Amplifier Power: 120 W @ 16 ohms
      • Nominal Impedance (Lo, Z): 16 ohms
      • Rated maximum SPL:
      • - Average 105 dB
      • - Peak 111 dB
      • Transformer Taps (via front rotary switch):
      • - 70 V: 30 W / 15 W / 7.5 W / 3.75 W / OFF & Low impedance operation
      • - 100 V: 30 W / 15 W / 7.5 W / OFF & Low impedance operation

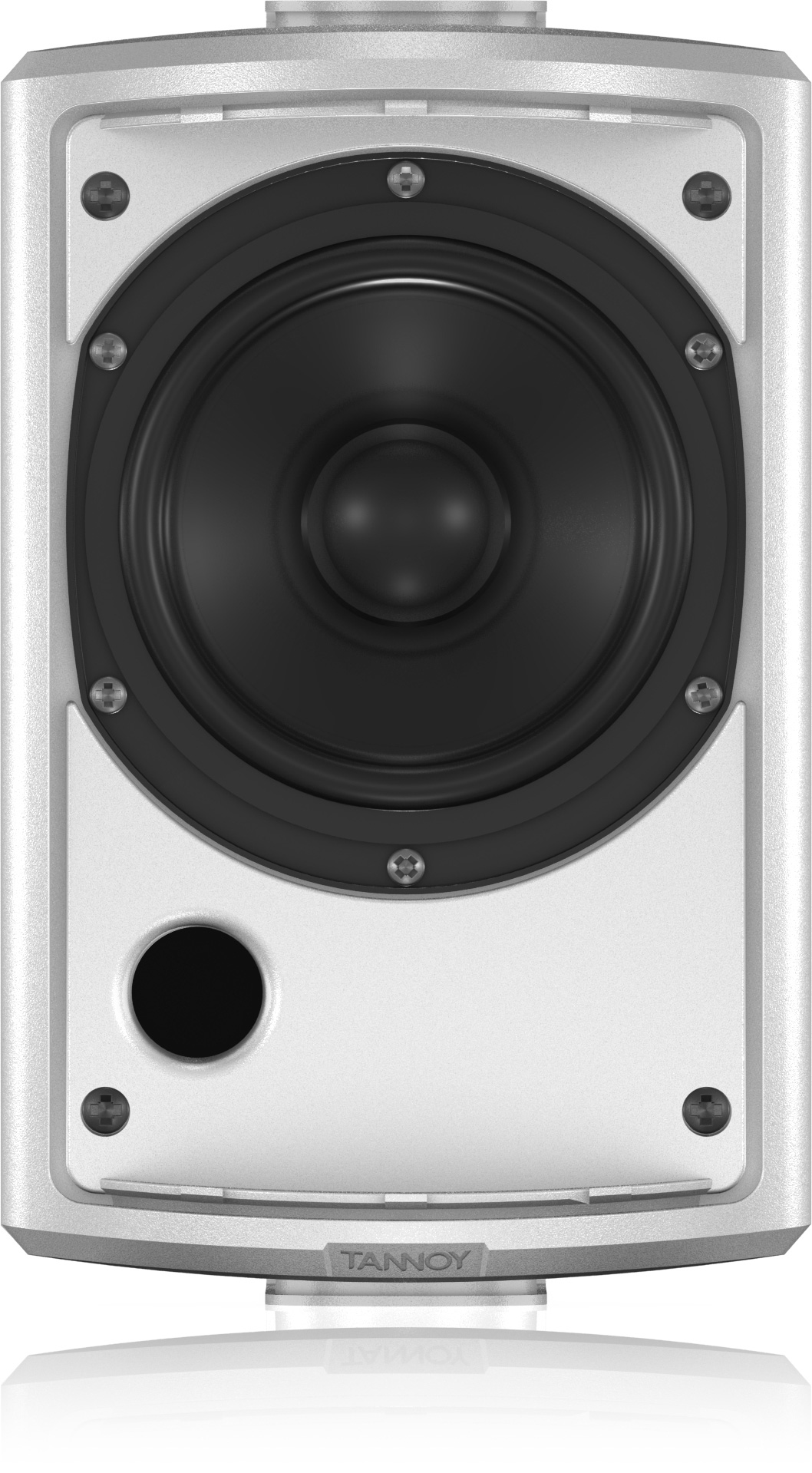

      • Dual Concentric point source driver: 1x 130 mm (5.0") Dual Concentric driver, using Omnimagnet technology
      • Low Frequency: 35 mm (1.38" ) voice coil, treated multi fibre paper pulp cone
      • High Frequency: 20 mm (0.79") PEI dome
      • Enclosure: ABS
      • Grille: Steel, plated and painted
      • Connectors: Removable locking connector with screw terminals
      • Transformer setting: Rotary switch
      • Dimensions (H x W x D):
      • - 248.0 x 155.0 x 203.9 mm
      • - (9.77 x 6.10 x 8.03")
      • Net Weight (ea): 3.25 kg (7.16 lbs)
      • Shipped weight: 3.66 kg (8.07 lbs)

    • Item Includes

      • 2 Loudspeakers
      • Yoke Bracket

    • GTIN:

      5035866179466
