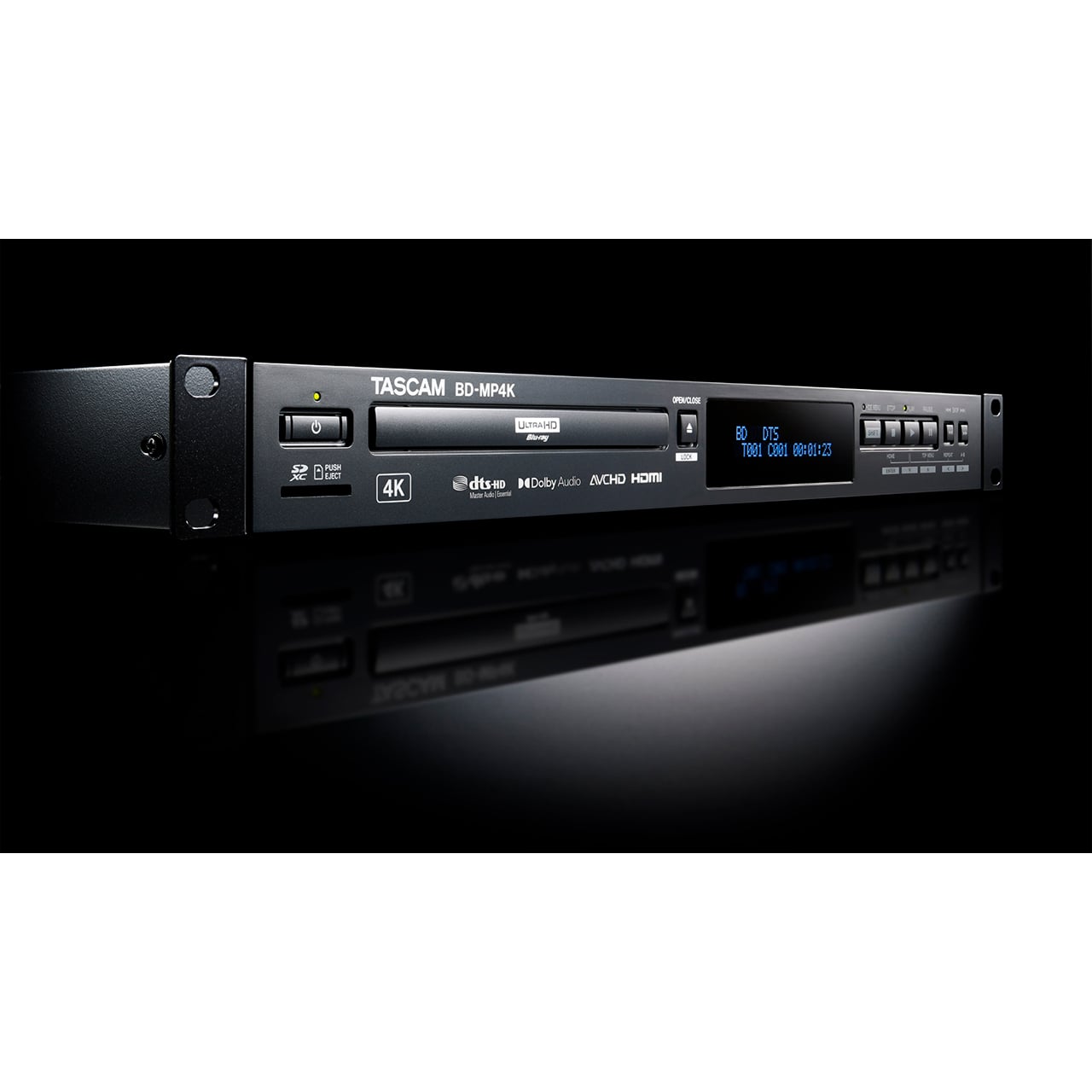

Tascam BD-MP4K 1U Rackmount 4K UHD Blu-ray/DVD/CD/SD/USB Multi-Media Player with External Remote Control Support

BD-MP4K - Overview

• Features:

  • Playback of 4K Ultra HD and standard Blu-ray discs, DVDs and CDs supported
  • exFAT file format supported Playback of video, photo and audio files in various formats possible from SD/SDHC/SDXC cards and USB flash drives
  • Power-on-play supported with BD, 4K UHD BD, DVD and CDDA media
  • Seamless repetition of chapters, titles and A-B intervals
  • Last memory function (resume playback of disc media)
  • Multiple lock functions to prevent accidents caused by misoperation (panel lock, IR remote lock, tray lock)
  • HIDE MENU function can be used to show only contents
  • External control using Gigabit Ethernet and RS-232C supported

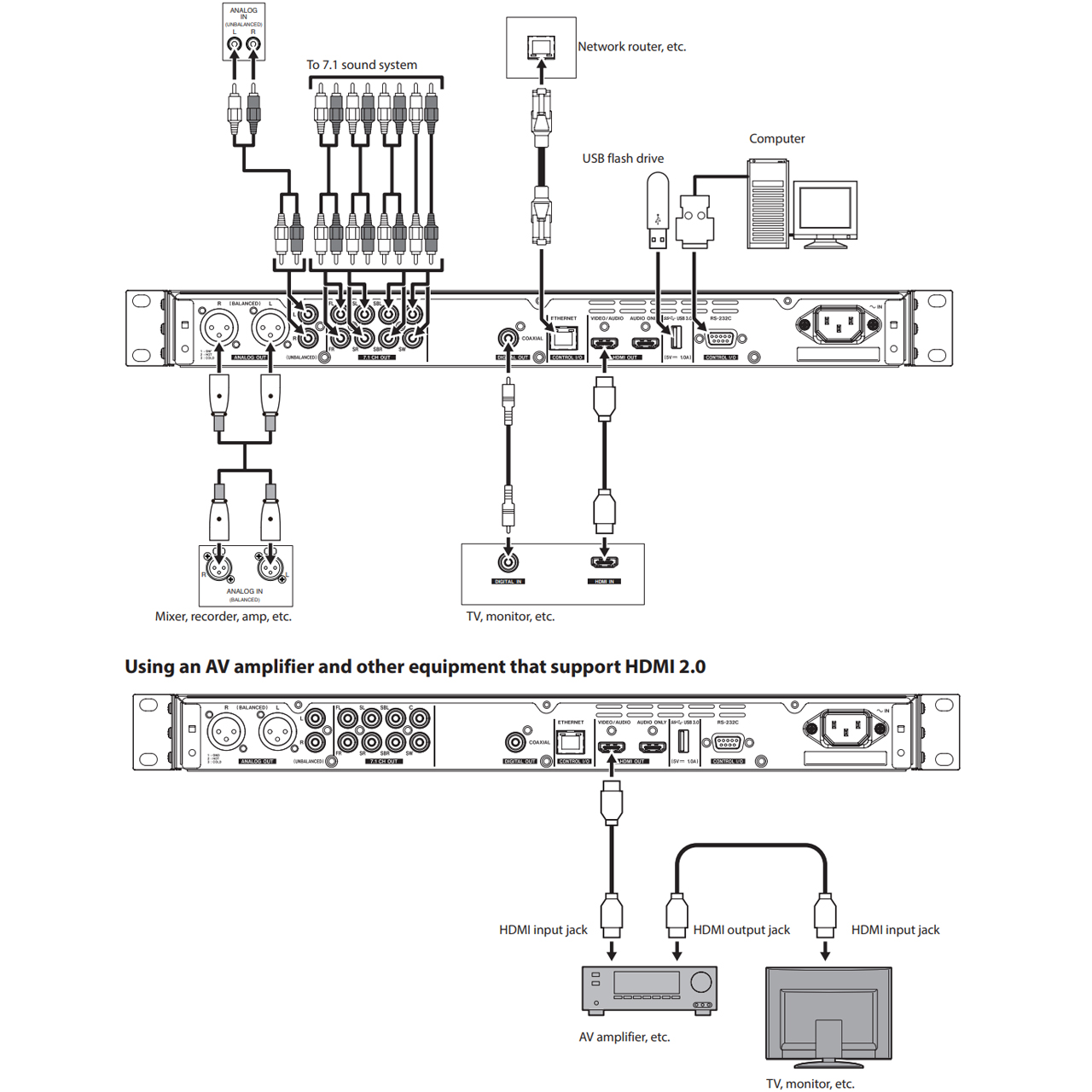

  • Simultaneous use possible for HDMI 2.0 video and audio output, HDMI 1.4 audio output, XLR balanced audio output, RCA 7.1-channel audio (unbalanced) output, RCA stereo output and set audio output for SPDIF/Dolby/DTS digital (coaxial) output
  • HDMI 2.0 audio/video output, HDMI 1.4 audio output, XLR balanced audio output, RCA 7.1ch audio output, (RCA unbalanced), RCA stereo output, SPDIF/Dolby/DTS digital output (coaxial)
  • Audio output volume adjustment function included (0 dB - -40 dB)
  • USB 3.0 port on back enables high-speed data transfer
  • Samba supported, enabling content playback through servers
  • IR remote control (RC-BDMP4K) included
  • Sturdy metal body
  • 1U rackmount size


• Specifications:

  • Disc Media
  • Blu-ray: 4K Ultra HD BD, BD25, BD50, BD-ROM, BD-R, BD-RE
  • DVD: DVD-ROM, DVD-R, DVD-RW, DVD+R, DVD+RW
  • CD: CD-DA, CD-R, CD-RW

    Disc Type
  • Blu-ray: BDMV, BDAV
  • DVD: DVD-Video, DVD-VR, AVCHD
  • Format: FAT16, FAT32, exFAT or NTFS file system is needed in order to format USB flash memory and SD cards.
  • Video: ASF, MPG, AVI, 3GP, DAT, MKV, MOV, M2TS, OGM, TP, TS, MP4, WMV
  • Audio: WAV, MP3, WMA, AAC, FLAC, APE
  • Picture: JPEG, GIF, PNG

    Audio
  • Blu-ray/DVD/USB/SD
  • Sampling frequency: 44.1k/48k/64k/88.2k/96k/176.4k/192k Hz
  • Bit length: 16/24 bit

    CD
  • Sampling frequency: 44.1k/48k Hz
  • Bit length: 16/24 bit

    MP3/WMA
  • Sampling frequency: 32k/44.1k/48k Hz

    Bit Rate
  • MP3: 112k to 320k bps
  • WMA: 48k to 192k bps *Supports Ver.9 standard only, DRM not supported
  • HDMI Output: * HDMI audio output is limited to one with AUDIO ONLY prioritized. (For HDMI Audio output, both AUDIO ONLY and VIDEO/AUDIO cannot be output simultaneously).

    Video/Audio
  • Connector: HDMI 19pin Type A
  • Version: 2.0
  • Resolution: 480i/576i, 480p/576p, 720p, 1080i, 1080p, 2160p *Monitor and cable must support 2160p output
  • Aspect ratio: 16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 Letterbox
  • Video format: NTSC, PAL, Multi
  • HDMI signal system: RGB PC level, RGB Video level, YCbCr(4:4:4), YCbCr(4:2:2)

    Audio Only: *Video signals are not exported through the AUDIO ONLY terminal
  • Connector: HDMI 19pin Type A
  • Version: 1.4

    Digital Audio Outputs - Coaxial
  • Connector: RCA pin jack
  • Format: IEC60958-3(S/P DIF)
  • Output impedance: Ω

    Analog Audio Outputs - Balanced
  • Connector: XLR-3-32(1: GND, 2: HOT, 3: COLD) x 2 (Stereo)
  • Nominal output level: +4dBu (1.23 Vrms)
  • Maximum output level: +20dBu (7.75Vrms)
  • Output impedance: 200Ω

    Unbalanced
  • Connector: RCA pin jack x 2
  • Nominal output level: -10dBV (0.316 Vrms)
  • Maximum output level: +6dBV (2.0Vrms)
  • Output impedance: 200Ω

    7.1CH Audio Outputs
  • Connector: RCA pin jack x 8 (FL/FR/SL/SR/SBL/SBR/C/SW)
  • Connector color: FL, SL, SBL: White
  • FR, SR, SBR: Red
  • C, SW: Black
  • Nominal output level: -10dBV (0.316 Vrms)
  • Maximum output level: +6dBV (2.0Vrms)
  • Output impedance: 200Ω

    RS-232C
  • Connector: D-sub 9pin
  • Format: RS-232C compliant

    Ethernet
  • Connector: RJ-45
  • Compatible standard: 10BASE-T/100BASE-TX/1000BASE-T
  • Protocol: SMB1/CIFS for Network Attached Storage
  • TCP/IP for remote control

    USB
  • Connector: USB type-A x1 (Rear)
  • Protocol: USB 3.0 compliant
  • Rated supply voltage: DC 5V, 1A
  • Mass storage class: 2TB (Max)
  • File format: FAT16/FAT32/exFAT/NTFS

    SD
  • Media: SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 512GB)
  • Storage class: 512GB (Max)
  • File format: FAT16/FAT32/exFAT


  • Power: AC 100V to 240V, 50/60Hz
  • Power Consumption: 30W
  • Dimensions: 482.6(W) x 44.0(H) x 280.7(D) mm
  • Weight: 2.78kg / 6.13lb
  • Operating Temperature: 5 to 35°C


• Item Includes:

  • 1x Main unit
  • 1x Power cord
  • 1x Wireless remote control
  • 2x AAA batteries
  • 1x Rackmount screw kit
  • 1x Oweners manual
