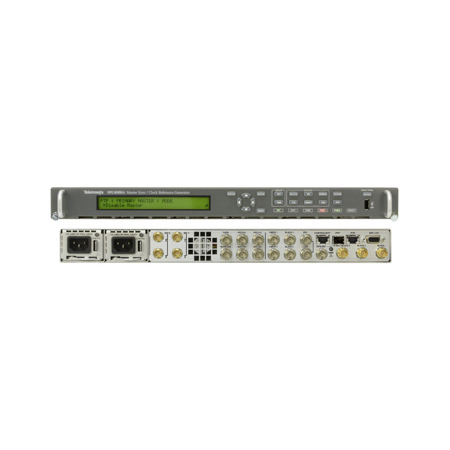

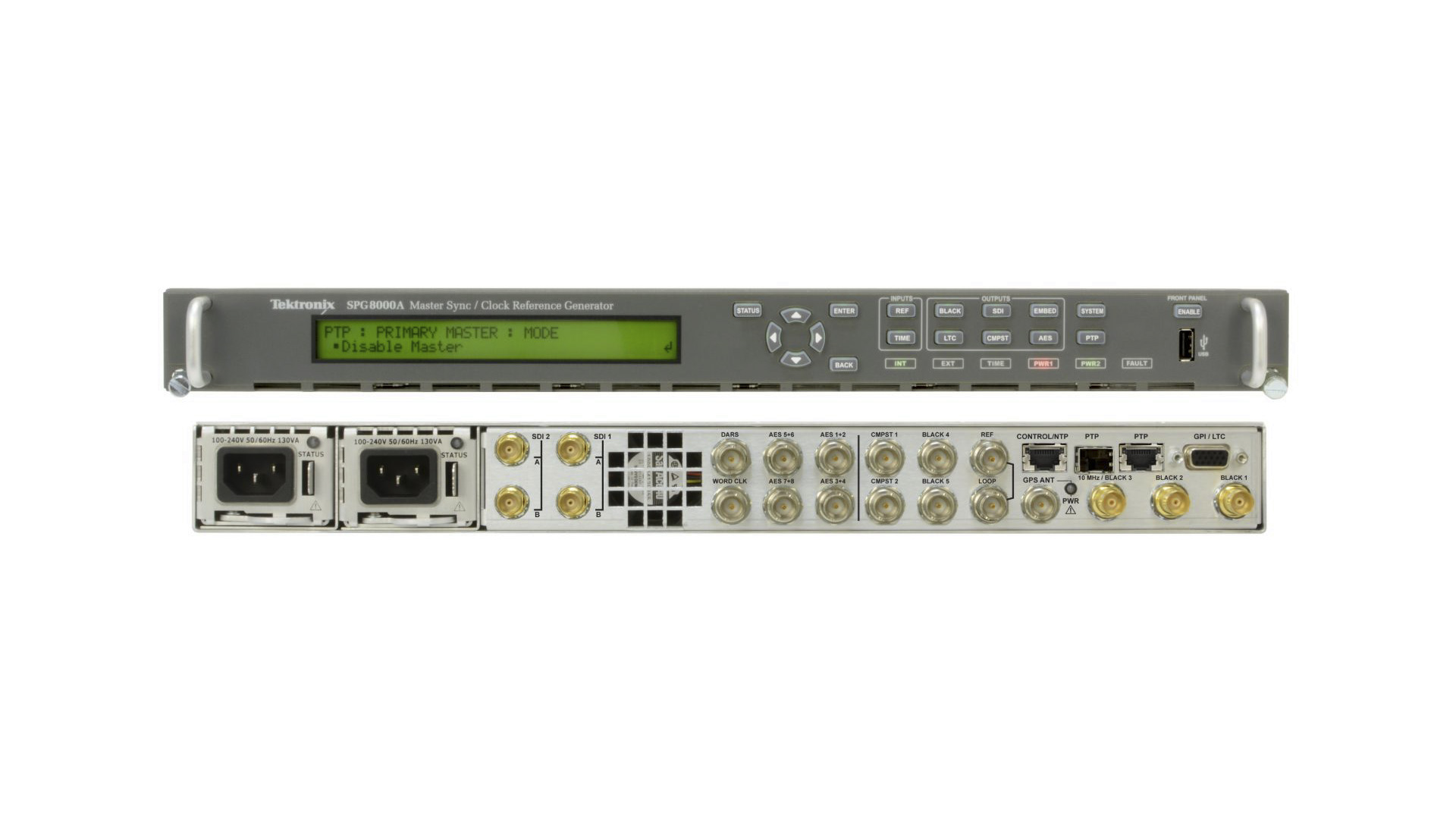

Tektronix SPG8000A Master Sync / Master Clock Reference Generator
  • Tektronix SPG8000A Master Sync / Master Clock Reference Generator
  • Tektronix SPG8000A Master Sync / Master Clock Reference Generator
  • Tektronix SPG8000A Master Sync / Master Clock Reference Generator

Questions? Ask a Markertek Expert:
800-522-2025 Email

Tektronix SPG8000A Master Sync / Master Clock Reference Generator

Manufacturer: Tektronix

Item #: TEK-SPG8000A   •   MFG #: SPG8000A




Our Price:$6,220.00

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The SPG8000A is a precision multiformat video signal generator, suitable for master synchronization and reference applications. It provides multiple video reference signals, such as black burst, HD tri-level sync, and serial digital and composite analog test patterns, and it provides time reference signals such as time code, NTP (Network Time Protocol), and IEEE 1588 PTP (Precision Time Protocol). The base configuration includes three sync outputs that can be configured with independent output formats and independently adjustable timing offsets.

    Time reference outputs are available in multiple formats. Three independent linear time code (LTC) outputs are available, and a fourth LTC connection can be used as input or output. Each LTC output has independent frame rate selection, time source (time-of-day or program time) and time zone offset. Vertical interval time code (VITC) is available on each NTSC or PAL black output, also with independent time sources and offsets. The SPG8000A can also serve as a Network Time Protocol (NTP) server or as a Precision Time Protocol (PTP) grandmaster clock, providing the time-of-day reference to network-attached devices.


    • Features

      • Multiple independent black burst and HD tri-level sync outputs provide all the video reference signals required in a video broadcast or production facility
      • Four LTC outputs, VITC on black burst outputs, and NTP server provide time reference signals in a variety of formats
      • PTP (IEEE 1588) support, including SMPTE ST 2059-2 and AES67 profiles
      • GPS/GLONASS-based synchronization gives an accurate time-of-day reference and deterministic video phase reference across multiple independent systems
      • Stay GenLock and Holdover Recovery prevent synchronization shock when the external reference input, PTP, or GPS/GLONASS signal is temporarily lost
      • Wide selection of video test patterns in serial digital formats (SD, HD and 3G-SDI) and composite analog formats (NTSC and PAL)
      • 4K/UHD formats support with full frame 100% and 75% color bars (Quad Link Square Division)
      • Dual hot-swappable power supplies ensure continuous availability of reference signals
      • Easy to manage with Web-based interface for remote configuration and SNMP for status and alert information

    • Specifications

      • Reference input
      • Connector: BNC ×2, passive loop-through
      • Input impedance: 75 Ω
      • Input signal: NTSC/PAL black burst ; HD tri-level sync: 1080/60/59.94/50I, 1080/30/29.97/25/24/23.98P, 1080/24/23.98PsF, 720/60/59.94/50P; 10 MHz continuous wave
      • Amplitude range: -8 dB to +6 dB
      • S/N ratioL: >40 dB
      • SCH phase: 0 ±40°
      • Return loss: ≥30 dB at 300 kHz to 10 MHz
      • Lock stability: ±3 dB amplitude change - <1 ns; Jitter with burst lock - <0.5°; Jitter with sync lock - <1 ns; Jitter with CW lock - <1 ns (typ. 1°)

        Genlock
      • Timing adjustment range: Anywhere in the color frame
      • Timing adjustment resolution: <0.5° of NTSC/PAL subcarrier, 1 ns with tri-level sync input
      • Color framing: Keeps accuracy even with ±45° SCH error of input reference signal
      • Genlock tune range: ±7.5 × 10-6

        Time reference
      • Source: GPS or GLONASS signal, PTP input, LTC input, VITC read from NTSC/PAL genlock input, or can enter manually
      • Time zone offset: ?23:59 to +23:59
      • Daylight saving adjustment: Start/end from recurring calendar or manually scheduled, with adjustable offset
      • Leap second adjustment: Inserted at 00:00 UTC on the scheduled date, or deferred up to 24 hours

        LTC Input
      • Connector: Available through D-sub 15-pin connector; Optional break-out cable to XLR connector available
      • Formats: 24 fps (24 Hz or 23.98 Hz), 25 fps, 30 fps, 30 fps drop-frame (29.97 Hz) per SMPTE 12M
      • Timing to video: Compliant with SMPTE 12M and continues to operate over at least 90% of possible timing range
      • Signal voltage range: 0.5 to 10 Vp-p differential, 1 to 5 Vp-p single ended
      • Noise tolerance: -30 dB SNR RMS white noise with 10 kHz BW to the p-p signal level, or -10 dB SNR for 5 MHz white noise
      • Hum tolerance: 0 dB hum-to-signal ratio
      • Error immunity: 100 consecutive frames with consistent time code must be detected for time to be considered valid
      • Input impedance: Nominal 600 Ω differential, 300 Ω single ended
