    Tektronix SPG8000ANT GPS/GLONASS Rooftop Antenna (5.0 VDC/1588 MHz Range/F-Connector) Recieves GPS/GLONASS

    Manufacturer: Tektronix

    Item #: TEK-SPG8000ANT   •   MFG #: SPG8000ANT




    Our Price:$419.00

    free ship


    Availability:
    More on the way, usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      Required Accessories

      The SPG8000A is a precision multiformat video signal generator, suitable for master synchronization and reference applications. It provides multiple video reference signals, such as black burst, HD tri-level sync, and serial digital and composite analog test patterns, and it provides time reference signals such as time code, NTP (Network Time Protocol), and IEEE 1588 PTP (Precision Time Protocol). The base configuration includes three sync outputs that can be configured with independent output formats and independently adjustable timing offsets.

      Option GPS adds an integrated receiver to the SPG8000A that is capable of receiving both GPS and GLONASS signals. When connected to an external antenna that supplies the standard GPS and/or GLONASS RF signal (for example, SPG8000ANT), the SPG8000A can use the GPS?/?GLONASS system’s stable frequency reference.

      The GPS/GLONASS signal also includes a precise time-of-day reference that can be used for all time code outputs. Similar to the Stay GenLock feature, the SPG8000A can maintain the video frequency and phase when the GPS/GLONASS signal is interrupted, and the Holdover Recovery mode will ensure a shock-free realignment of frequency and phase when the GPS/GLONASS signal is restored.

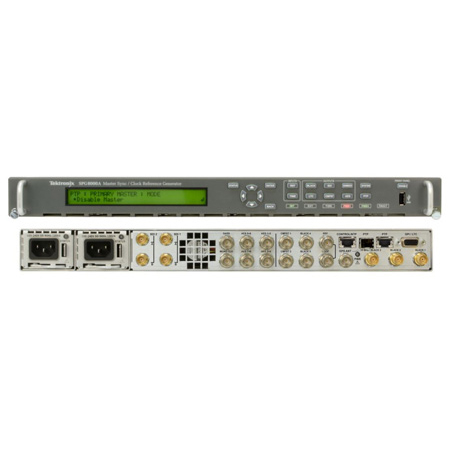

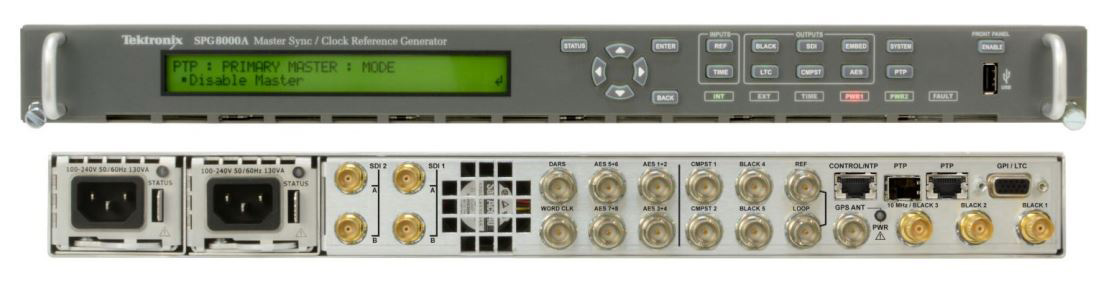

      Please note! This item is an add-on "option" to the Tektronix SPG8000A Master Sync / Master Clock Reference Generator. The SPG8000A is required and sold separately. Image is for reference only!


      • Features

        • Multiple independent black burst and HD tri-level sync outputs provide all the video reference signals required in a video broadcast or production facility
        • Four LTC outputs, VITC on black burst outputs, and NTP server provide time reference signals in a variety of formats
        • PTP (IEEE 1588) support, including SMPTE ST 2059-2 and AES67 profiles
        • GPS/GLONASS-based synchronization gives an accurate time-of-day reference and deterministic video phase reference across multiple independent systems
        • Stay GenLock and Holdover Recovery prevent synchronization shock when the external reference input, PTP, or GPS/GLONASS signal is temporarily lost
        • Wide selection of video test patterns in serial digital formats (SD, HD and 3G-SDI) and composite analog formats (NTSC and PAL)
        • 4K/UHD formats support with full frame 100% and 75% color bars (Quad Link Square Division)
        • Dual hot-swappable power supplies ensure continuous availability of reference signals
        • Easy to manage with Web-based interface for remote configuration and SNMP for status and alert information
        • ANT option is a GPS/GLONASS Rooftop Antenna (5.0 VDC/1588 MHz Range/F-Connector) Recieves GPS/GLONASS

      • Specifications

        • Reference input
        • Connector: BNC ×2, passive loop-through
        • Input impedance: 75 Ω
        • Input signal: NTSC/PAL black burst ; HD tri-level sync: 1080/60/59.94/50I, 1080/30/29.97/25/24/23.98P, 1080/24/23.98PsF, 720/60/59.94/50P; 10 MHz continuous wave
        • Amplitude range: ?8 dB to +6 dB
        • S/N ratioL: >40 dB
        • SCH phase: 0 ±40°
        • Return loss: ≥30 dB at 300 kHz to 10 MHz
        • Lock stability: ±3 dB amplitude change - <1 ns; Jitter with burst lock - <0.5°; Jitter with sync lock - <1 ns; Jitter with CW lock - <1 ns (typ. 1°)

          Genlock
        • Timing adjustment range: Anywhere in the color frame
        • Timing adjustment resolution: <0.5° of NTSC/PAL subcarrier, 1 ns with tri-level sync input
        • Color framing: Keeps accuracy even with ±45° SCH error of input reference signal
        • Genlock tune range: ±7.5 × 10-6

          Time reference
        • Source: GPS or GLONASS signal, PTP input, LTC input, VITC read from NTSC/PAL genlock input, or can enter manually
        • Time zone offset: ?23:59 to +23:59
        • Daylight saving adjustment: Start/end from recurring calendar or manually scheduled, with adjustable offset
        • Leap second adjustment: Inserted at 00:00 UTC on the scheduled date, or deferred up to 24 hours

          LTC Input
        • Connector: Available through D-sub 15-pin connector; Optional break-out cable to XLR connector available
        • Formats: 24 fps (24 Hz or 23.98 Hz), 25 fps, 30 fps, 30 fps drop-frame (29.97 Hz) per SMPTE 12M
        • Timing to video: Compliant with SMPTE 12M and continues to operate over at least 90% of possible timing range
        • Signal voltage range: 0.5 to 10 Vp-p differential, 1 to 5 Vp-p single ended
        • Noise tolerance: -30 dB SNR RMS white noise with 10 kHz BW to the p-p signal level, or -10 dB SNR for 5 MHz white noise
        • Hum tolerance: 0 dB hum-to-signal ratio
        • Error immunity: 100 consecutive frames with consistent time code must be detected for time to be considered valid
        • Input impedance: Nominal 600 Ω differential, 300 Ω single ended

          GPS/GLONASS receiver (Option GPS)
        • Type: L1 frequency (GPS - 1575.42 MHz, GLONASS - 1602.00 MHz), C/A Code, 32 channels
        • Time accuracy: Within 150 ns to GPS/GLONASS/UTC
        • Acquisition time: 2 minutes on boot up with warm oven, good satellite signal, and known position

          GPS/GLONASS antenna input (Option GPS)
        • Connector: BNC
        • Input impedance: 50 °, internally terminated
        • DC antenna power output voltage: 3.3 V or 5 V at 55 mA
        • Fault protection: Short-circuit/open detection and protection
        • Return loss: 8 dB at 1575 MHz
