    Tektronix SPG8000ASDI Add Two Independent Sets of 3G/HD/SD-SDI Test & Test/Black Signal Generation Outputs

    Manufacturer: Tektronix

    Item #: TEK-SPG8000ASDI   •   MFG #: SPG8000ASDI




    Our Price:$4,770.00

    free ship


    Availability:
    More on the way, usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      Required Accessories

      The SPG8000A is a precision multiformat video signal generator, suitable for master synchronization and reference applications. It provides multiple video reference signals, such as black burst, HD tri-level sync, and serial digital and composite analog test patterns, and it provides time reference signals such as time code, NTP (Network Time Protocol), and IEEE 1588 PTP (Precision Time Protocol). The base configuration includes three sync outputs that can be configured with independent output formats and independently adjustable timing offsets.

      Option SDI adds two fully independent serial digital video generator channels of two outputs each. Each channel can be configured to any standard 3G/HD/SD-SDI format and frame rate. The selected test pattern can be generated on both outputs per channel, or one output can generate digital black.

      A wide variety of standard test patterns are included, such as color bars, convergence grid, step scales, ramps, multiburst, SDI pathological test matrix and a real-time programmable zone plate generator. Bitmap images can be downloaded to the SPG8000A’s flash memory for arbitrary user-defined test patterns. ID text, burn-in time code, circle, and color logo overlays can be added to any test pattern, and several ancillary data packet types, including ancillary time code and user-defined packets, can be inserted into the SDI output signal.

      The four SDI outputs can be configured to support 4K/UHD full frame, 100% and 75% color bars for quad link square division mode. This allows simple verification of your 4K/UHD workflow within the production studio or mobile truck. Note: VPIDs are compliant only to HD and 3G formats in 4K/UHD formats. Also included is an audio/video delay test sequence, which in conjunction with a Tektronix waveform monitor, can be used to ensure A/V delay compliance.

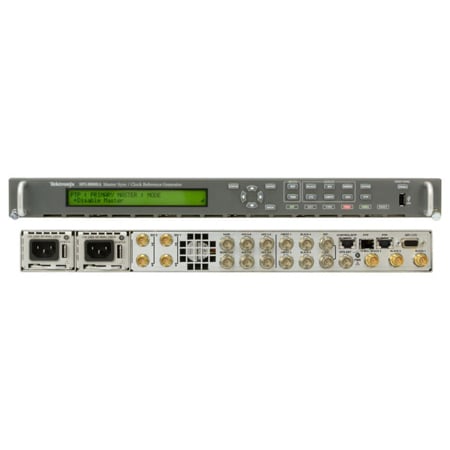

      Please note! This item is an add-on "option" to the Tektronix SPG8000A Master Sync / Master Clock Reference Generator. The SPG8000A is required and sold separately. Image is for reference only!!


      • Features

        • Multiple independent black burst and HD tri-level sync outputs provide all the video reference signals required in a video broadcast or production facility
        • Four LTC outputs, VITC on black burst outputs, and NTP server provide time reference signals in a variety of formats
        • PTP (IEEE 1588) support, including SMPTE ST 2059-2 and AES67 profiles
        • GPS/GLONASS-based synchronization gives an accurate time-of-day reference and deterministic video phase reference across multiple independent systems
        • Stay GenLock and Holdover Recovery prevent synchronization shock when the external reference input, PTP, or GPS/GLONASS signal is temporarily lost
        • Wide selection of video test patterns in serial digital formats (SD, HD and 3G-SDI) and composite analog formats (NTSC and PAL)
        • 4K/UHD formats support with full frame 100% and 75% color bars (Quad Link Square Division)
        • Dual hot-swappable power supplies ensure continuous availability of reference signals
        • Easy to manage with Web-based interface for remote configuration and SNMP for status and alert information
        • SDI option adds Two Independent Sets of 3G/HD/SD-SDI Test & Test/Black Signal Generation Outputs

      • Specifications

        • Reference input
        • Connector: BNC ×2, passive loop-through
        • Input impedance: 75 Ω
        • Input signal: NTSC/PAL black burst ; HD tri-level sync: 1080/60/59.94/50I, 1080/30/29.97/25/24/23.98P, 1080/24/23.98PsF, 720/60/59.94/50P; 10 MHz continuous wave
        • Amplitude range: ?8 dB to +6 dB
        • S/N ratioL: >40 dB
        • SCH phase: 0 ±40°
        • Return loss: ≥30 dB at 300 kHz to 10 MHz
        • Lock stability: ±3 dB amplitude change - <1 ns; Jitter with burst lock - <0.5°; Jitter with sync lock - <1 ns; Jitter with CW lock - <1 ns (typ. 1°)

          Genlock
        • Timing adjustment range: Anywhere in the color frame
        • Timing adjustment resolution: <0.5° of NTSC/PAL subcarrier, 1 ns with tri-level sync input
        • Color framing: Keeps accuracy even with ±45° SCH error of input reference signal
        • Genlock tune range: ±7.5 × 10-6

          Time reference
        • Source: GPS or GLONASS signal, PTP input, LTC input, VITC read from NTSC/PAL genlock input, or can enter manually
        • Time zone offset: ?23:59 to +23:59
        • Daylight saving adjustment: Start/end from recurring calendar or manually scheduled, with adjustable offset
        • Leap second adjustment: Inserted at 00:00 UTC on the scheduled date, or deferred up to 24 hours

          LTC Input
        • Connector: Available through D-sub 15-pin connector; Optional break-out cable to XLR connector available
        • Formats: 24 fps (24 Hz or 23.98 Hz), 25 fps, 30 fps, 30 fps drop-frame (29.97 Hz) per SMPTE 12M
        • Timing to video: Compliant with SMPTE 12M and continues to operate over at least 90% of possible timing range
        • Signal voltage range: 0.5 to 10 Vp-p differential, 1 to 5 Vp-p single ended
        • Noise tolerance: -30 dB SNR RMS white noise with 10 kHz BW to the p-p signal level, or -10 dB SNR for 5 MHz white noise
        • Hum tolerance: 0 dB hum-to-signal ratio
        • Error immunity: 100 consecutive frames with consistent time code must be detected for time to be considered valid
        • Input impedance: Nominal 600 Ω differential, 300 Ω single ended




      Add Accessories for your SPG8000ASDI:
