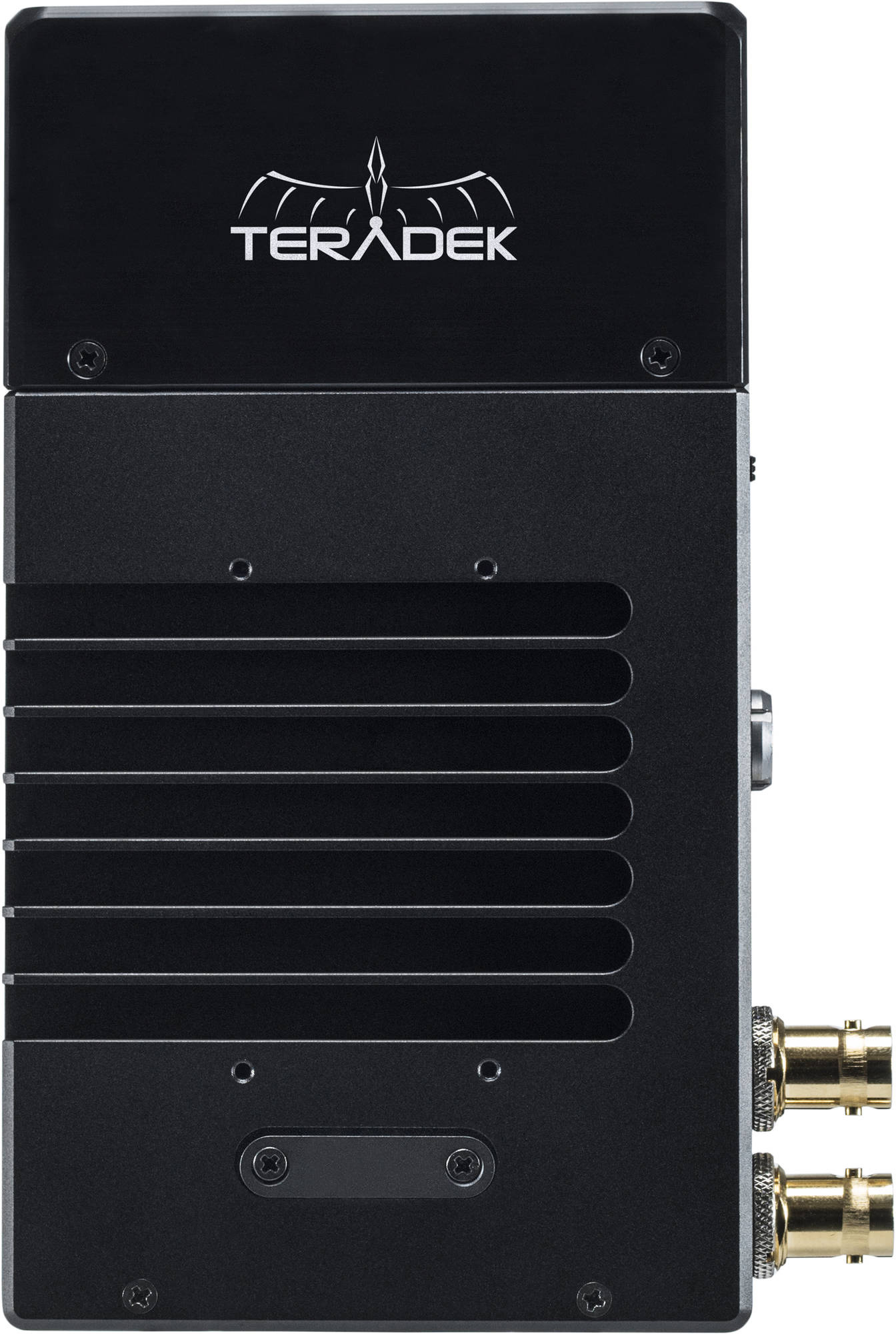

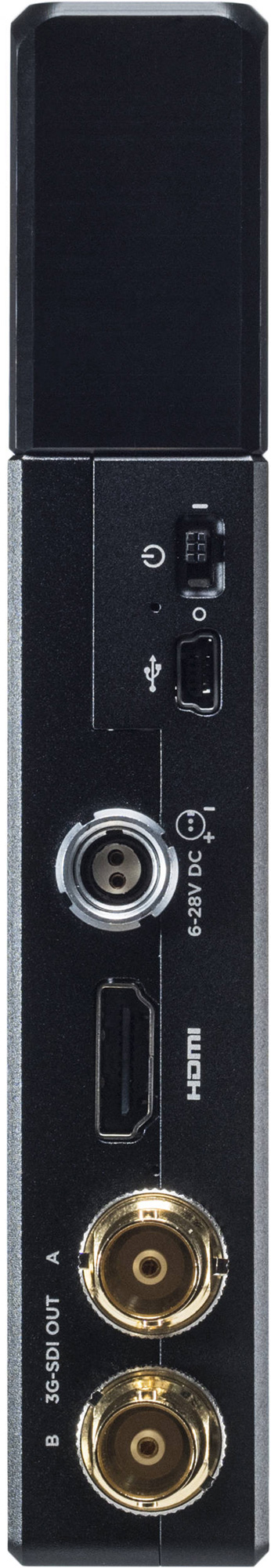

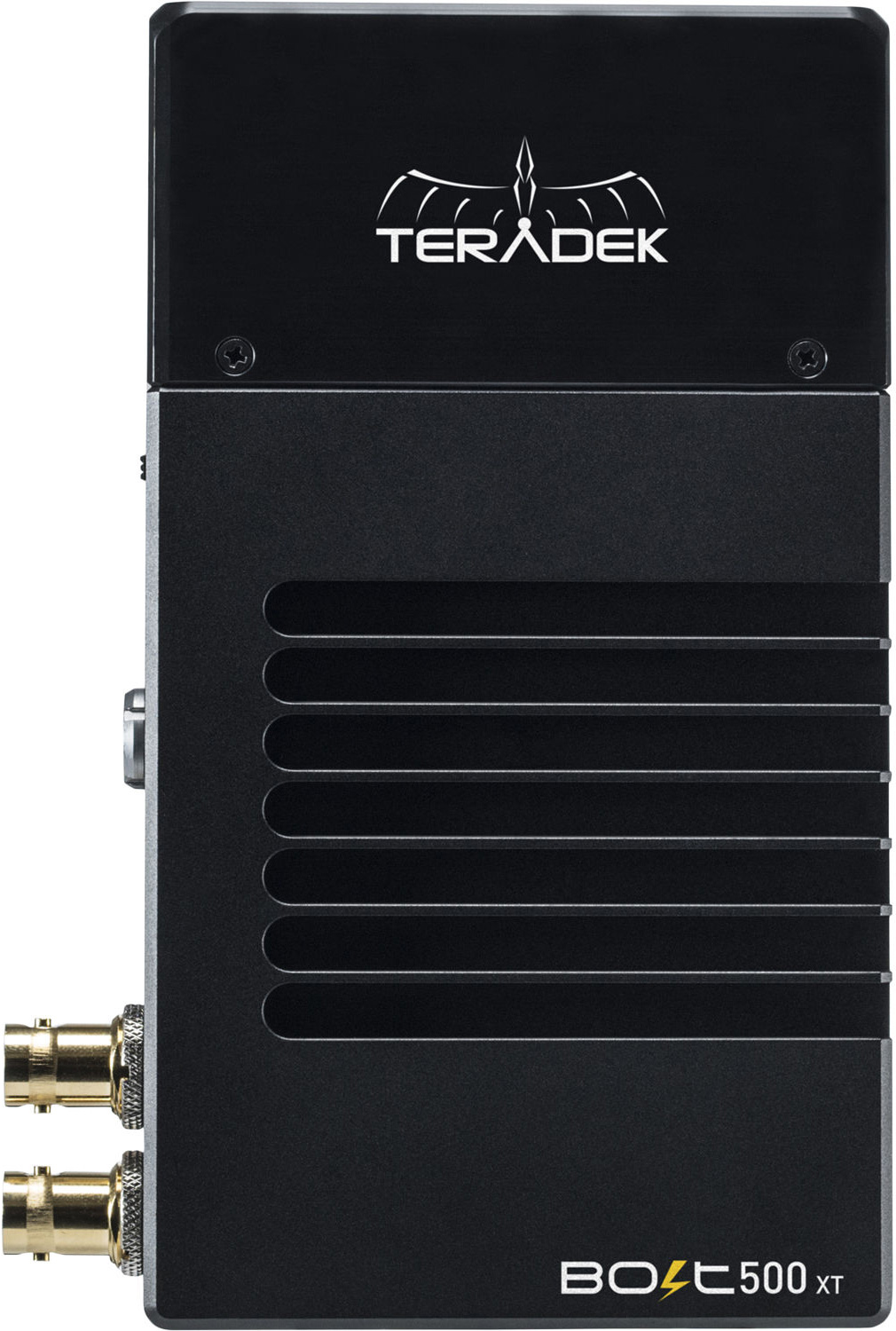

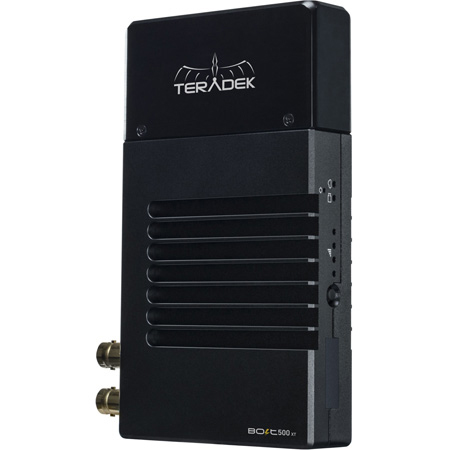

Teradek 10-1937 Bolt XT 500 3G-SDI Wireless Receiver

Manufacturer: Teradek, LLC

Item #: TER-10-1937   •   MFG #: 10-1937



List Price:$1,490.00
Our Price:$1,341.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Required Accessories

    The Teradek 10-1937 Bolt XT satisfies the needs of the most discerning professionals, from powerful software tools and rock-solid performance to smart power options and backward compatibility.

    A key feature of the Bolt XT is its backward compatibility with any Bolt of the same range, Sidekick II / LT / XT, and 703 Bolt, giving users more flexibility building onto their existing systems or linking with others already on set. Unlike alternative wireless video systems, Bolt XT includes a unique AES 128 encryption algorithm to protect your video footage, ensuring that only authorized receivers can connect to your transmitter.

    Each transmitter includes an HDMI, 3G-SDI and looping 3G-SDI output. Receivers feature an HDMI output as well as dual 3G-SDI outputs. While wireless performance is critical on set, so are practical mounting options that ensure optimal performance and a quick set-up. With the Bolt XT line, Teradek has added an integrated NATO rail on the receiver, several 1/4"-20 and 3/8" mounting points, and an ARRI rosette on the transmitter to greatly improve available mounting options.

    An all-new aluminum chassis further reduces the size and weight of the Bolt line, with receivers also allowing for integrated pass-through power. Available battery plate accessories include V- or Gold-mount, in addition to bi-directional Sony L-series or Canon LP-E6 plates on the Bolt 500 XT. Teradek has also replaced the internal antennas on the Bolt 500 XT transmitter with an external set to enhance wireless performance when operating in environments with large obstacles or heavy interference.

    The Bolt XT, like the previous generation, is multicast capable up to 4 receivers and includes built-in cross conversion and Teradek's proprietary software utilities, including a manual frequency-selection tool, 3D LUT engine, and a 5GHz spectrum analyzer to keep an eye on interference in your area.


    • Features

      • Compatible with 3rd generation Bolt 500, Bolt 500 LT, and Focus Bolt TX
      • Professional software features: 3D LUTs, 5GHz spectrum analyzer
      • HDMI and Dual 3G-SDI outputs

    • Specifications

      • Video
      • Video Outputs
        1x SD/HD/3G-SDI (75 Ohm BNC)
        1x HDMI Type-A receptacle
      • SDI Ancillary Data Support: supports metadata, timecode, and start/stop flags from certain camera manufacturers
      • Color Sampling
        SDI: YCbCr 4:2:2, 8-bit
        HDMI: RGB 4:4:4, 8-bit
      • Delay Tx To Rx: <0.001sec (without format conversion)

        Supported Resolutions
      • 1080p 23.98/24/25/29.97/30/50/59.94/60
      • 1080psf 23.98/24/25/29.97/30
      • 1080i 50/59.94/60
      • 720p 50/59.94/60
      • 480p 59.94/576p50 (via HDMI ports only)
      • 480i (NTSC)/576i(PAL)

        Video Processing
      • Video Compression: Visually lossless
      • Test Pattern Generator Support: Yes
      • Video Format Conversion Support: Yes
      • Color Correction
        1024 1D LUT
        17x17x17 3D LUT
      • Audio Compression: 48kHz 24-bit PCM
      • Audio Input: Embedded Audio Input

        Physical
      • Dimensions: 6" x 3.4" x 1" (152 x 86 x 25)mm
      • Weight: 10.5oz(299g)
      • Construction:
        Milled Aluminum (Chassis) and regulation-compliant PCB
        Plastic Cap

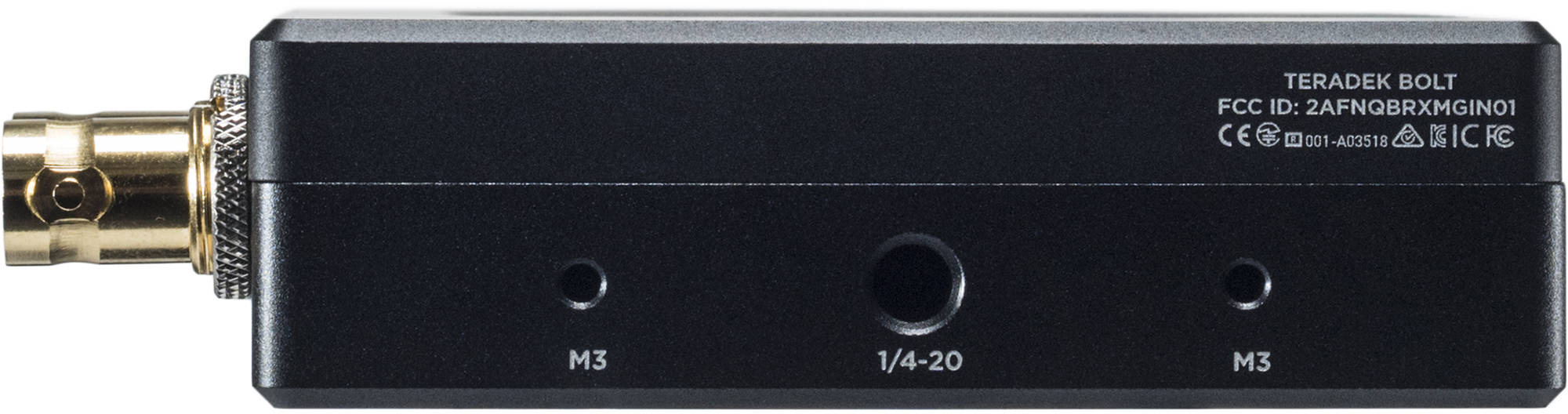

      • Mountability: Multiple mounting options with M3 and 1/4" holes

        Interfaces
      • HTTP: None
      • Configuration Interfaces: OLED Screen with Menu Joystick Navigation
      • Desktop App: Feature-rich Bolt Manager Application for OSX & Windows
      • USB Interface Functionality: Upgrade via Mini-USB

        Network
      • Non-DFS Wireless Frequencies:
        US: 5.19 - 5.23GHz and 5.755 - 5.795GHz
        EU & JP: 5.19 - 5.23 GHz
      • DFS Wireless Frequencies:
        US: 5.27 - 5.55 GHz and 5.67 GHz
        EU & JP: 5.27 - 5.67 GHz
      • RF Channel Selection: Auto only (NOT configurable)
      • Encryption: AES-128
      • RF Power: 15dBm EIRP
      • Range: Up to 500ft line of sight
      • Unicast Multicast: Unicast / Multicast
      • Noise Rejection: Can coexist with WiFi and 5GHz cordless phones

        Power
      • Power Input: 2-Pin Connector 7-28 VDC
      • Battery: None
      • Nominal Power Consumption: 9 Watts (Measured at 1080p60)

        Environmental - Operating Temperature
      • 32°F - 104°F (0°C - 40°C)

    • Item Includes

      • 1 Bolt LT Receiver
