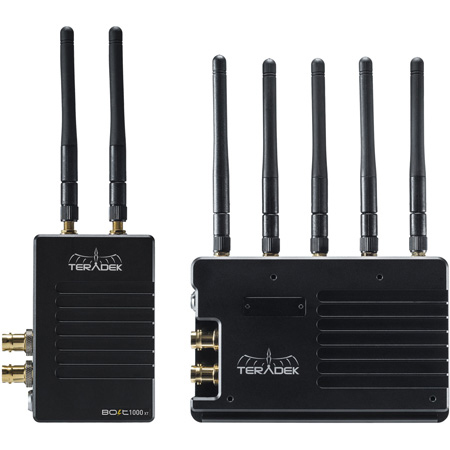

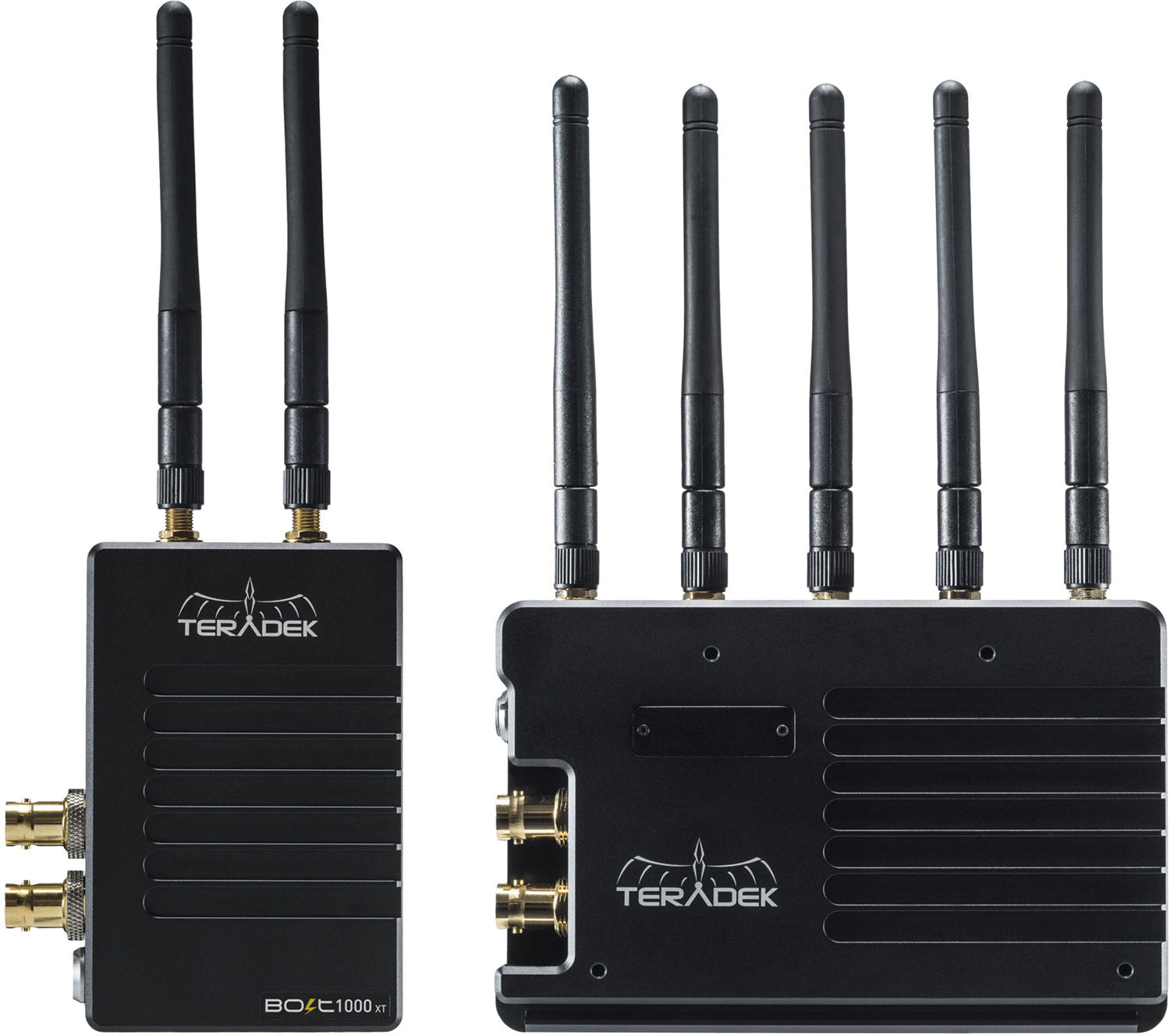

Teradek 10-1965-1V Bolt XT 1000 SDI/HDMI Transmitter & Receiver Deluxe - V-Mount
  • Teradek 10-1965-1V Bolt XT 1000 SDI/HDMI Transmitter & Receiver Deluxe - V-Mount
  • Teradek 10-1965-1V Bolt XT 1000 SDI/HDMI Transmitter & Receiver Deluxe - V-Mount
  • Teradek 10-1965-1V Bolt XT 1000 SDI/HDMI Transmitter & Receiver Deluxe - V-Mount
  • Teradek 10-1965-1V Bolt XT 1000 SDI/HDMI Transmitter & Receiver Deluxe - V-Mount

Questions? Ask a Markertek Expert:
800-522-2025 Email

Teradek 10-1965-1V Bolt XT 1000 SDI/HDMI Transmitter & Receiver Deluxe - V-Mount

Manufacturer: Teradek, LLC

Item #: TER-10-1965-1V   •   MFG #: 10-1965-1V




Our Price:$5,990.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The Teradek 10-1965-1V Bolt XT satisfies the needs of the most discerning professionals, from powerful software tools and rock-solid performance to smart power options and backward compatibility.

    A key feature of the Bolt XT is its backward compatibility with any Bolt of the same range, Sidekick II / LT / XT, and 703 Bolt, giving users more flexibility building onto their existing systems or linking with others already on set. Unlike alternative wireless video systems, Bolt XT includes a unique AES 128 encryption algorithm to protect your video footage, ensuring that only authorized receivers can connect to your transmitter.

    Each transmitter includes an HDMI, 3G-SDI and looping 3G-SDI output. Receivers feature an HDMI output as well as dual 3G-SDI outputs. While wireless performance is critical on set, so are practical mounting options that ensure optimal performance and a quick set-up. With the Bolt XT line, Teradek has added an integrated NATO rail on the receiver, several 1/4"-20 and 3/8" mounting points, and an ARRI rosette on the transmitter to greatly improve available mounting options.

    An all-new aluminum chassis further reduces the size and weight of the Bolt line, with receivers also allowing for integrated pass-through power. Available battery plate accessories include V-mount or Gold-mount, in addition to bi-directional Sony L-series or Canon LP-E6 plates on the Bolt 500 XT. Teradek has also replaced the internal antennas on the Bolt 500 XT transmitter with an external set to enhance wireless performance when operating in environments with large obstacles or heavy interference.

    The Bolt XT, like the previous generation, is multicast capable up to 4 receivers and includes built-in cross conversion and Teradek's proprietary software utilities, including a manual frequency-selection tool, 3D LUT engine, and a 5GHz spectrum analyzer to keep an eye on interference in your area.


    • Features

      • Compatible with 3rd generation Bolt 1000, Sidekick II, Bolt 1000 LT, and 703 Bolt
      • Professional software features: 3D LUTs, 5GHz spectrum analyzer, manual channel selection
      • Dual input (SDI + HDMI) and SDI loop out on TX
      • HDMI and Dual 3G-SDI outputs on RX

    • Specifications

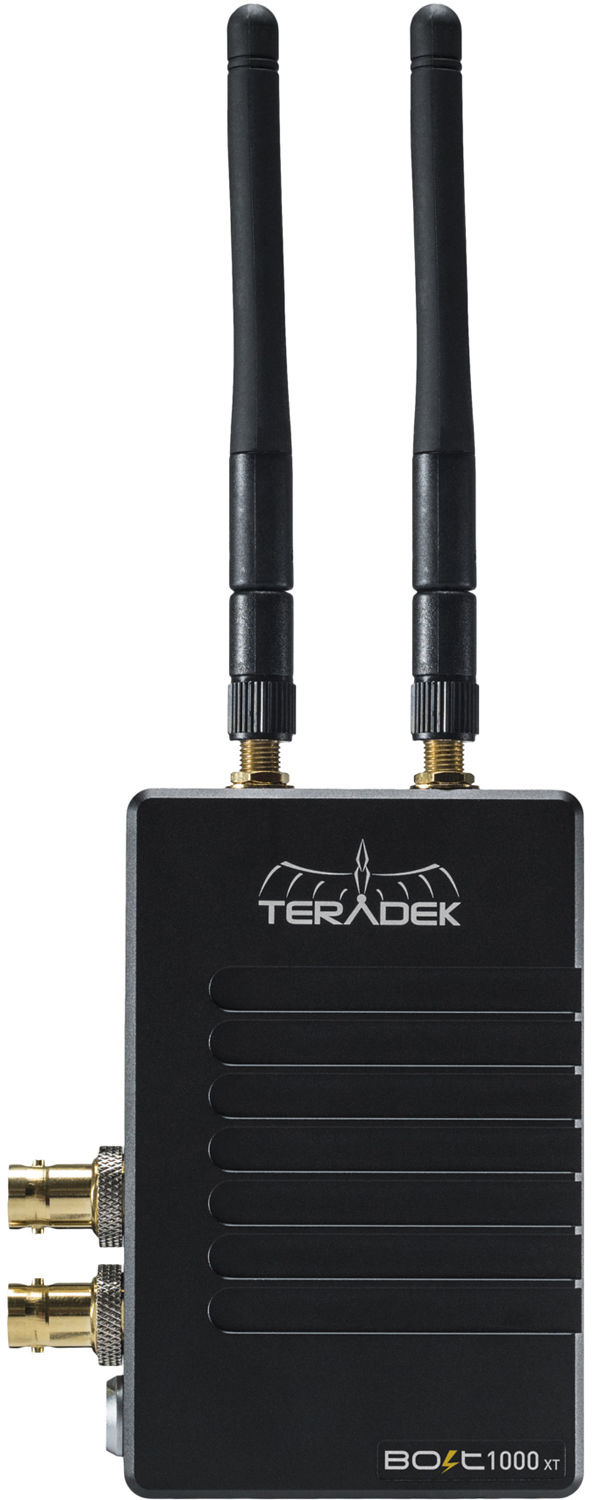

      • Bolt 1966 Bolt XT 100 Transmitter
      • Video Inputs
      • 1 x SD/HD/3G-SDI (75 Ohm BNC)
      • 1 x Type A receptacle HDMI

        Video Outputs
      • 1 x HD/SD/3G-SDI Loop-out (75 Ohm BNC)

        Color Sampling
      • SDI: YCbCr 4:2:2, 8-bit
      • HDMI: RGB 4:4:4, 8-bit

        Delay Tx To Rx
      • <0.001sec (without format conversion)

        Supported Resolutions
      • 1080p 23.98/24/25/29.97/30/50/59.94/60
      • 1080psf23.98/24/25/29.97/30
      • 1080i50/59.94/60
      • 720p50/59.94/60
      • 480p59.94/576p50 (via HDMI ports only)
      • 480i(NTSC)/576i(PAL)

        Video Compression
      • visually lossless

        Color Correction
      • CDL/1024 1D LUT (supports 10-bit color)

        Audio Compression
      • 48kHz 24-bit PCM

        Audio Input
      • Embedded Audio Input: 33x33x33 3D LUT (supports 10-bit color)

        Dimensions
      • 0.95" x 2.6" x 4.47" (24mm x 66mm x 101.5mm)

        Weight
      • 8oz (226g)

        Construction
      • Milled Aluminum(Chassis) and regulation-compliant PCB
      • Plastic Cap

        Mountability
      • Multiple mounting options with M3 and 1/4" holes
      • 3/8" ARRI style accessory mount

        Power Input
      • 2-Pin Connector 7-28 VDC

        Nominal Power Consumption
      • 7.5 Watts (Measured at 1080p60)

        Operating Temperature
      • 0 ~ 40 °C

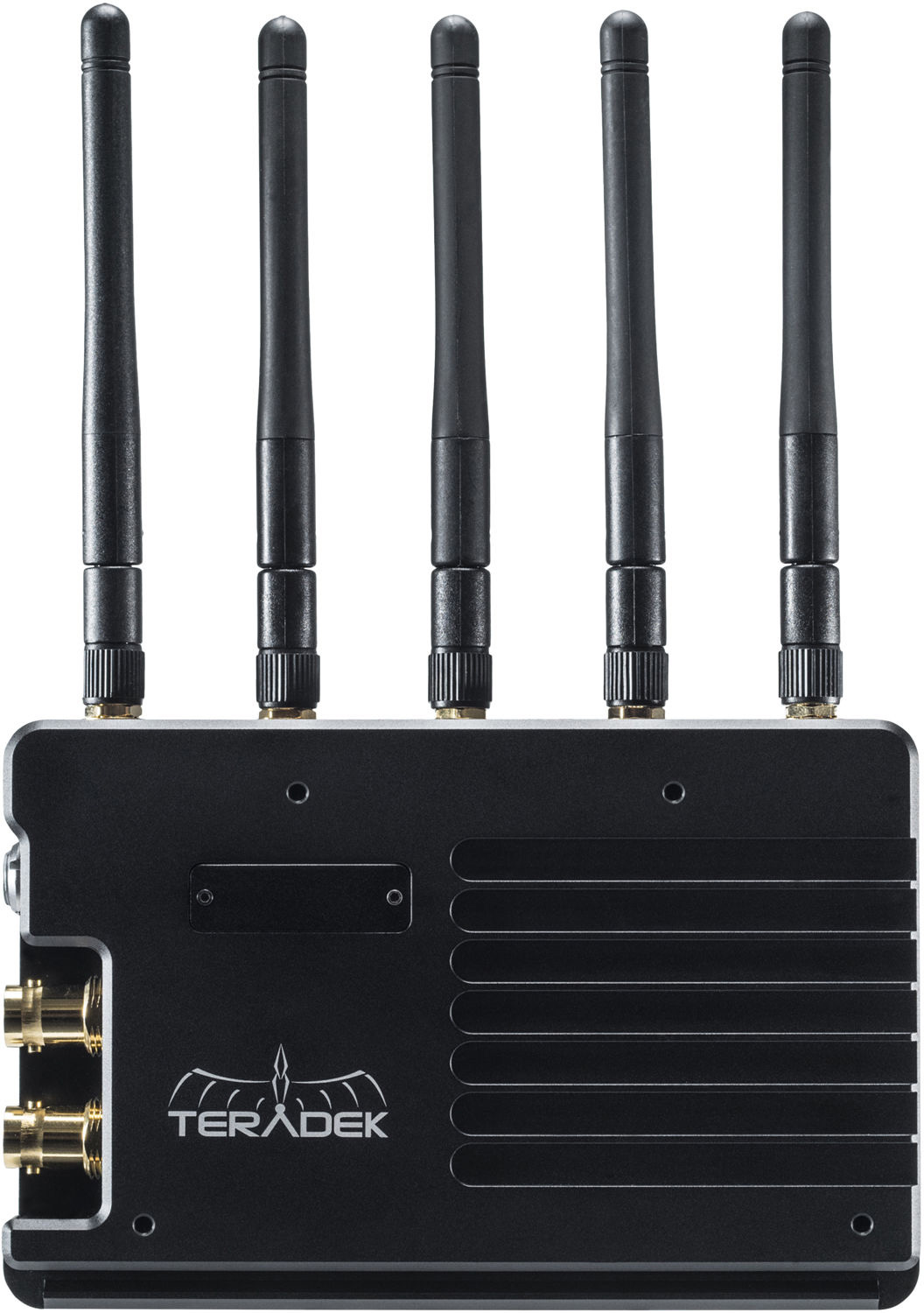

        Bolt 1967 Bolt XT 1000 Receiver
      • Video Outputs
      • 1 x SD/HD/3G-SDI (75 Ohm BNC)
      • 1 x HDMI Type-A receptacle

        Color Sampling
      • SDI: YCbCr 4:2:2, 8-bit
      • HDMI: RGB 4:4:4, 8-bit

        Delay Tx To Rx
      • <0.001sec (without format conversion)

        Supported Resolutions
      • 1080p 23.98/24/25/29.97/30/50/59.94/60
      • 1080p sf23.98/24/25/29.97/30
      • 1080i 50/59.94/60
      • 720p 50/59.94/60
      • 480p 59.94/576p50 (via HDMI ports only)
      • 480i (NTSC)/576i(PAL)

        Video Compression
      • visually lossless

        Color Correction
      • CDL/1024 1D LUT (supports 10-bit color)
      • 33x33x33 3D LUT (supports 10-bit color)

        Audio Compression
      • 48kHz 24-bit PCM

        Audio Input
      • Embedded Audio Input

        Dimensions
      • 3.5" x 5.4" x .95" (89 x 138 x 24)mm

        Weight
      • 13.3oz (376g)

        Construction
      • Milled Aluminum(Chassis) and regulation-compliant PCB

        Power Input
      • 2-Pin Connector 7-28 VDC

        Nominal Power Consumption
      • 8.5 Watts (Measured at 1080p60)

        Operating Temperature
      • 0 ~ 40 °C

    • Item Includes

      • General
      • 1 x Panel Antenna Array 5GHz 3x16dBi 2x 14dBi Black

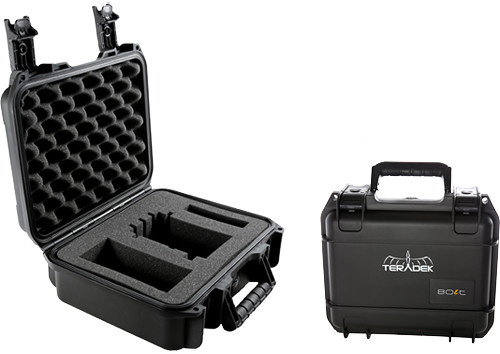

      • 1 x Protective SKB Case - military-standard waterproof hard case with custom foam (13.5in x 9.5in x 6.5in - 34.29cm x 24.13cm x 16.51cm)
      • 1 x Wooden Camera Ultra Arm Mini Monitor Mount (1/4-20 to 1/4-20) with Arm Ball (3/8-16)
      • 1 x Wooden Camera NATO Lock Kit
      • 1 x Teradek Vinyl Zipper Bag 250x150mm
      • 1 x Hex L Key 2.5 mm size 3-5/6 inch length
      • 1 x Hex L key 3/16inch x 2 13/16inch length
      • 1 x Passthrough V-Mount plate factory-installed to RX: 1 V-Mount (female) Battery Plate 14.4V on one side of RX and 1 V-Mount (male) Battery Plate on the other side

        Transmitter
      • 1 x 2-pin Connector to PowerTap 18 inch Cable
      • 1 x Hot Shoe Adapter (1/4"-20 inch)
      • 2 x Antenna 2dBi WiFi 2.4/5.8 GHz
      • 1 x USB 2.0 Cable (A-Male to Mini-B)
      • 1 x HDMI 18in Cable (Type A to Type A)
      • 1 x SDI (BNC to BNC) Cable 10 inch

        Receiver
      • 1 x Lightstand Adapter (3/8"-16)
      • 1 x USB 2.0 Cable (A-Male to Mini-B)
      • 1 x PSU 2-Pin Connector to 18W AC Adapter 6ft cable
      • 1 x HDMI 18in Cable (Type A to Type A)
      • 1 x SDI (BNC to BNC) Cable 10 inch

    • GTIN:

      0818264023259
