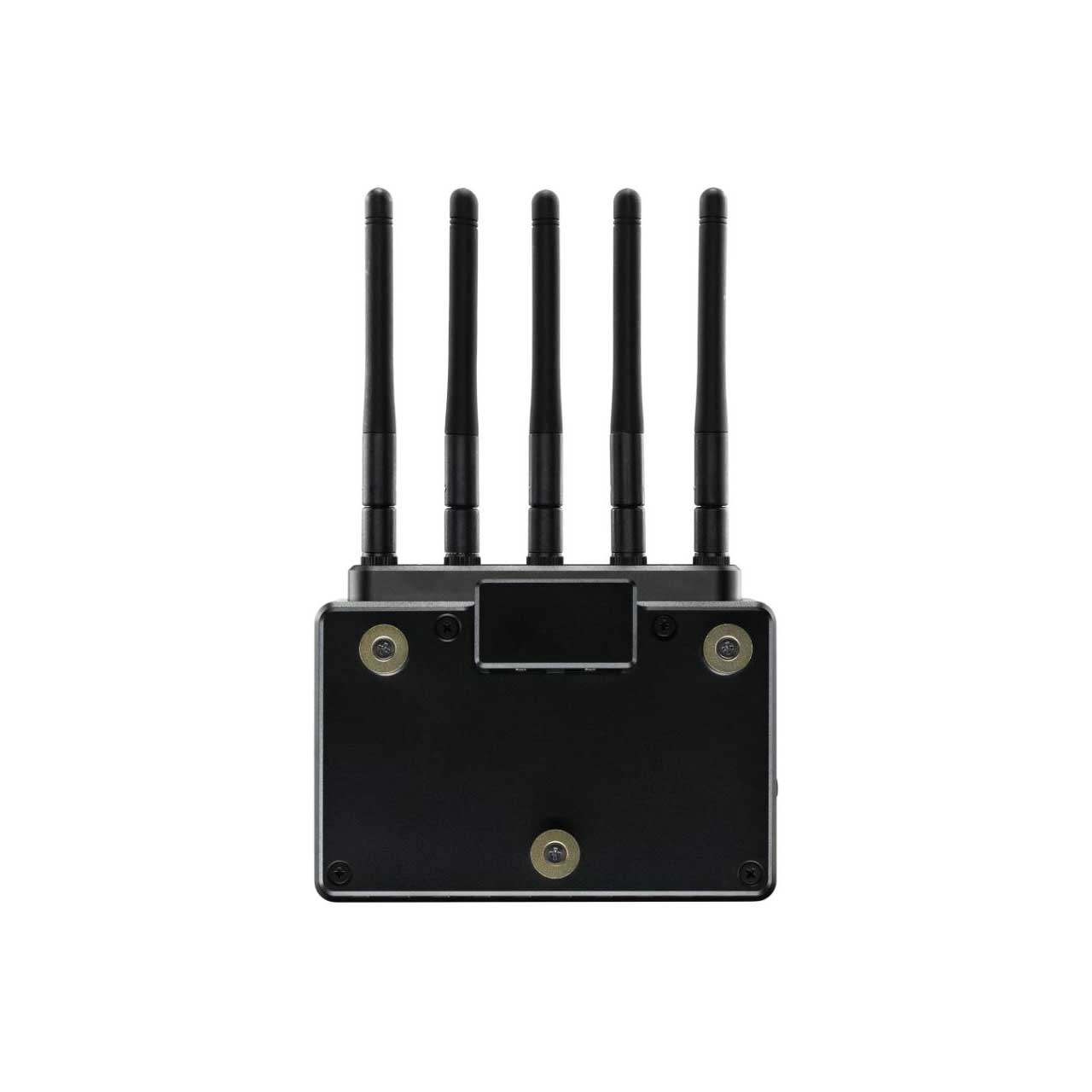

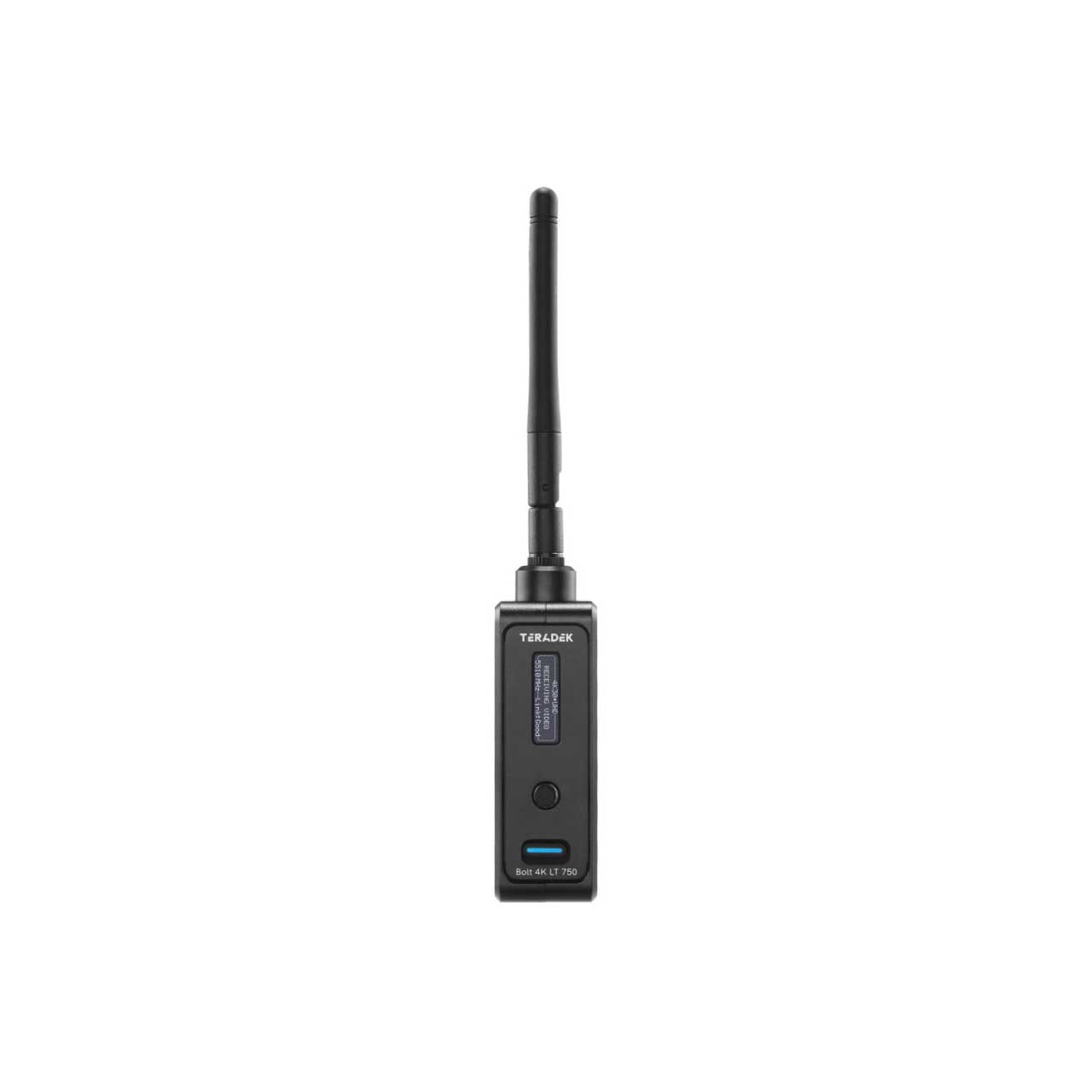

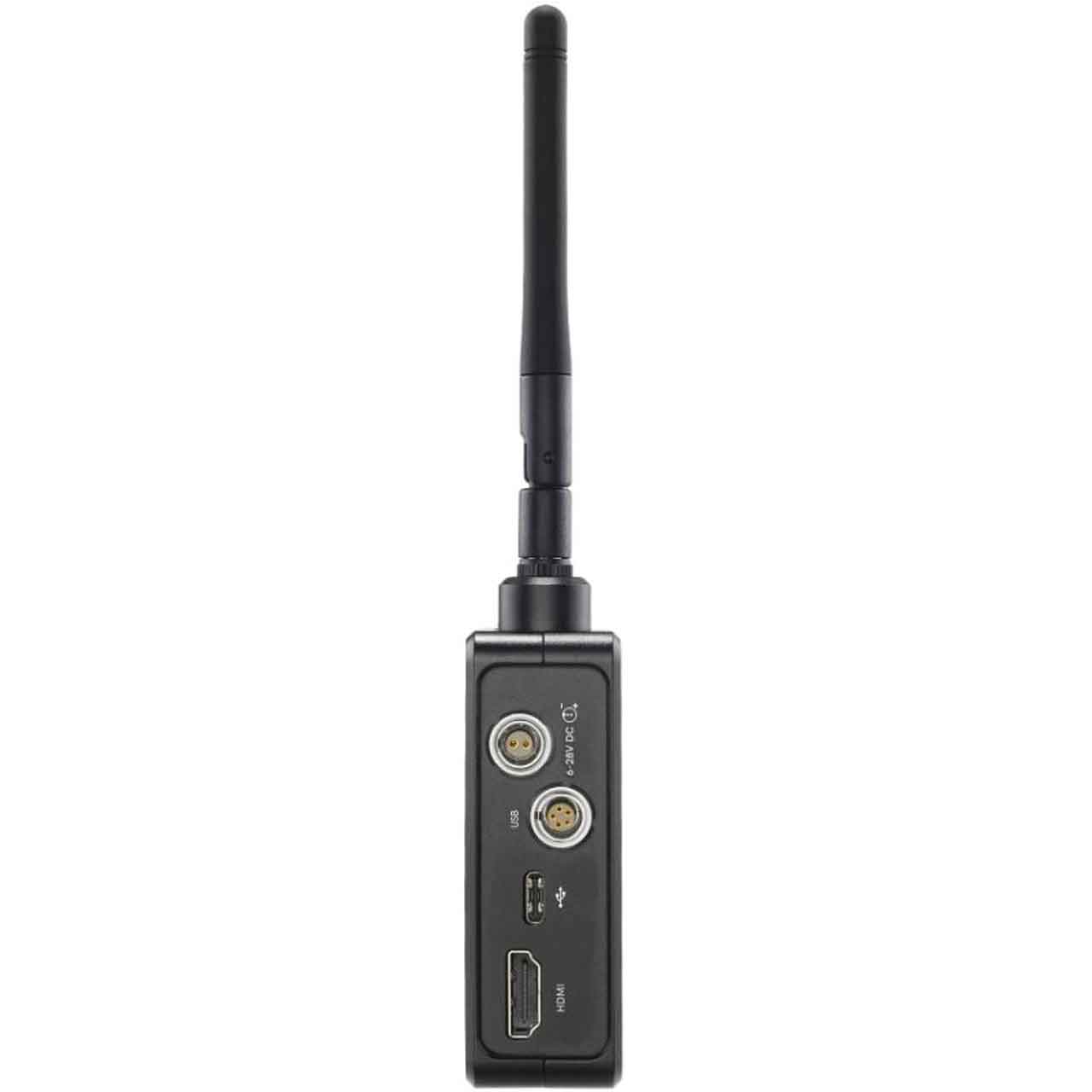

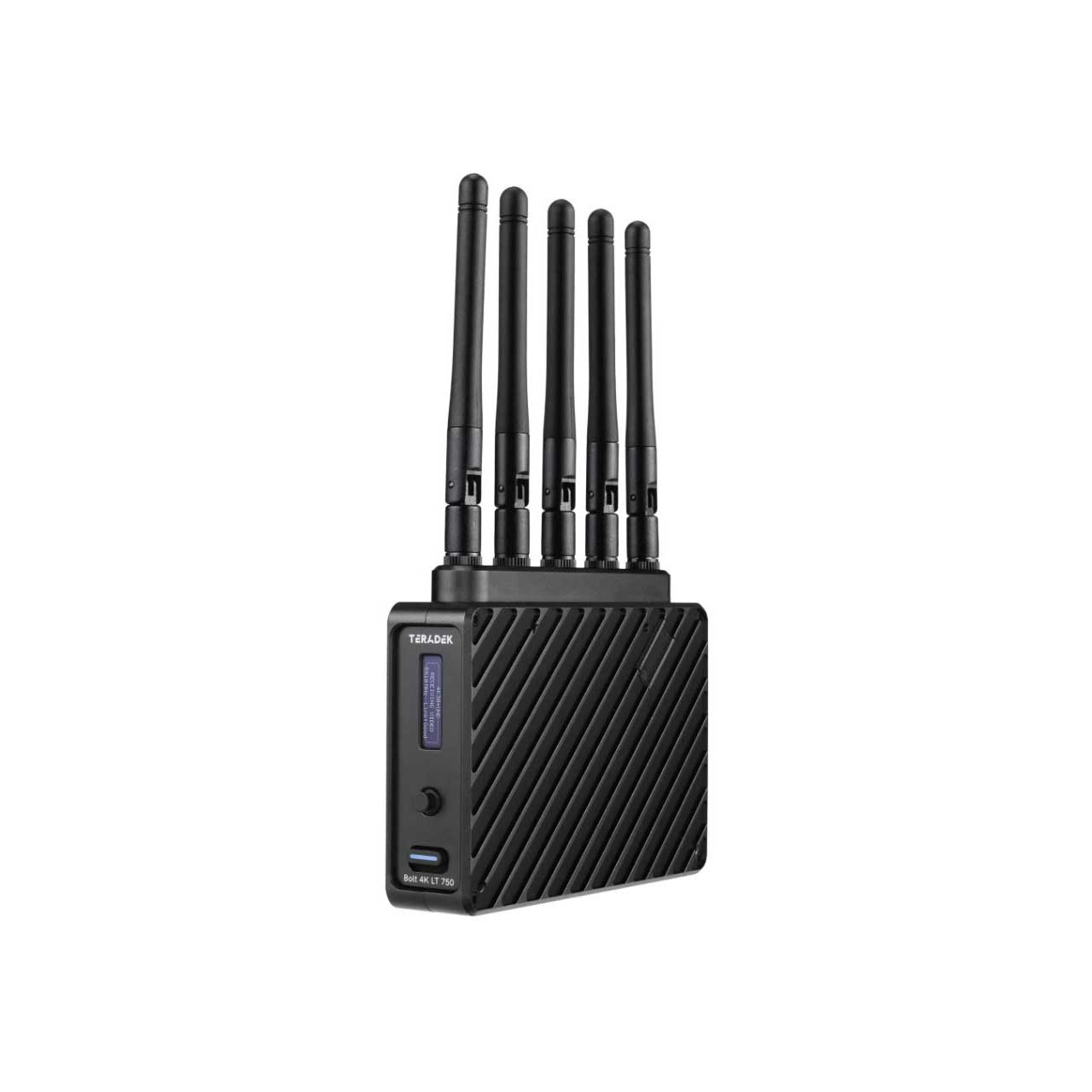

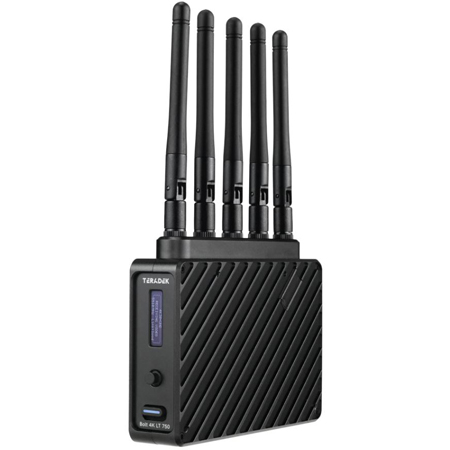

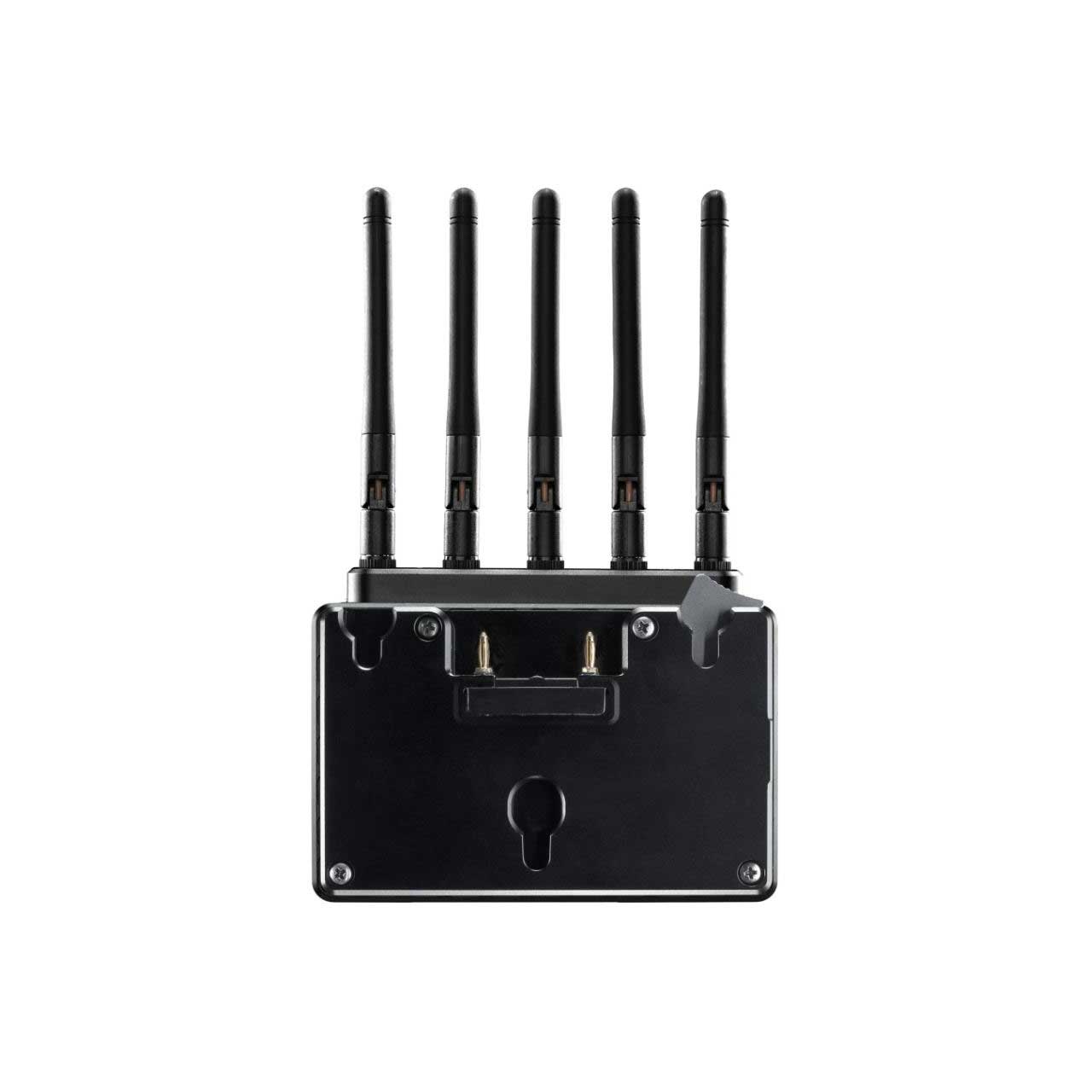

Teradek Bolt 4K LT HDMI 750 10-bit 4K30p HDR Wireless Video Receiver - Gold Mount

BOLT 4K LT HDMI 750 RX GOLD MOUNT - Overview

• Features:

  • Supports 10-bit 4K30p HDR video up to 750 ft.
  • Zero-Delay wireless video (<0.001sec)
  • Outputs: HDMI 2.1, includes HDMI Loop Out


• Specifications:

  • Video
  • Video Outputs: 1x HDMI 1.4b Type-A receptacle
  • Color Sampling: YCbCr 4:2:2 10-Bit, RGB 4:4:4, 8-bit
  • Delay Tx To Rx: <0.001sec

    Supported Resolutions
  • 4Kp23.98/24/25/29.97/30/50/59.94/60
  • 1080p 23.98/24/25/29.97/30/50/59.94/60
  • 1080psf23.98/24/25/29.97/30
  • 1080i50/59.94/60
  • 720p50/59.94/60
  • 480p50
  • 576p59.94/60
  • 480i(NTSC)/576i(PAL)

    Video Processing
  • Video Compression: Visually lossless
  • Test Pattern Generator Support: Yes

    Audio Processing
  • Audio Compression: 48kHz 24-bit PCM

    Outputs
  • Audio Output: Embedded HDMI Audio Input (2 channel)

    Physical
  • Dimensions: 4.8" x 3.7" x 1"
  • Weight: 10.3oz
  • Construction: Milled aluminum (chassis), regulation-compliant PCB
  • Mountability: Multiple mounting options with M3 and 1/4-20" holes

    Interfaces
  • Configuration Interfaces: OSD Screen with Menu, Joystick Navigation
  • Switches: On/Off Switch
  • Mobile App: Bolt App
  • Desktop App: Bolt Manager application for OSX & Windows
  • Usb Interface Functionality: Upgrade Via Micro-USB: 5-pin Locking Connector CCU
  • Bluetooth: 2.4 GHz

    Network
  • Antennas: 5x External 2dBi antennas (included)
  • Wireless: DFS Frequencies: 5.270 ~ 5.670 GHz, Non-DFS Frequencies: 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz
  • Rf Channel Selection: Auto, Manual
  • Encryption: AES-256, RSA-1024 key exchange
  • Rf Power: 17 dbm EIRP (1x external 2dBi antenna; <51mW transmit power)
  • Range: Up to 750 ft line of sight
  • Unicast Multicast: Pair up to 4 transmitters per receiver
  • Noise Rejection: Can coexist with Wi-Fi and 5GHz cordless phones, and can operate up to 6 sets in same location
  • Interoperability: Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)

    Power
  • Power Input: 2-Pin Circular locking connector 6-28 VDC
  • Battery: None, optional Gold or V mount battery plate
  • Nominal Power Consumption: 11 Watts

    Environmental
  • Operating Temperature: 0~40 deg-C


• Item Includes:

  • 1x Bolt 4K LT HDMI 750 RX Gold Mount
  • 1x (Bit 118) 2pin Conn. to PowerTap - 18in Cable
  • 1x USB 2.0 Type A Male to USB Type C Male - 1m Cable
  • 1x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in Cable
  • 1x PSU 2pin Conn. to 18W AC Adapter (Int) - 6ft Cable
  • 5x Antenna 2dBi WIFI 2.4/5.8GHz (Small Antenna)
  • 1x Teradek Standard Terms and Conditions
  • 1x Insert - Product Register
  • 1x Insert - Bolt 4K Firmware Update
  • 1x QR Code Insert - Bolt 4K LT 750 HDMI
  • 1x Bolt 4K LT RX Battery Cover (Machined Anodized)
  • 1x Screw Flat Head Phillips Black
  • 1x (Bit 118) 2pin Conn. to PowerTap - 18in Cable
