Teradek Bolt 6 LT MAX Wireless Video Transmitter & Receiver Deluxe Set with V-Mount Battery Plate

ITEM #: TER-BLT6LTMXTRDV MFG #: 10-2280-V

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$13,290.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    10-2280-V - Overview

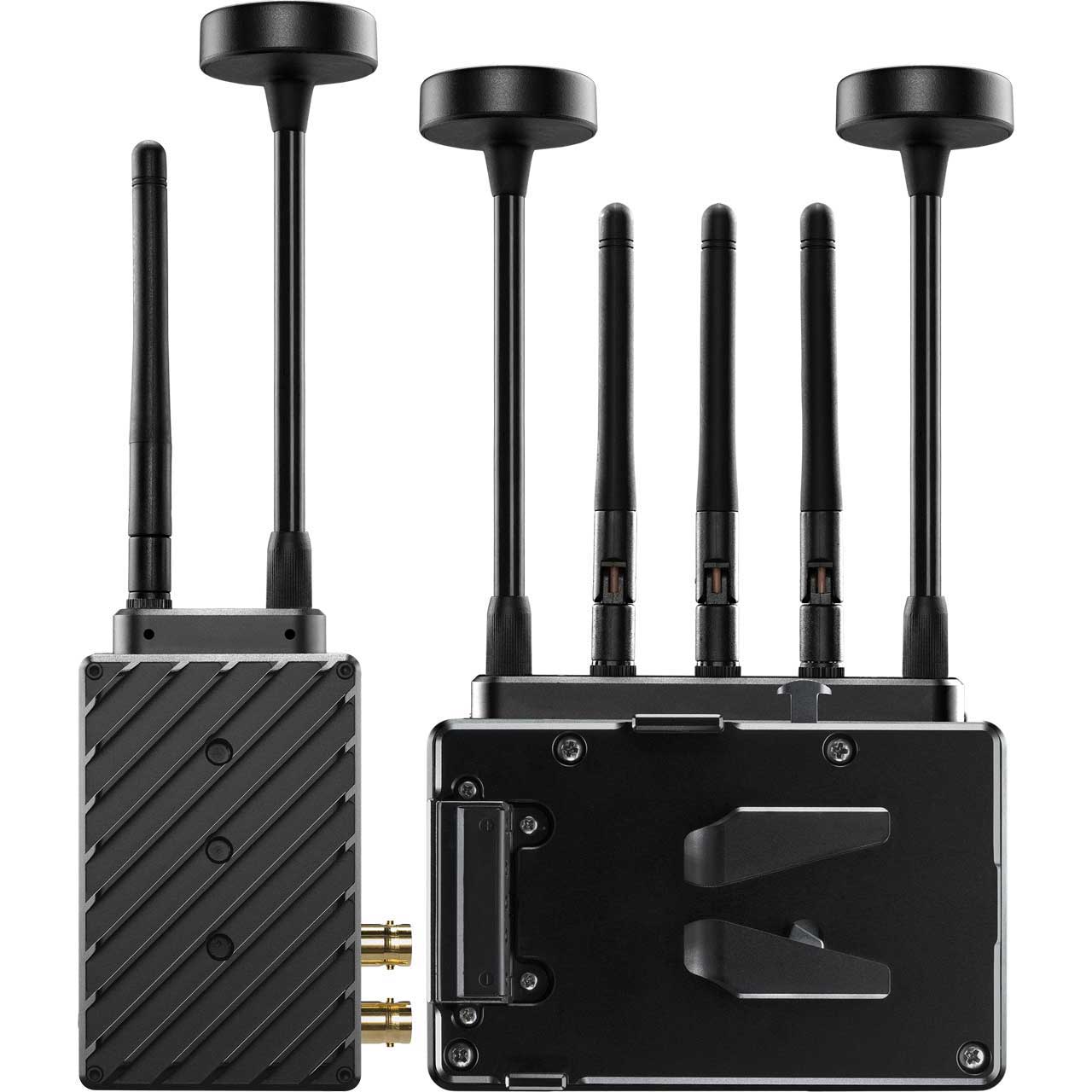

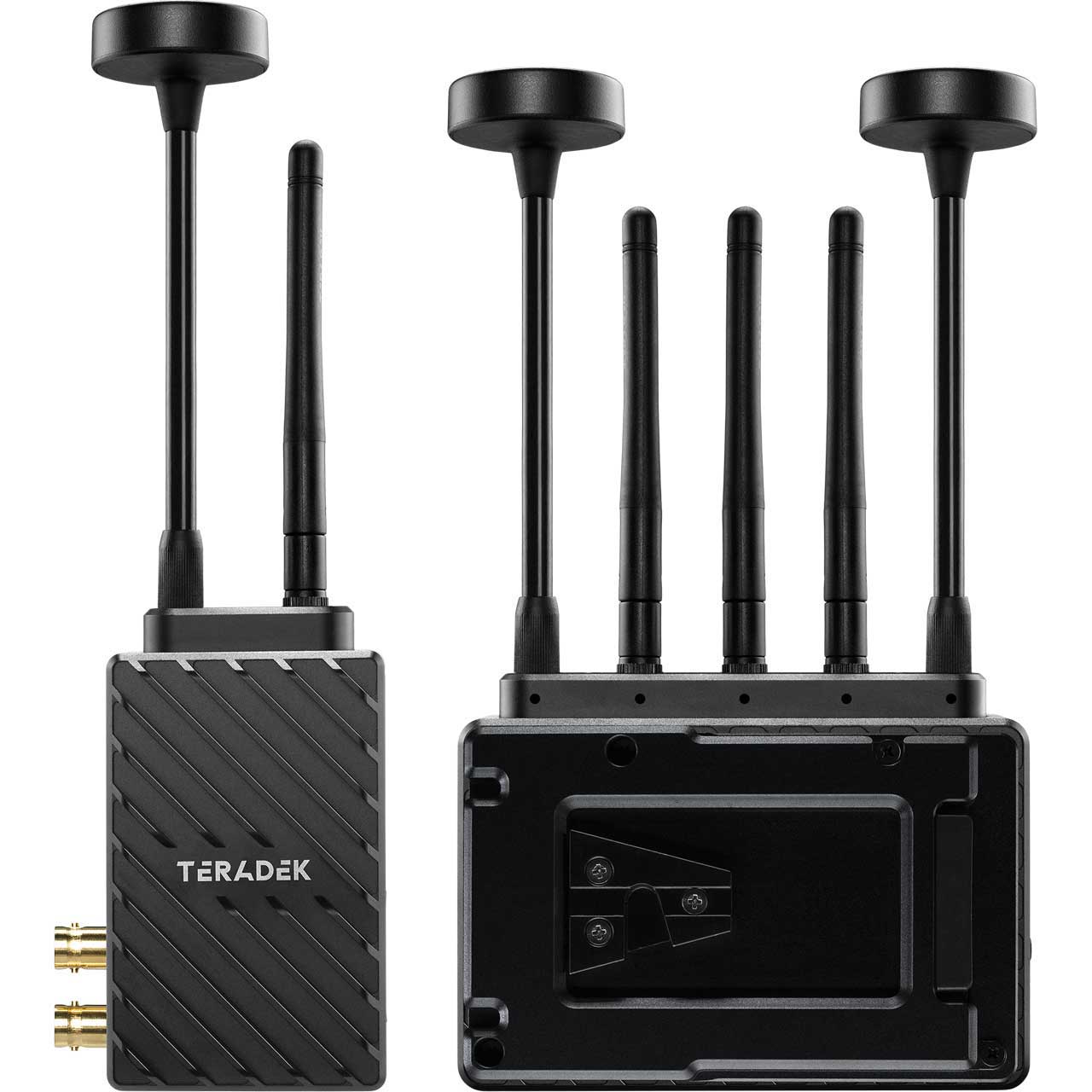

    Teradek Bolt 6 LT MAX is a Wireless Video Transmitter & Receiver Deluxe Set with V-Mount Battery Plate. The Bolt 6 LT Set is a real-time wireless video transmission system that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. Bolt 6 LT can send and receive color-accurate, True-HDR videos in under 0.001 seconds using the set’s included Bolt 6 LT video Transmitter and Receiver.

    Bolt 6 also offers new tools for high-end users, including better visibility over connections and signals, adding confidence to the workflow no matter how challenging the environment. It additionally gives you access to our new Long Range Mode, offering better video quality at longer distances. A 5-pin USB adapter, sold separately, allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors.

    The included Transmitter, our most compact design ever, and the Receiver are cross-compatible with the entire Bolt 4K Series including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

    • Features:

      • Zero Delay
      • 6GHz Wireless Frequency Access
      • Bolt 4K Cross-Compatibility
      • Improved Long Range Mode
      • Inputs: HDMI, 3G-SDI
      • Outputs: HDMI, 3G-SDI

    • Specifications:

      • Bolt 6 LT MAX TX
      • Video Inputs: 3G-SDI SMPTE 424M standard/75Ω (BNC x1) 1x HDMI 1.4b Type-A receptacle
      • Video Outputs: 3G-SDI SMPTE 424M standard/75Ω (BNC x 1)
      • SDI Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
      • Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
      • Delay Tx To Rx: <0.001sec
      • Input Cross Conversion: Yes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout)
      • Supported Resolutions
      • 4Kp23.98/24/25/29.97/30 (HDMI only)
      • 1080p23.98/24/25/29.97/30/50/59.94/60
      • 1080psf23.98/24/25/29.97/30
      • 1080i50/59.94/60
      • 720p50/59.94/60
      • 480p59.94 576p50
      • 480i(NTSC)/576i(PAL)
      • Video Compression: Visually Lossless
      • Color Correction: None
      • Audio Compression: 48kHz 24-bit PCM
      • Audio Input: Embedded SDI/HDMI Audio Input (2 Channel)
      • Dimensions: 2.36 x 4.05 x 1.30"
      • Weight: 206g (7.3oz)
      • Construction: Milled Aluminum(Chassis) and regulation-compliant PCB

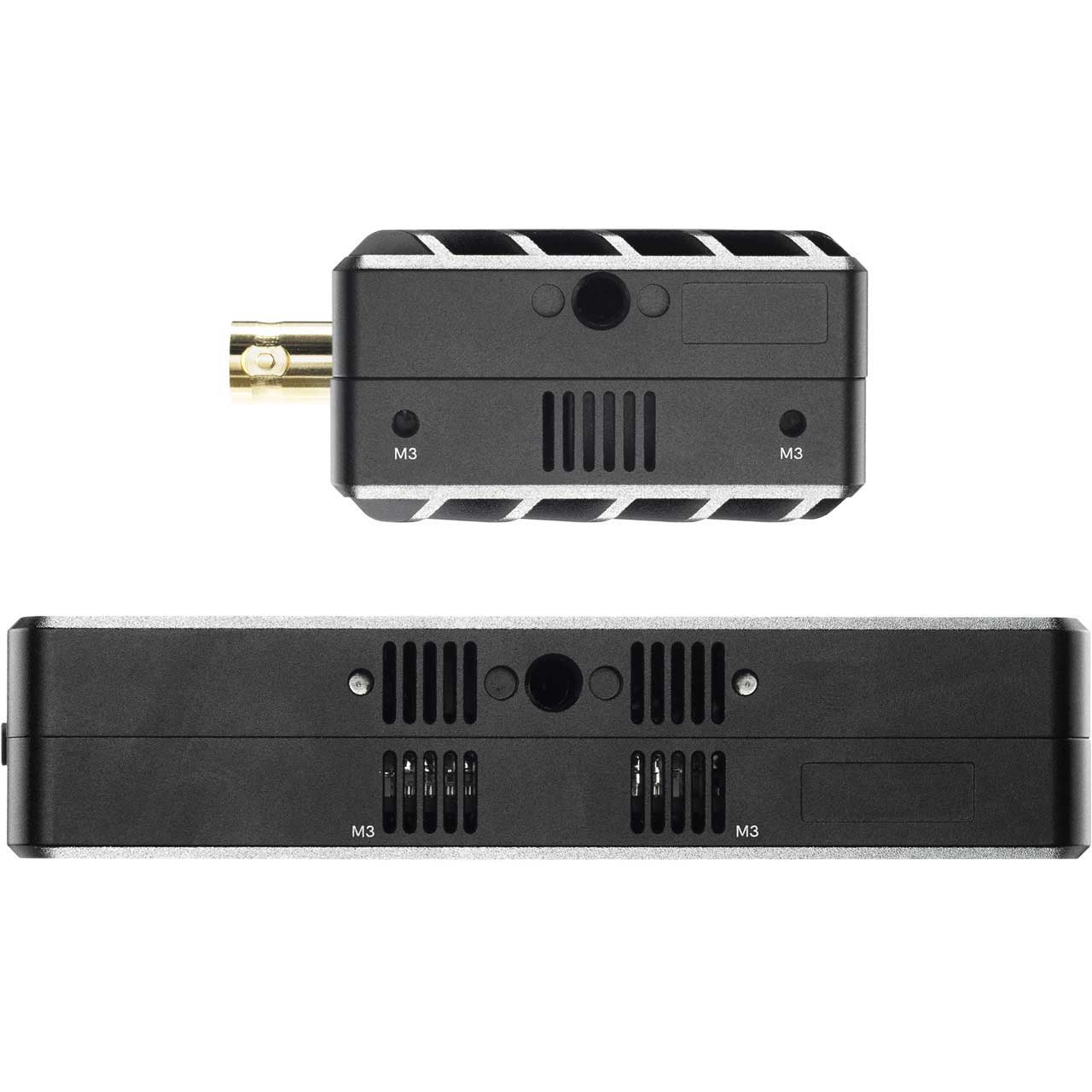

      • Mountability: Multiple mounting options with 1/4"x20 and M3 holes
      • Configuration Interfaces: OSD with Menu, Joystick Navigation
      • Switches: On/Off Switch
      • Mobile App: Bolt App
      • Desktop App: Bolt Manager application for OSX & Windows
      • USB Interface Functionality: Upgrade via Micro-USB
      • Bluetooth: 2.4 GHz

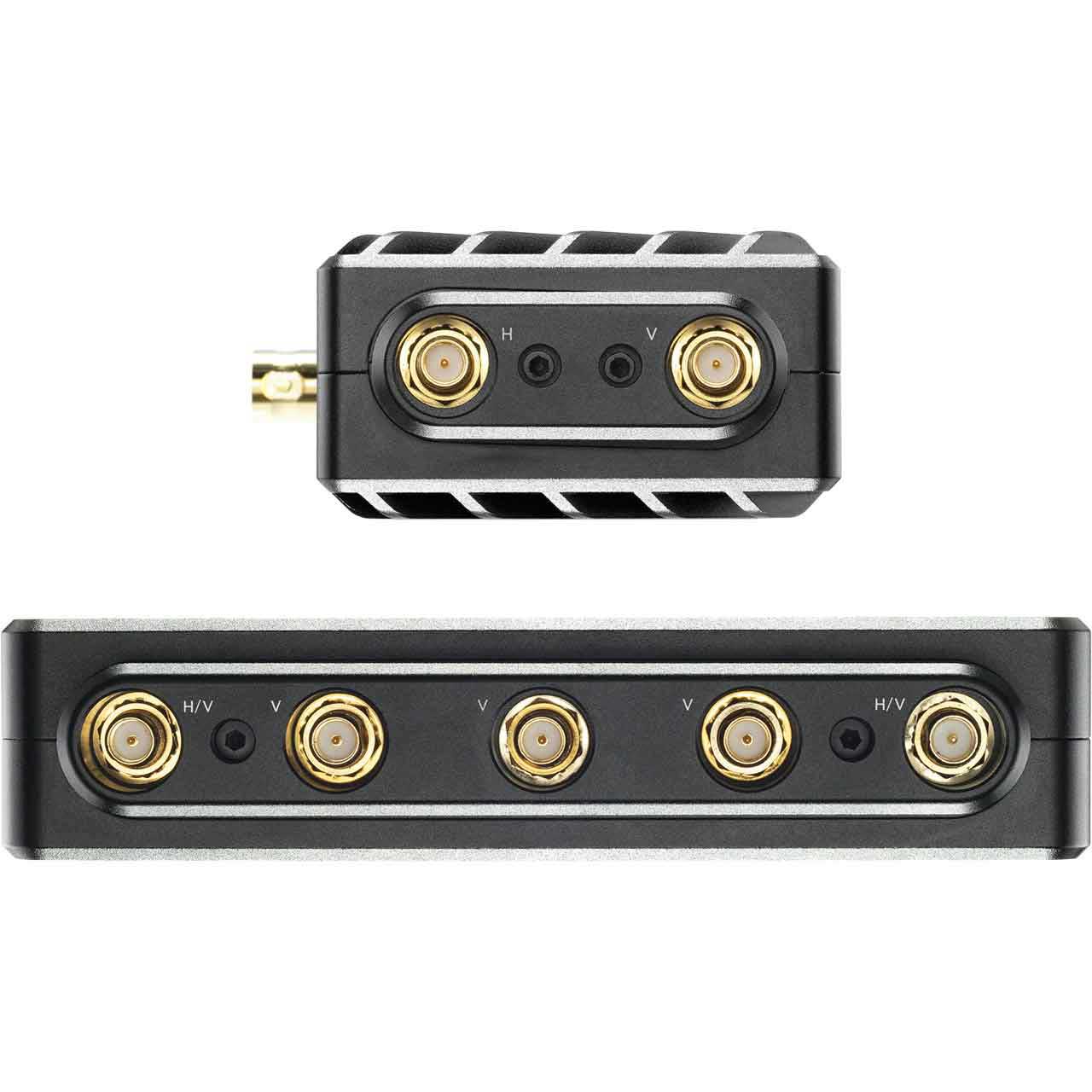

      • Antennas: 2 External 2dBi antennas (included)
      • Wireless
      • Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
      • DFS Frequencies: 5.270 ~ 5.670 GHz
      • Rf Channel Selection: Auto, Manual
      • Encryption: AES-256, RSA-1024 key exchange
      • Rf Power: 23 dbm EIRP
      • Range: Up to 3000 ft, line of sight
      • Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
      • Noise Rejection: Can coexist with WiFi and 5GHz cordless phones. Can operate up to 6 sets in same location
      • Interoperability: Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)
      • Power Input: 2-Pin Circular locking Connector 6-28 VDC
      • Battery: None, optional Sony/Canon dual battery plate
      • Nominal Power Consumption: 9 Watts
      • Operating Temperature: 32° to 104°F

        Bolt 6 LT MAX RX Gold-Mount
      • Video Outputs: 3G-SDI SMPTE 424M standard/75Ω (BNC x1) 1x HDMI 1.4b Type-A receptacle
      • SDI Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
      • Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
      • Output Video Scaling: No manual settings, but all signals above 4K30 for HDMI and 1080p60 for SDI are scaled down to 1080p for corresponding output
      • Supported Resolutions
      • 4Kp23.98/24/25/29.97/30 (HDMI only)
      • 1080p23.98/24/25/29.97/30/50/59.94/60
      • 1080psf23.98/24/25/29.97/30
      • 1080i50/59.94/60
      • 720p50/59.94/60
      • 480p59.94 576p50
      • 480i(NTSC)/576i(PAL)
      • Video Compression: Visually Lossless
      • Test Pattern Generator Support: Yes
      • Spectrum Analyzer: Yes
      • Color Correction: 17x17x17 3D LUT (supports 10-bit color)
      • Audio Compression: 48kHz 24-bit PCM
      • Audio Output: Embedded SDI/HDMI Audio Output (2 Channel)
      • Dimensions: 4.80 x 3.70 x 1.06"
      • Weight: 292g (10.3oz)
      • Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
      • Mountability: Multiple mounting options with 1/4"x20 and 3/8"x16 holes
      • Configuration Interfaces: OSD with Menu, Joystick Navigation
      • Switches: On/Off Switch
      • Mobile App: Bolt App
      • Desktop App: Bolt Manager application for OSX & Windows
      • USB Interface Functionality: Upgrade via Micro-USB
      • Bluetooth: 2.4 GHz
      • Antennas: 5 External 2 dBi antennas (included)
      • Wireless
      • Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
      • DFS Frequencies: 5.270 ~ 5.670 GHz
      • Rf Channel Selection: Auto, Manual
      • Encryption: AES-256, RSA-1024 key exchange
      • Rf Power: 21 dbm EIRP
      • Range: Up to 3000 ft, line of sight
      • Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
      • Noise Rejection: Can coexist with WiFi and 5GHz cordless phones. Can operate up to 6 sets in same location
      • Interoperability: Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range devi

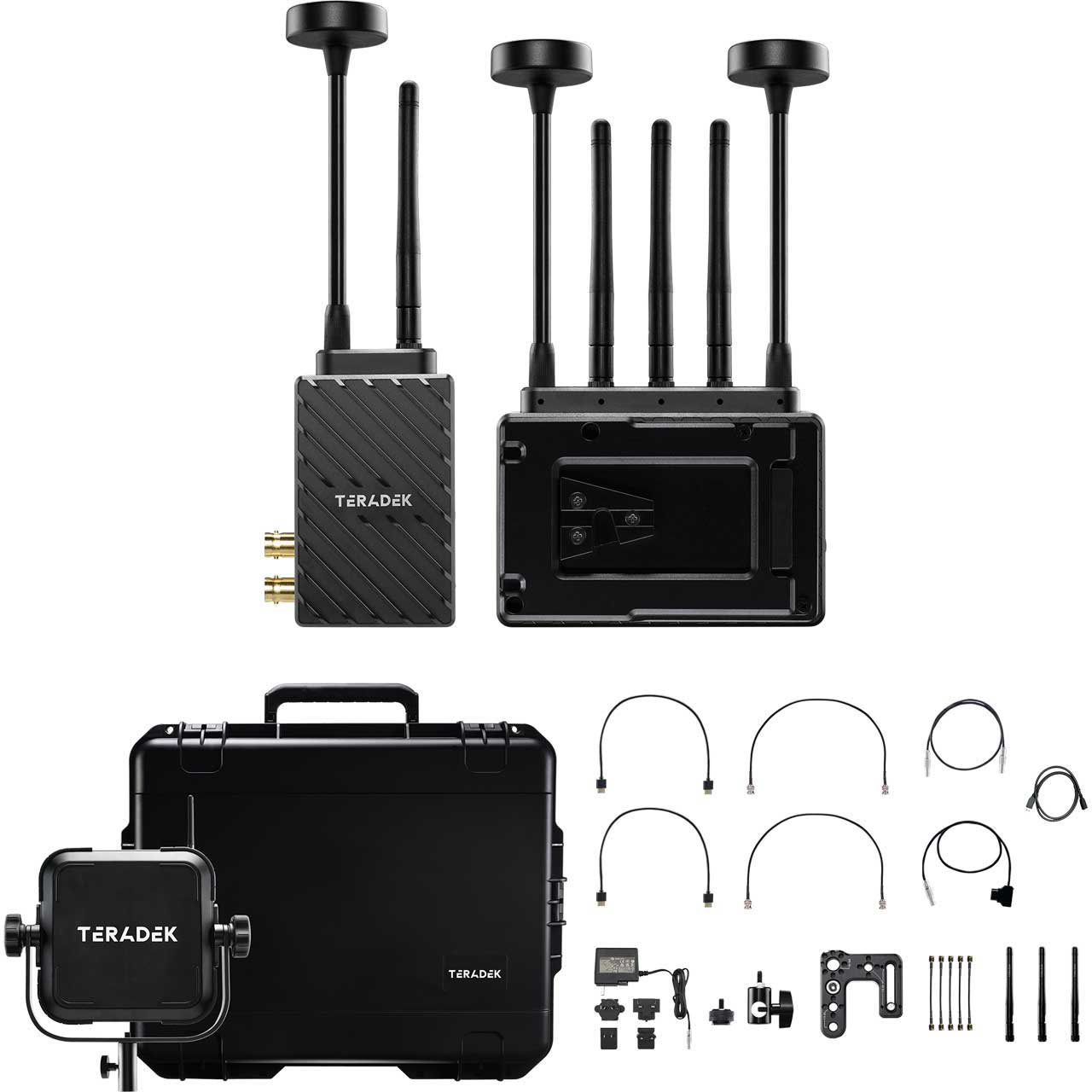

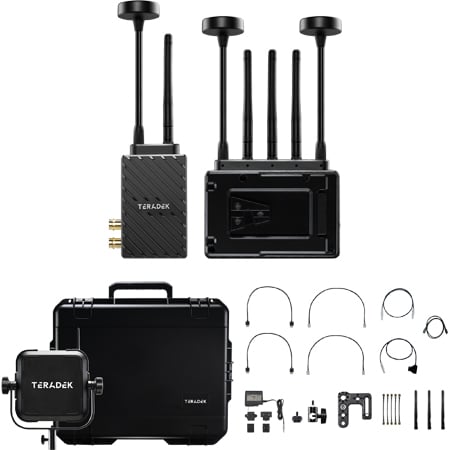

    • Item Includes:

      • 1x Bolt 6 LT MAX TX V-Mount
      • 1x Bolt 6 LT MAX RX V-Mount
      • 1x Antenna Array
      • 2x Bolt 4K LT RX Battery Cover
      • 1x Lightstand Adapter +-20in
      • 1x Hot Shoe Adapter
      • 2x Screw Flat Head Phillips
      • 2x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in/46cm Cable
      • 1x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable
      • 1x (Bit 718) 2pin Conn. to 2pin Conn. (Alexa) 18in/46cm Cable
      • 5x RP-SMA Female to RP-SMA Female 4in/10cm Cable
      • 2x SDI - BNC to BNC Cable, 10in
      • 1x PSU 2pin Conn. to 18W AC Adapter (Int) - 6ft Cable
      • 1x Wooden Camera - Teradek Offset Mount for Bolt 4K LT TX
      • 1x USB Male Type A (Full) - USB Male Type B (Micro) -3ft Cable
      • 3x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA

    • GTIN:

      0818264028391
