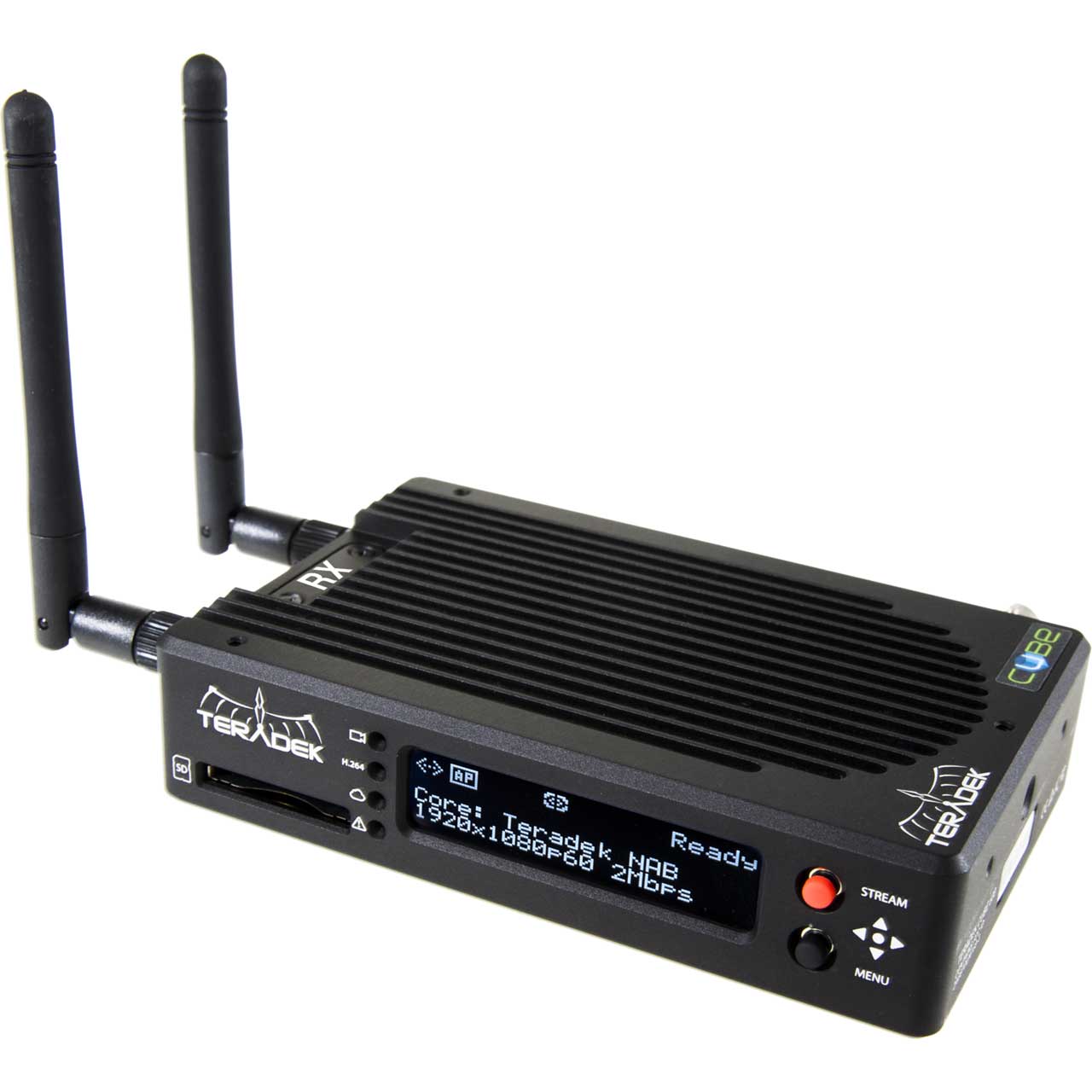

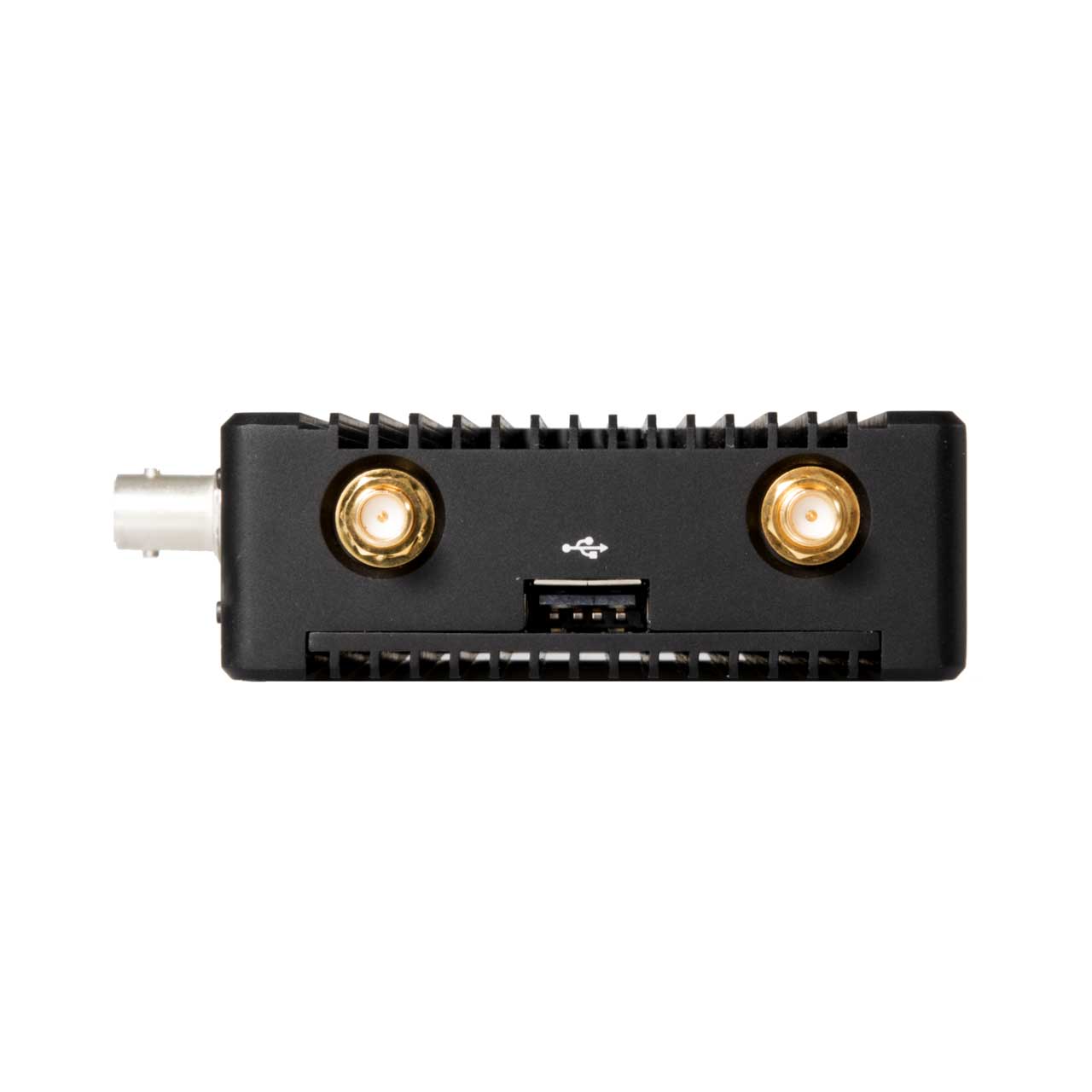

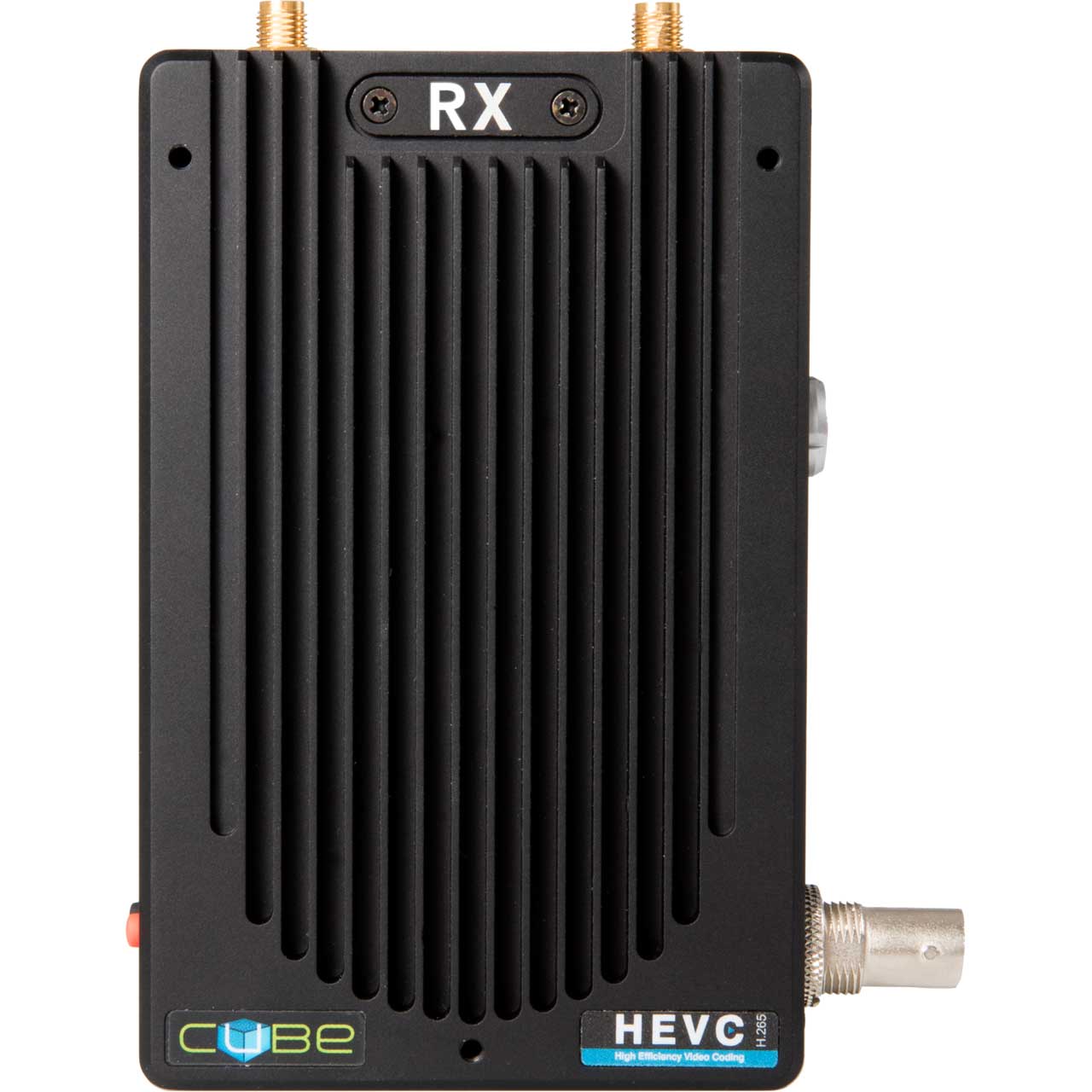

Teradek CUBE-775 HEVC/AVC (H.265/H.264) Decoder SDI/HDMI Dual-Band Wi-Fi

CUBE-775 - Overview

CUBE-775 - Overview

• Features:

  • Real-Time H.265/H.264 (HEVC/AVC) Decoder
  • Dual-Band 2.4/5.8 GHz WiFi, Ethernet and USB Interfaces
  • HDMI and SDI Video Outputs (Outputs 1080p/60)
  • Camera Top Form Factor
  • Built-In Scaler
  • OLED Display
  • Powers by AC Adapter or 2-pin Connector Battery
  • Outfitted for 1/4" Mounting


• Specifications:

  • Video Outputs
  • HDMI 1.4a: Full Size
  • SD/HD/3G-SDI (75 O BNC)

    Supported Resolutions
  • 1080p 24/25/29.97/30/50/59.94/60*
  • 1080i 50/59.94/60
  • 1080PsF 23/24/25/29/30
  • 720p 50/59.94/60
  • 576i
  • 480i
  • 480p (for HDMI output only)
  • 576p (for HDMI output only)

    Video Processing
  • Video Compression: Decompresses HEVC (H.265), H.264, Baseline, Main and High Profile
  • Supported Video Bitrate: 250 Kbps to 15 Mbps* *15 Mbps (wired), 10 Mbps (WiFi)
  • Test Pattern Generator Support: None
  • Video Format Conversion Support: Built in Video Scaler and Deinterlacer
  • Color Correction: None

    Protocol Support
  • Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
  • Supported Video Transport Protocols:
    RTP/RTSP: Unicast/TCP, Unicast/UDP, Multicast/UDP streams
    MPEG Transport Stream: Unicast/TCP (pushed in from an external source, or pulled down from a remote server such as Core), Unicast/UDP, Multicast/UDP
  • Teradek Streaming: Unicast/UDP, Multicast/UDP
  • Remote Control: Teradek Core

    Audio Compression
  • AAC-LC, MPEG Layer 2

    Audio Input
  • Embedded Audio Input
  • Analog Line or Mic in, adjustable gain

    Audio Output
  • Headphone output, adjustable volume

    Physical
  • Dimensions: 4.75"W x 3"D x 1.1"H [120.7 x 76.2 x 27.9mm]
  • Weight: 11.6oz [328.9g]
  • Construction: Milled Aluminum

    Interfaces
  • Http: WebUI for Configuration and Control
  • Configuration Interfaces: OLED Display with joystick Navigation buttons, Feature-rich WebUI for configuration and control
  • Switches: On/Off and Reset Switch
  • Mobile App: Vuer, Live:Air
  • Usb Interface Functionality: Powered USB 2.0 host port

    Network
  • Ethernet: 10/100BASE-T
  • Wireless: WiFi: 2.4/5GHz 802.11 a/b/g/n MiMo
  • USB: None
  • RfFChannel Selection: Auto with 3 modes: (2.4 or 5 Ghz), Auto (2.4 GHz only), Auto (5 Ghz only), Configurable to specific channels
  • Encryption: 802.1x, 802,11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES

    Power
  • Power Input: 2 Pin Connector Power input
  • Battery: No Battery Included
  • Nominal Power Consumption: 8W, 7W (no WiFi)
  • Auxilary Power Input: 6-28V DC


• Item Includes:

  • 1x Teradek CUBE-775 EVC/AVC (H.265/H.264) Decoder SDI/HDMI GbE WiFi


• GTIN:

  0818264020494
