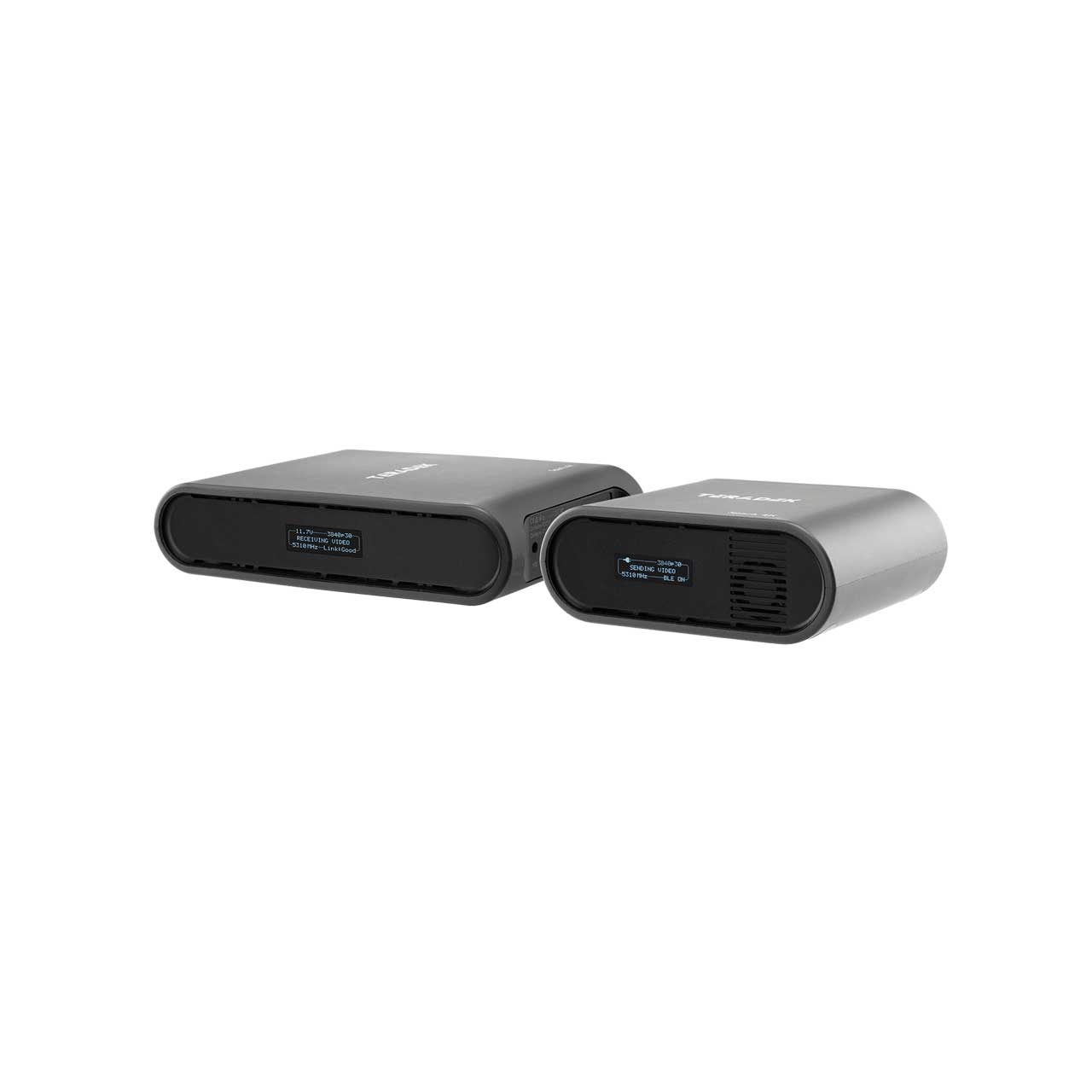

Teradek SPARK Zero-Delay 4K Wireless Video Transmission System - Tx/Rx Kit

ITEM #: TER-SPARK4K-TXRX MFG #: 10-1855

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order


Availability: Sold Out
iAvailability Description Popup


    10-1855 - Overview

    ZERO-DELAY 4K WIRELESS TRANSMISSION

    The Premium Wireless Solution for A/V Productions
    Meet Teradek's Spark 4K wireless transmission video system! It's capable of transmitting untethered local 4K HDR video up to 500 feet line-of-sight over the unlicensed 5GHz band. Spark 4K can multicast to up to two Spark 4K receivers simultaneously. It has portable power, internal antennas, and a compact design making it truly wireless.

    Built for A/V Needs
    Small tabletop design - doesn't have to be mounted on camera
    No external antenna
    Flexible power options

    Signal Integrity
    Operates on the 5GHz frequency for less sensitivity to line-of-sight obstructions
    Smart frequency hopping that automatically finds clear channels
    Joint Source Channel Coding (JSCC)
    *Teradek's patented wireless technology allows for zero-delay transmission while delivering picture perfect image quality

    Launchpad App
    Desktop and mobile app for pairing and firmware updates
    Smart signal status (mobile)

    Mobility
    Get wireless coverage for up to 500 feet of range. Now, your projectors, monitors, encoders, switchers, and TVs are all within range with robust wireless connectivity.

    4K HDR Color
    Maintain premium video quality at 10-Bit 4:2:2 color sampling.

    Lighter than lightweight
    Spark TX weighs just 5.6oz, perfect for on-the-move camera work.

    Smaller than small
    Spark RX is just 4.39" x 3.19" x 1", just slightly larger than a cassette tape.

    Common workflows using Spark 4K:
    Professional A/V (conferences, tradeshows, pop-up events) Workflows:
    Computer > Spark 4K > Consumer TV/Projector (Up to 2 sources)
    Computer > Spark 4K > Graphics Processors > Projector
    Computer > Spark 4K > Video Mixer
    Camera > Spark 4K > Switcher > Consumer TV/Projector
    Camera > Spark 4K > Switcher > Live Stream

    House of Worship Workflows:
    Computer > Spark 4K > Consumer TV/Projector (Up to 2 sources)
    Camera > Spark 4K > Monitor/Projector
    Camera > Spark 4K > Switcher

    Live Sports Workflows:
    Camera > Spark 4K > SwitcherCamera > Spark 4K > Monitor (For coaches)

    Live Event (weddings, funerals) Workflows:
    Camera > Spark 4K > Switcher
    Switcher Program Output > Spark 4K > Live event monitor/projector

    • Features:

      • Zero-delay 4K wireless video (<0.001sec)
      • 4K HDR with 10-bit 4:2:2
      • Wireless range of up to 500 ft line of sight
      • Internal TX battery allows quick deployments and fewer power accessories
      • USB-C and Barrel Connector for power
      • Third party power solutions
      • OLED display for status and troubleshooting
      • Supports up to 4Kp30 with HDMI
      • Multicast transmission: 1:2 TX:RX

    • Specifications:

      • SPARK 4K - Transmitter/Receiver

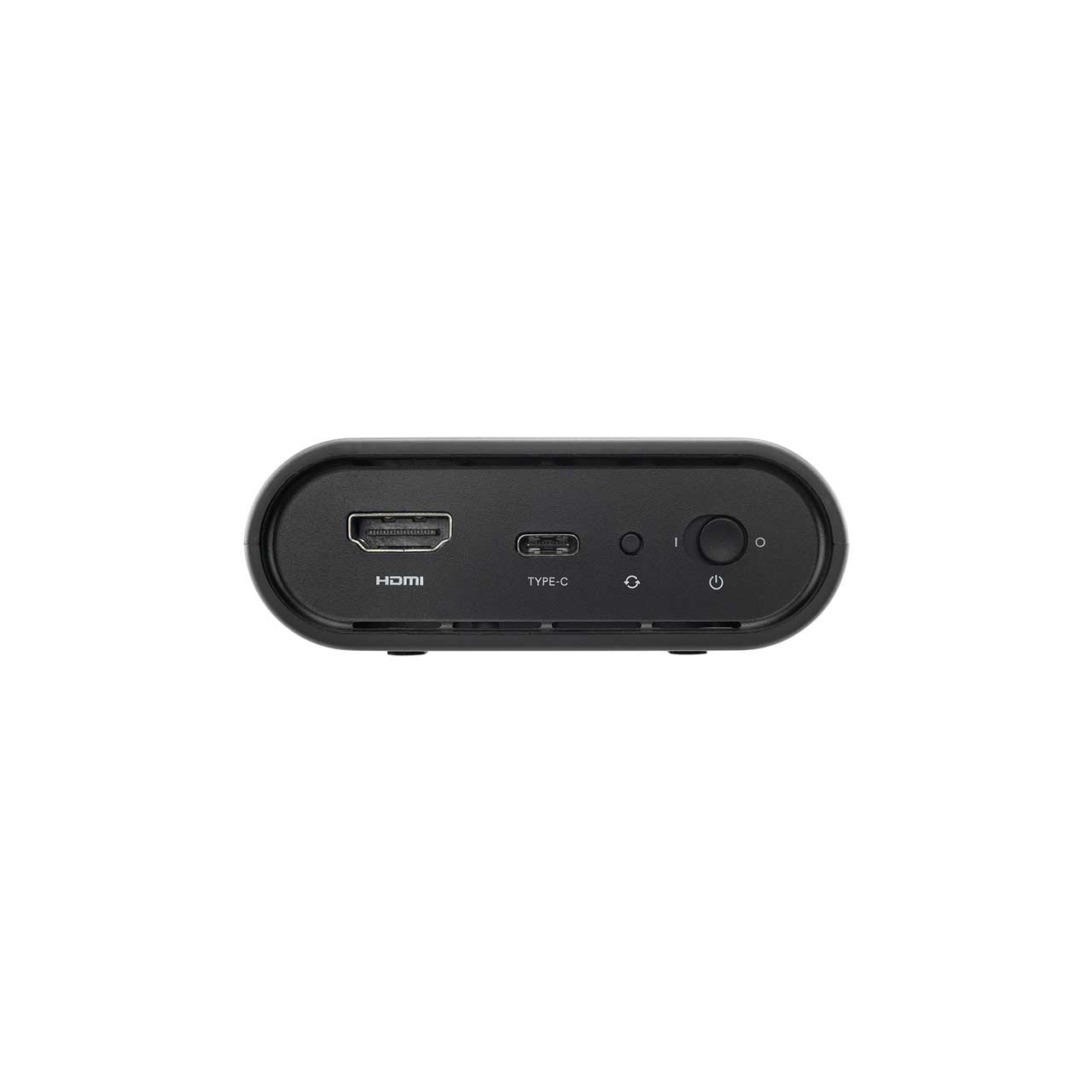

      • Video Inputs: Transmitter: 1x HDMI 1.4b Type-A receptacle, Receiver: N/A
      • Video Outputs: Transmitter: N/A, Receiver: 1x HDMI 1.4b Type-A receptacle
      • Color Sampling: HDMI: RGB 4:2:2, 10-bit
      • Delay (TX to RX): <0.001sec (without format conversions)
      • Supported Resolutions: 4Kp23.98/24/25/29.97/30, 1080p23.98/24/25/29.97/30/50/59.94/60, 1080i50/59.94/60, 720p50/59.94/60, 480p50, 576p59.94/60
      • Output Video Scaling: N/A
      • Video Compression: Visually lossless

        Audio
      • Audio Compression: 48kHz 24-bit PCM
      • Audio Input: Embedded HDMI Audio Input (2 channel)
      • Audio Output: N/A

        Physical Attributes
      • Dimensions: Transmitter: 3.44" x 2.66" x 1.22", Receiver: 4.39" x 3.19" x 1"
      • Weight: Transmitter: 158g (5.6 oz), Receiver: 187g (6.6 oz)
      • Construction: ABS Plastic
      • Mountability: Multiple mounting options with M3 and 1/4-20" holes

        Interfaces

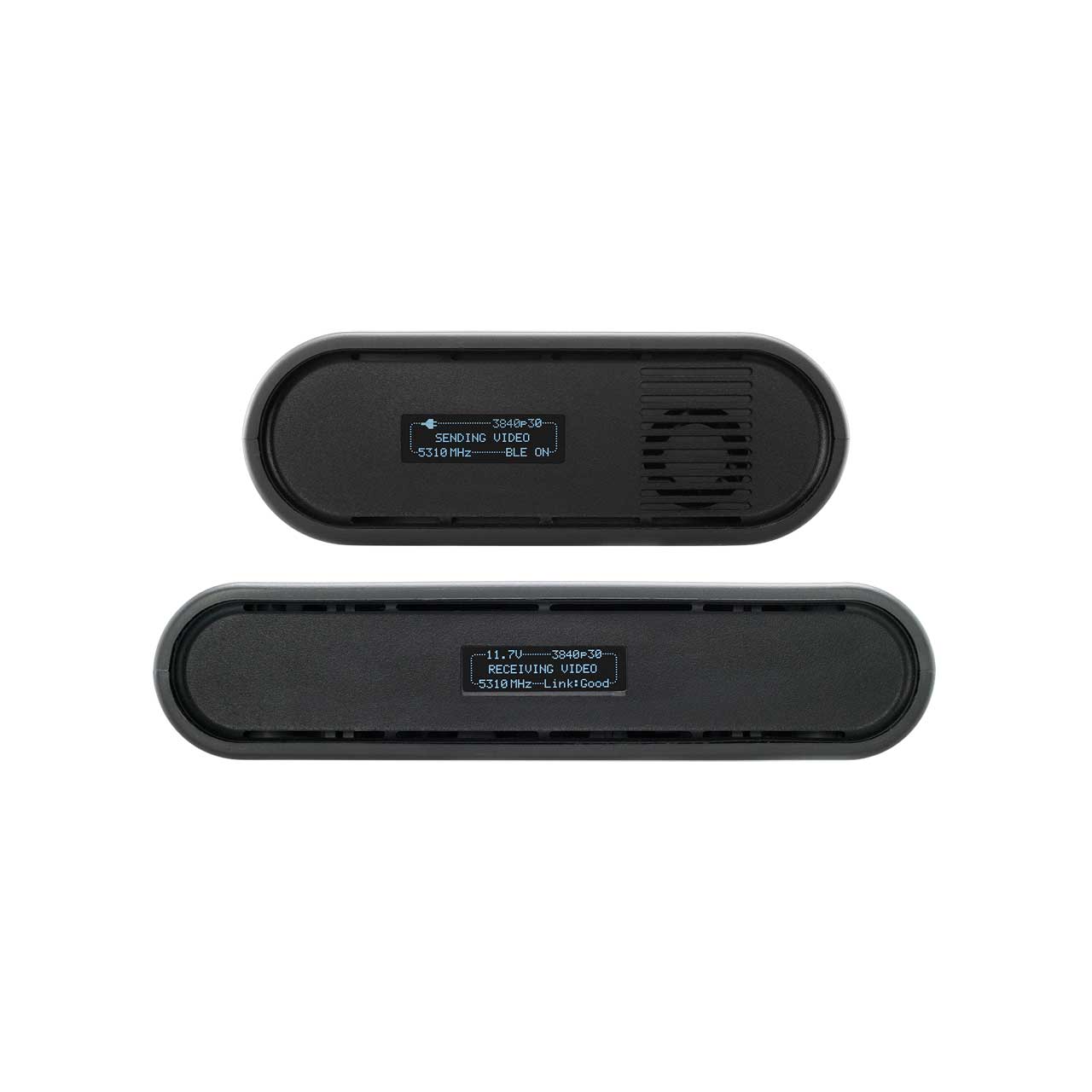

      • Status Display: OLED display: Input video format, Selected frequency, Video Quality %, Link status
      • Switches: On/Off Switch
      • Desktop App: Launchpad application for OSX & Windows
      • Mobile App: Launchpad App
      • USB Interface: Upgrade via Micro-USB
      • Recessed Button: Enable/disable Bluetooth

        Wireless
      • Wireless DFS Frequencies: 5.270 ~ 5.670 GHz
      • Non-DFS Frequencies: 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz
      • Bluetooth: 2.4 GHz 2.4 GHz
      • RF Channel Selection: Auto only, 40 MHz only, no blocked frequencies Auto only, 40 MHz only, no blocked frequencies
      • Encryption: AES-128, RSA-1024 key exchange
      • RF power: Transmitter: 19 dbm EIRP (<80mW transmit power), Receiver: 17 dbm EIRP (<51mW transmit power)
      • Antennas: Transmitter: 2x Internal 2dBi antennas (AMC mode always on), Receiver: 5x Internal 2dBi antennas
      • Range: Up to 500 ft line of sight
      • Multicast: Can connect one transmitter to up to 2 receivers
      • Noise Rejection: Can coexist with Wi-Fi and 5GHz cordless phones, and can operate up to 4 sets in same location
      • Compatibility: Spark 4K products only

        Power

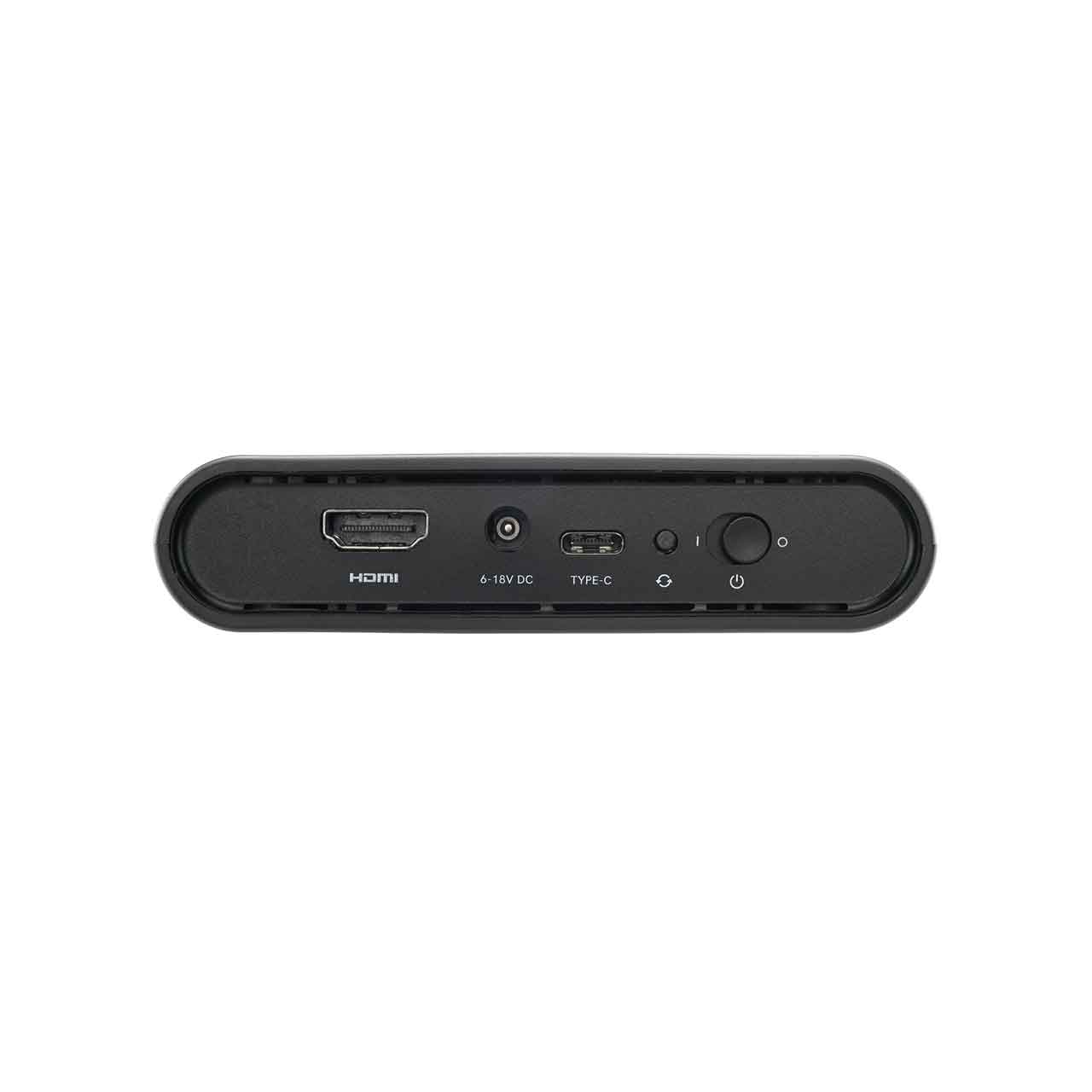

      • Power Input: Transmitter: USB-C power input, Receiver: USB-C and 7-18 DC power input
      • Battery: Transmitter: Internal 9.5Wh battery (1.5hr run time), Receiver: None
      • Nominal Power Consumption: Transmitter: 5 Watts, Receiver: 6 Watts
      • Operating Temperature: 0~40 deg-C

    • Item Includes:

      • 1x Spark Transmitter (TX)
      • 1x Spark Receiver (RX)
      • 1x Hot Shoe Adapter
      • 1x Light Stand Adapter 1/4-20in
      • 1x USB Male Type A (Full) - USB Male Type B (Micro) -3ft Cable
      • 1x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in Cable
      • 1x PSU 18W AC Adapter 12VDC (Int) - 6ft Cable
      • 1x PSU 30W USB-C Power Adapter
      • 1x Quickstart Guide - Spark 4K

    • Applications

      :

      • Live Production
      • Pro AV Projection Stages
      • Houses of Worship (IMAG)
      • Entry-level Camera Professionals
      • Education
      • DSLR/Mirrorless shooters

    • GTIN:

      0818264027059
