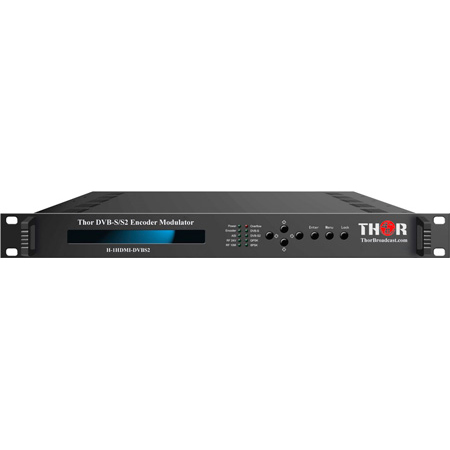

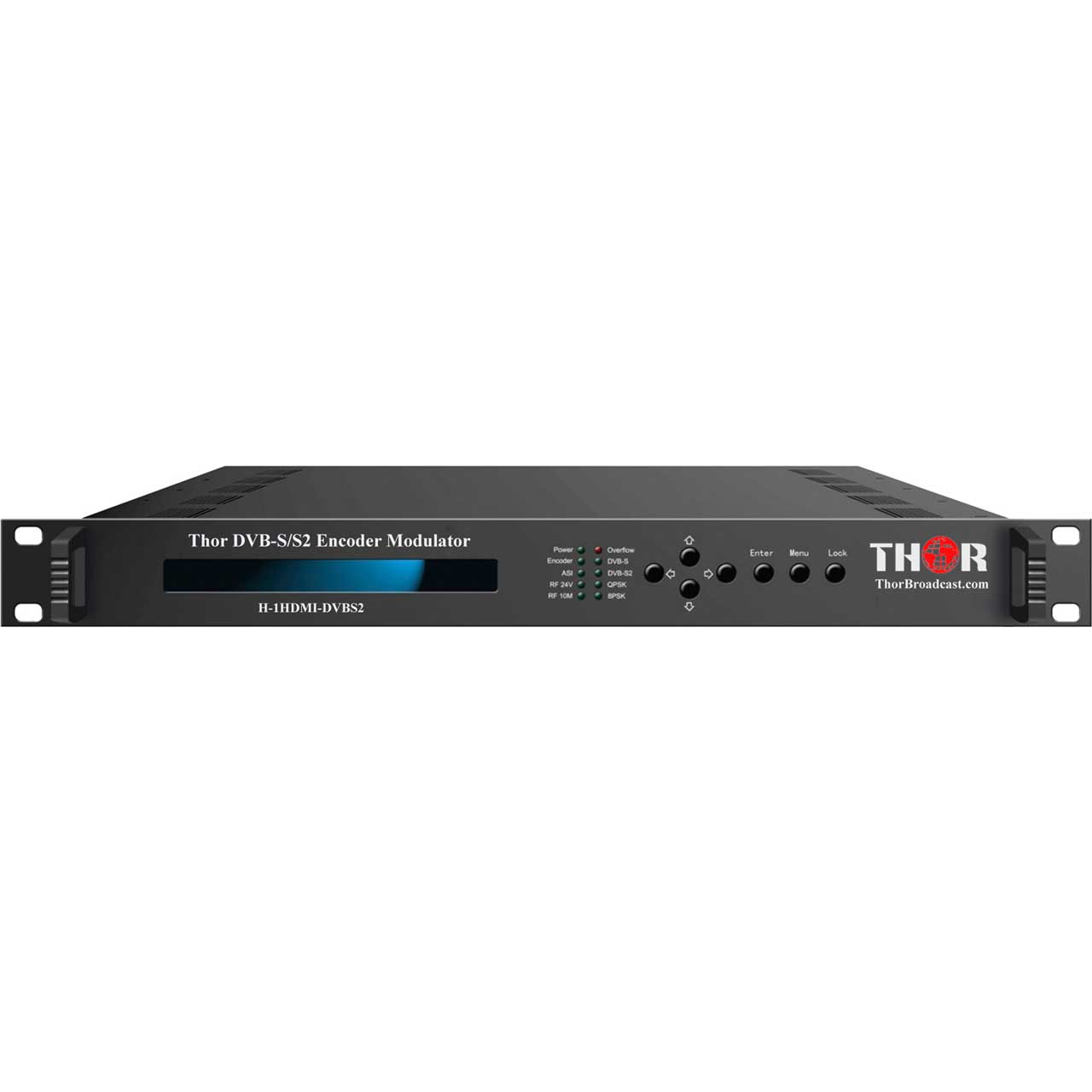

Thor Fiber H-1HDMI-DVBS2 1-Channel HDMI to DVB-S2 Satellite Encoder Modulator
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Thor Fiber H-1HDMI-DVBS2 1-Channel HDMI to DVB-S2 Satellite Encoder Modulator

    Manufacturer: Thor Fiber

    Item #: THR-1HDMI-DVBS2   •   MFG #: H-1HDMI-DVBS2


    List Price:$8,562.50
    Our Price:$6,850.00

    free ship
    Direct Ship from manufacturer, contact us for availability
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.

      California Residents:
      Cancer and Reproductive Harm -


      Single card encoder modulator system for digital satellite news gathering or DVB-S2 satellite transport. Designed for use in DSNG trucks or installed in satellite broadcast fly pack enclosures. Provides full HD encoding of 1 channel of live video from any HDMI signal source. The chassis also provides an ASI input to multiplex externally encoded programs into the DVB-S2 RF carrier output for added flexibility. For backwards compatibility, both DVB-S2 and DVB-S modulation protocols are supported on the RF output. The BISS satellite encryption standard allows secure transmission of live video by making the feed impossible to decode without a pre shared key. The chassis supports most Thor Broadcast single depth encoder cards, with support for every major video signal format. All settings and configuration options are available via the front panel keyboard and LCD, as well as through a standard web server based network management system. For powering the uplink antenna the unit has the option of providing 24VDC over the coax output, this feature can be enabled or disabled through either management interface. This system will accept programming via ASI and encode 1 channel of full HD video at 1080p60 from any HDMI source.

      • Features

        • 1x HDMI Input and 1x ASI Input / DVB-S/S2 & ASI Output
        • Distribut ASI or Uncompressed Video over Satellite RF
        • Combination Encoder, Modulator, & ASI Mux
        • Controlled through web server on separate network port
        • Encodes in MPEG-2 or H.264 video codecs at 0.5 - 19 Mbps
      • Specifications

        • HDMI Formats: 1080p, 1080i, 720p
        • Frame Rates: 50, 59.94, 60 fps
        • Video Codecs: MPEG-2, H.264
        • Video Bit Rates: 0.5 - 19.5 Mbps, CBR or VBR
        • Audio Codecs: MPEG1 Layer2, MPEG2 Layer2, AAC
        • Audio Bit Rates: 64 - 32 kbps (6 steps)
        • ASI Input: SPTS, MPTS (up to 80Mbps)
        • ASI Output: SPTS, MPTS (up to 80Mbps)
        • RF Output: DVB-S, DVB-S2
        • IP Management: HTTP Webserver port 80
        • Power Input: 100-240 VAC Auto Switching 35W
        • Dimensions: 482 x 300 x 44 mm
        • Weight: 3.75 kg
        • Operating Temperature: 0 - 45 C
