Thor Fiber H-2ADHD-QAM-IPLL 2-Channel HDMI/YpPbr/Composite to QAM & ATSC Encoder Modulator w/Low Latency & IPTV Streamer


  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup

    H-2ADHD-QAM-IPLL - Overview

    The Thor H-2ADHD-QAM-IPLL QAM/ATSC Analog and Digital HD(ADHD) encoder modulator is a multi-dynamic tool used to distribute any live HDMI/YpPbr/Composite/Component video source such as a cable TV STB, DVD player, Digital Signage Device etc, and broadcast that video on your own RF channel over your existing coax infrastructure. This easy to use encoder modulator is useful for any type of video encoding & distribution. Separate input for Closed Caption 608 is available through its own analog input. This unit can be just an encoder, a modulator, IPTV server, or all 3 at once. The 2ADHD is compatible with any HDMI/YpPbr source that will output an RF channel with perfect HD quality video up to 1080p60 that encodes in either MPEG-2 or H.264. Creating your headend with dozens of channels can be easily accomplished by stacking several units and daisy chaining the RF in’s & out’s, or by using an external RF combiner. This unit has built in tuning and modulation for both QAM and ATSC.

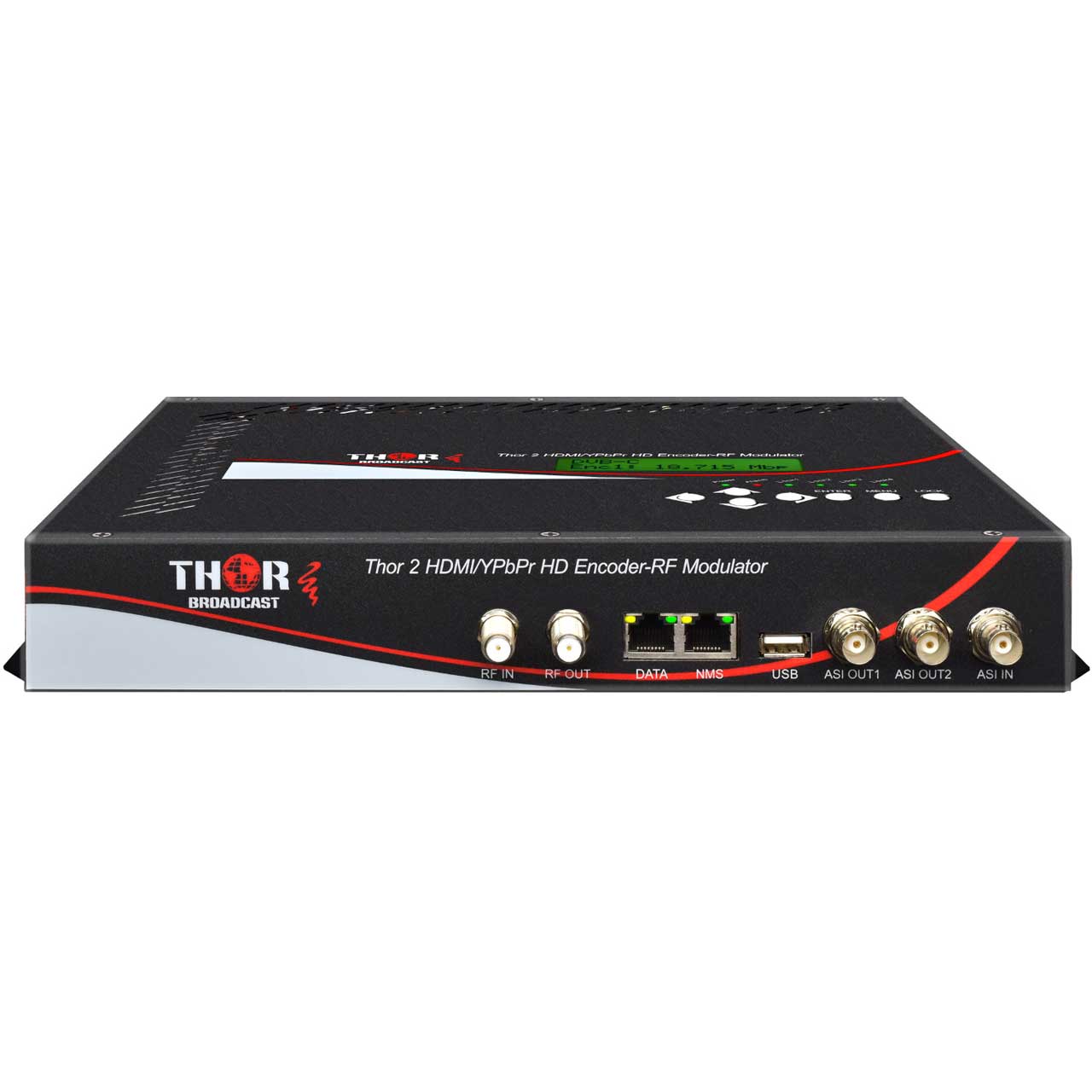

    All settings are configurable through either the front panel LCD or through a web browser on a dedicated network port. The NMS (network management software) built into every Thor unit is a proprietary firmware that will allow you to adjust any settings on the encoder from any web browser, from any device located on the same network. A second network port is provided for IPTV streaming output that can directly feed any standard IPTV system. This unit also provides a DVB-ASI input and output for added flexibility and integration with other broadcasting components. This modulator will output RF QAM/ATSC, ASI, and IP simultaneously creating easy distribution over coax and IP. Automated internal chipset will automatically adjust most settings. RF Power levels can be adjusted from 5-35dBmV. All Thor products come with a 5 year warranty and free tech support. Ask your rep how Thor can preconfigure your unit for you, creating a seamless plug and play apparatus to power your own CATV channels.

    • Features:

      • 70 ms Low Latency encoding feature for low delay display

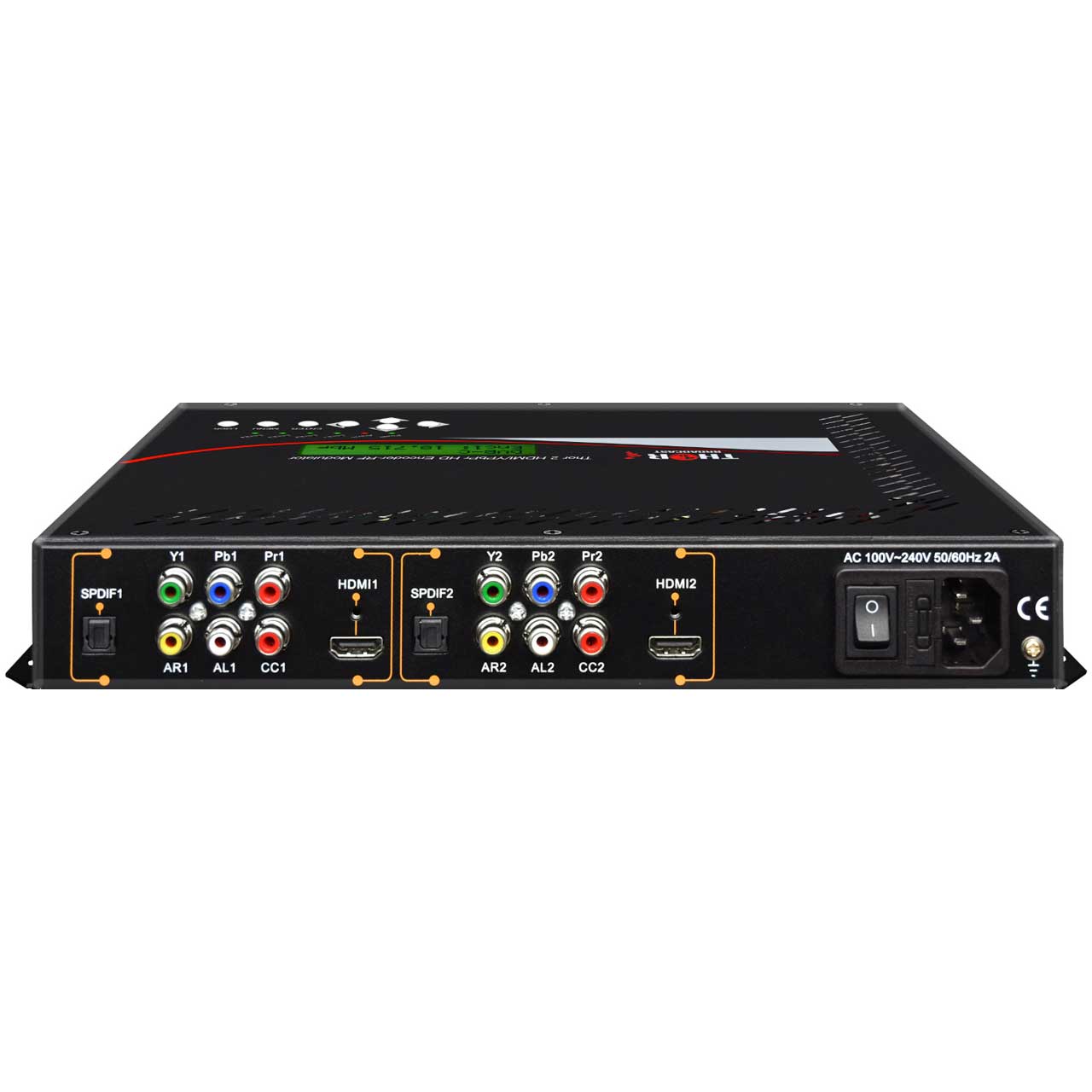

      • 2x HDMI/YpPbr Input and 1x ASI Input / QAM, IPTV, & ASI Output
      • Distribute or Broadcast any live HDMI digital video source
      • Combination Encoder, Modulator, IPTV Server, & ASI Mux - Closed Caption 608 via Analog Input
      • Controlled through web server on separate network port
      • Encodes in MPEG-2 or H.264 video codecs at 0.5 - 19 Mbps
    • Specifications:

      • Input HD: HDMI & YPbPr up to 1080P60
      • SD: Analog Composite
      • Supported Resolutions:
        720x480P 60/59.94/50Hz
        1280x720P 60/59.94/50Hz
        1920x1080I 60/59.94/50Hz
      • Video Codecs:
        MPEG-2 HD 1.5-19.5 Mbps
        H.264 HD 0.8-19.5 Mbps
      • Audio Codecs:
        MPEG-1 Layer II
        MPEG-2 AAC, Dolby AC3
        MPEG-4 AAC AC3 Dolby Audio & Dolby Passthrough
      • Audio Sample Rate: 48 kHz
      • Audio Bit Rates: 64 kbps, 96 kbps, 128 kbps, 192 kbps, 256 kbps, 320 kbps
      • Modulation Standard: ATSC & DVB-C(QAM)
      • RF Frequency Range: 30-960 MHz 1 KHz Step
      • RF Power Level: 5-35 dBmV Adjustable
      • DVB-ASI Output BNC Connector: 1-60 Mbps
      • DVB-ASI Input BNC Connector: 1-120 Mbps
      • Programs: Selected by PID
      • Programs: Muxed to all Outputs
      • IPTV Streaming: RTP, RTSP, UDP; Unicast & IGMP Multicast
      • Power Input: 100-240 VAC Auto Switching ~ 20 W
