Thor Fiber F-4VD-TXRX 4-Channel Fiber Optic Media Converter - Composite Video & Return RS485 Data Over Singlemode Fiber

ITEM #: THR-F-4VD-TXRX MFG #: F-4VD-TXRX

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the THR-F-4VD-TXRX

F-4VD-TXRX - Overview

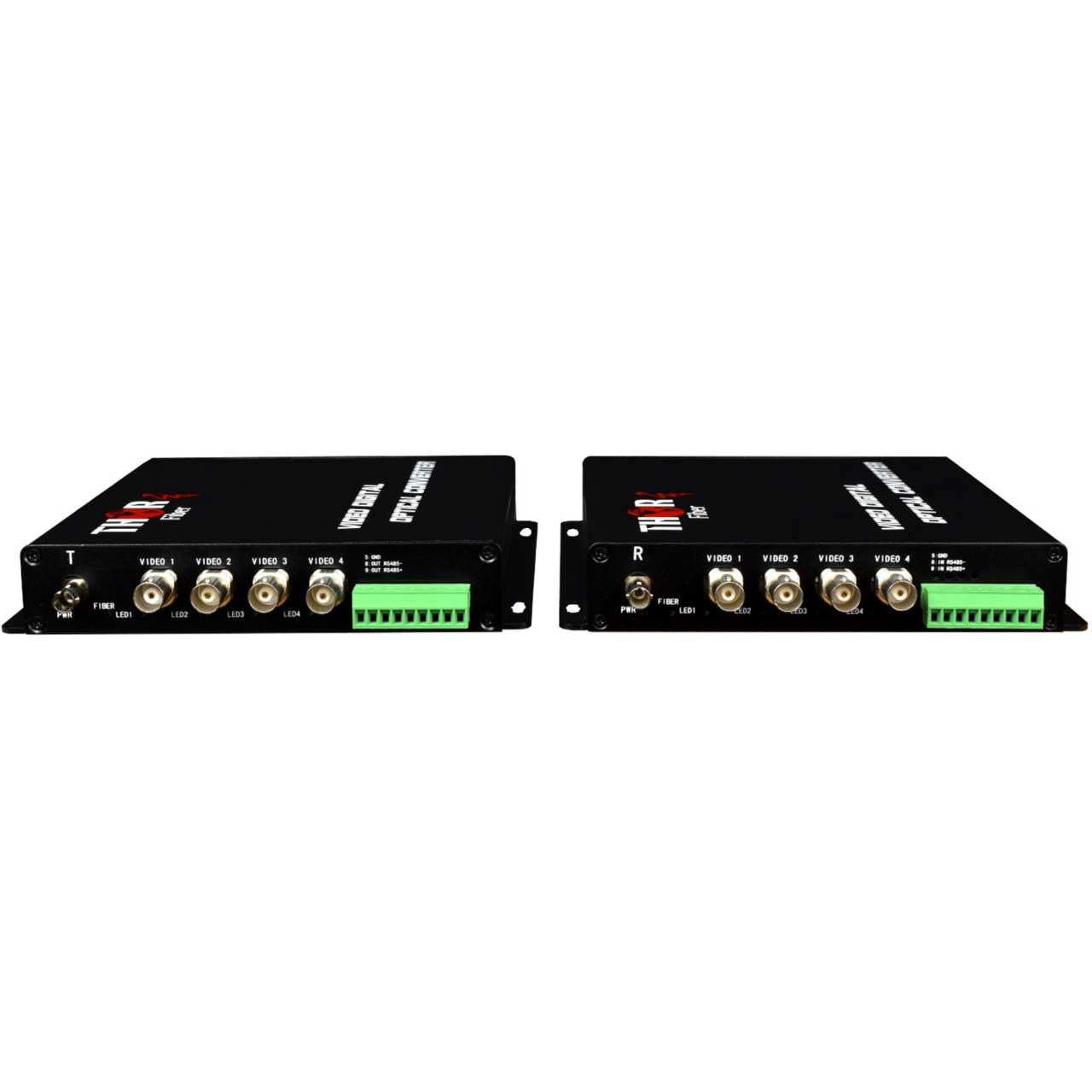

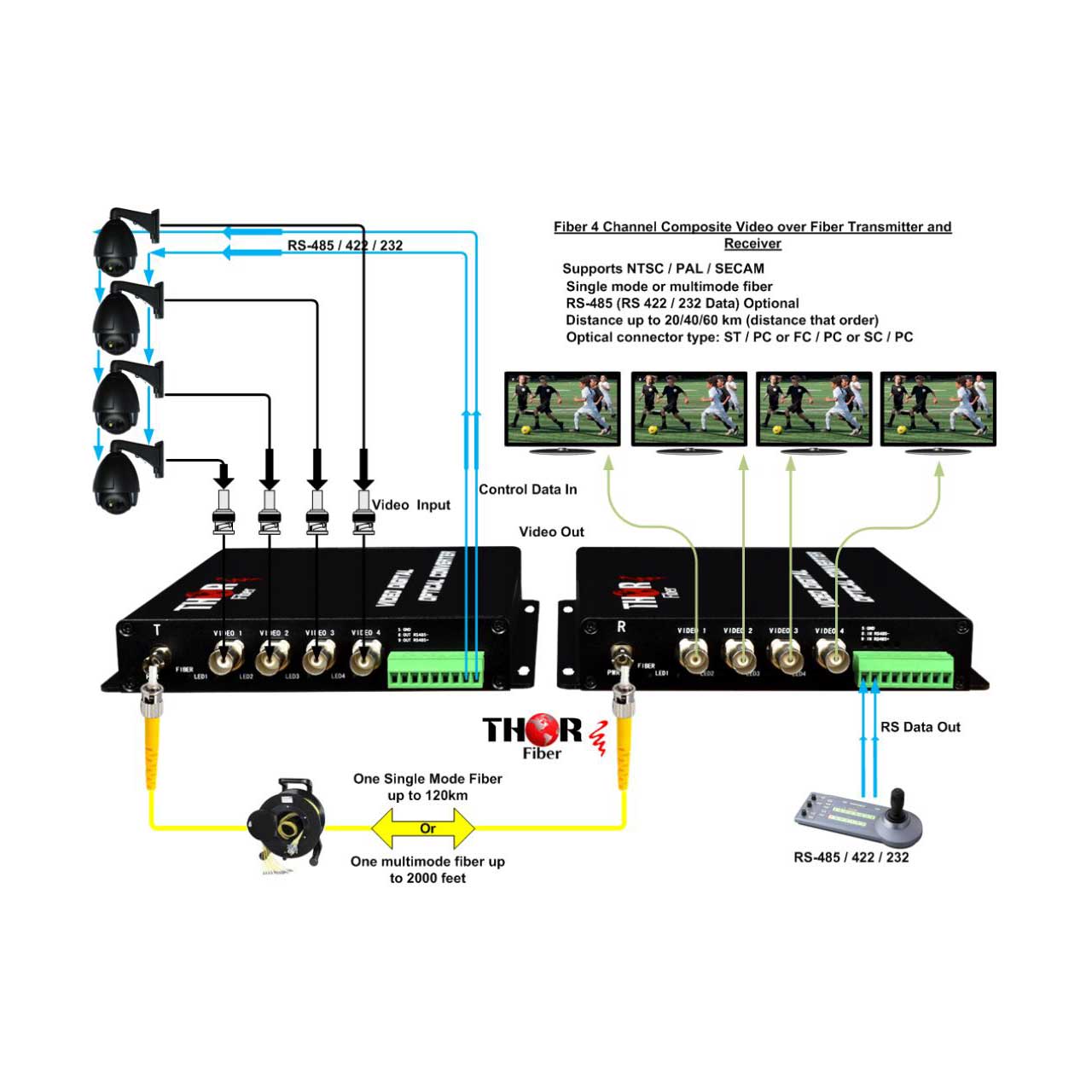

F-4VD-TX/RX is a 4 Video in one direction, and an RS485 in the opposite direction TX/RX kit

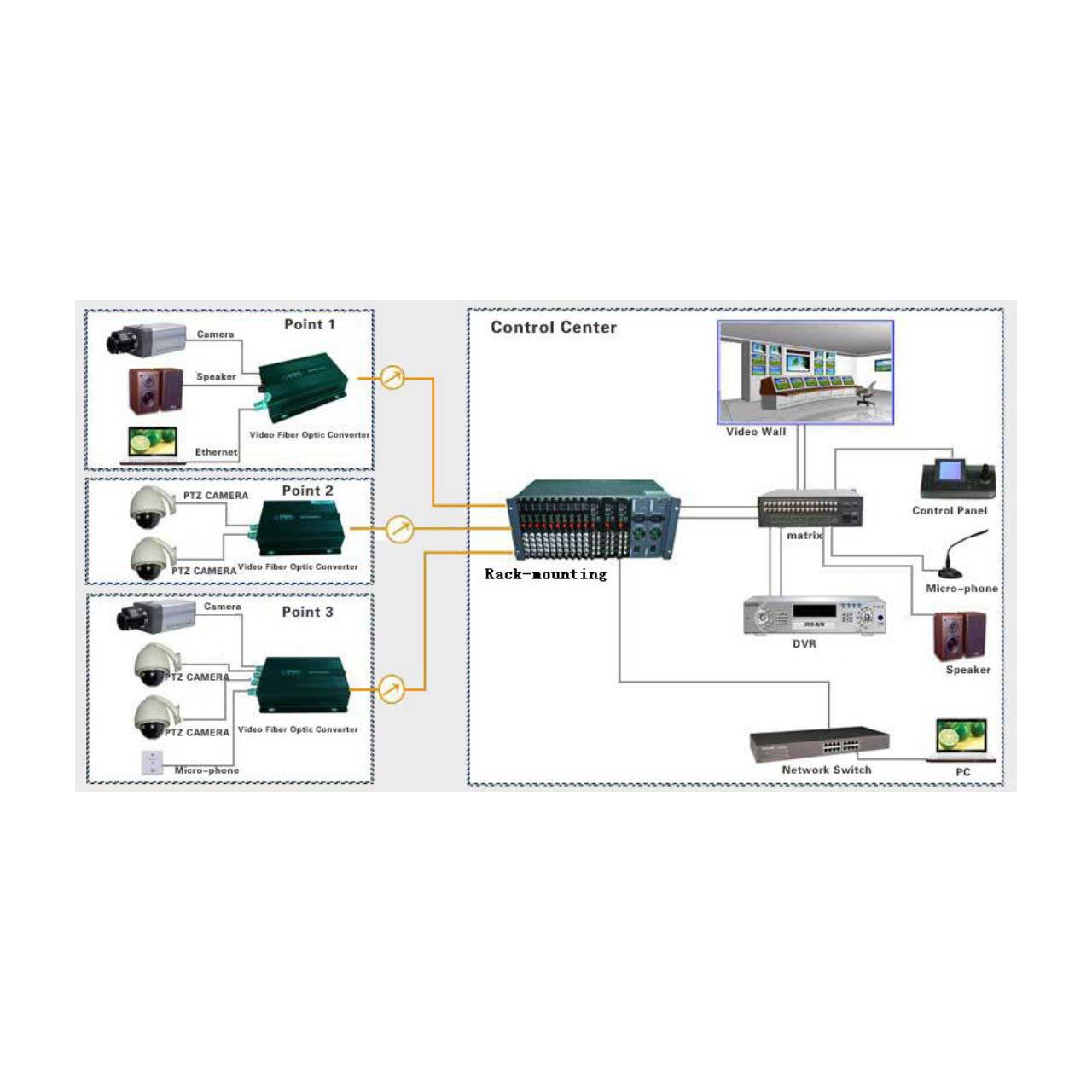

There are many high-end security cameras out there that still shoot in the standard composite video. Thor's line of F-SEC fiber transmitters is designed to extend the life of this equipment.Thor's fiber optic security transmitters still use the same high-end 10-bit digital encoding that our broadcast transmitters use, just in a less expensive chassis. They offer many different configurations and services with this line of products. In addition to video, we can also carry data, Ethernet, telephone, or audio in the same unit. Speak with a sales representative today to discuss specific options and pricing. Thor's units come with standard single-mode optics with a transmitting distance of up to 20 km.

  • Specifications:

    • Video
    • Bandwidth: 8.0 MHz
    • Quantization: 10 - bit
    • DG: 1% typical
    • DP:: 1 typical
    • SNR: >67 dB
    • Audio
    • Bandwidth Per Channel: 20Hz ~ 20KHz
    • Quantization: 24 - bit
    • SNR: > 75 dB
    • THD: <0.1%
    • Data
    • Interface Type: Return unidirectional RS-485 - default on the F-4VD-TX/RX, (RS232/422 are available as a special order only)
    • Operation Mode: Full-duplex/Half-duplex
    • Data Rate: D<10-9
    • Dimensions: LxWxH 6.5 x 5.25 x 1.25 ( including connectors)
