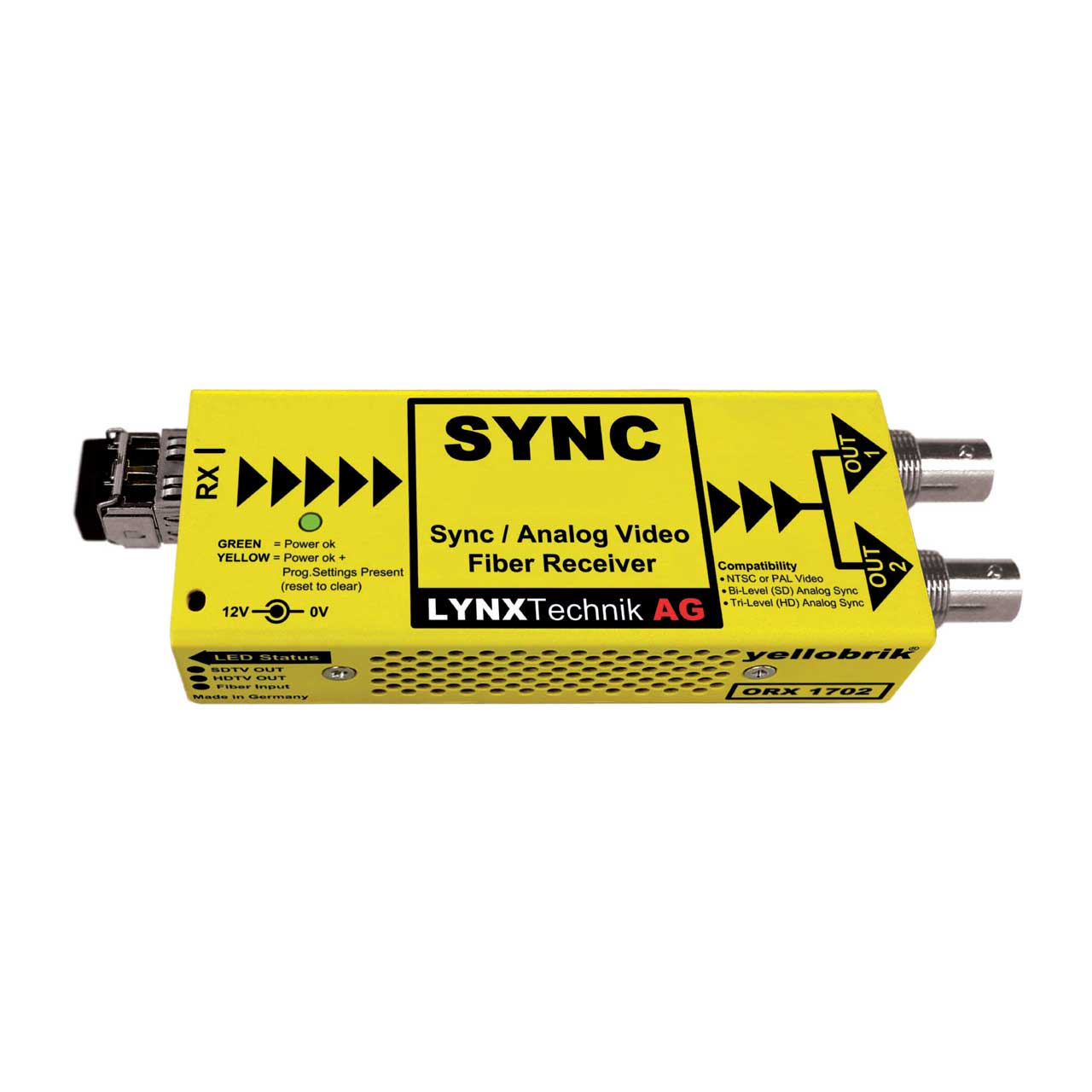

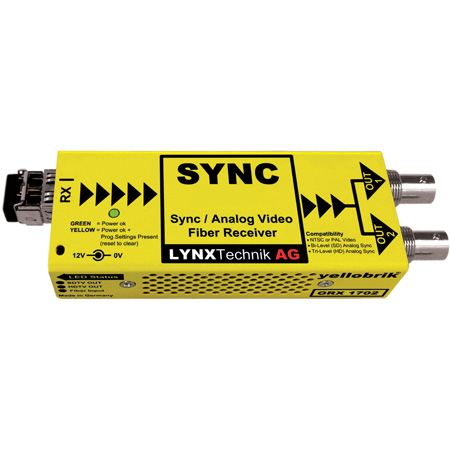

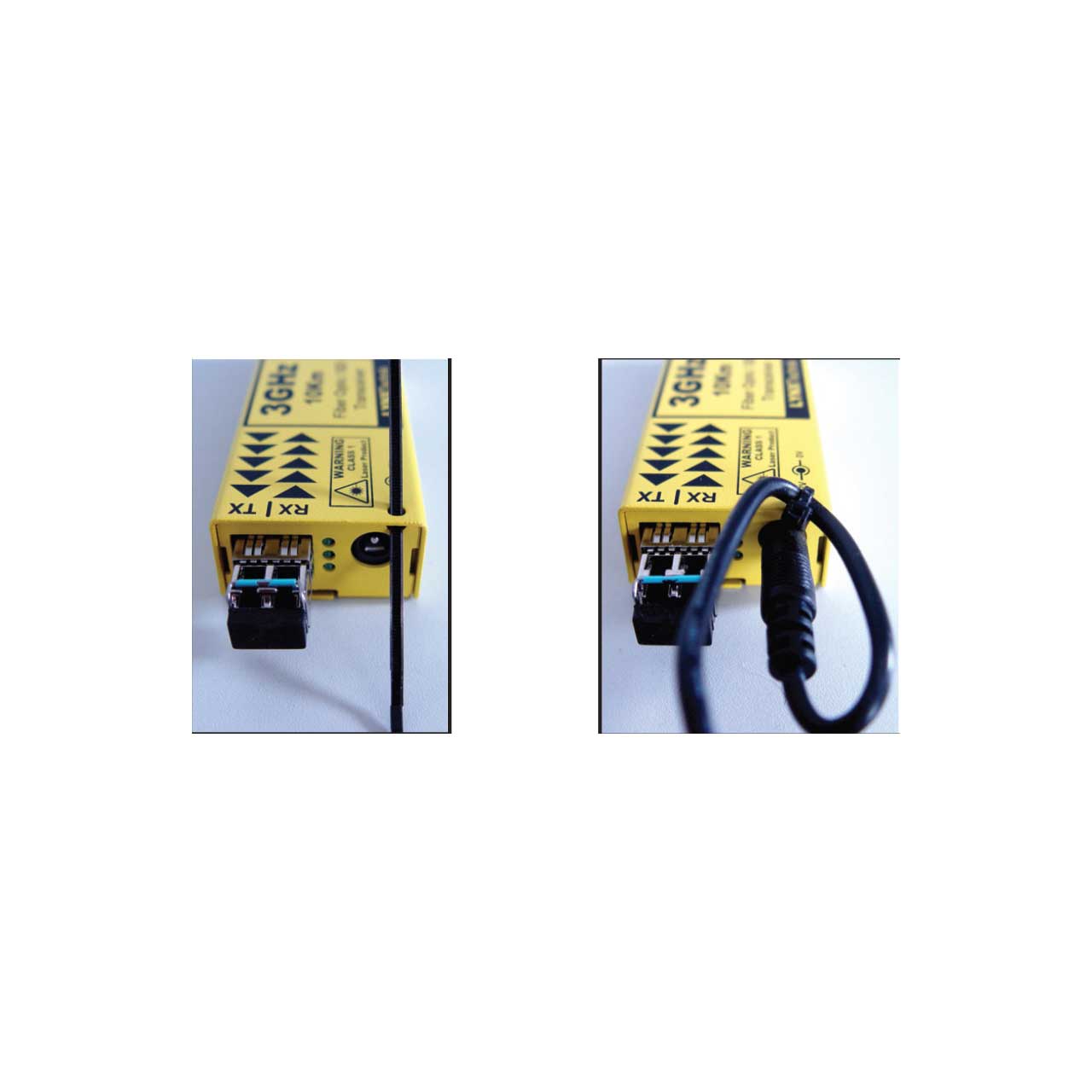

LYNX Technik Yellobrik ORX 1702 Analog Video/Sync Singlemode 1310nm Fiber Receiver LC Connector

ITEM #: LNX-ORX-1702-LC MFG #: O RX 1702 LC

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup

    O RX 1702 LC - Overview

    The LYNX Technik ORX-1702-LC is a compact analog sync or NTSC/PAL composite video to fiber optic receiver. This device is specifically designed to combat the restrictions involved with the distribution of broadcast quality analog reference and composite video signals over long distances.

    When paired with the fiber optic transmitter OTX 1712 you have a very cost-effective optical transmission system for analog sync reference signals or NTSC/PAL composite video. This device is particularly useful for reference sync distribution between remote installations to maintain correct synchronization.

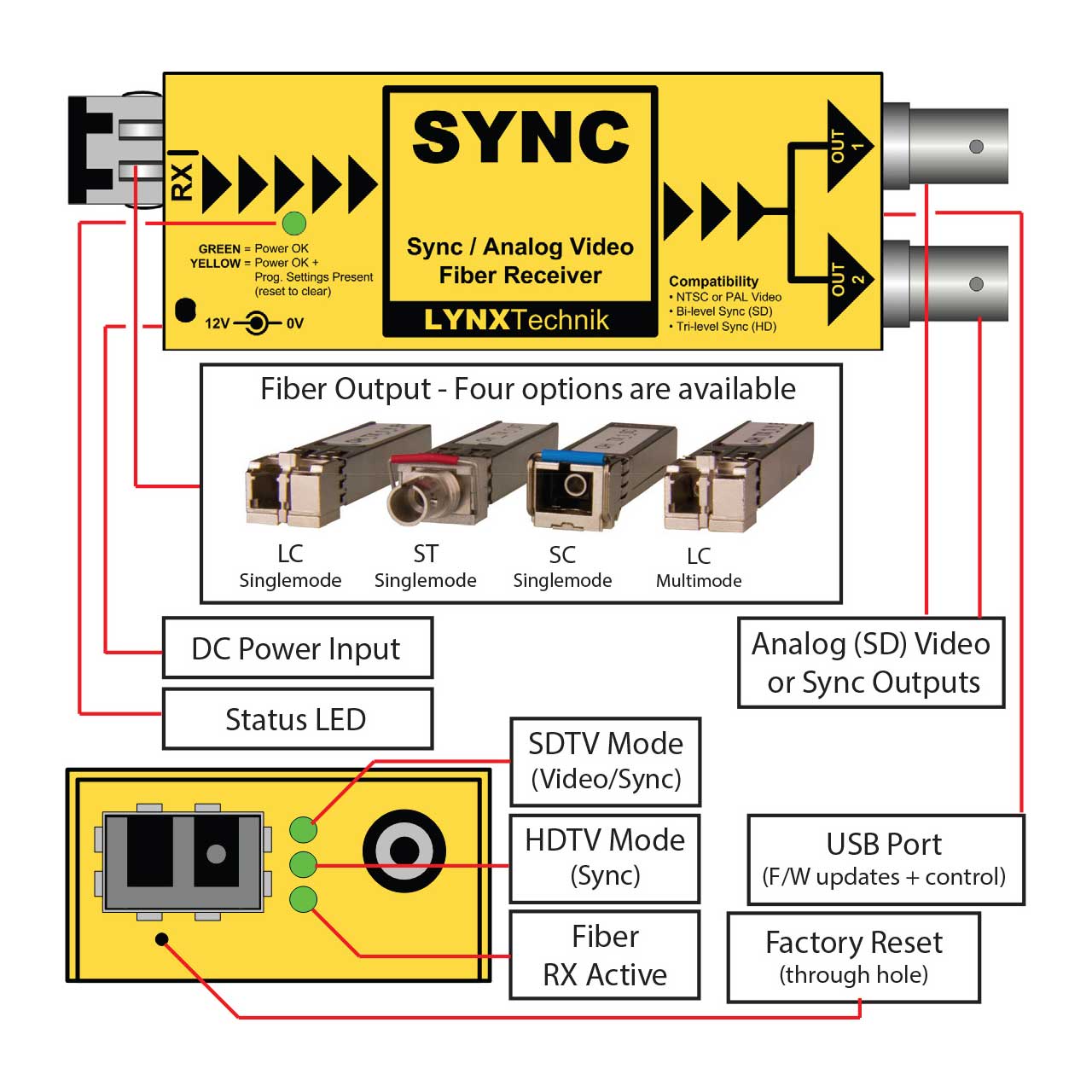

    The ORX 1702 provides two analog outputs and support for LC, ST or SC singlemode fiber connections. An LC version suitable for multimode fiber is also available.

    Unlike other very basic analog to fiber conversion solutions, the ORX 1702 incorporates technology to maintain a very high degree of sync and burst phase stability during the fiber reception and analog conversion.

    The module receives an SDI signal (including reference and other relevant information) before it is converted to an analog signal. Therefore, when the ORX 1702 is used for 525 or 625 SDI video sources it is possible to convert the signal to an analog NTSC or PAL composite output directly. For example: if the 525 or 625 signal is received from an SDI video transmitter OTX 1812.

    • Features:

      • Supports analog black burst, bi-level, tri-levelsync signals and NTSC and PAL composite video
      • Passive loop output
      • Broadcast quality performance
      • Error free optical transmission
      • Versions for LC, ST or SC fiber connections
      • Multimode version available
      • Up to 10km (6.2 miles) singlemode
      • Up to 300m (984 feet) multimode
      • Supports hot swapping and hot plugging
    • Specifications:

      • Fiber Input Singlemode
      • 1 x fiber optic Input
      • LC, ST or SC connection
      • SMPTE 297M - 2006
      • Input range (wavelength): 1260nm to 1620nm
      • RX sensitivity: -3dBm to -19dBm
      • RX active LED on side of module

        Fiber Input Multimode
      • 1 x fiber optic input
      • LC connection
      • SMPTE 297M - 2006
      • Input range (wavelength) 780nm to 880nm
      • RX sensitivity: 0dBm to -15dBm
      • RX active LED on side of module

        Analog Output
      • Sync = analog black burst / SDTV bi-level / HDTV tri-level
      • Video = NTSC / PAL composite video
      • 2 identical outputs provided
      • 75 Ohm BNC connectors
      • NTSC SMPTE 170M, PAL CCIR624
      • Analog tri-level sync SMPTE ST 274, ST 296
      • 720p 50/59.94/60
      • 1080i 50/59.94/60
      • 1080p 23.97/24/25
      • 1080psF 23.97/24
      • Return loss: 46.5dB to 10MHz

      • Power: +12VDC @ 3.5W nominal - ( supports 8 - 24VDC input range )
      • Size: 140 x 42 x 22mm (5.51 x 1.65 x 0.86") including connectors
      • Weight: 125g (4.4oz)
      • Ambient: 41 - 104°F 90% Humidity (non condensing)
    • Item Includes:

      • Module
      • 12V DC Power Supply
