    F-GET-TR-SFP - Overview

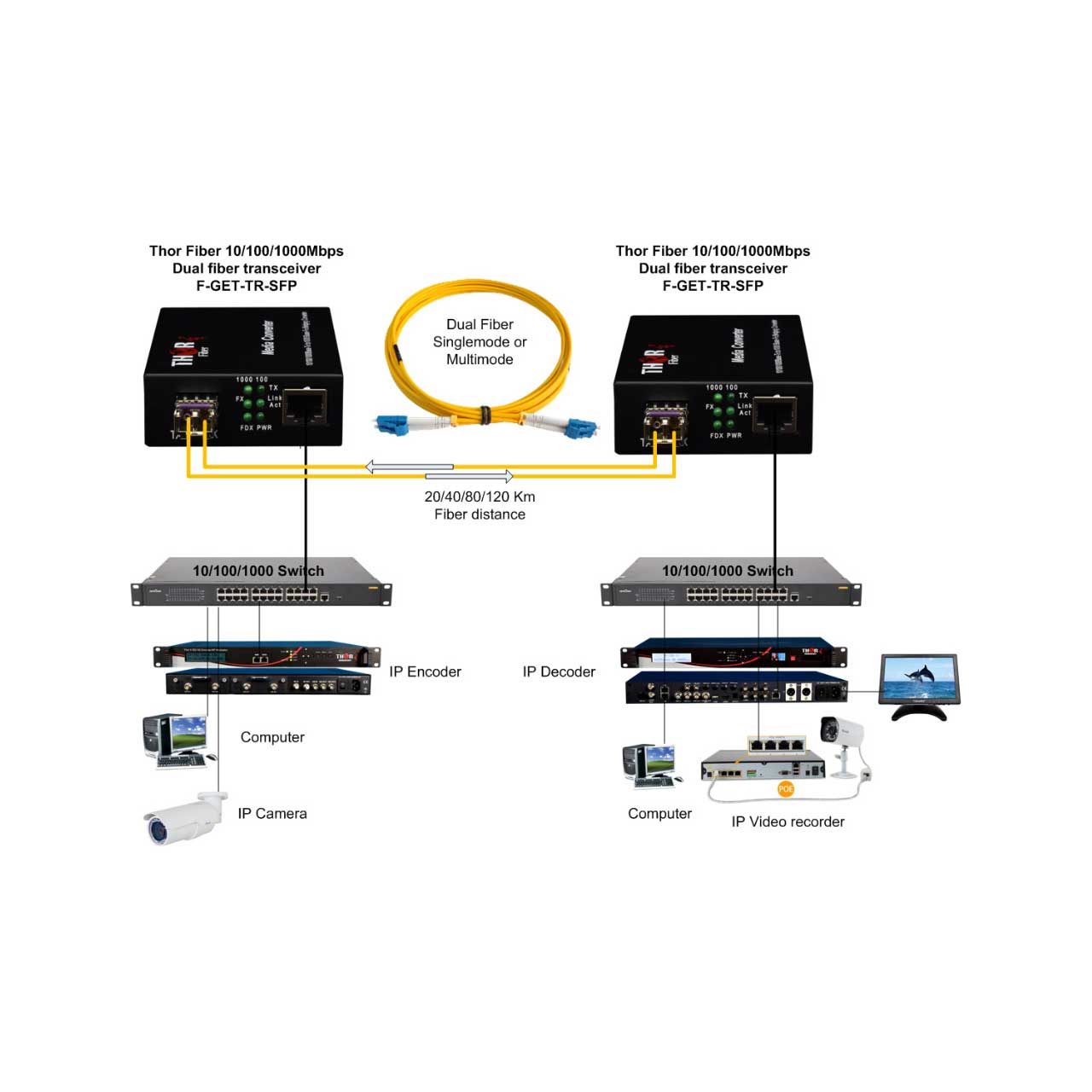

    The Thor F-GET-TR-SFP Ethernet Transceiver with SFP is used for transporting a Gigabit Ethernet port over a fiber from one location to another. The units work in pairs with a transceiver on each end of the link. Any network cable connected to the RJ-45 port one one unit is transported to the corresponding RJ-45 port on the second unit. Our units work transparently, meaning they are non-IP addressable and any network traffic traveling through the the fiber link remains unmodified. Any two devices that are connected over the fiber link appear to be directly connected by a standard network cable. This is useful for connecting switches or other network devices in different buildings or for extending an IP network to a far away location. We also offer custom equipment to incorporate more signals onto a single fiber. In addition to Ethernet you can also carry video and audio channels, telephone lines, E1 or T1 links, or even satellite signals all over a single fiber. Our units have a maximum transmission distance of 120 km when used with singlemode fiber. We feature easy to read diagnostic LED's for continuous monitoring of link status and network speed. Contact a sales representative for more information.

    • Features:

      • 10/100/1000Base-T to 1000Base-X or 100Base-X FlexibleFiber SFP Media Converters
      • Connect 10/100 devices to Fast Ethernet or 1000 Gigabit backbone
      • Empty slot for standard Gigabit or Fast Ethernet Fiber SFPs
      • Automatically adjusts to speed of Gigabit and Fast Ethernet fiber SFP´s
      • Connect to 10 Mbps, 100 Mbps or 1000 Mbps copper connections
      • Allows for Fast Ethernet and Gigabit speeds using different SFP modules
      • Supports Multimode or Single-mode fiber using different SFP modules
    • Specifications:

      • Standards
      • IEEE 802.3 10BASE-T
      • IEEE 802.3u 100BASE-TX
      • IEEE 802.3ab 1000BASE-T
      • IEEE 802.3ab 1000BASE-T
      • IEEE 802.3z 1000BASE-SX
      • IEEE 802.3z 1000BASE-LX

        Operating Mode
      • Full-Duplex

        Fiber Type
      • Single Mode

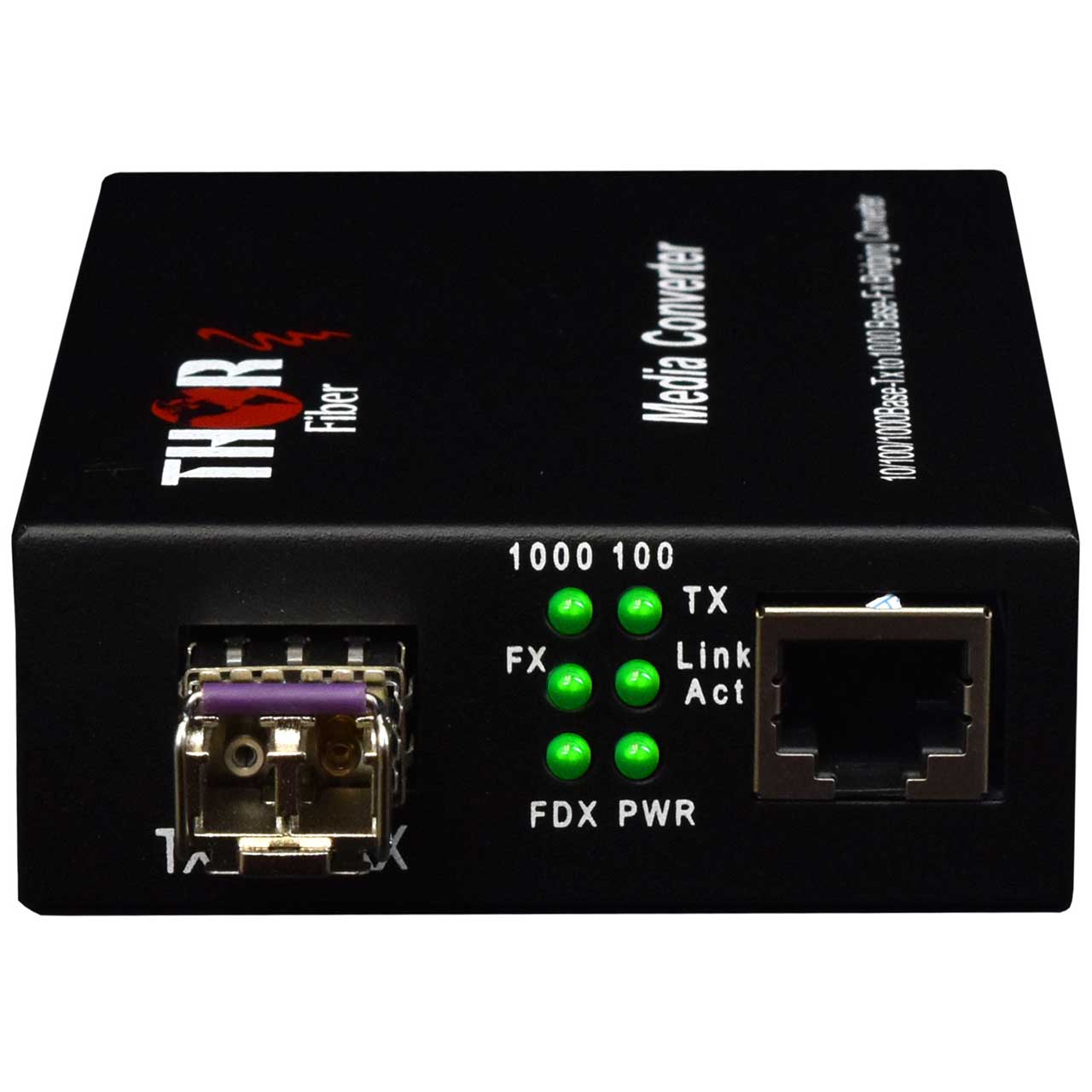

        Connection Ports
      • 2 Fiber Port SFP Transceiver: LC/PC
      • RJ-45 Female

      • 1" [26 mm] x 3.7" [95 mm] x 2.8" [70 mm]

      • Operating temperature: 0°C to 50°C
      • Storage temperature: -20°C to 70°C
      • Operating humidity: 10% to 90% RH
      • Storage humidity: 5% to 90% RH

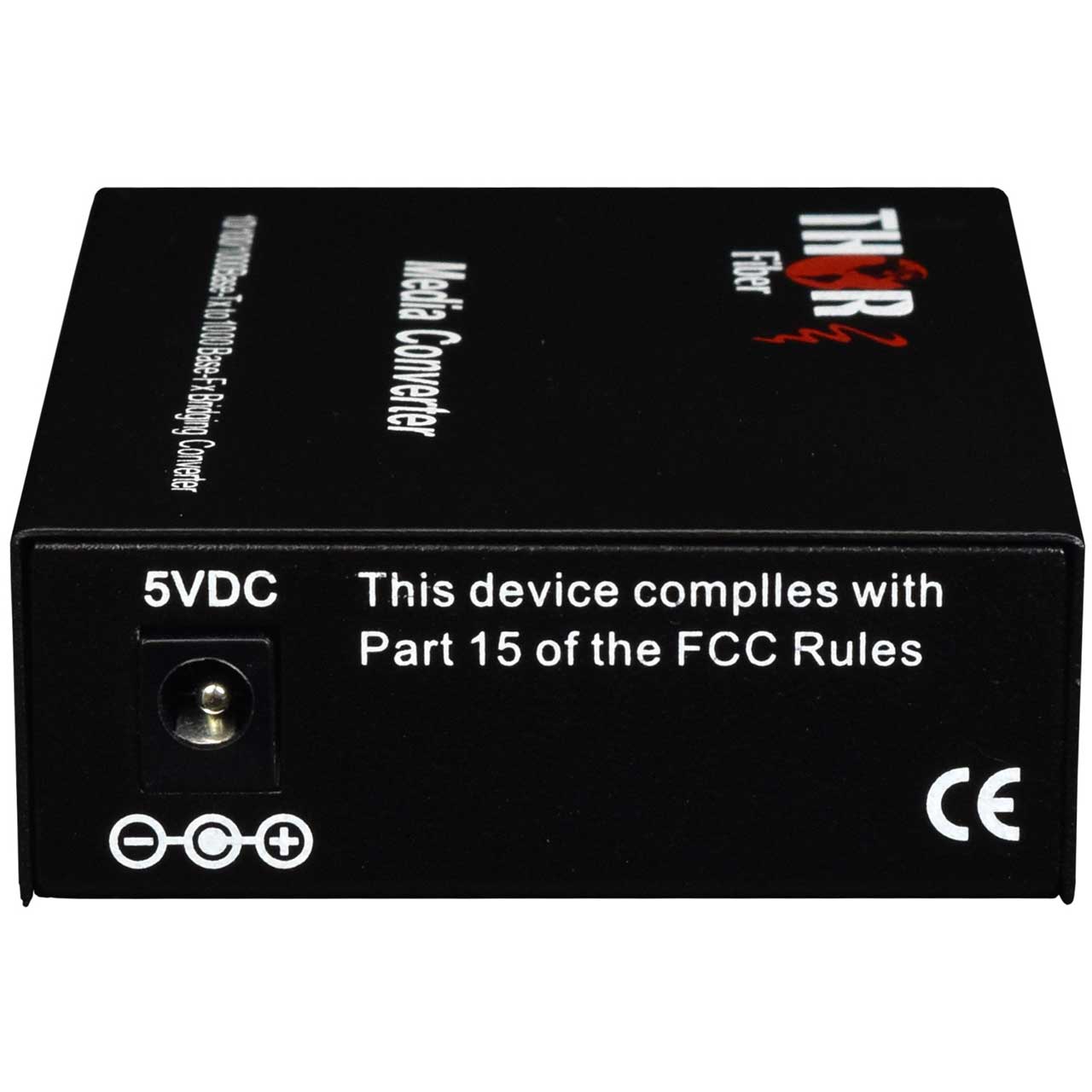

        Power Requirements
      • Voltage: 110/240V Auto-sense Internal Power

      • FCC Part 15 Class A, CE, UL, CUL, TUV

        Network Media
      • 62.5/125 microns muitimode or Single mode fiberfiber cable

        LED Indicators
      • 1 - Power
      • 1 - Fiber Port Link/Act
      • 1 - Copper Port Link/Act
      • 1 - 1000Mbps
