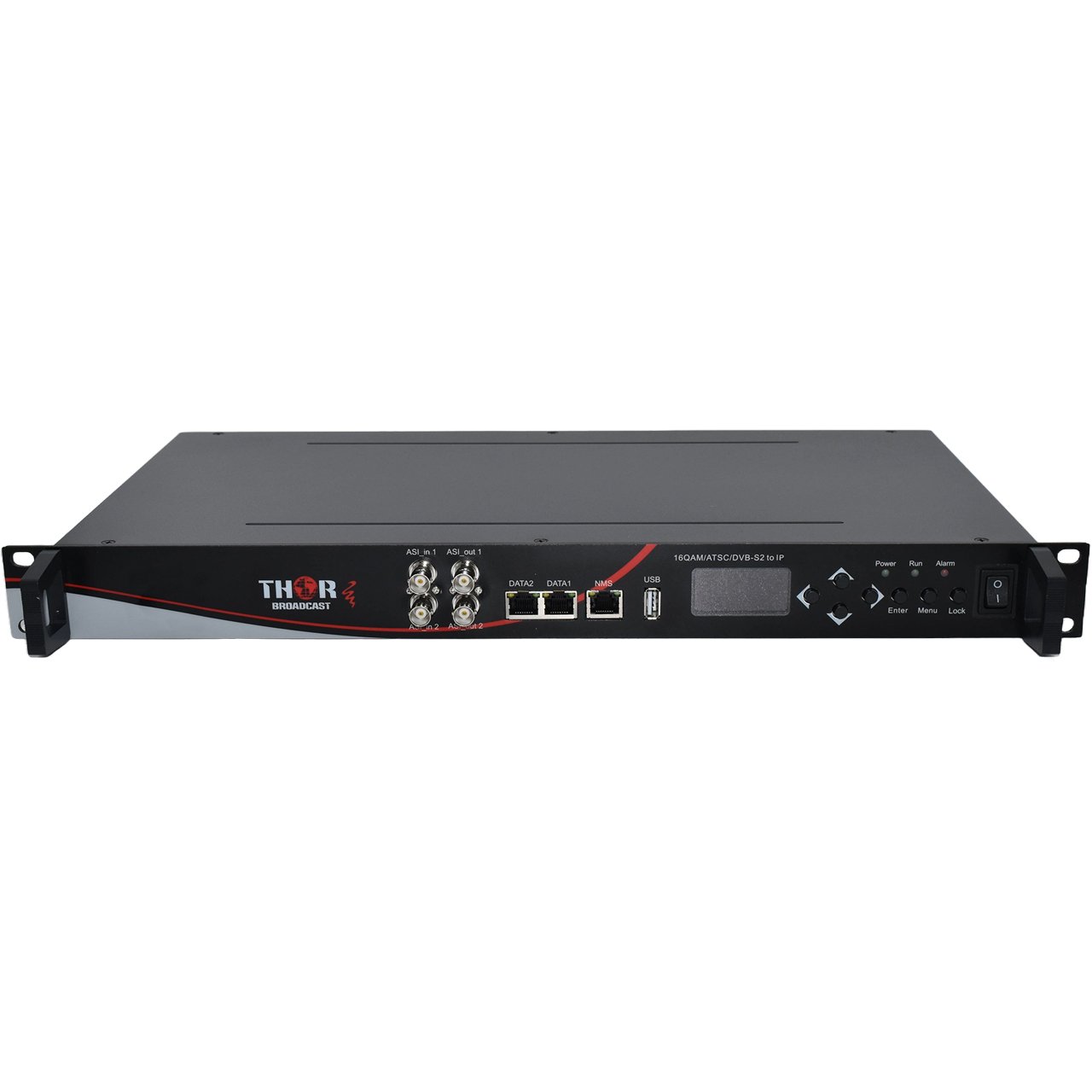

Thor Fiber H-16QAM-IP 16x Cable QAM Input Tuners to IP TS SPTS Multicast or Unicast Modulator

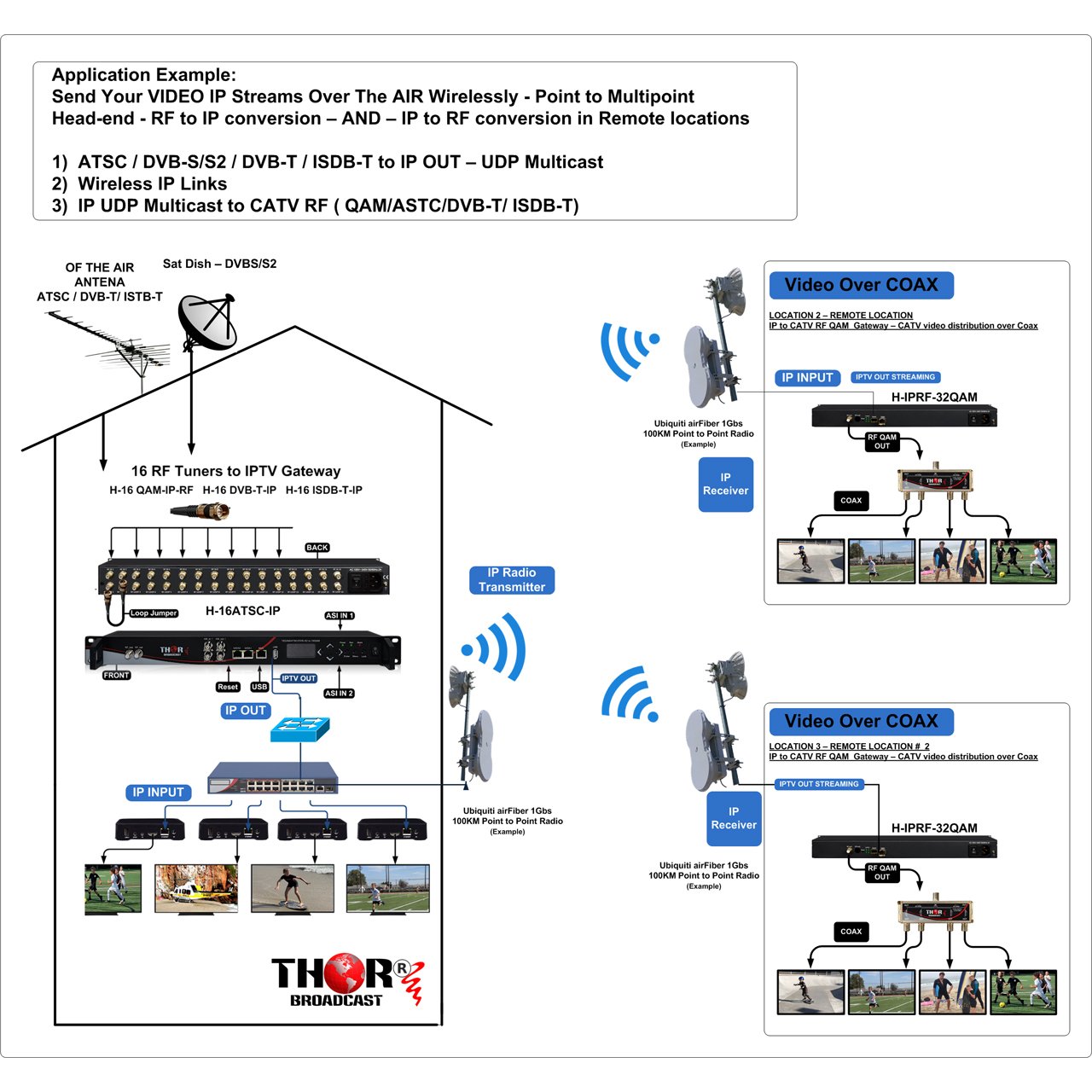

H-16QAM-IP - Overview

• Features:

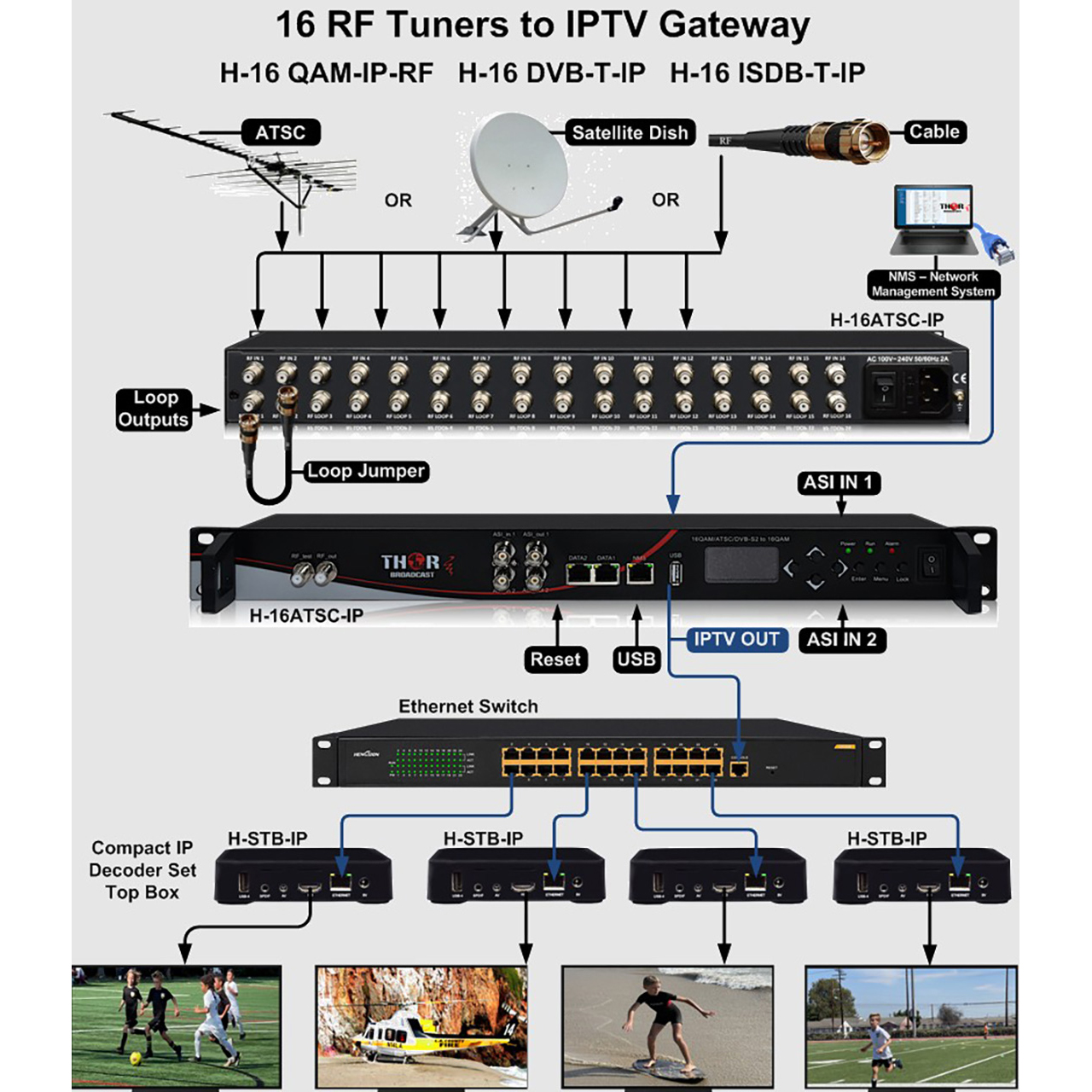

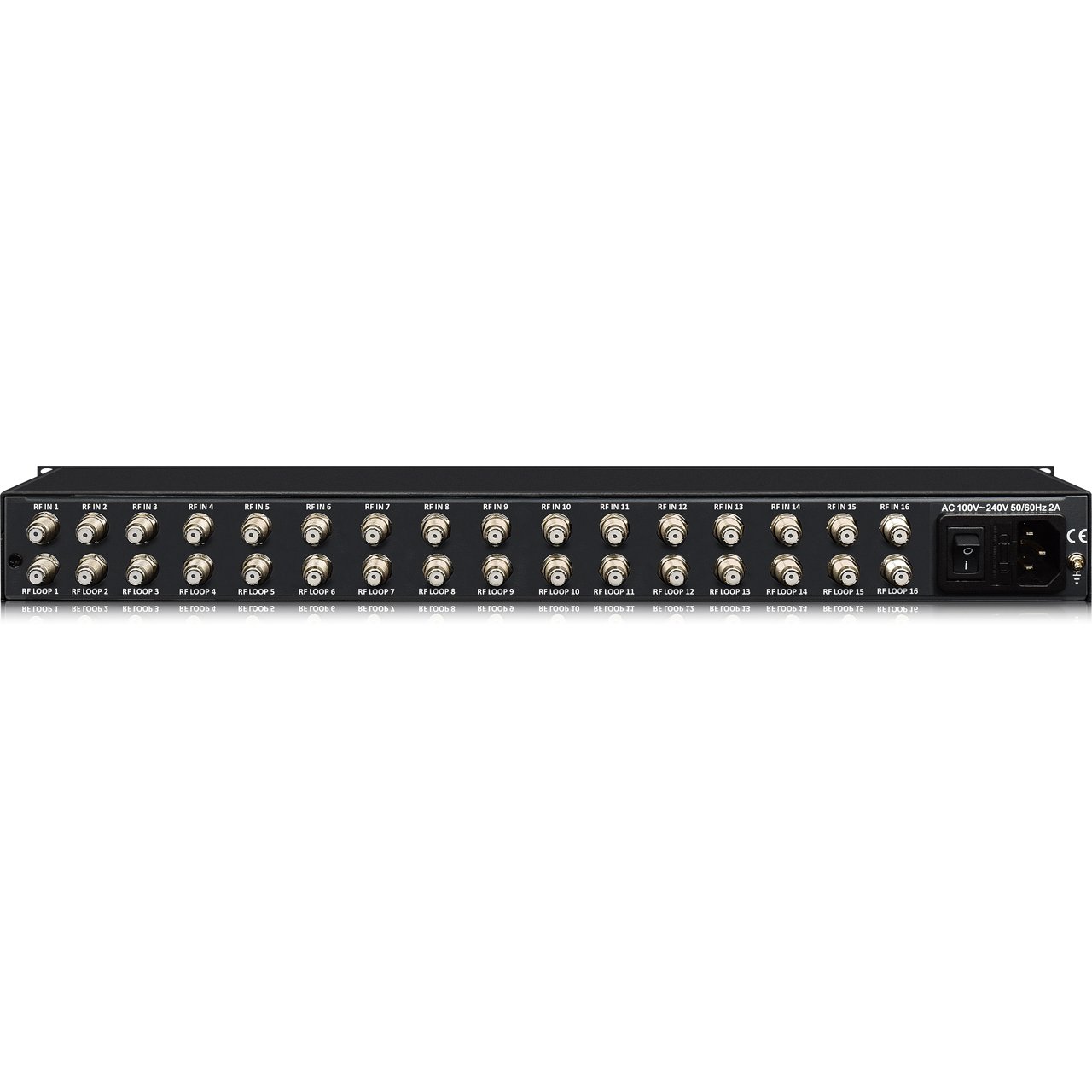

  • 16 RF Tuners INPUT: ( ATSC, DVB-C Annex A/B QAM, DVB-S/S2)
  • Excellent RF output performance index, MER=40db
  • 16 groups multiplexing +16 groups scrambling +16 groups QAM modulating
  • 1 IP(MPTS) output over UDP or RTP
  • 512 IP SMPTS' output over UDP or RTP
  • Accurate PCR adjusting
  • PSI/SI editing and inserting
  • VCT edit
  • Web management, Updates via web


• Specifications:

  Input
  • 16 Input FTA Tuner Selection: DVB-S/S2 OT ATSC or DVB-C Annex A/B QAM (Model dependent)
  • 512 IP (GE1only)input over UDP and RTP protocol
  • 2 ASI input, BNC interface

    Tuner Section
  • DVB-S
    - Input Frequency: 950MHz - 2150MHz
    - Symbol Rate: 2Msps - 45Msps
    - Signal Strength: -65~ -25dBm
    - FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8 QPSK
  • DVB-S2
    - Input Frequency: 950MHz - 2150MHz
    - Symbol Rate:
     • QPSK 1~45Mbauds
     • 8PSK 2~30Mbauds
    - Code Rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
    - Demodulation Mode: QPSK, 8PSK

    Multiplexing
  • Maximum PID Remapping: 128per input channel
  • Function:
    - PID remapping (automatically or manually)
    - Accurate PCR adjusting
    - Generate PSI/SI table automatically

    Modulation Output
  • Modulation Output Format: ATSC or DVB-C Annex A/B QAM (model dependent, please check model selection)
  • Standard: EN300 429/ITU-T J.83A/B or 8VSB (ATSC model)
  • MER: ≥40dB
  • RF Frequency: 50MHz - 960MHz, 1kHz step
  • RF Output Level: -20~+10dBm (87~107 dBµV), 0.1dB step
  • Symbol Rate: 5.0Msps - 7.0Msps, 1ksps stepping
  • Constellation: 16/32/64/128/256QAM
  • J.83A:
    - Constellation: 16/32/64/128/256QAM
    - Bandwidth: 8M
  • J.83B:
    - Constellation: 64/256 QAM
    - Bandwidth: 6M

    System
  • Remote Management: Web NMS (10M/100M)
  • RF Out: 16 DVB-C output or ATSC (model dependendt, please chek model selection)
  • IP Out:
    - 1 IP (MPTS) output over UDP and RTP/RTSP (GE1 only)
    - Mirrors one carrier
  • Language: English
  • Software Upgrading: Web

    General
  • Dimension (WxDxH): 1RU 19" x 8" x 3" (482mmx300mmx44.5mm)
  • Weight: 8.16lbs (3.7kg)
  • Temperature:
    - Operation: 32°F - 113°F (0°C - 45°C)
    - Storage: -4°F - 176°F (-20°C - 80°C)
  • Power:
    - AC 100V ±1050/60Hz
    - AC 220V ±10%, 50/60Hz
  • Consumption: 25W
