    H-HDCOAX-4 - Overview

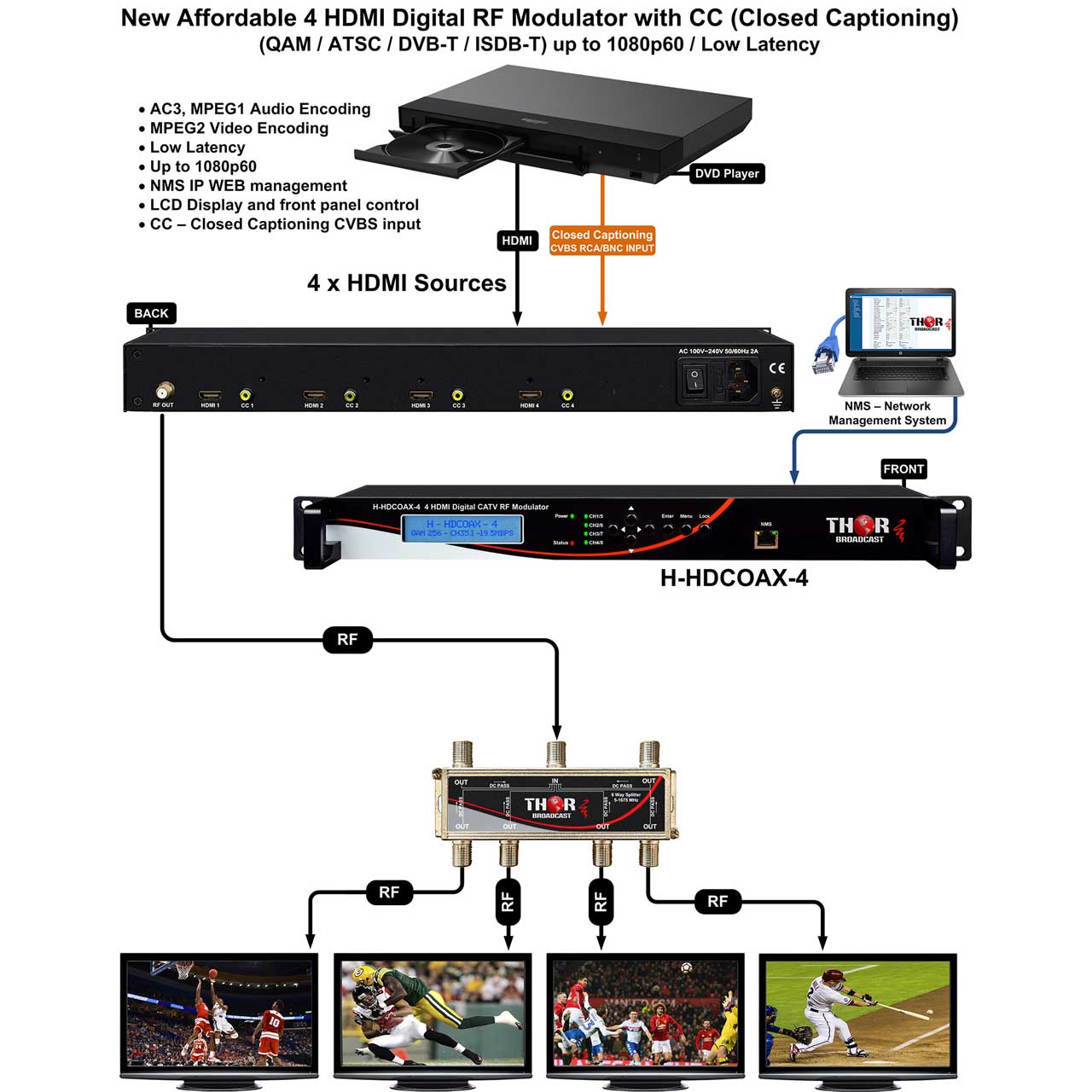

    The Thor Broadcast HDCOAX-4 modulator is an all new four channel HDMI input encoder that's highly efficient, cost effective, plug and play, ultra low latency and rack mountable for a professional look at a hobby price. These units are dedicated to be easy to use and ultra fast for easy distribution of any HDMI source to an unlimited amount of televisions in your coax infrastructure. Easy implementation means you can quickly combine multiple units to have anywhere from 1 to a 130 channels dedicated to your own CATV headend. Thor makes connecting all of your HDMI output devices like Set Top Boxes, DVD, Blu-Ray, PC, IPTV STB, DISH STB and universally stream them via MPEG2 RF for compatibility to any television in North America and around the world that utilizes MPEG2 encoding. Based on the best selling line of Low Latency encoders that have been featured in Nacscar, World Cup, Olympic Games, Super Bowl, NCAAF, NFL, NHL, NBA, and thousands of hotels, house of worship, malls, airports, and resorts around the world; we've brought you the best functionality and performance at a low price that is ideal for PRO-DVB and Prosumer buyers alike.

    Thor has been dedicated to creating the best firmware to assist in utilizing the powerful encoding capabilites that allow you to distirbute your RF output in any modulation standard from DVB-C QAM Cable, ATSC Off Air, DVB-T, ISDB-T all in one chassis so no matter where you are, you'll be able to use our quick drop down menu's to select your modulation standard correlating to your television. To further enhance the encoding capabilites Thor Broadcast has added an easy to use separate CC EIA608 input via RCA cable to watch all your programs with closed caption that have it in their data transport stream. Standard and High-Def is available with every chassis boasting output resolutions of 480i, 576i, 720p, 1080i, and 1080p. To further elevate these units we've also provided LCN and audio output options via MPEG1 Layer 2, AAC, and Dolby Digital AC3 audio encoding to ensure you'll hear everything as if it was coming from the original HDMI source.

    Thor has provided an elegant and simple Web Based GUI via their NMS RJ45 port just like their existing lines of PRO-DVB Modulators, as well as easy to use LCD Display and D-PAD buttons on the front of the unit for easy setup, control, and diagnostics. Your new Thor Modulator will output all of your HDMI inputs on independent RF channels with the bandwidth automated, however custom adjustments can be made to your transport streams via the easy to use drop down menu's found throught the GUI. Simple, Affordable, and Ultra Fast encoding rates means you can make your own cable TV channels in no time with the crystal clear image you expect from the Engineering Department from Thor Broadcast. Units come standard with an excellent warranty and free tech support from our technicians and engineers based in our lab in Southern California, who are readily available to help assist with any questions or issues you may have.

    • Features:

      • 1-8 HDMI channels Inputs (model dependent)
      • HDCP compliant, works with any HDMI source like DVD Player or Cable, Sattelite STB up to 1080p/60 resolution
      • MPEG2 Video Encoding
      • 1080p/60, 1080i, 720p, 576i, 480i Video Resolution
      • Low Latency (50~1000ms)
      • MPEGI layer 2, AAC, and DD AC3 Audio Encoding

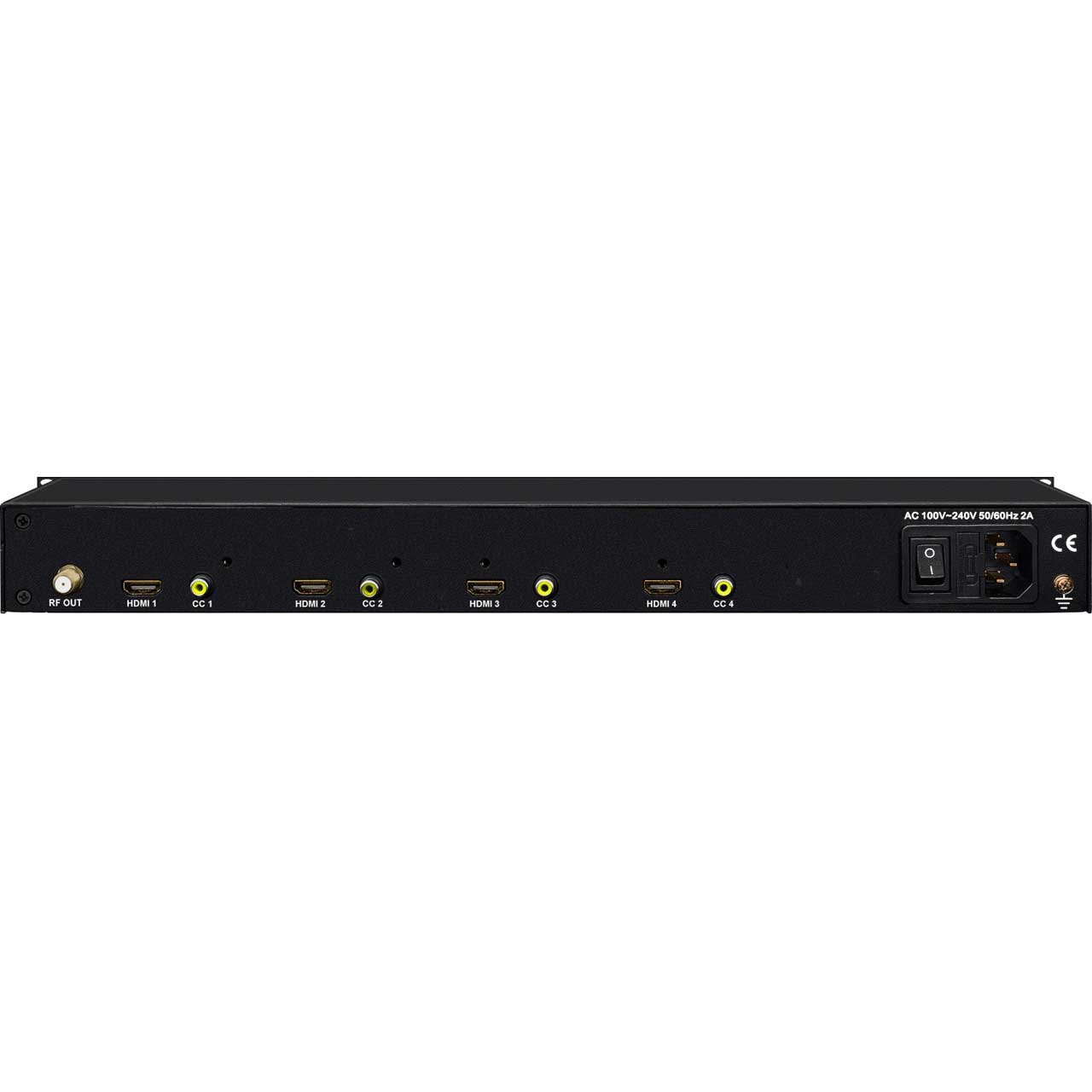

      • CC (Closed Caption), EIA 608
      • LCN
      • DVB-C DIGITAL QAM, ATSC , DVB-T, ISDB-T RF in one device, Modulation dynamic switching
      • Control Via Web-Based NMS, and easy updates Via Web

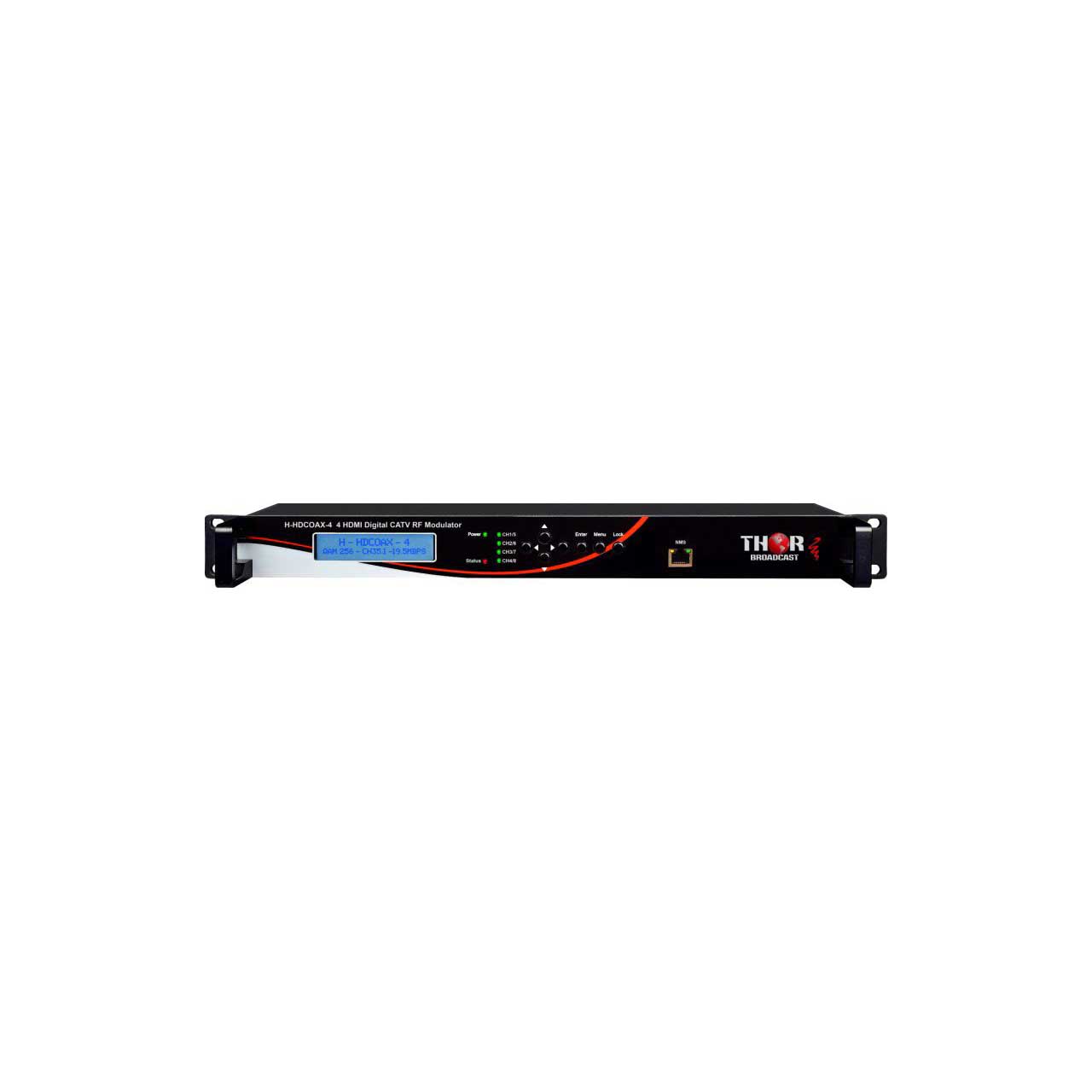

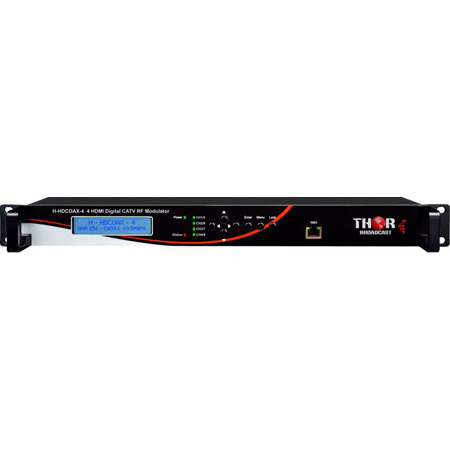

      • LCD Display and front panel control
    • Specifications:

      • Video
      • Encoding Input: [email protected]/60i; 576@50i; 720@50/59.94/60p; 1080@50i; [email protected]/60i; 1080@50p; [email protected]/60p
      • MPEG2 Output: 480@30p; 576@25p; 720@25/30p; 1080@25p; 1080@30p; 1080@25p; 1080@30p
      • Bit-rate: 2.000~20.000 Mbps
      • Rate Control: VBR
      • Aspect Ratio: 16 :9

      • Encoding: MPEGI layer2, AAC, AC3
      • Sample rate: 48KHz
      • Bit rate: MPEG1 layer2 (192kbps); AAC (VBR); AC3 (128kbps)

        DVB-C Modulator Section
      • Standard: DVB-T COFDM
      • Bandwidth: 2M, 3M, 4M, 5M, 6M, 7M, 8M
      • Constellation: QPSK, 16QAM, 64QAM
      • Code rade: 1/2, 2/3, 3/4, 5/6, 7/8
      • Guard Interval: 1/32, 1/16, 1/8, 1/4
      • Transmission mode: 2K, 8K
      • MER: ≥35dB
      • RF frequency: 100-1000MHz, 1KHz step
      • RF output level: -63~ -16dBm(44~91 dBæV), 1dB step

        ISDB Modulator Section
      • Standard: ARIB STD-B31
      • Constellation: QPSK, 16QAM, 64QAM
      • Guard Interval: 1/32, 1/16, 1/8, 1/4
      • Transmission Mode: 2K, 4K, 8K
      • Code rate: 1/2, 2/3, 3/4, 5/6, 7/8
      • RF frequency: 100~1000MHz, 1KHz step
      • RF output level: -63~ -16dBm(44~91 dBæV), 1dB step

        ATSC Modulator Section
      • Standard: ATSC A/53
      • Constellation: 8VSB
      • RF output level: -63~-16dBm (44~91dBæV),1dB step
      • MER: ≥35dB
      • RF frequency: 100~1000MHz, 1KHz step
      • RF output level: -63~ -16dBm(44~91 dBæV), 1dB step

      • Power supply: AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
      • Dimensions: 19 inch x12.9 inch x 1.7 inch (482 x 328 x 44.5mm)
      • Temperature: 0~45°C(operation),-20~80°C(storage)
