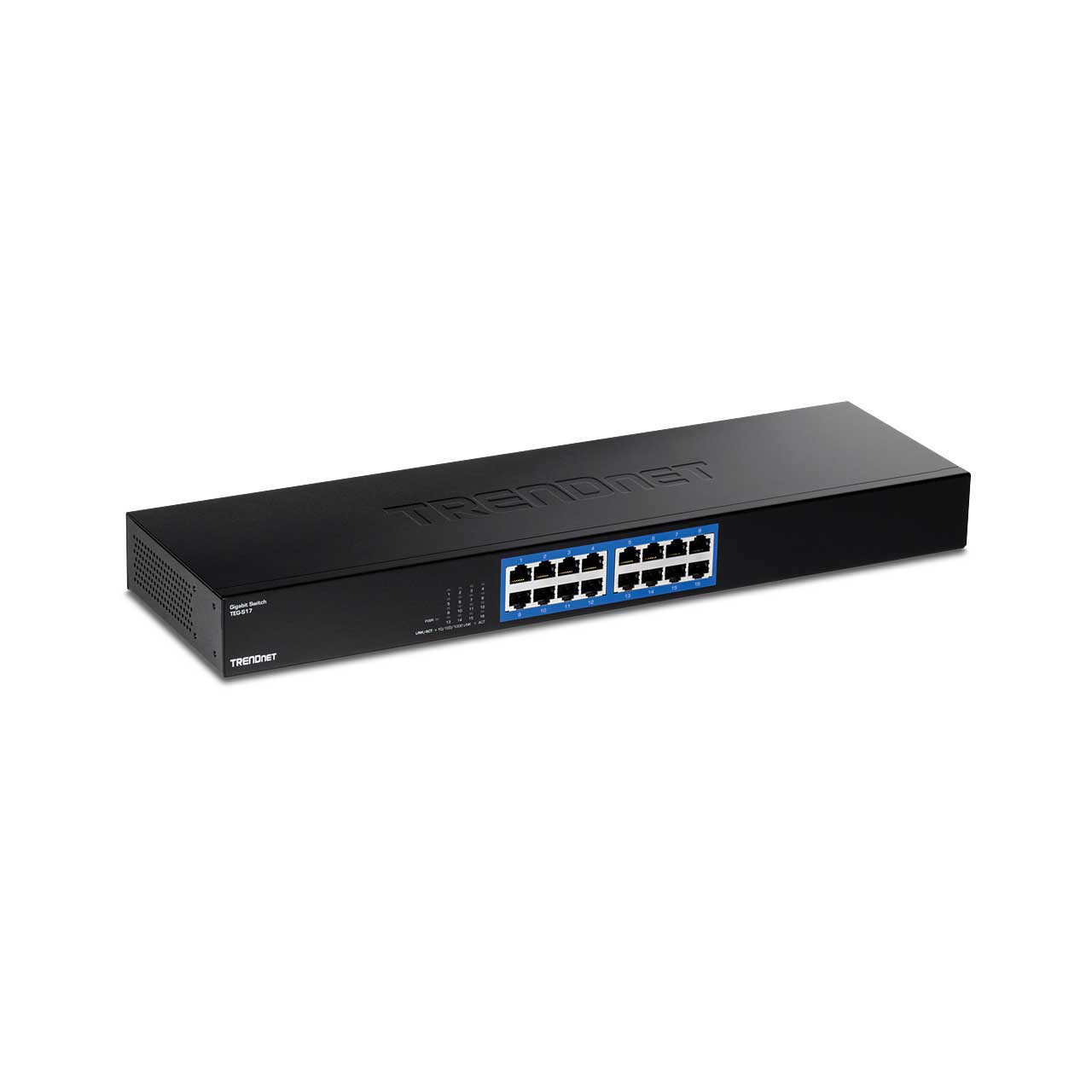

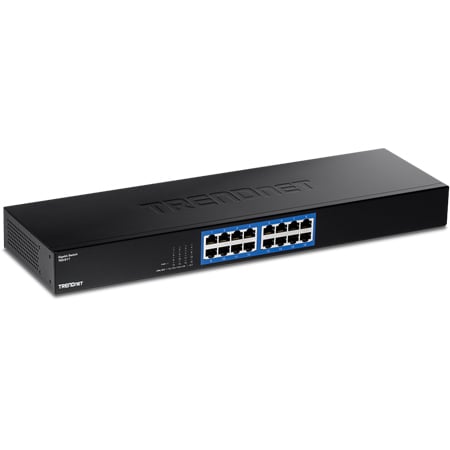

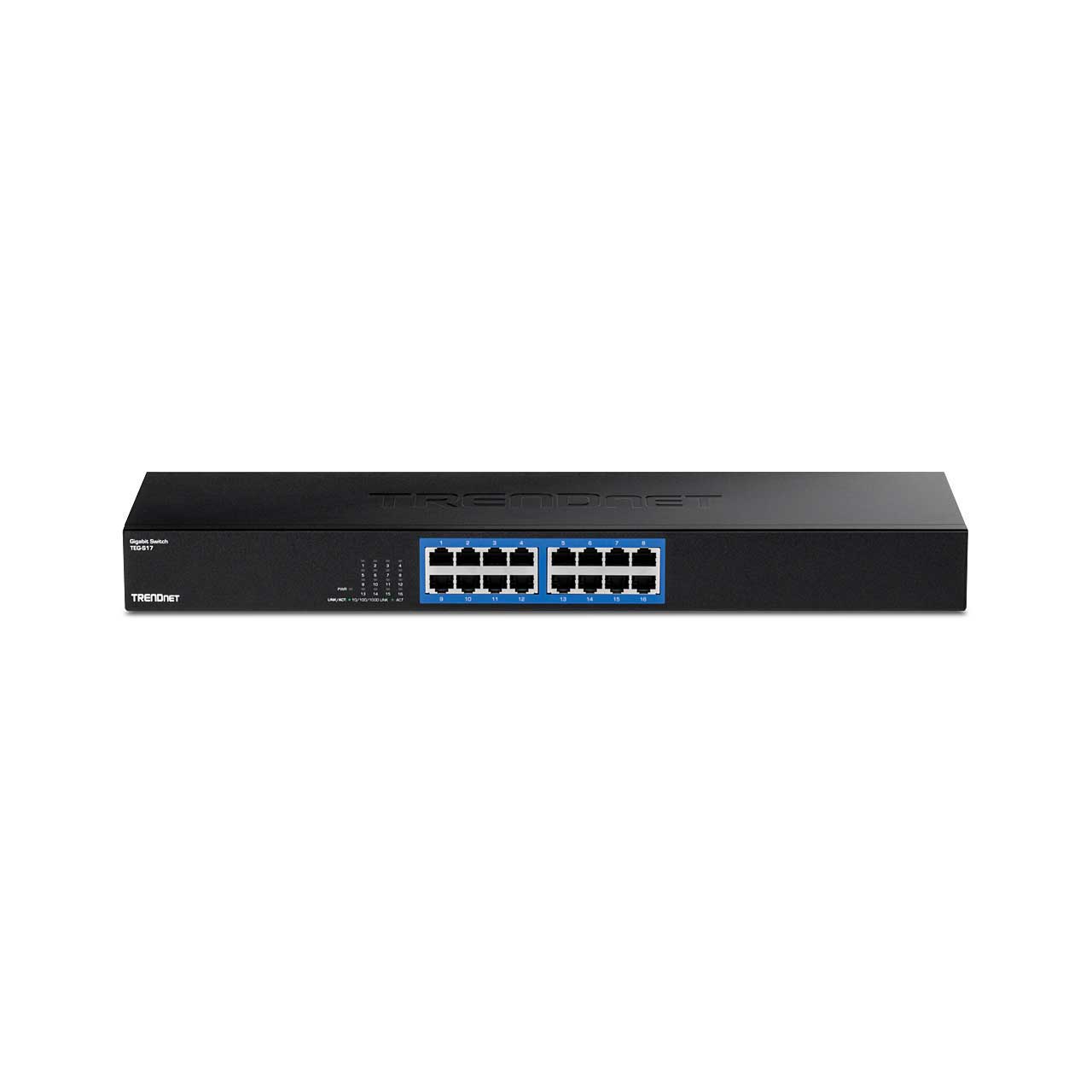

TRENDnet TEG-S17 16-Port Gigabit Switch

ITEM #: TNET-TEG-S17 MFG #: TEG-S17

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$93.15

Our Price:

$83.84

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


TEG-S17 - Overview

The 16-Port Gigabit Switch, model TEG-S17, provides high-bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 32Gbps with full-duplex mode. A built-in universal power supply reduces cable clutter, and diagnostic LEDs help with network troubleshooting. Plug and play this sturdy metal switch for reliable high-speed network connectivity.

  • Features:

    • 16 x Gigabit RJ-45 ports
    • Sturdy metal switch
    • Built-in power supply
    • 32Gbps forwarding capacity
    • Fanless design
    • 1U 19" rackmount brackets included
    • NDAA / TAA compliant (U.S. and Canada only)

  • Specifications:

    • Standards
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3x
    • IEEE 802.3ab

      Device Interface
    • 16x Gigabit ports
    • LED indicators

      Data Transfer Rate
    • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
    • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
    • Gigabit: 2000Mbps (full duplex)

      Performance
    • Switching Capacity: 32Gbps
    • RAM Buffer: 512KB
    • MAC Address Table: 8K entries
    • Forwarding Rate: 23.8Mpps (64-byte packet size)
    • Jumbo Frames: 9KB

      Special Features
    • Rack Mountable

      Power

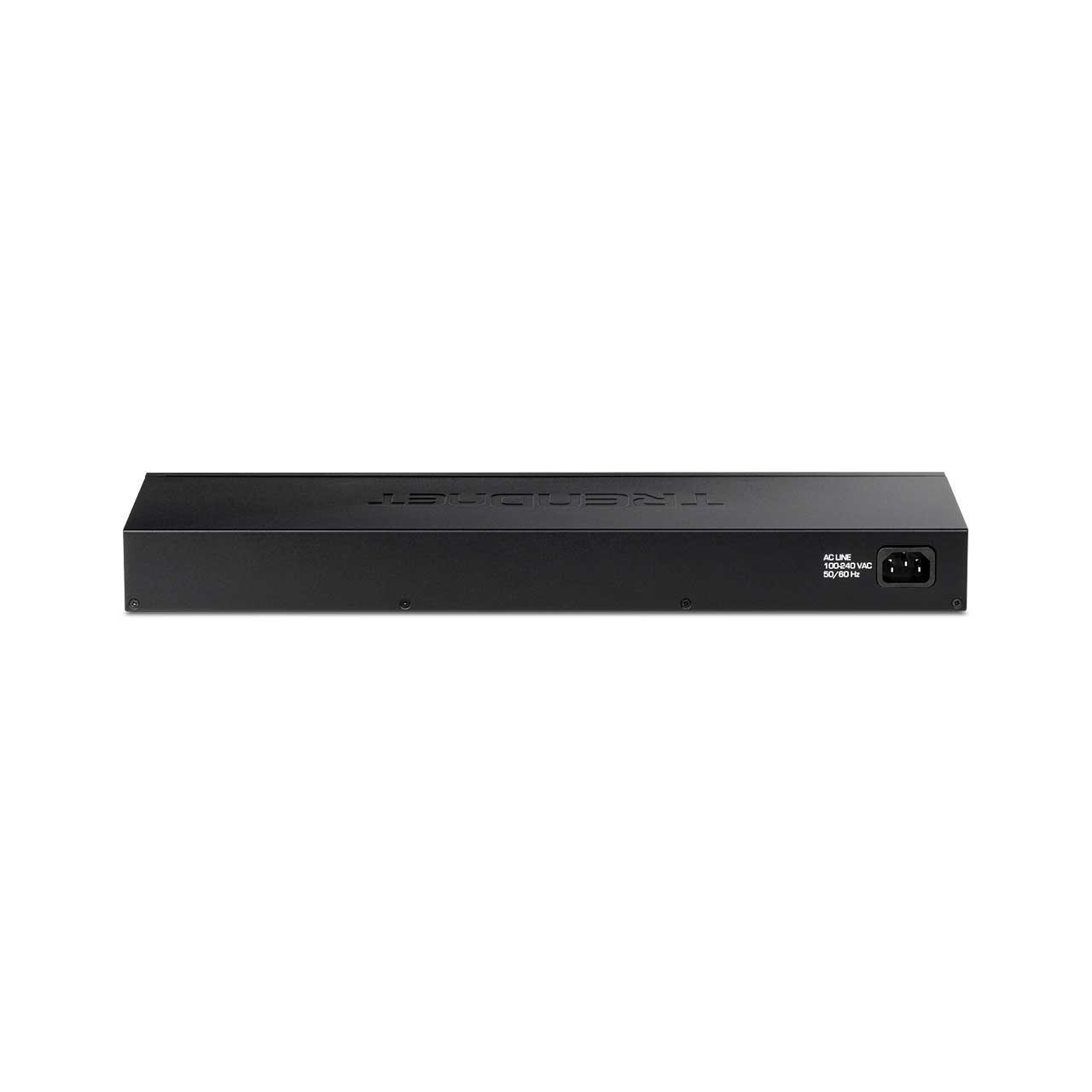

    • Internal power supply: 100 - 240V AC, 50/60 Hz, 0.2A
    • Max. Consumption: 9.19W

      Fan/Acoustics
    • Fanless design

      MTBF
    • 1,121,721 hours

      General
    • Operating Temperature: 0° to 40°C (32° to 104°F)
    • Operating Humidity: Max. 90% non-condensing
    • Dimensions (LxWxH): 435 x 130 x 43mm (17.12 x 5.11 x 1.69")
    • Weight: 1.63kg (3.59Lbs)

      Certifications
    • FCC
    • CE
    • ETL

  • Item Includes:

    • 1x TEG-S17
    • 1x Quick Installation Guide

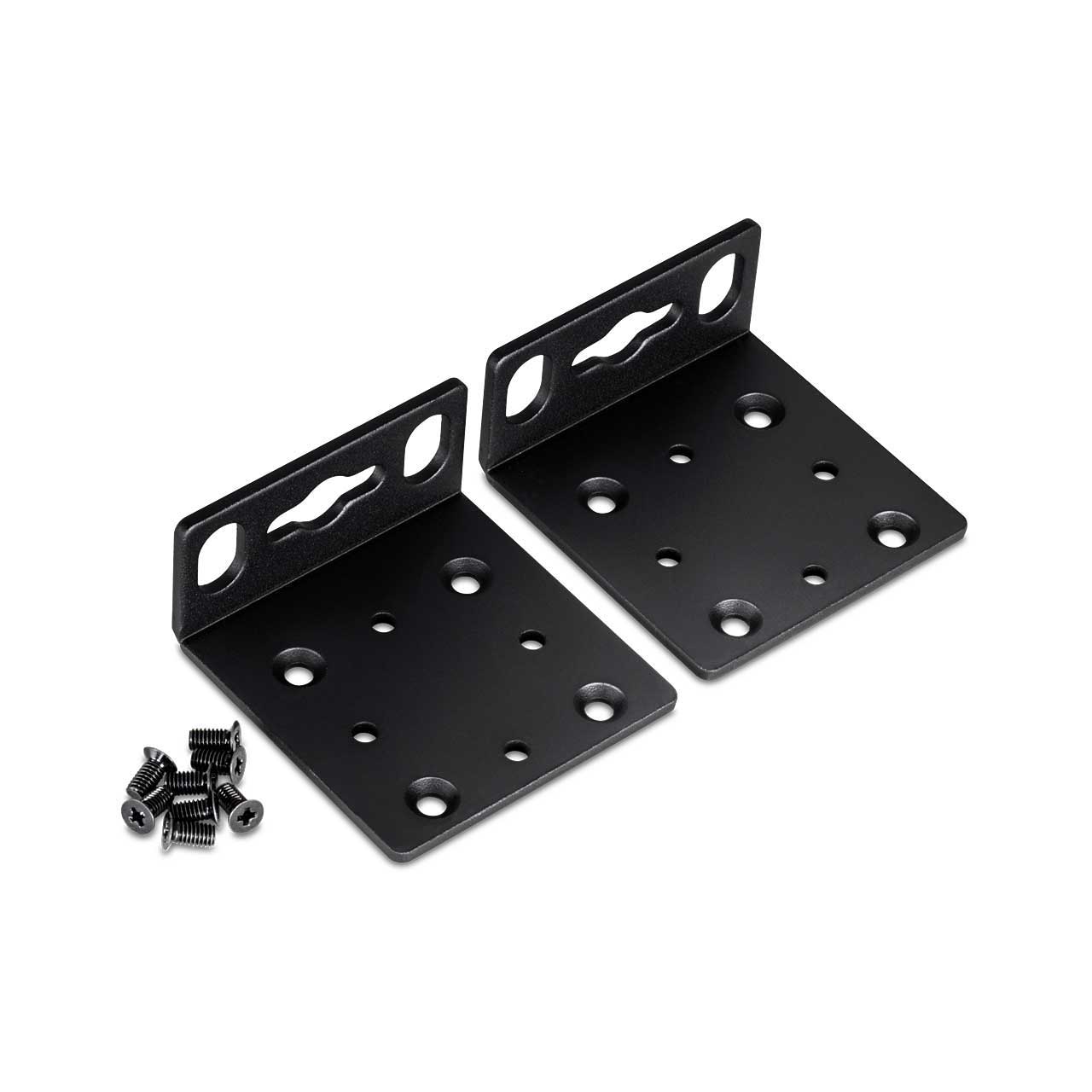

    • 1x Rack Mount Kit
    • 1x Power Cord (1.5m / 4.9')

  • Warranty:

    • 3 Year
