TRENDnet TEG-MGBS20D5 v2.0R - SFP to RJ45 Dual Wavelength Single-Mode LC SFP Module - Pairs with TEG-MGBS20D3

ITEM #: TNET-TEGMGBS20D5 MFG #: TEG-MGBS20D5 V2.0R

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$59.99

Our Price:

$55.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TEG-MGBS20D5 V2.0R - Overview

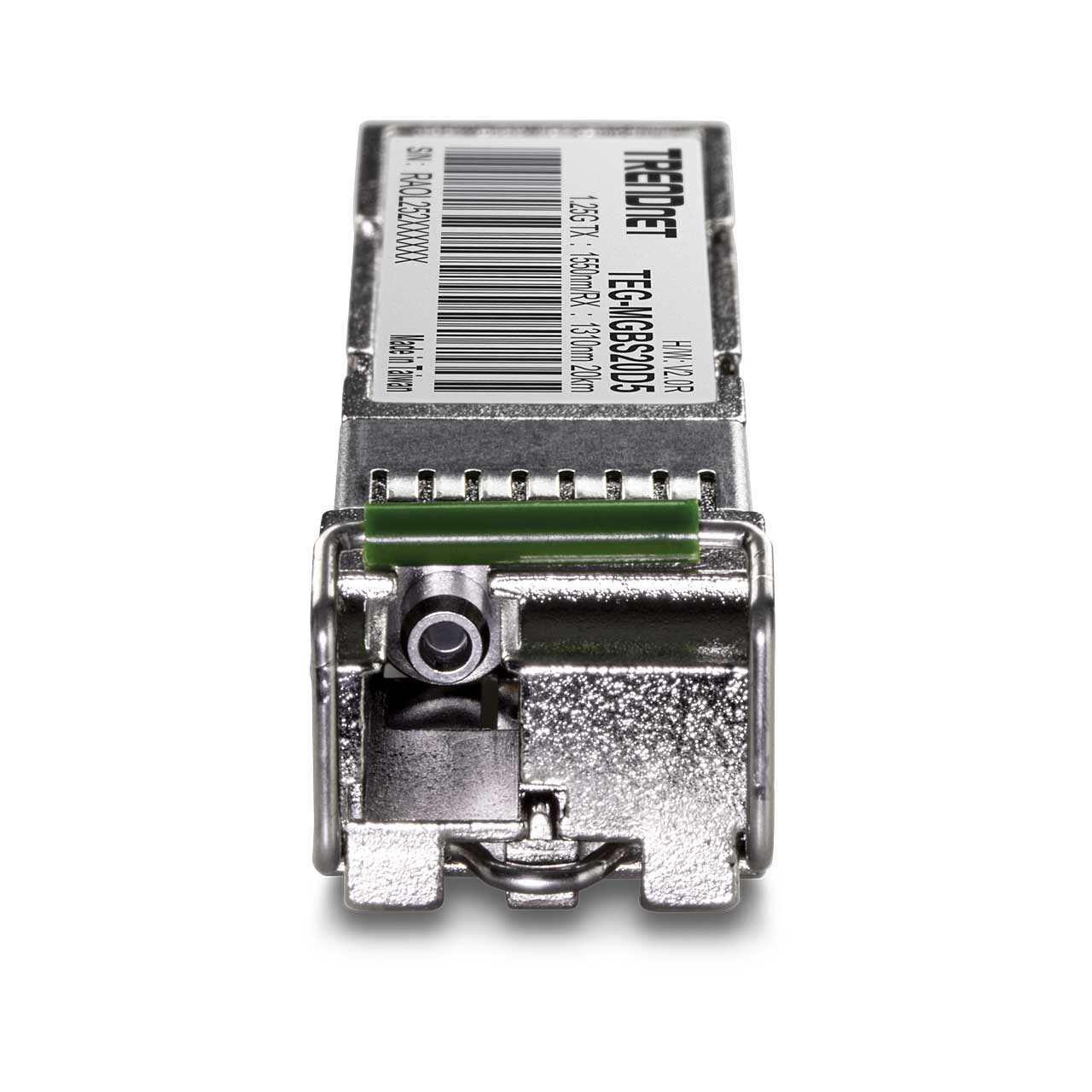

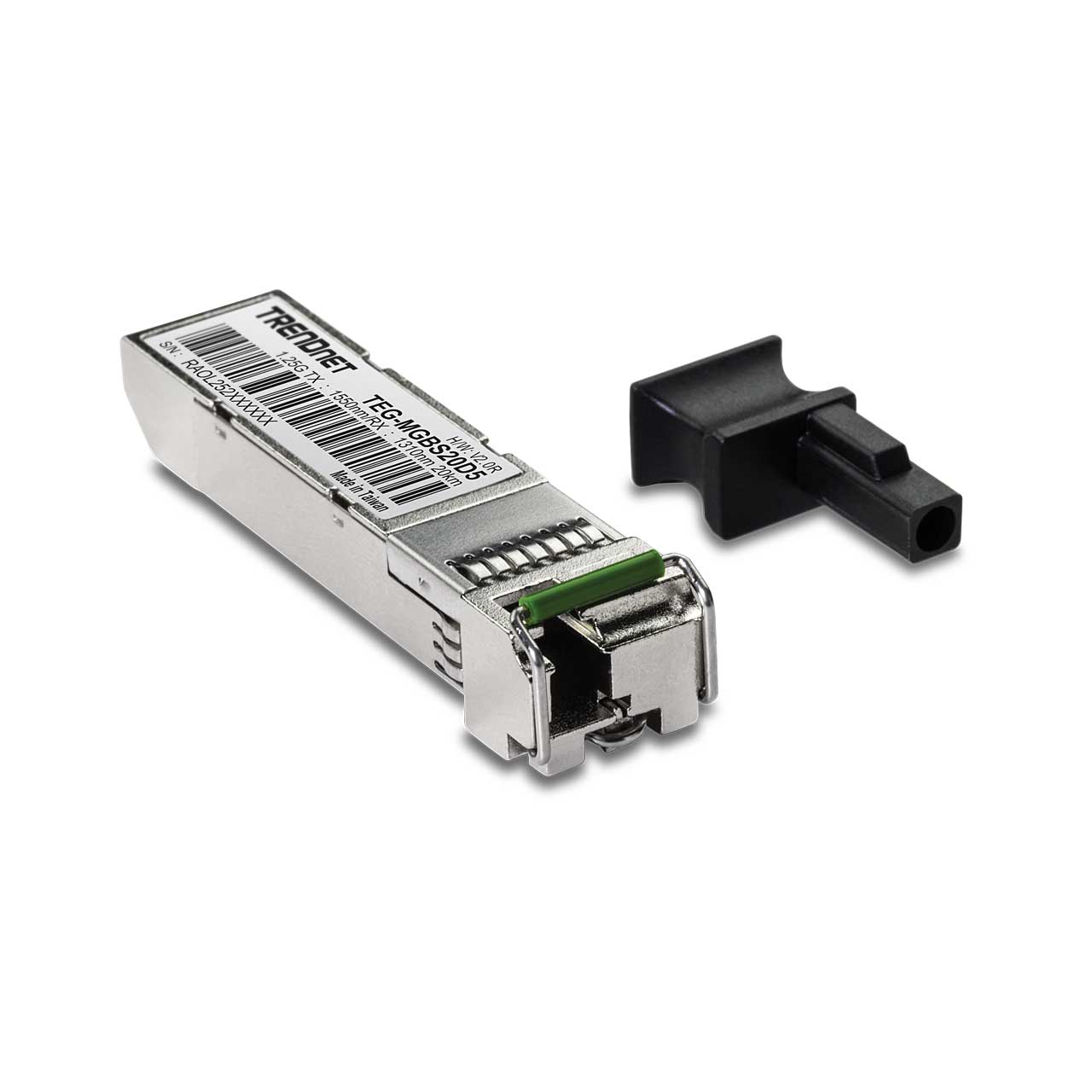

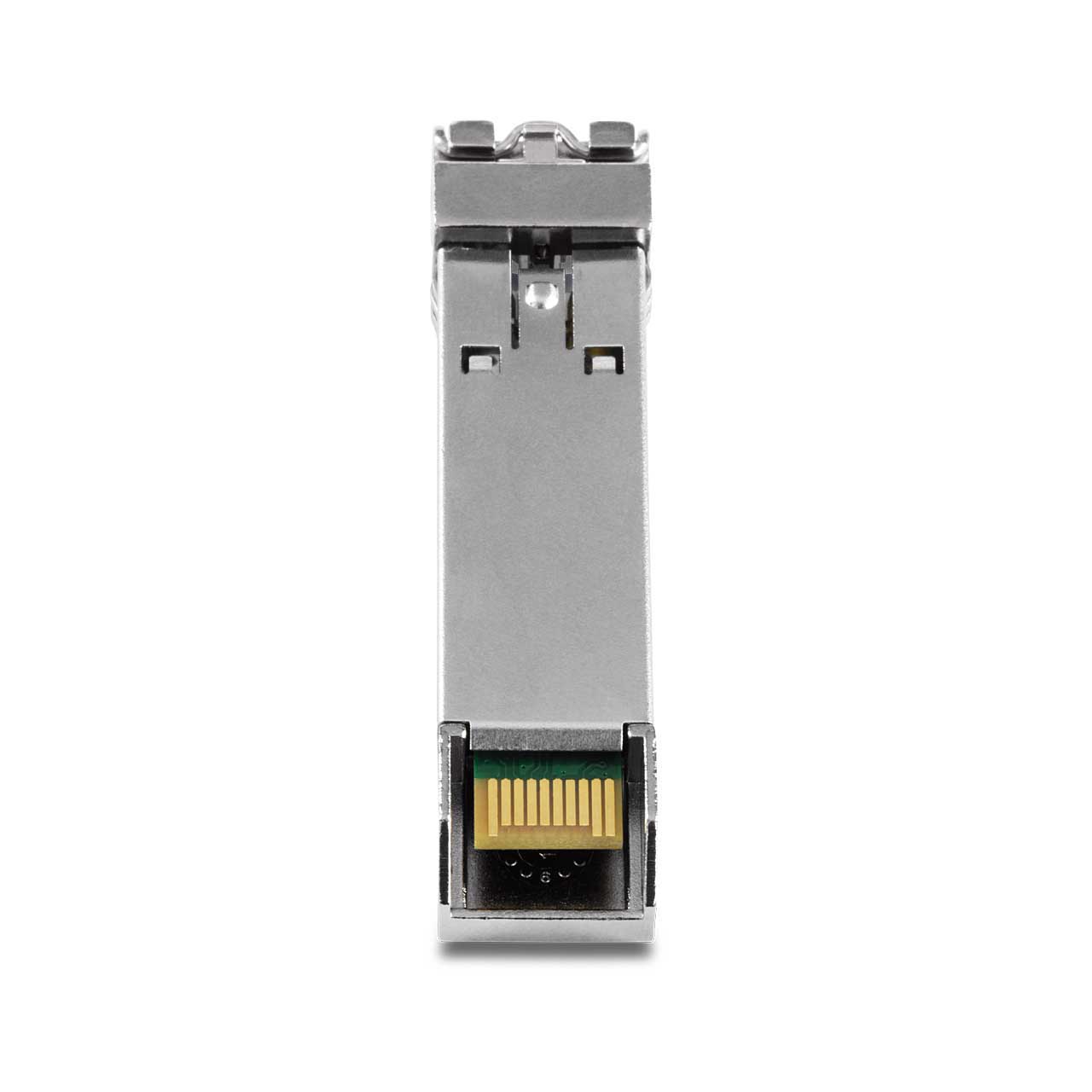

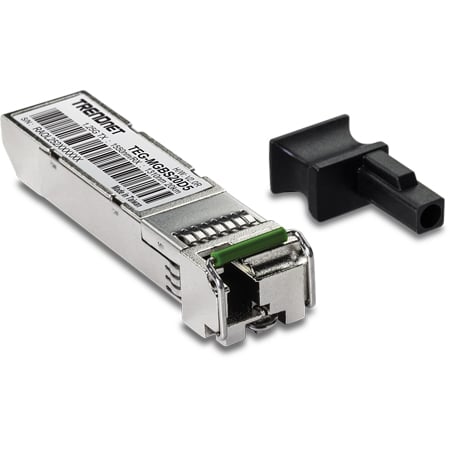

TRENDnet's TEG-MGBS20D5 v2.0R is an SFP Dual Wavelength Single Mode LC Module. These modules are compatible with standard SFP slots found on network switches and fiber converters. Each single mode SFP transceiver is equipped with a simplex LC fiber connection interface, and supports high-speed data rates up to 1.25Gbps. All TRENDnet SFP fiber modules support connections for reliable, long-distance network applications.

  • Features:

    • Must pair with TEG-MGBS20D3 or other compatible module
    • Transmission distance of up to 20km (12.42 miles)
    • LC Simplex (single strand) connector type
    • Bi-Directional (WDM) SFP Module
    • Supports data rates of up to 1.25Gbps
    • Supports Transmit: 1310nm / Receive: 1550nm
    • Low Electromagnetic Interference (EMI) design
    • Compliant with IEEE 802.3z Gigabit Ethernet
    • ANSI Fiber Channel compliant
    • Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant
    • Low power consumption
    • NDAA / TAA compliant (U.S. and Canada only)

  • Specifications:

    • Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z
    • Device Interface: SFP MSA Compliant, LC Simplex connector
    • Data Transfer Rate: 1.25Gbps
    • Wavelength: TX: 1550nm, RX: 1310nm
    • Optical Output Power: -9 to -3 dBm
    • Distance: 12.42 mi (20km)
    • Special Features: Hot pluggable, Metal enclosure
    • Sensitivity: -25 dBm
    • Power: Max. Consumption: 0.8W
    • Operating Temperature: 0° - 70° C (32° - 158° F)
    • Operating Humidity: Max. 95% non-condensing
    • Dimensions: 58 x 13.4 x 12.6mm (2.2 x 0.5 x 0.5 in.)
    • Weight: 18g (0.6 oz.)
    • Certifications: CE, FCC

  • Item Includes:

    • 1x TEG-MGBS20D5 (Version v2.0R) SFP Dual Wavelength Single Mode LC Module

  • GTIN:

    0710931502022
