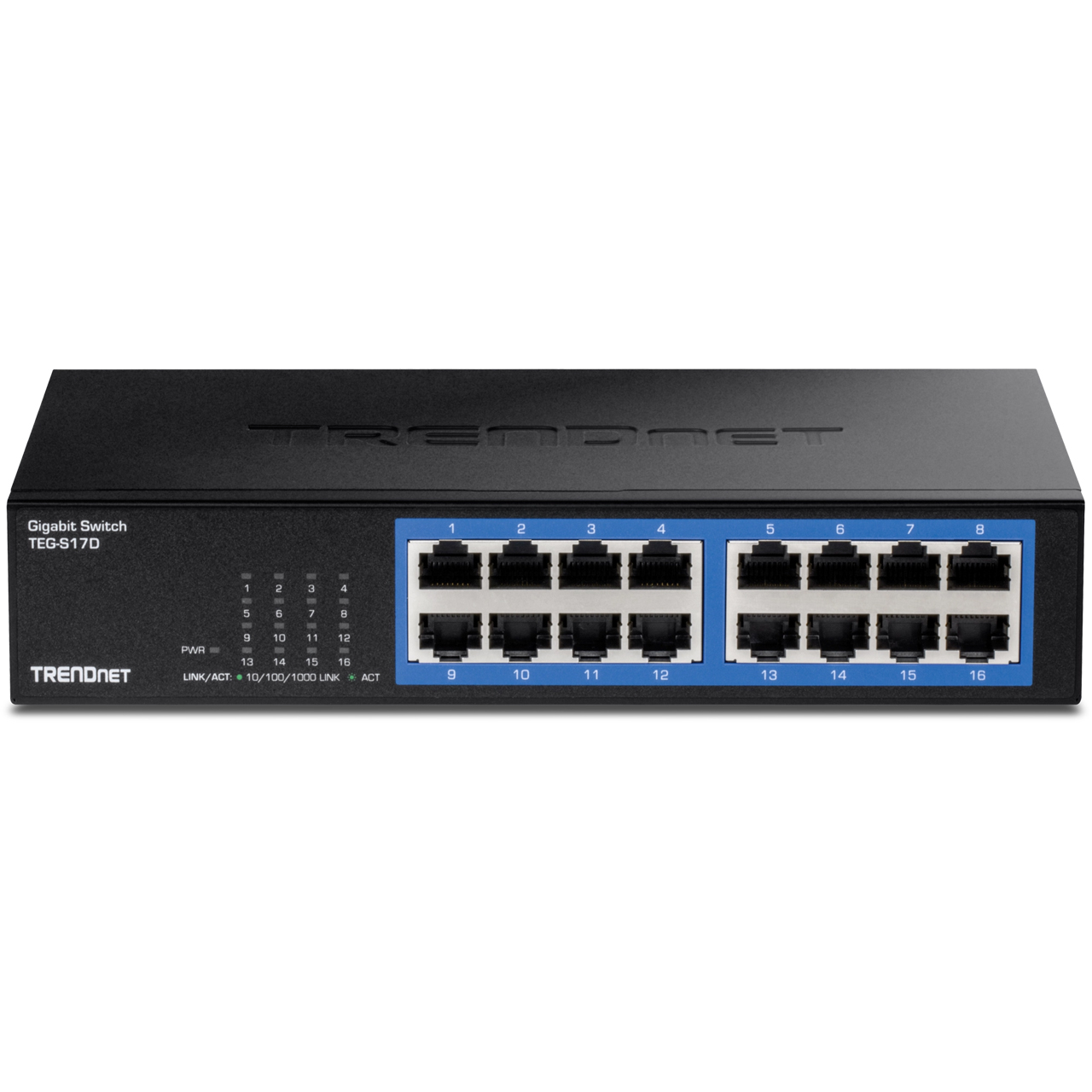

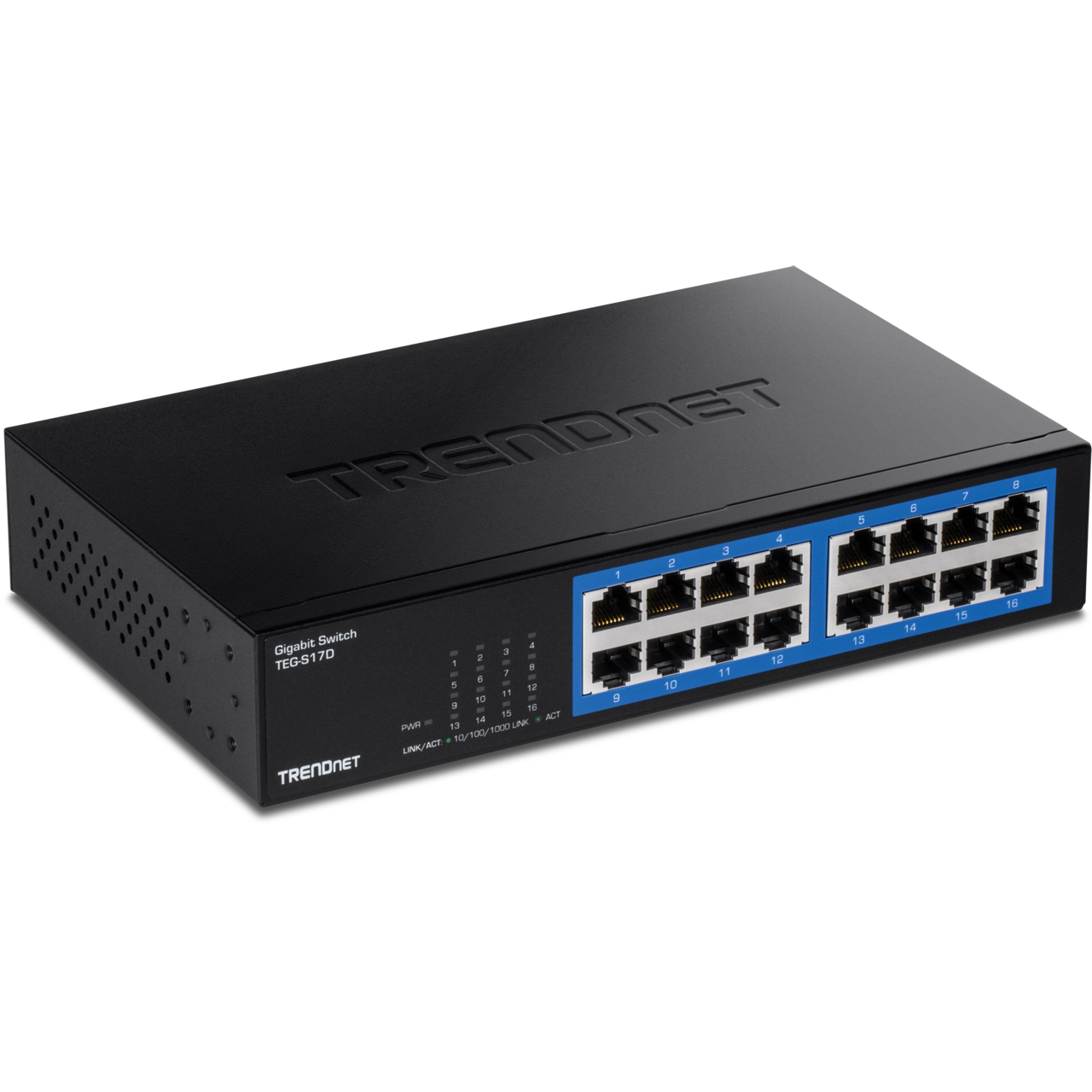

TRENDnet TEGS17D 16-Port Gigabit Desktop Switch

ITEM #: TNET-TEGS17D MFG #: TEGS17D

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$74.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TEGS17D - Overview

Adaptable fanless design for desktop or rackmount use!

The TRENDnet 16-Port Gigabit Desktop Switch, model TEG-S17D, provides high bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 32Gbps with full-duplex mode. A built-in universal power supply reduces cable clutter, and diagnostic LEDs help with network troubleshooting. Plug and play this sturdy metal switch for reliable high-speed network connectivity.

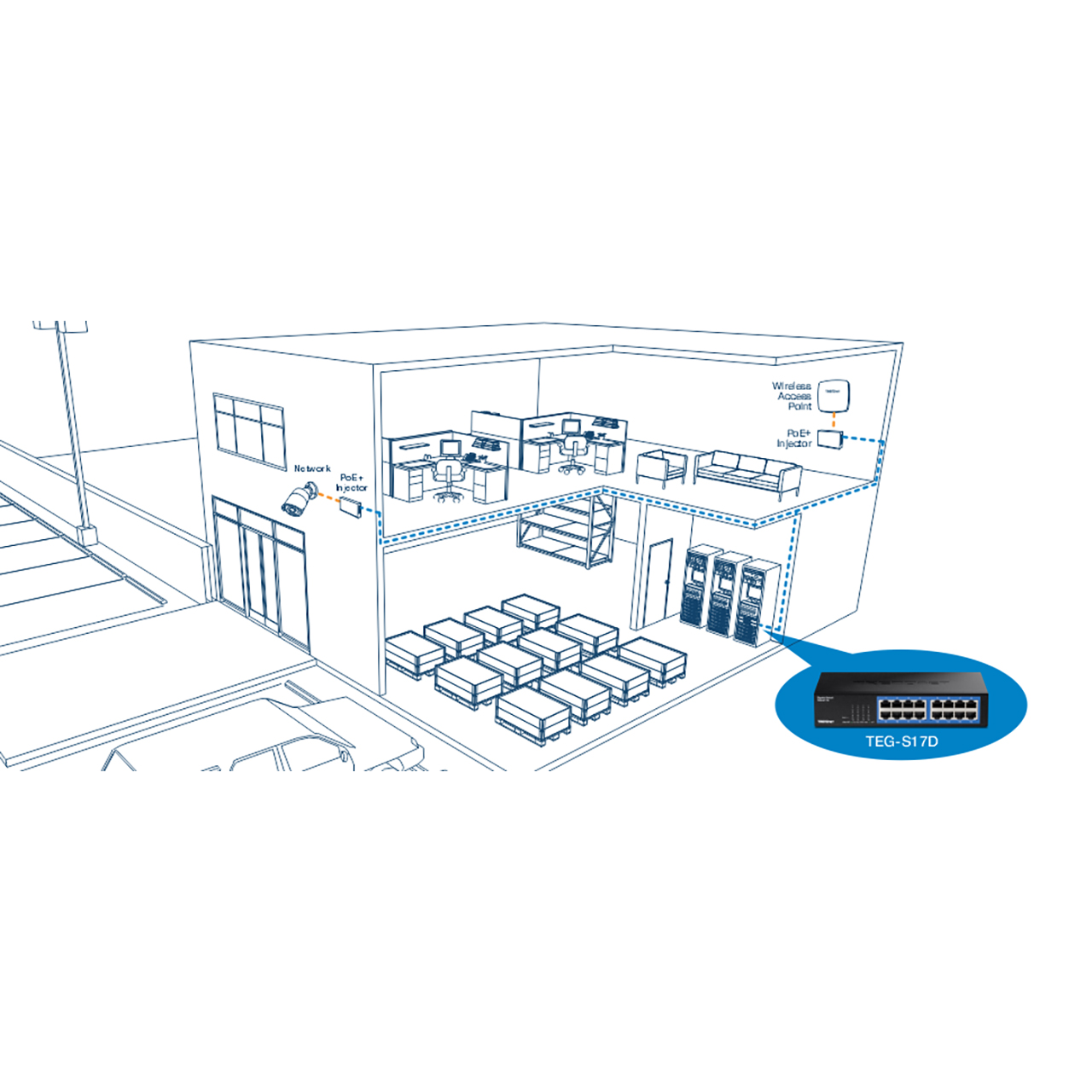

With a compact and sturdy metal housing design, this switch is well-suited for desktop or rackmount installations (brackets included). The fanless design lowers energy consumption and reduces distracting operating noise.

  • Features:

    • 16x Gigabit RJ-45 ports
    • Sturdy metal desktop switch
    • Built-in power supply
    • 32Gbps forwarding capacity
    • Fanless design
    • 1U rackmount brackets included
    • NDAA/TAA compliant (U.S. and Canada only)

  • Specifications:

      Standards
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3x
    • IEEE 802.3ab

      Device Interface
    • 16x Gigabit ports
    • LED indicators

      Data Transfer Rate
    • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
    • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
    • Gigabit: 2000Mbps (full duplex)

      Performance
    • Switching Capacity: 32Gbps
    • RAM Buffer: 512KB
    • MAC Address Table: 8K entries
    • Forwarding Rate: 23.8Mpps (64-byte packet size)
    • Jumbo Frames: 9KB

      Power

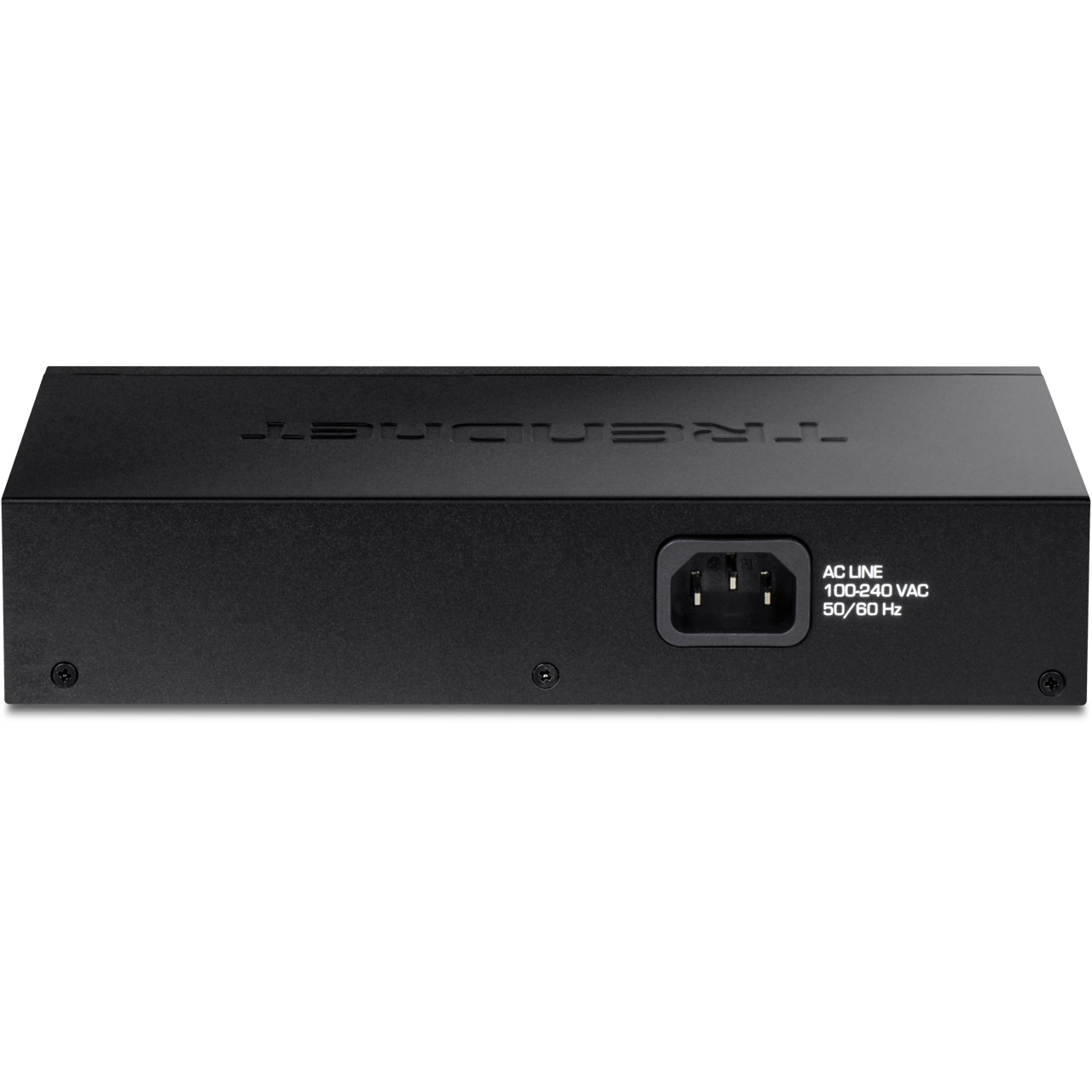

    • Internal Power Supply: 100V - 240V AC, 50/60Hz, 0.2A
    • Max. Consumption: 9.19W

    • Special Features: Rack Mountable
    • Fan/Acoustics: Fanless design
    • MTBF: 1,1121,721 hours
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Operating Humidity: Max. 90% non-condensing
    • Dimensions (LxWxH): 8.5" x 5.20" x 1.69" (216mm x 132mm x 43mm)
    • Weight: 14.6oz (414g)
    • Certifications:
      - FCC
      - CE
      - ETL

  • Item Includes:

    • 1x TEG-S17D
    • 1x Quick Installation Guide

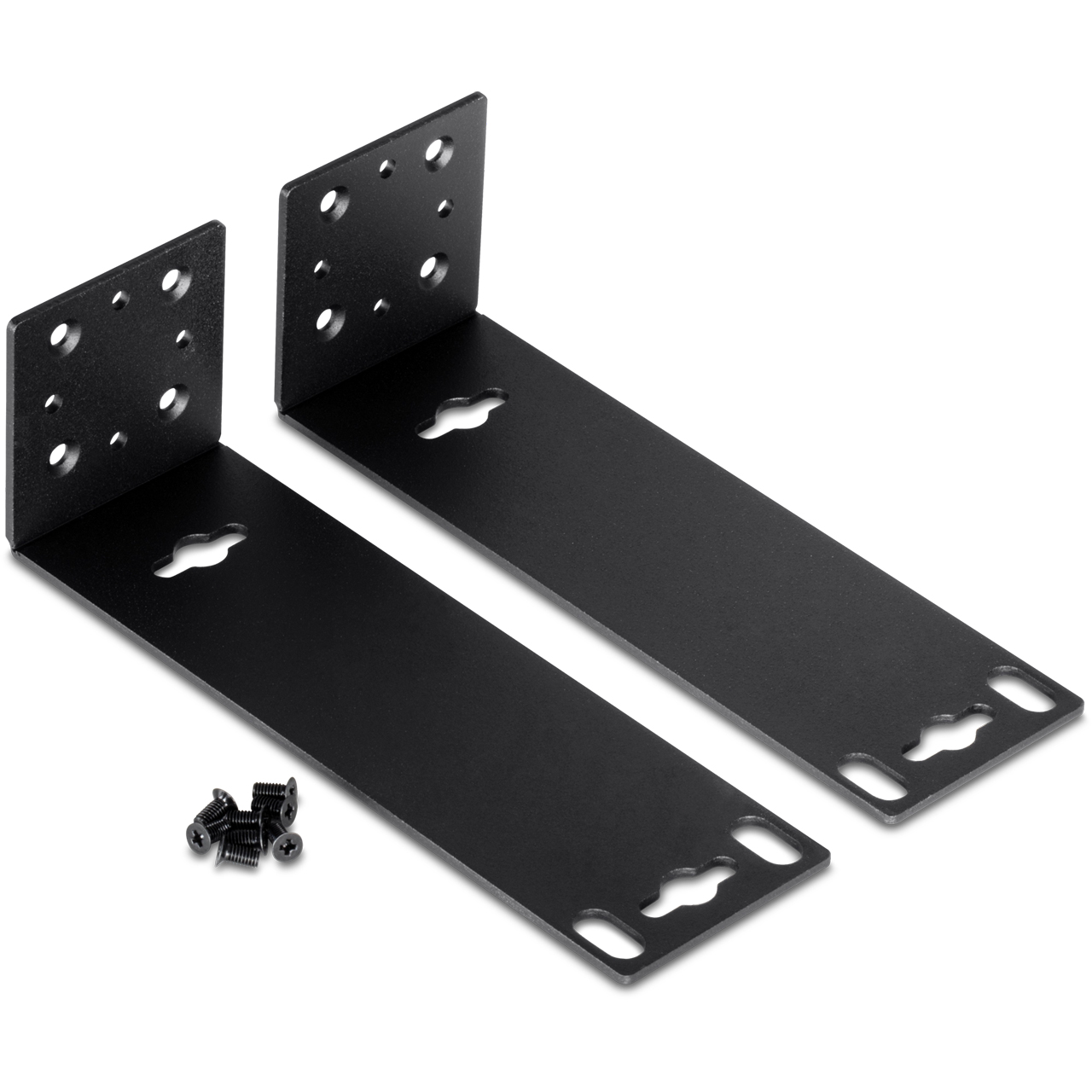

    • 1x Rack Mount Kit
    • 1x 4.9ft (1.5m) Power Cord

  • Warranty:

    • Lifetime Warranty
