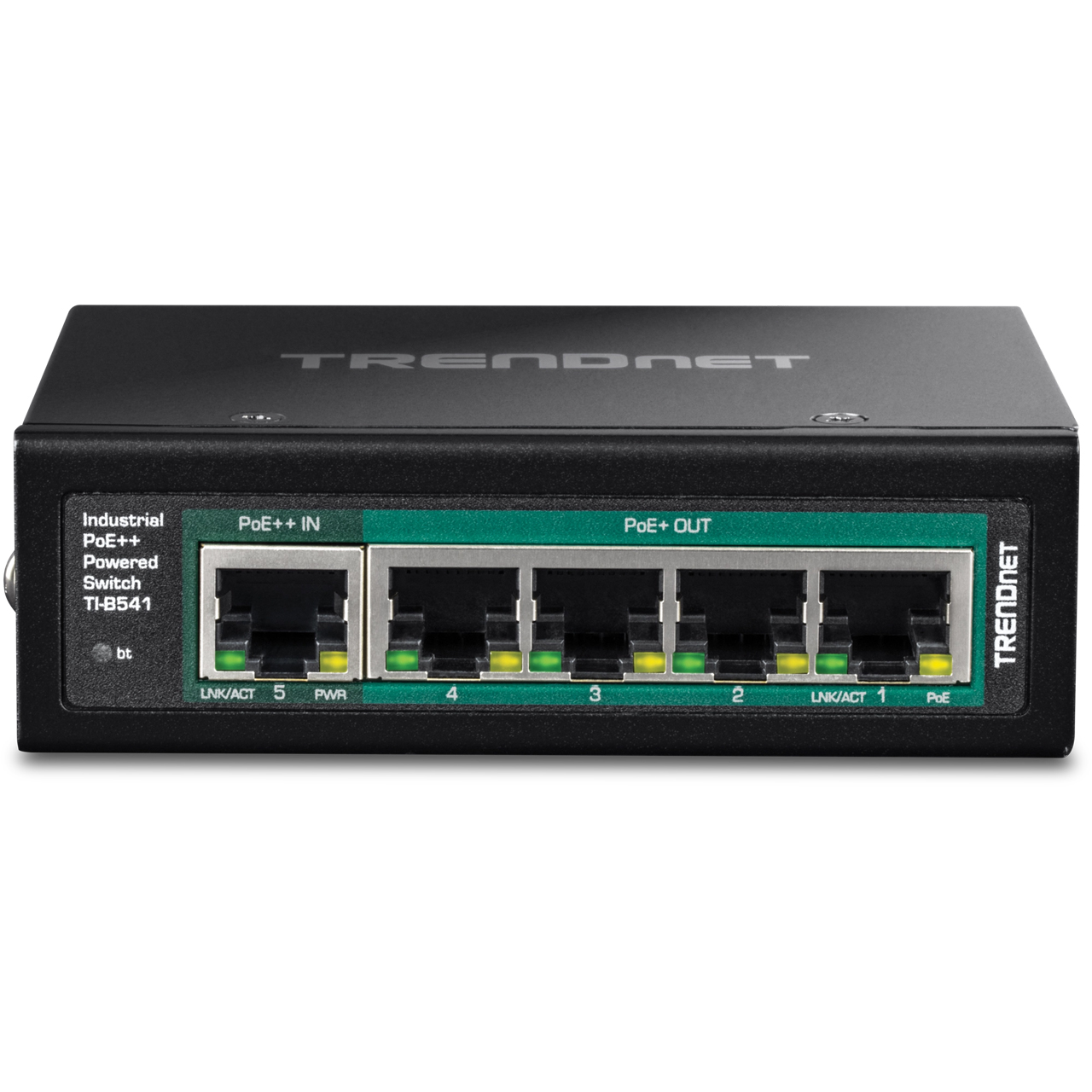

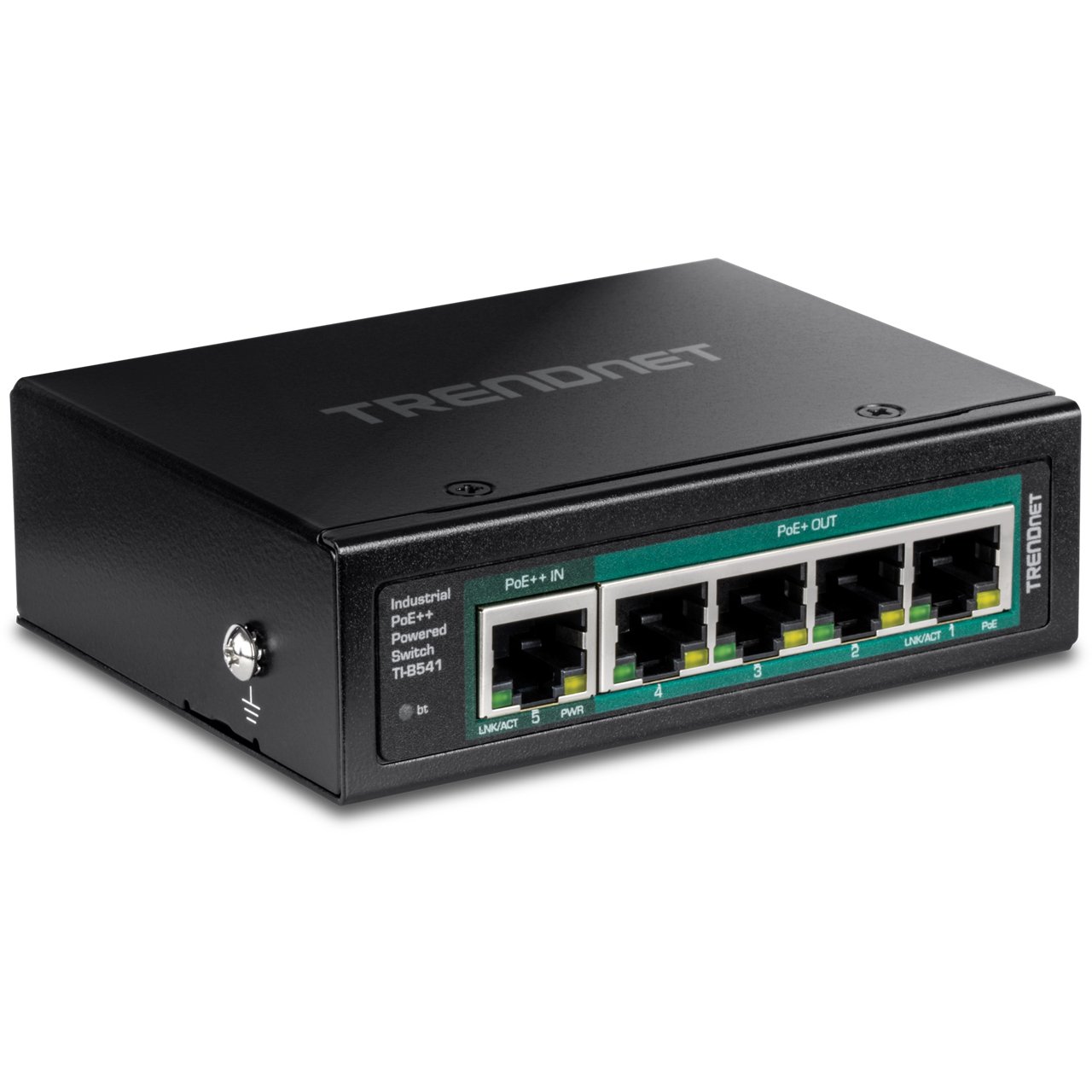

TRENDnet TI-B541 5-Port IP30 Industrial Gigabit PoE++ Powered DIN-Rail Switch with PoE Pass-Through

TI-B541 - Overview

• Features:

  • 1x Gigabit PoE++ input port
  • 4x Gigabit PoE+ output ports
  • 65W PoE power budget with PoE++ Type 4 (90W) input power
  • 10Gbps switching capacity
  • Hardened IP30 rated metal switch
  • Includes DIN-Rail and wall mounts
  • Extreme operating temperature range of -40°F - 167°F (-40°C - 75°C)
  • NDAA/TAA compliant (U.S. and Canada only)
  • Lifetime Warranty


• Specifications:

  Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt

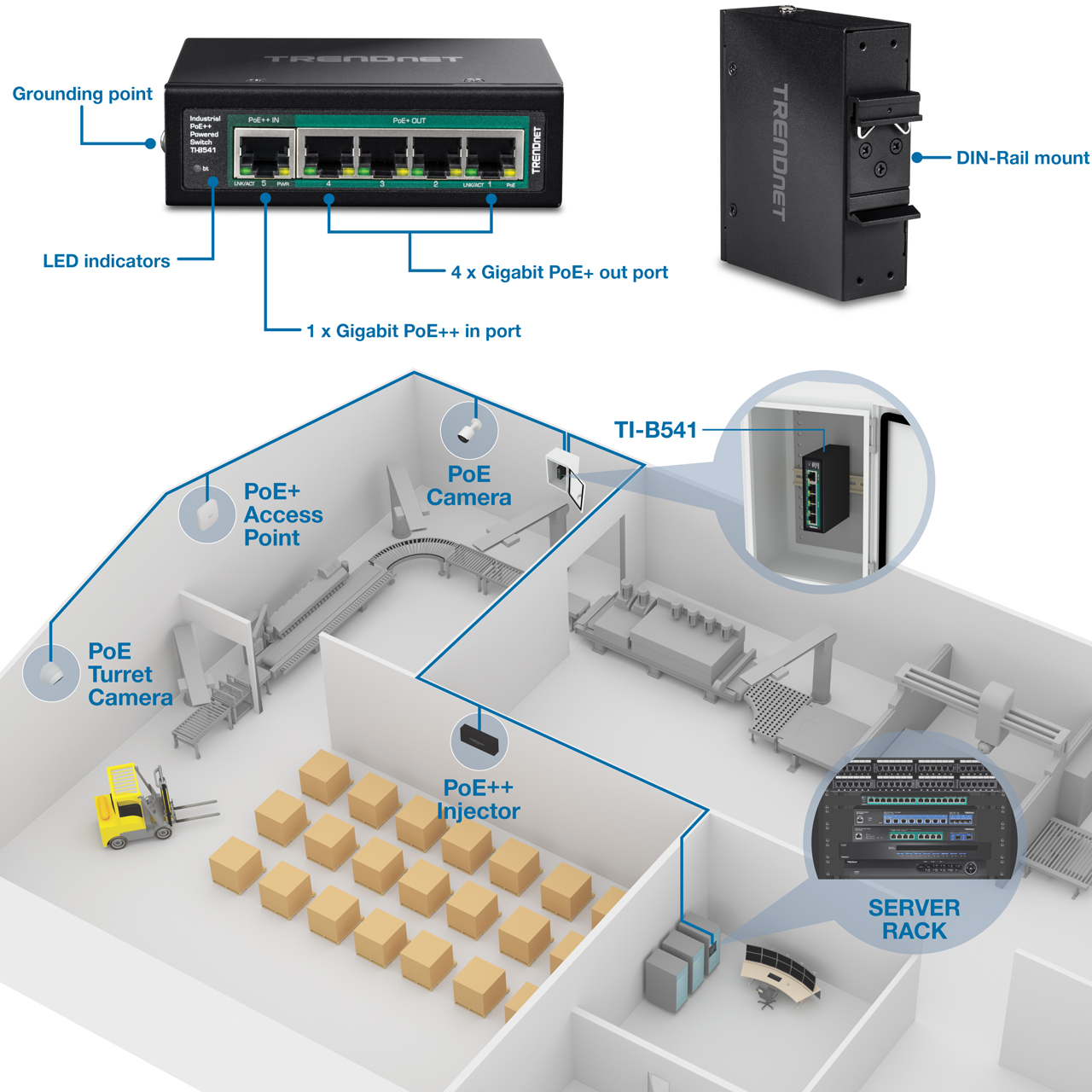

    Device Interface
  • 1x Gigabit PoE++ in port
  • 4x Gigabit PoE+ out port
  • LED indicators
  • DIN-Rail mount
  • Wall mount
  • Grounding point

    Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)

    Performance
  • Data RAM Buffer: 128KB
  • Switching Fabric: 10Gbps
  • MAC Address Table: 2K entries
  • Jumbo Frame: 9KB
  • Forwarding Rate: 7.44Mpps (64-byte packet size)

    Special Features
  • PoE++ Powered
  • Hardened components rated for extreme temperatures
  • Auto-Negotiation

    Power
  • IEEE 802.3bt Type 4 (90W), IEEE 802.3bt Type 3 (60W), or IEEE 802.3at (30W), PoE input only (no external power supply)
  • IEEE 802.3bt Type 4 PoE PD Class 7
  • IEEE 802.3bt Type 3 PoE PD Class 5
  • IEEE 802.3at Type 2 PoE PD Class 4
  • IEEE 802.3af Type 1 PoE PD Class 0
  • Max. Consumption: 3.9W (no PoE)

    PoE
  • 65W PoE budget with IEEE 802.3bt Type 4 (90W) input power
  • 50W PoE budget with IEEE 802.3bt Type 3 (60W) input power
  • 21W PoE budget with IEEE 802.3at (30W) input power

    MTBF
  • 537,083 hours @ 25°C

    Physical
  • IP30 metal case
  • DIN-Rail mount
  • Wall mount
  • Grounding point
  • Operating Temperature: -40°F - 167°F (-40°C - 75°C)
  • Operating Humidity: Max. 95% non-condensing
  • Dimensions: 4.01" x 3.14" x 1.22" (102mm x 80mm x 31mm)
  • Weight: 0.35lbs (160g)

    Certifications
  • CE
  • FCC
  • LVD
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5


• Item Includes:

  • 1x TI-B541
  • 1x Quick Installation Guide
  • 1x DIN-Rail and wall mount kit


• Warranty:

  • Lifetime Warranty
