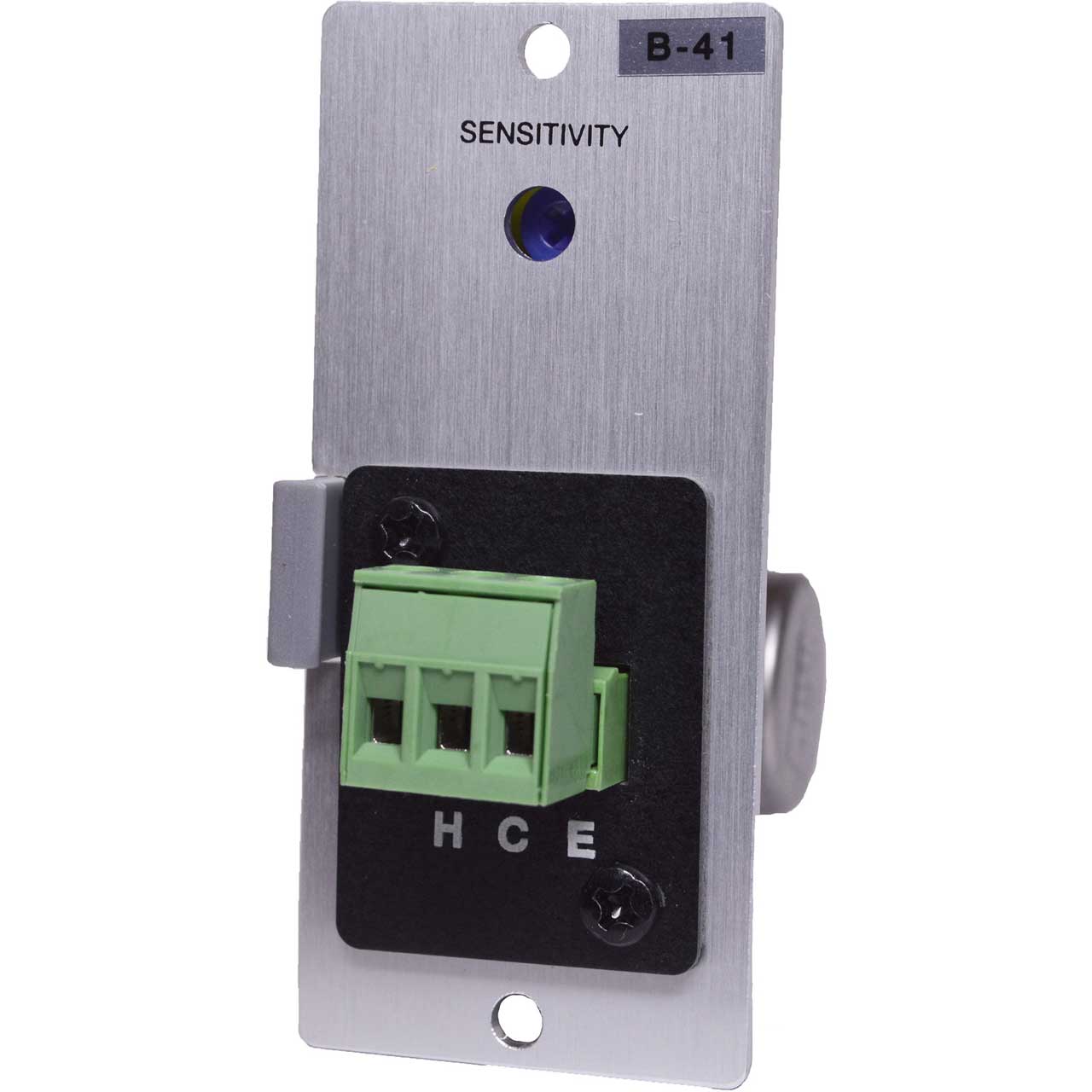

TOA B-41S 900 Series Balanced Line Input Module - 10k Ohms Transformer - Mute-Send- Removable Terminal Block

ITEM #: TOA-B-41S MFG #: B-41S

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$109.00

Our Price:

$88.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    B-41S - Overview

    For balanced or unbalanced, line level equipment such as AM/FM tuners, tape decks and CD players. TOA B-41S Transformer isolation minimizes ground loop problems when connecting remote equipment. Signal at input terminals activates mute bus.

    Notes:

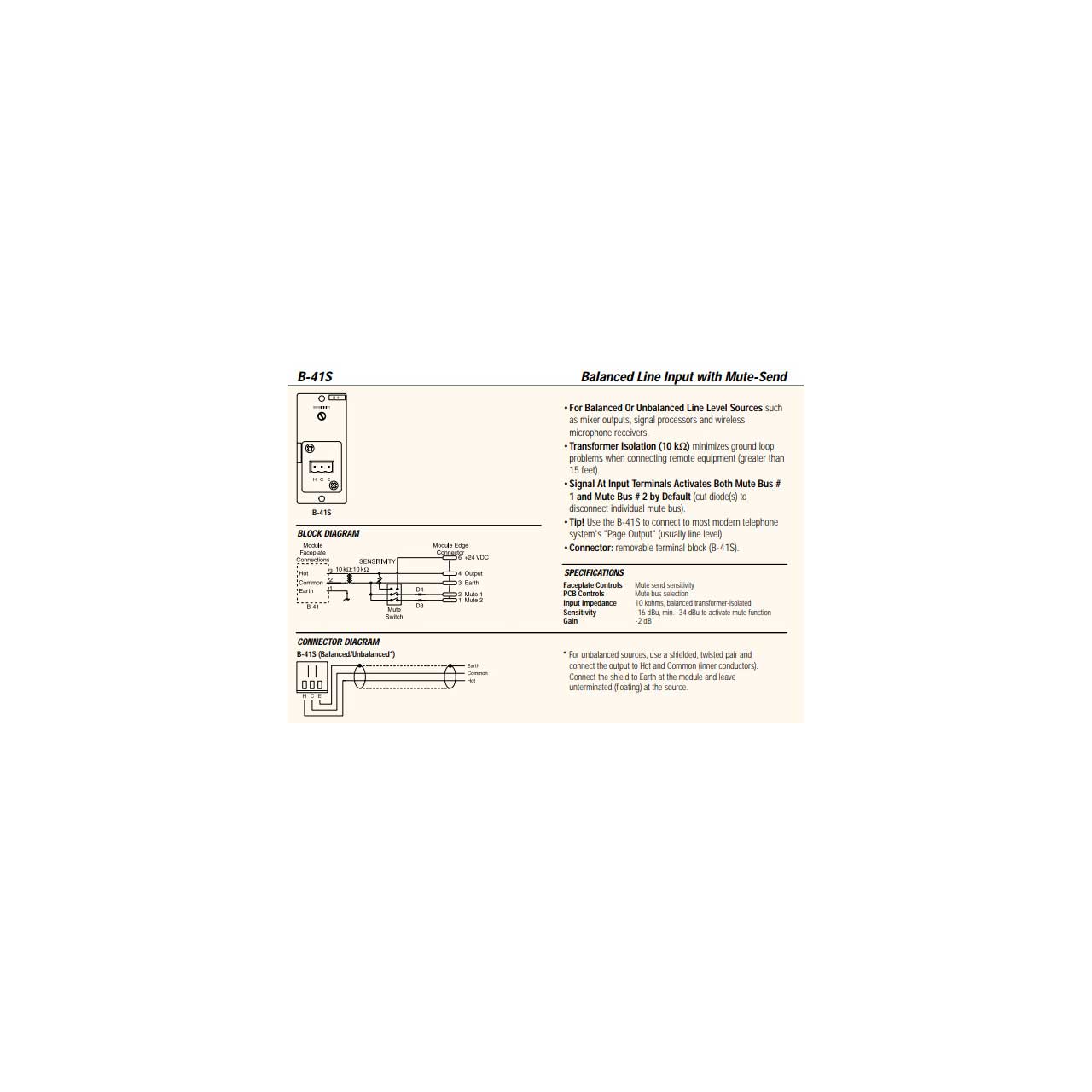

    For unbalanced sources, use a shielded, twisted pair and connect the output to Hot and Common (inner conductors). Connect the shield to Earth at the module and leave unterminated (floating) at the source.
    Use the B-41S to connect to most modern telephone system's "Page Output" (usually line level).

    • Features:

      • For Balanced Or Unbalanced Line Level Sources such as mixer outputs, signal processors and wireless microphone receivers.
      • Transformer Isolation (10 kΩ) minimizes ground loop problems when connecting remote equipment (greater than 15 feet).
      • Signal At Input Terminals Activates Both Mute Bus # 1 and Mute Bus # 2 by Default (cut diode(s) to disconnect individual mute bus).
      • Tip! Use the B-41S to connect to most modern telephone system's "Page Output" (usually line level).
      • Connector: removable terminal block (B-41S).

    • Specifications:

      • Controls/Functions: Mute Send Sensitivity
      • Performance Input: 10 kohms
      • Input Sensitivity: -16 ~ -34 dBu
      • Gain (Adjustable): -2 dB
      • Physical Connector: Removable Terminal Block
