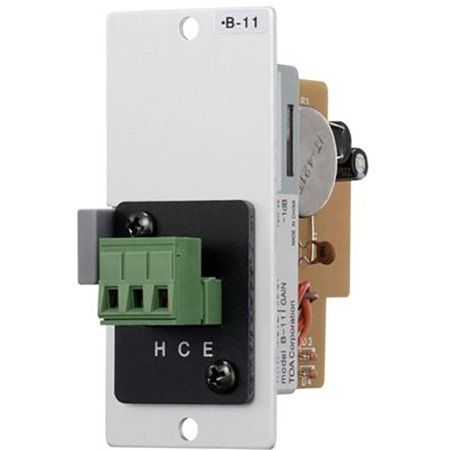

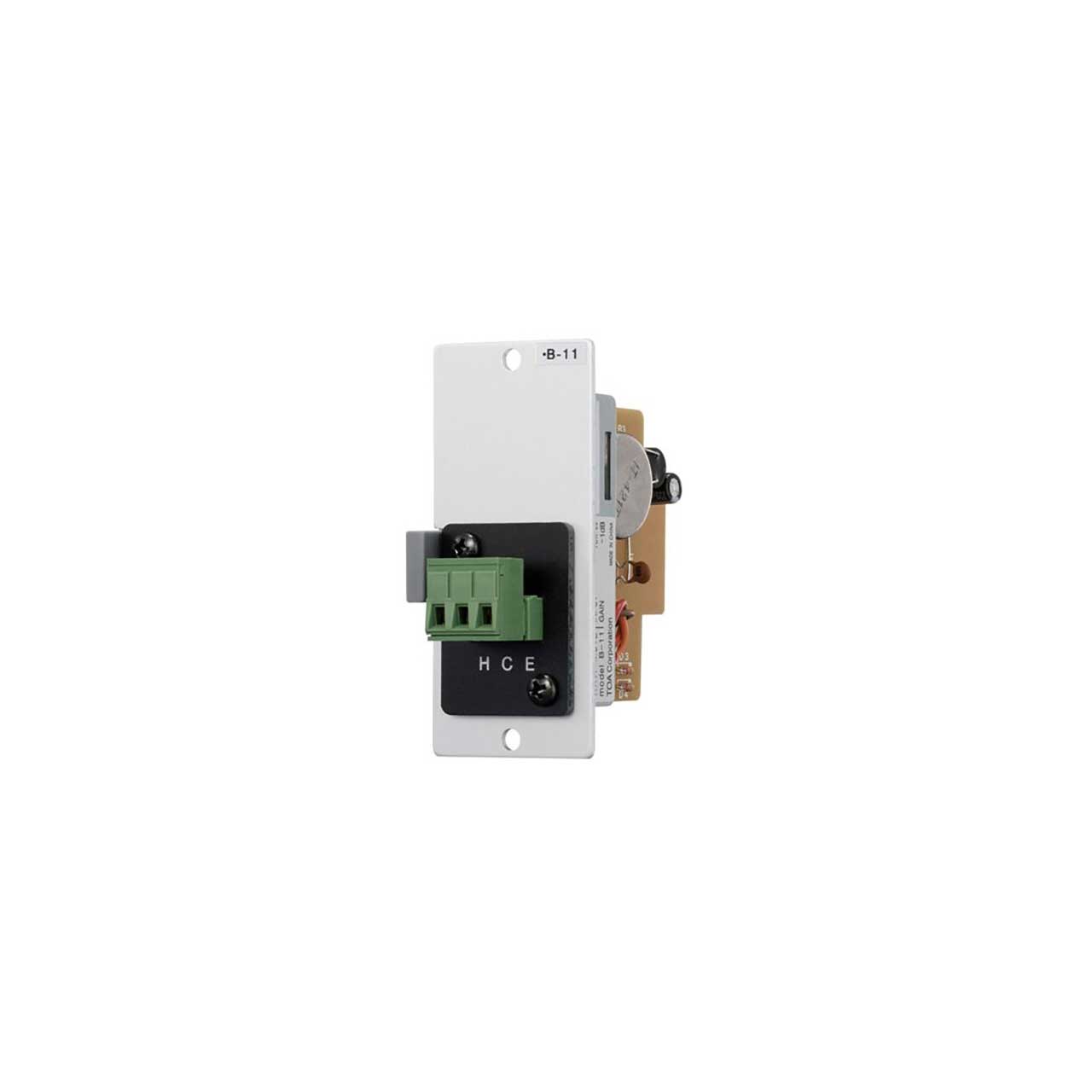

TOA B-11S T 900 Series Balanced Line Input Module - 10k Ohms Transformer - Mute-Receive- Removable Terminal Block

ITEM #: TOA-B-11S-T MFG #: B-11S T

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
TOA Electronics, Inc.
Free Shipping with $49 Minimum Order

List Price:

$104.90

Our Price:

$84.80

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    B-11S T - Overview

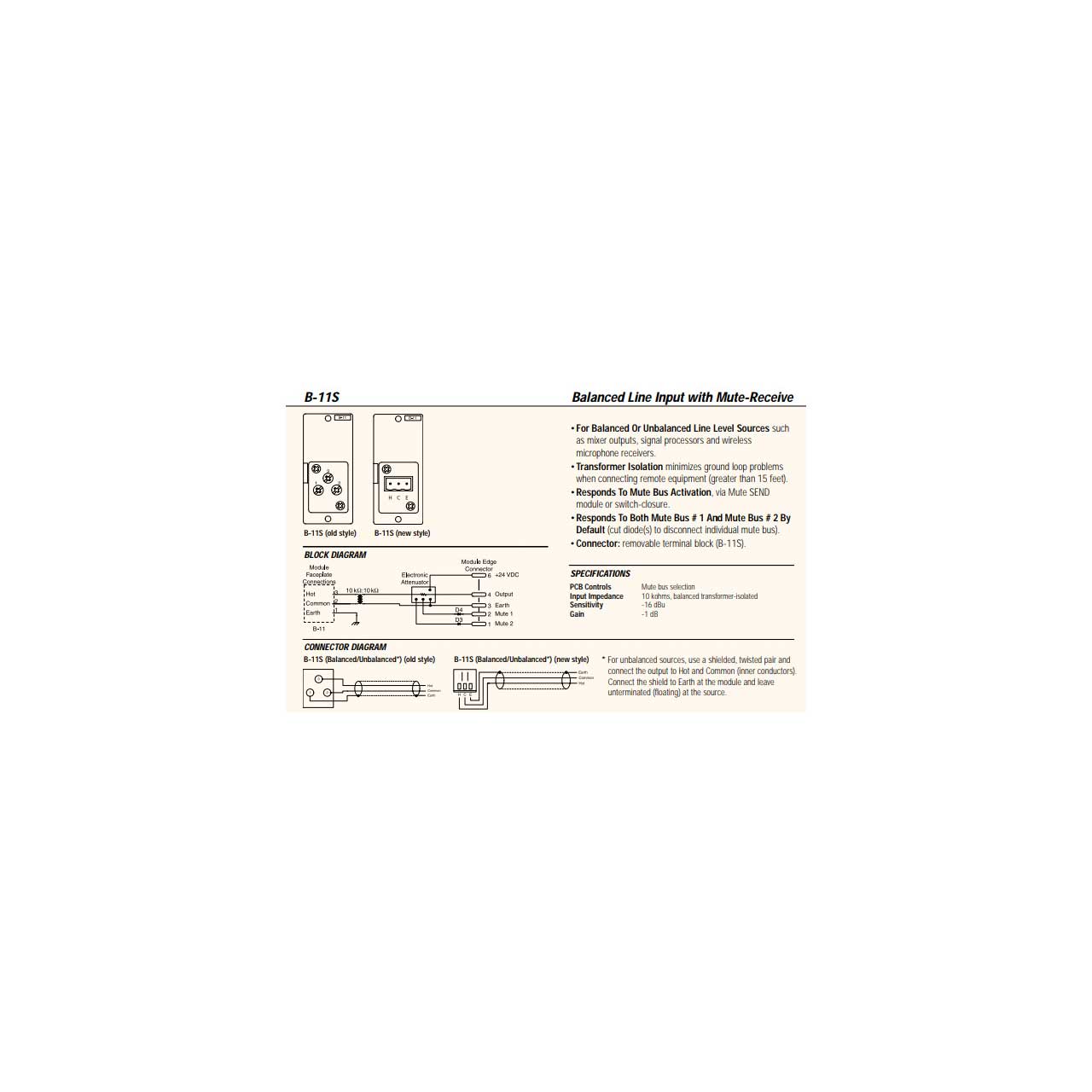

    For balanced or unbalanced line level equipment such as AM/FM tuners, tape decks and CD players. The TOA B-11S T Transformer isolation minimizes ground loop problems when connecting remote equipment. Responds to mute bus activation.

    Note: For unbalanced sources, use a shielded, twisted pair and connect the output to Hot and Common (inner conductors). Connect the shield to Earth at the module and leave unterminated (floating) at the source.

    • Features:

      • For Balanced Or Unbalanced Line Level Sources such as mixer outputs, signal processors and wireless microphone receivers.
      • Transformer Isolation minimizes ground loop problems when connecting remote equipment (greater than 15 feet).
      • Responds To Mute Bus Activation, via Mute SEND module or switch-closure.
      • Responds To Both Mute Bus # 1 And Mute Bus # 2 By Default (cut diode(s) to disconnect individual mute bus).
      • Connector: removable terminal block (B-11S)


    • Specifications:

      • Controls/Functions: Mute
      • Performance Input: 10 k tb
      • Input Sensitivity: -16 dBu
      • Gain (Adjustable): -1 dB (fixed)
      • Maximum Input: +20 dB
      • Physical Connector: Removable Terminal Block
