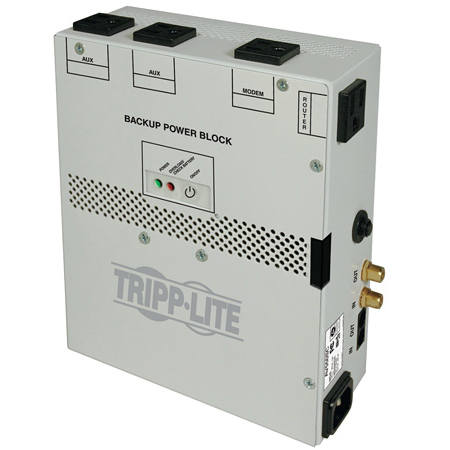

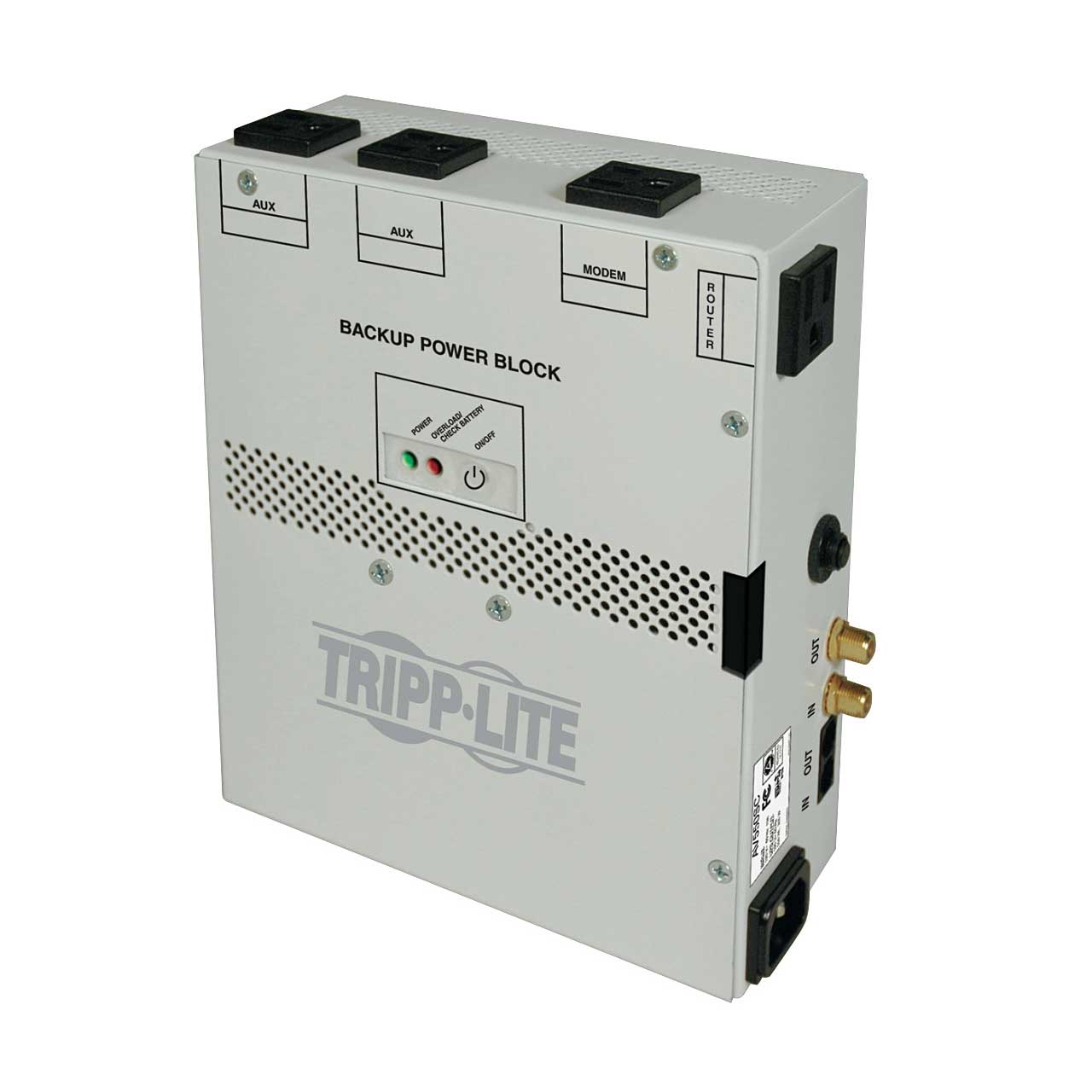

Tripp Lite AV550SC 550VA UPS Home Theater for Structured Wiring Enclosures 4 outlets

ITEM #: TRL-AV550SC MFG #: AV550SC

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$468.00

Our Price:

$306.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    AV550SC - Overview

    The AV550SC Backup Power Block provides the highest level of protection for structured cabling installations (ie. telephone, Internet and coax connections). With reliable battery backup, surge protection and EMI/RFI line noise filtering, the AV550SC provides a complete protection solution for audio/video distribution systems by supporting modems, routers, RF amplifiers, network interfaces, cameras, modulators and other equipment through all power problems. In the event of a power failure, the AV550SC includes an auto-restart feature that eliminates the need to perform an on-site restart. In addition, when a modem or router freeze-up occurs, the AV550SC features a recycle/reset button with sequential outlet startup for proper modem and router rebooting.

    • Features:

      • 4 AC outlets (including 1 delay-on outlet for router)
      • Automatic recycle/reset button
      • Auto-restart capability
      • Regulated 12V DC output for 4 devices
      • Complete surge/spike protection
      • HD-compatible 2.2GHz coaxial and telephone/modem/DSL line surge protection; 550VA of battery backup
      • 3 widely-spaced AC outlets (2 Auxiliary, 1 Modem)power, reset or start up connected equipment during a blackout or system freeze-up (provide battery backup, surge protection and EMI/RFI filtering) - 4 outlets total
      • 60-second delay-on AC outlet (router) powers and resets the router during a blackout or system freeze-up and delays router start-up for proper system rebooting (provides battery backup, surge protection and EMI/RFI filtering)
      • 12V DC (1-Amp) output connector provides an additional output power source for 12V DC devices as well as battery backup protection for 4 devices
      • Recycle/reset button resets connected equipment during system freeze-ups with sequential outlet startup
      • HD-compatible 2.2GHz coax jacks protect connected coax lines against surge damage and filter disruptive EMI/RFI line noise.
      • Tel/modem/DSL jacks protect connected telephone,modem or DSL lines against surge damage and filter disruptive EMI/RFI line noise
      • IEC power input connector accepts included 6-inch power cord
      • Diagnostic/Overload LEDs: Alert users to potential power problems before they affect connected equipment.
      • Resettable circuit breaker prevents dangerous system overloads
      • Auto-restart capability eliminates the need to perform an on-site restart
      • 550VA/300 watts standby UPS system
      • Convenient installation designed to fit in the bottom left corner of structured wiring enclosures without the need for mounting screws or brackets
      • Mounting screw holes are included on the back of the unit for convenient board, wall or ceiling mounting (for projectors)
      • Customizable labels for easier cord/cable indentification and maintenance

    • GTIN:

      0037332138699
