Tripp Lite B024-DPU16 1RU 16-Port DisplayPort/USB KVM Switch with Audio/Video and USB Peripheral Sharing - 4K60Hz

ITEM #: TRL-B024-DPU16 MFG #: B024-DPU16

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,420.00

Our Price:

$1,479.74

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    B024-DPU16 - Overview

    Connects 16 DisplayPort Devices to a Single DisplayPort Monitor, Keyboard and Mouse

    The Tripp Lite B024-DPU16 controls up to 16 DisplayPort-enabled laptop or notebook computers using one centralized DisplayPort monitor and USB keyboard/mouse.

    Connects 16 DisplayPort Devices to a Single DisplayPort Monitor, Keyboard and Mouse - This rack-mount KVM switch lets you access, control, boot and reboot up to 16 computers or other devices with DisplayPort connectors at the same time. In addition to desktop and notebook computers, the KVM also connects up to 16 media centers, gaming systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other DisplayPort-enabled devices. All 16 computers share one DisplayPort and/or HDMI monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.

    Connect up to 256 Computers to One Original Console - You can also cascade two levels of B024-DPU16 KVM switches, allowing centralized access to as many as 256 computers using a single monitor, keyboard and mouse.

    Switching Between Computers Is Fast and Easy - Use the front-panel pushbuttons, RS-232 commands, hotkeys or multi-lingual On-Screen Display (OSD) with text-based interface for quick and easy toggling between computers. Or you can use Auto Scan mode to scan all connected computers in five-second intervals automatically. Orange LEDs indicate which computer is currently selected

    Transmits Crystal-Clear 4K Video and High-Definition Audio - The B024-DPU16 supports true 4K video (4096 x 2160) at 60 Hz and 2.1-channel surround sound with full bass response. With independent audio switching, you can listen to music or other audio from one computer while working on a different computer. The front-panel audio jacks have priority over the rear-panel jacks.

    • Features:

      • Supports true 4K resolutions up to 4096 x 2160 @ 60 Hz with HD audio
      • Cascade up to 2 levels to control as many as 256 computers from a single console
      • Built-in 2-port USB 3.1 hub lets you share USB peripherals among connected computers
      • Pushbuttons, hotkeys and on-screen display allow easy toggling between computers
      • Firmware-upgradable KVM works with Windows, Mac, Sun and Linux operating systems

    • Specifications:

      • Video
      • Number of Monitors Supported: 1
      • Max Supported Video Resolution: 4K @ 60Hz (4096 x 2160)
      • Max Number of Ports (Entire Chain): 256
      • Extended Mode: No
      • Mirror Mode: No

        Audio
      • Audio Specification: Stereo

        Input
      • AC Power Adapter Plug(s): IEC-320-C14
      • AC Power Adapter Input Specs (V / Hz / A): 100-240V / 50/60Hz / 1.4A
      • AC Power Adapter Output Specs (V / A): 12V / 5A
      • AC Power Adapter Cord Length: 3.28ft

        Power
      • Power Source Type: AC Adapter with Detachable Power Cord
      • DC Barrel Plug: OD: 5.5 x 2.5 x 9.5mm, Positive Pin, Negative Sleeve
      • Power Consumption" 18.44W

        Physical
      • Color: Black
      • Rackmountable: Yes
      • Unit Dimensions: 17.02" x 8.44" x 1.73"
      • Unit Weight: 6.85lbs

        Environmental
      • Operating Temperature Range: 32°F to 104°F (0°C to 40°C)
      • Storage Temperature Range: -4°F to 140°F (-20°C to 60°C)
      • Relative Humidity: 0% to 80% RH, Non-Condensing

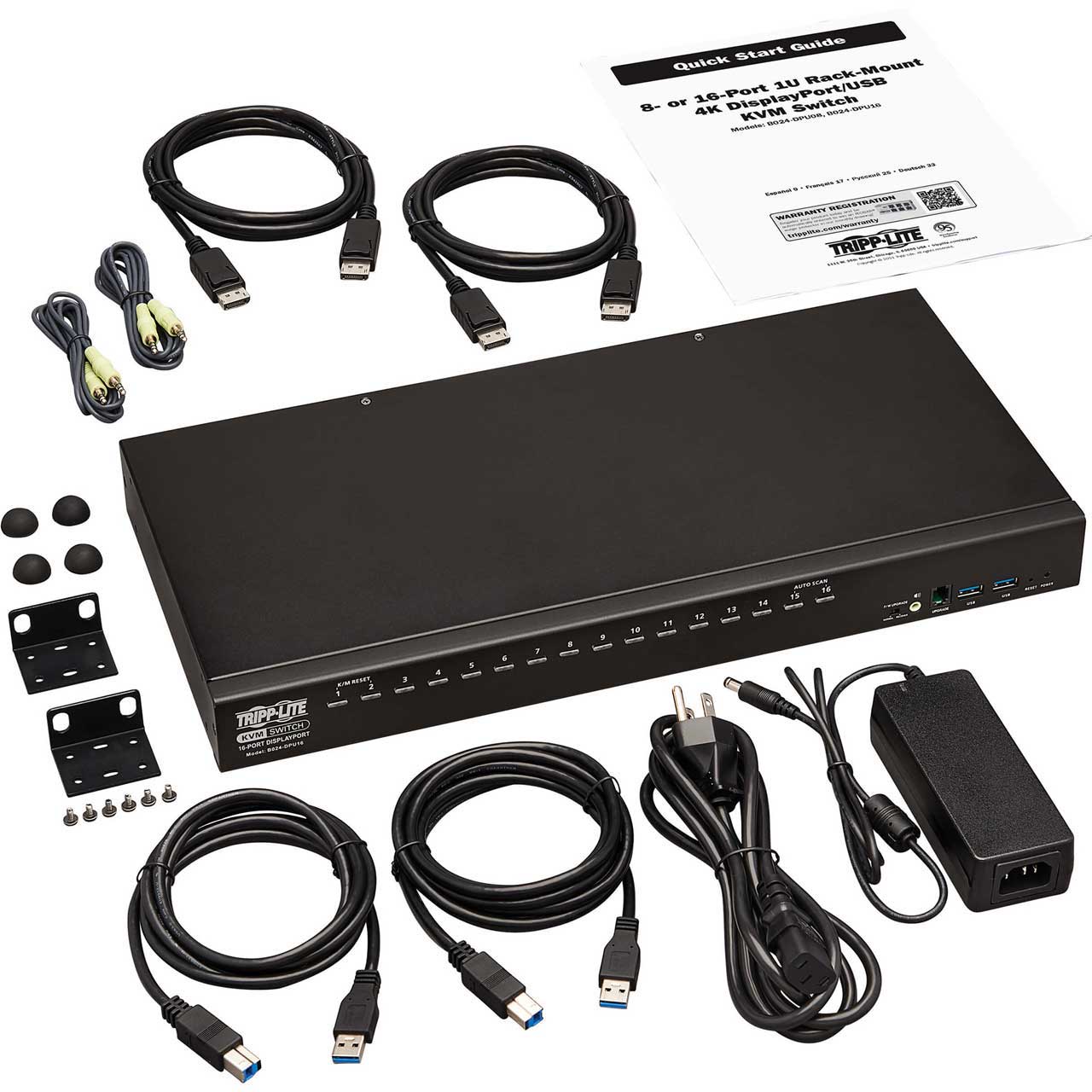

    • Item Includes:

      • 1x B024-DPU16 16-Port DisplayPort/USB KVM Switch
      • 2x DisplayPort 1.4 cables, 5 ft. (1.5 m)
      • 2x USB 3.0 A-to-B cables, 6 ft. (1.8 m)
      • 2x 3.5 mm audio cables, 6 ft.

    • Warranty:

      • 1-Year Warranty
