Tripp Lite B024-HU08 8-Port HDMI/USB Rackmount KVM Switch - Audio/Video and Peripheral Sharing - 1RU

B024-HU08 - Overview

• Features:

  • Connects 8 HDMI-Enabled Devices to a Single HDMI Monitor, Keyboard and Mouse - This rack-mount KVM switch lets you access, control, boot and reboot up to eight computers or other devices with HDMI ports at the same time. In addition to desktop and notebook computers, the switch also connects up to eight media centers, gaming systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other HDMI-enabled devices. All eight computers share one HDMI monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.
  • Connect up to 512 Computers to One Original Console - You can also cascade up to three levels of B024-HU08 KVM switches, allowing centralized access to as many as 512 computers using a single monitor, keyboard and mouse.

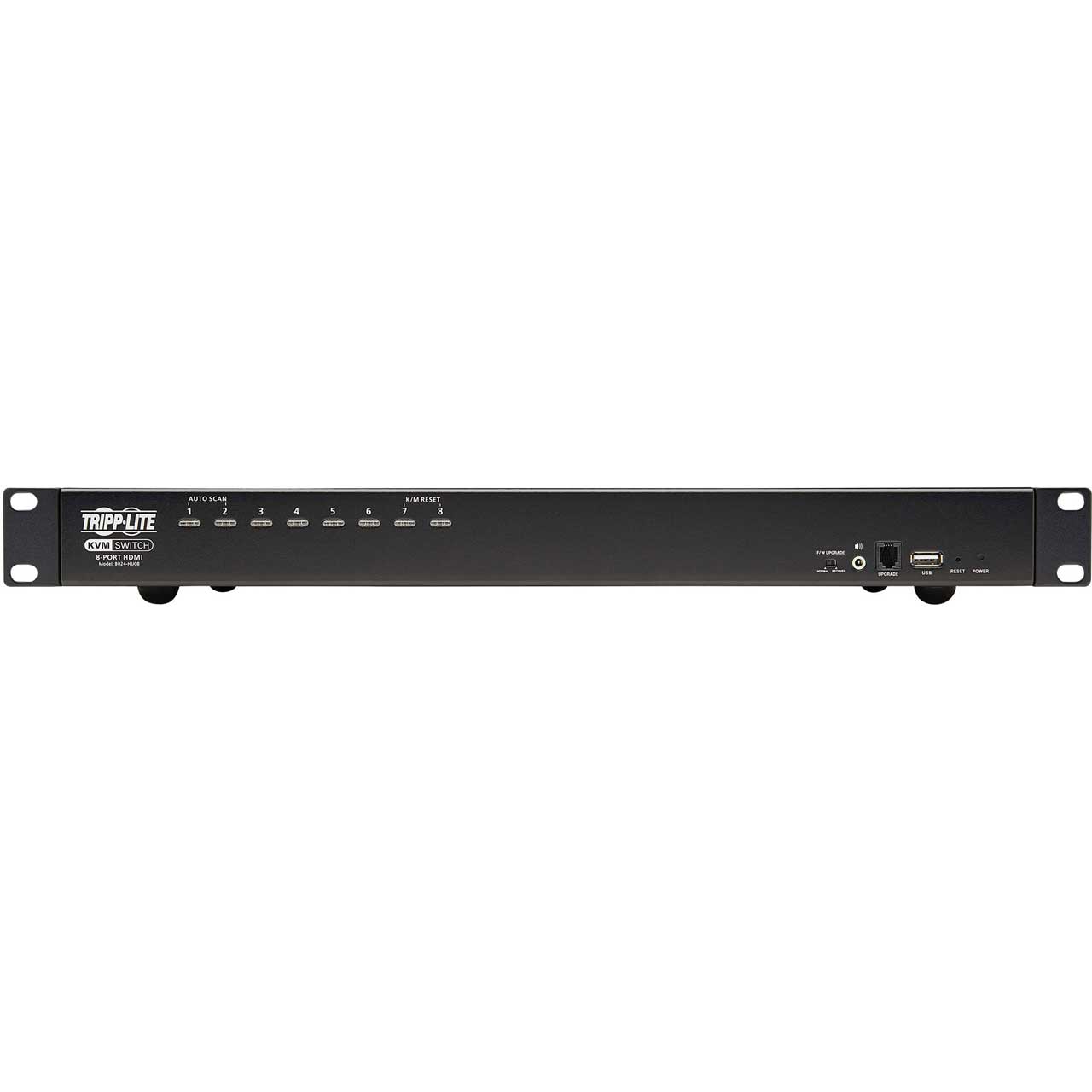

  • Switching Between Computers Is Fast and Easy - Use the front-panel pushbuttons, hotkey commands or multi-lingual On-Screen Display (OSD) with text-based interface for quick and easy toggling between computers. Or you can use Auto Scan mode to scan all connected computers in five-second intervals automatically. Orange LEDs indicate which computer is currently selected.
  • Cables Are Included for Fast and Simple Setup - Connect your HDMI monitor, keyboard, mouse, and speakers to the switch's console ports. Then, use the included HDMI and USB cables to connect your computers to the KVM switch. The plug-and-play B024-HU08 requires no drivers, so you can connect and use it immediately. It works with all major operating systems, including Windows, Mac and Linux.
  • USB Hub Lets You Share Peripherals between Computers - The built-in two-port USB 2.0 hub allows you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between all connected computers. Because the USB ports operate independently, you can print documents from one computer while working on a different computer. The hub is backward compatible with USB 1.1 devices. Green LEDs indicate which computer is using the connected USB device.
  • Transmits Crystal-Clear 1080p Video and Digital Audio - The B024-HU08 supports high-definition video resolutions up to 1920 x 1200 (including 1080p) at 60 Hz, 2.1-channel surround sound audio and USB 2.0 data transfer rates up to 480 Mbps. With independent audio switching, you can listen to music or other audio from one computer while working on a different computer. The front-panel audio jacks have priority over the rear-panel jacks.
  • Stack Units to Expand Your Workstation and Enhance Your Productivity - Stack as many as eight B024-HU08 KVM switches to take advantage of multi-display mode. Depending on the number of stages in your stack, your installation may offer dual-display, triple-display, quad-display or multi-display scenarios, up to eight stages.

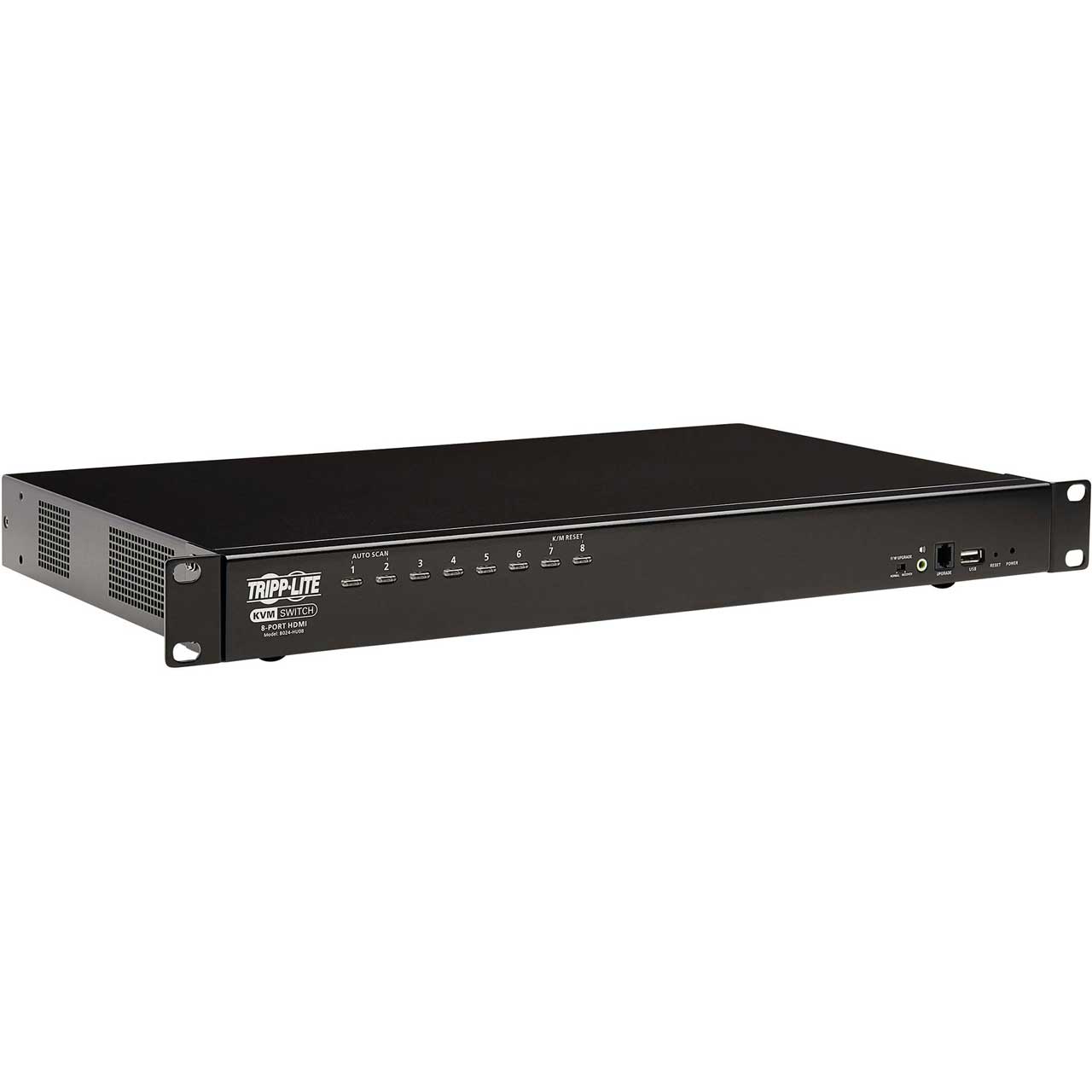

  • Designed for Convenient Mounting with Included Hardware - The heavy-duty metal housing comes with mounting hardware for 1U installation in an EIA-standard 19-inch rack. It also allows desktop deployment on included rubber feet that help prevent the unit from sliding. The included power supply connects to any standard AC power source.
  • TAA-Compliant for GSA Schedule Purchases - The B024-HU08 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.


• Specifications:

  • Video
  • Number of Monitors Supported: 1
  • Max Supported Video Resolution: Digital - 2560 x 1600 @60Hz; Analog - 2048 x 1536 @60Hz
  • Max. Distance (Between any 2 Units): 15ft
  • Max Number of Ports (Entire Chain): 512
  • Extended Mode: No
  • Mirror Mode: No

    Audio
  • Audio Specification: 2.1 channel surround sound

    Input
  • AC Power Adapter Plug(s): NEMA 5-15P North America
  • AC Power Adapter Input Specs (V / Hz / A): 100-240V / 50/60Hz / 0.7A
  • AC Power Adapter Output Specs (V / A): 5V / 4A
  • AC Power Adapter Cord Length (ft.): 5
  • AC Power Adapter Cord Length (m): 1.5
  • Voltage Compatibility (VAC): 100; 110; 120; 125; 127; 200; 208; 220; 230; 240

    Power
  • Power Source Type: AC Adapter with detachable power cord

    Physical
  • Color: Black
  • Material of Construction: Steel (Steel Electrodeposition Cold Common)
  • Rackmountable: Yes
  • Shipping Dimensions (HxWxD): 19.65" x 5.24" x 12.76"
  • Shipping Weight: 11.68lb
  • Unit Dimensions (HxWxD): 17.02" x 10.10" x 1.72"
  • Unit Weight (lbs.): 8

    Environmental
  • Operating Temperature Range: 32°F to 122°F (0°C to 50°C)
  • Storage Temperature Range: -4°F to 140°F (-20°C to 60°C)
  • Relative Humidity: 0% to 80% RH, Non-Condensing
  • Operating Temperature: 32° to 122°F (0° to 50°C)

    Communications
  • Hotkey: Yes
  • Port Control: Push Buttons, Hotkeys, OSD
  • IP Remote Access: No

    Connections
  • Number of Ports: 8
  • Daisy-Chain Port: No
  • Firmware Upgrade Port: No
  • PC/Server Connections: HDMI; USB

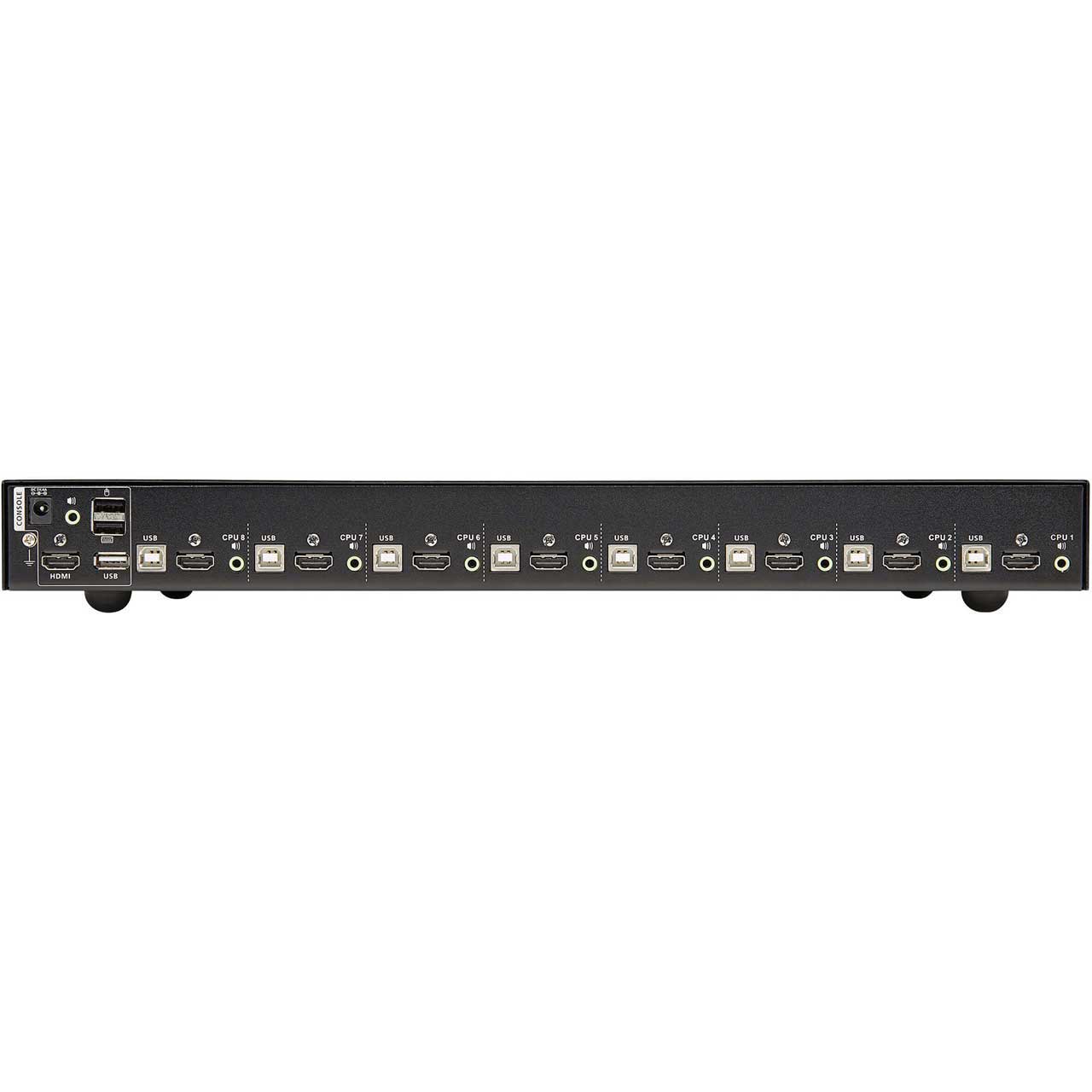

  • Side A - Connector 1: 8x HDMI (FEMALE)
  • Side A - Connector 2: 8x 3.5MM (FEMALE)
  • Side A - Connector 3: 8x USB B (FEMALE)
  • Side B - Connector 1: 1x HDMI (FEMALE)
  • Side B - Connector 2: 4x USB A (FEMALE)
  • Side B - Connector 3: 2x 3.5MM (FEMALE)
  • Side B - Connector 4: 1x RJ11 (FEMALE)
  • Computer Keyboard and Mouse Interface: USB
  • Computer Monitor Interface: HDMI
  • Console Keyboard and Mouse Interface: USB
  • Console Monitor Interface: HDMI

    Port Expansion
  • Daisy-chainable or Cascadable: Cascadable

    Features & Specifications
  • USB Hub Ports: Yes
  • Number of USB Hub Ports: 2
  • USB Specification: USB 2.0 (up to 480 Mbps)
  • NIAP-Certified Secure: No
  • Number of Users: 4
  • On-Screen Display (OSD): Yes
  • Port Selection: Hotkey; OSD; Pushbutton
  • HDCP Specification: 1.4
  • Driver Required: No

    Standards & Compliance
  • External Power Supply Certifications: BSMI; CCC; CE; GS; TUV; UL
  • Product Compliance: RoHS; FCC (USA); Trade Agreements Act (TAA)

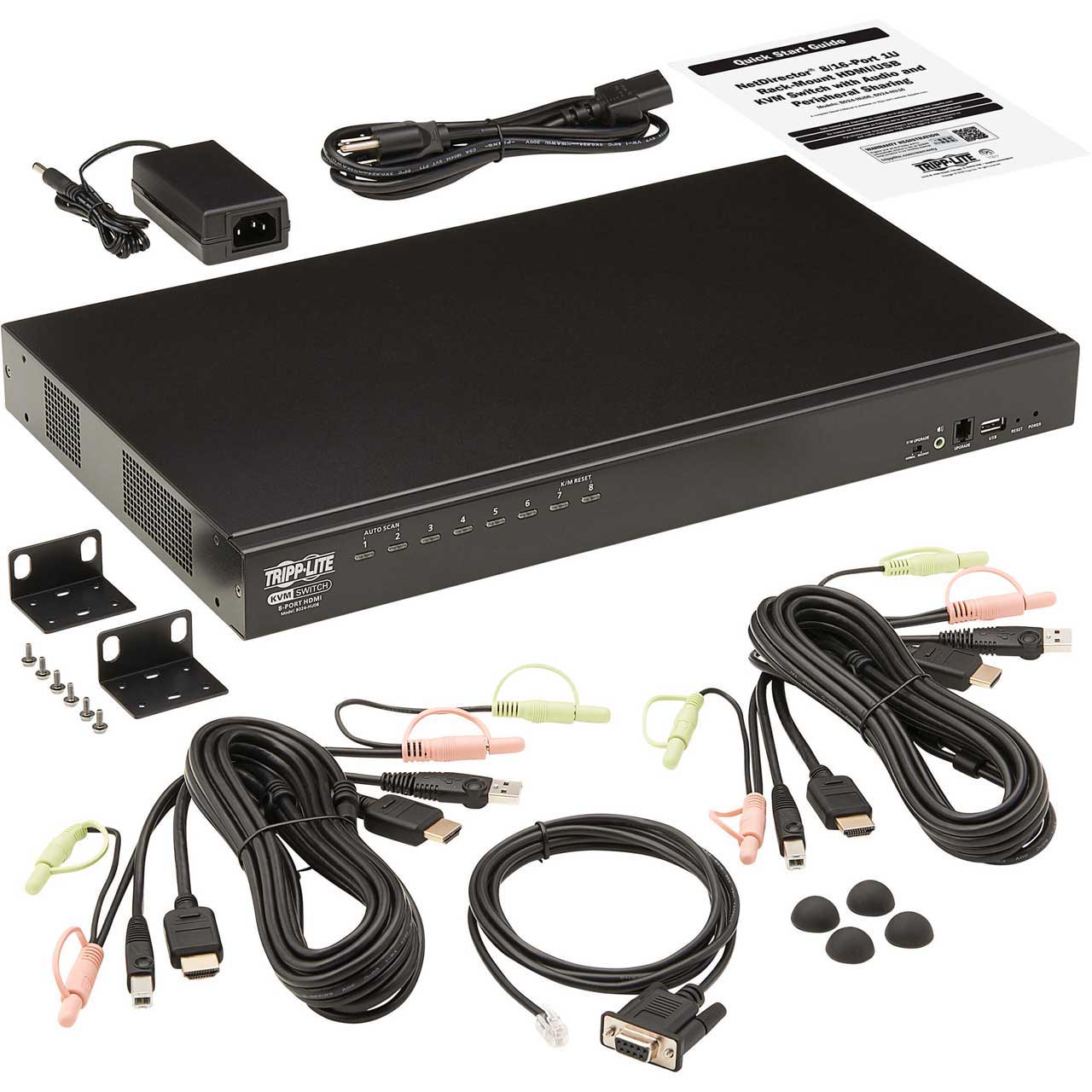

• Item Includes:

  • 1x Tripp lite B024-HU08 8-Port HDMI/USB KVM Switch


• Warranty:

  • 2-Year Limited Warranty


• GTIN:

  0037332251909
