Tripp Lite B093-008-2E4U-V 8-Port Console Server Cellular Gateway Dual GB NIC & SIM 4G LTE

ITEM #: TRL-B0930082E4UV MFG #: B093-008-2E4U-V

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,513.60

Our Price:

$1,763.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    B093-008-2E4U-V - Overview

    The Tripp Lite B093-008-2E4U-V 8-port console server provides secure in-band (primary network) and out-of-band (alternate channel) remote access to serial- and network-connected routers, network switches, firewalls, PBX systems, UPS systems, PDUs and other devices. It offers reliable network connectivity with dual Gigabit primary and failover Ethernet ports for redundancy. You can use it in a wide variety of applications, including wiring closets, branch offices, point-of-sale and other remote sites where quick resolution of network issues is imperative. A multi-carrier 4G LTE cellular modem allows alternate remote access to the rack console in case the primary network goes down. The modem defaults to the Verizon network, but you can switch to AT&T, Rogers (Canada) and Telus (Canada) via the web GUI. This flexibility in networks saves you money by eliminating the need to buy a different modem for each carrier. Configurable port triggers and actions with SNMP, SMS and email alerts, such as pattern recognition, network connection, etc. Eight serial RS-232 console ports are configured to use standard Cat5e/6 patch cable when connecting to Cisco devices. They integrate with industry-standard directory servers using TACACS+, RADIUS, LDAP and Kerberos authentication. Provides 4Gb of internal NAND flash memory.

    • Features:

      • Manage routers, UPS systems and other serial-based equipment from anywhere at any time 24/7
      • Built-in 4G LTE cellular modem with 2 SIM card slots provides out-of-band remote access

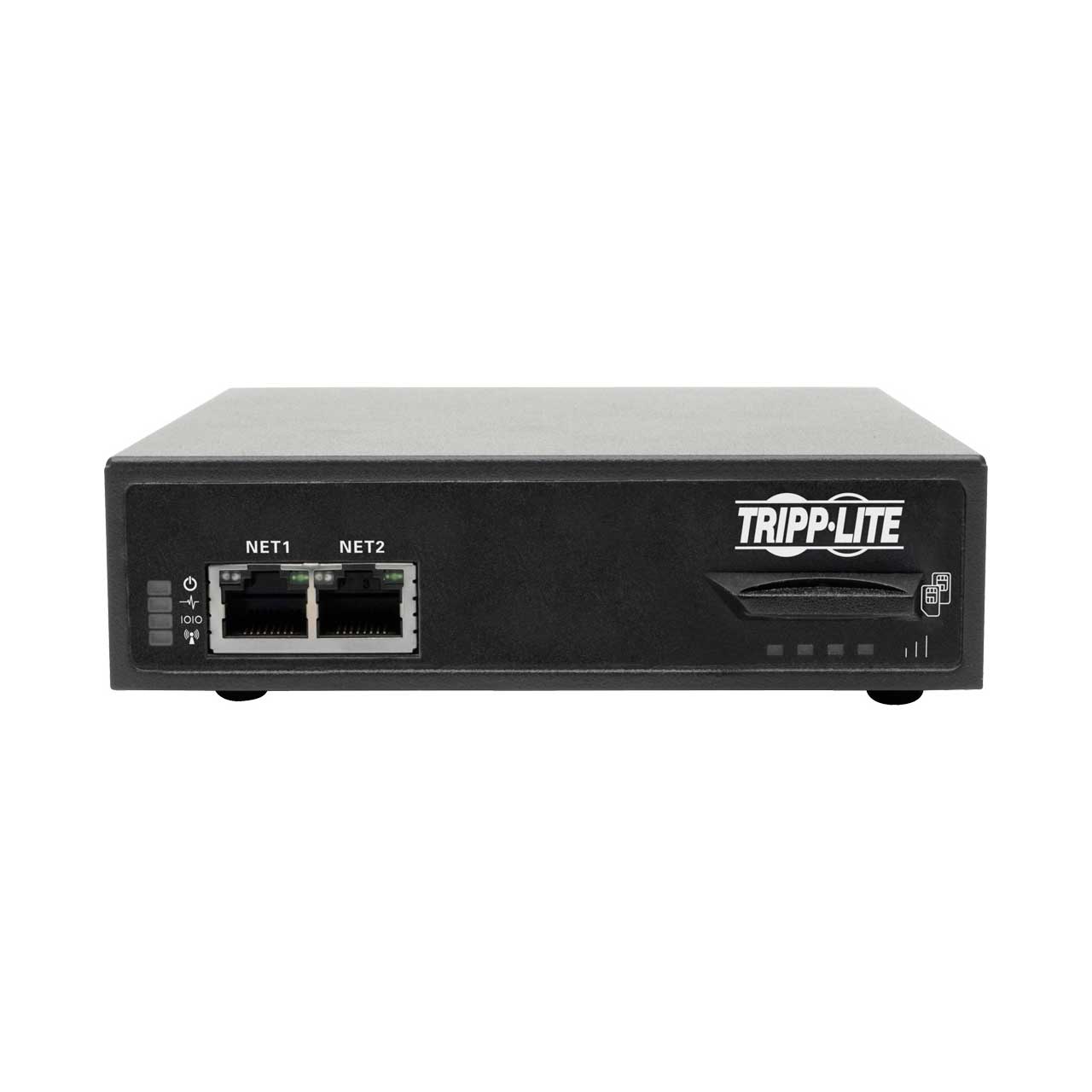

      • Dual Gigabit Ethernet ports for primary network connection and automatic failover
      • Designed for standard Cat5e/6 patch cable when connecting to Cisco devices
      • Easy installation on desktop or 19 in. racks using included mounting hardware

    • Specifications:

      • Input
      • Voltage Compatibility (VAC): 100; 110; 120; 127; 200; 208; 220; 230; 240
      • External Power Supply Input Specs (V / Hz / A): 100-240V/ 50/60Hz / 0.4A
      • External Power Supply Output Specs (V / A): 12V / 1.25A
      • External Power Supply Cord Length (ft.): 4.0
      • External Power Supply Cord Length (m.): 1.2
      • External Power Supply Plug(s): NEMA 1-15P North America; CEE 7/16 Schuko; BS 1363 UK; AS/NZS 3112 Australia
      • External Power Supply Certifications: CE; FCC; UL; cUL; TUV; PSE; C-Tick; GS; RoHS; CB

        User Interface, Alerts & Controls
      • LED Indicators: 12 LEDs for Power, Heartbeat-Firmware Running, Serial Connectivity, Cellular Connectivity, Network Ports, and RSSI Signal Strength

        Physical
      • Shipping Dimensions (hwd / in.): 4.10 x 7.20 x 9.20
      • Shipping Weight (lbs.): 2.40
      • Unit Packaging Type: Box
      • Unit Dimensions (hwd / in.): 1.4 x 5.1 x 4.7
      • Unit Weight (lbs.): 1.30
      • Material of Construction: Metal
      • Color: Black
      • Rackmountable: Yes

        Environmental
      • Operating Temperature Range: -13 to 140 F (-25 to 60 C)
      • Storage Temperature Range: -40 to 167 F (-40 to 75 C)
      • Relative Humidity: 5% to 90% RH, Non-Condensing
      • BTUs: 39.2 BTU/Hr
      • Power Consumption (Watts): 11.5

        Communications
      • IP Remote Access: Yes
      • Network Speed: 1Gbps
      • IEEE Standards Supported: 802.3; 802.3ab; 802.3ad

        Connections
      • Ports: 8
      • Side A - Connector 1: (2) RJ45 (FEMALE)

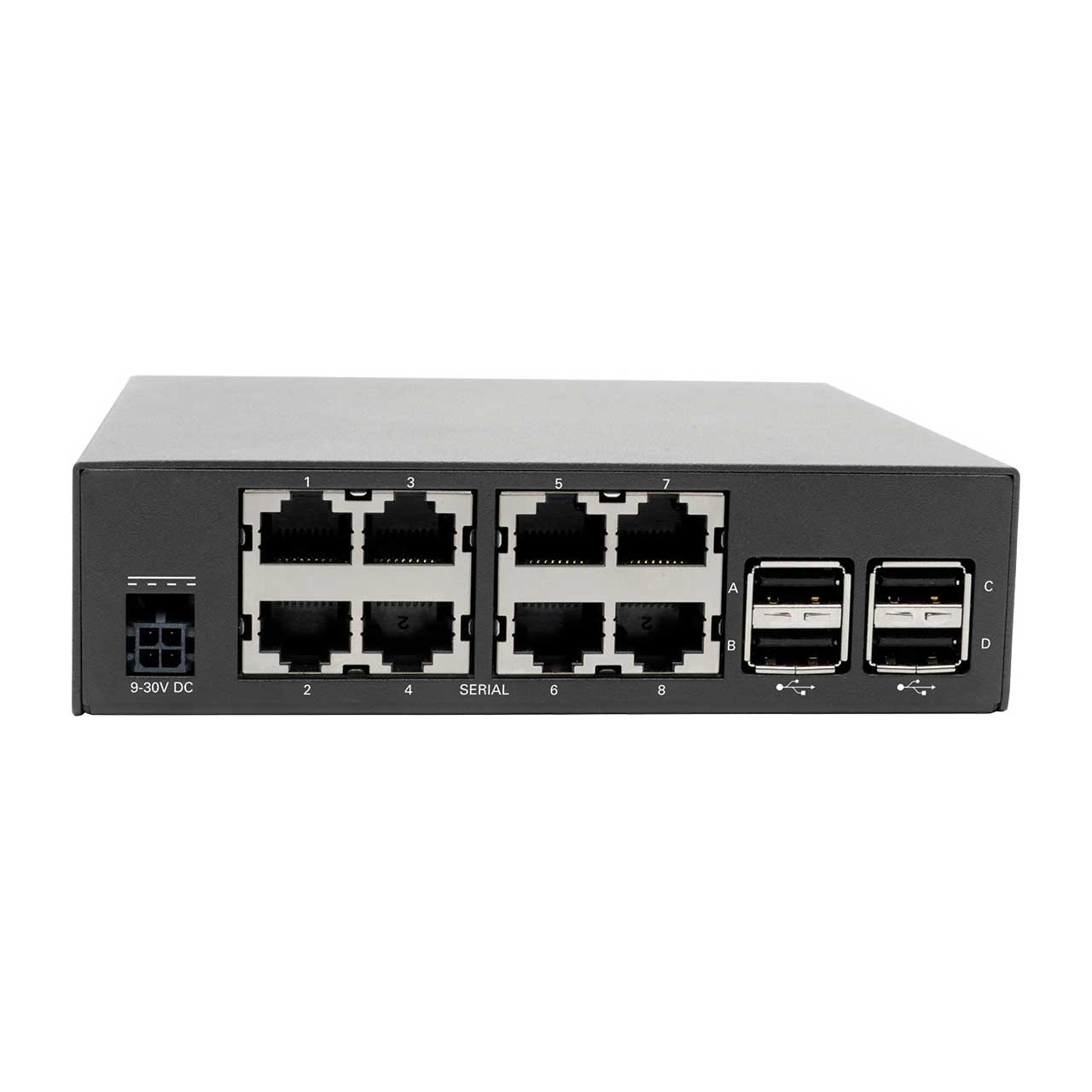

      • Side B - Connector 1: (8) RJ45 (FEMALE); (4) USB A (FEMALE)

        Features & Specifications
      • Port Selection: GUI
      • USB Specification: USB 2.0 (up to 480 Mbps)
      • Driver Required: No
      • Authentication Supported: RADIUS; LDAP; TACACS
      • Common Access Card (CAC) Support: No
      • Technology: Serial (RS232)

        Certifications
      • Certifications: Tested to CE, FCC, UL, TUV, C-Tick, RoHS, REACH

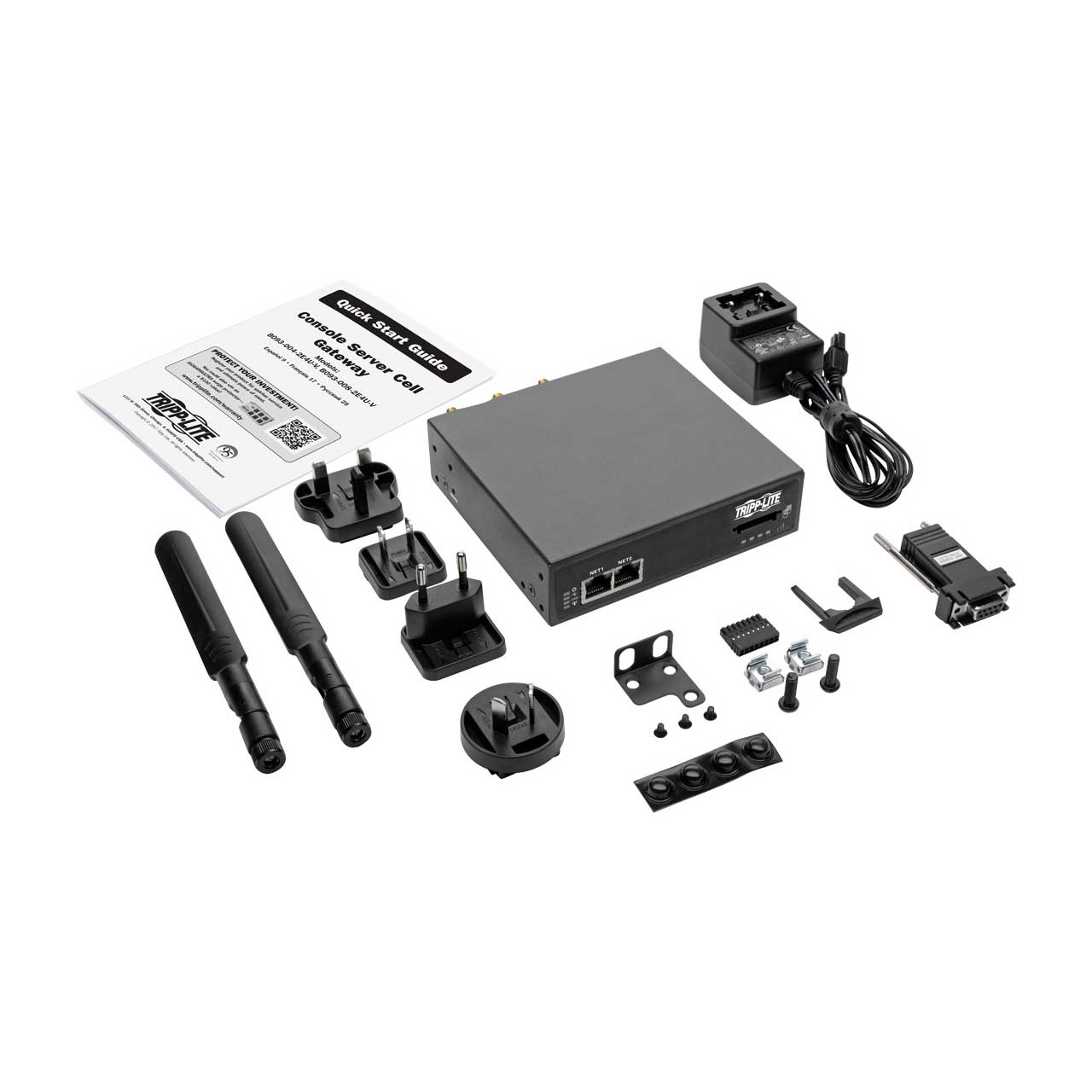

    • Item Includes:

      • B093-008-2E4U-V 8-Port Serial Console Server with 4G LTE Cellular Gateway, Dual GB NIC,4Gb Flash and Dual SIM

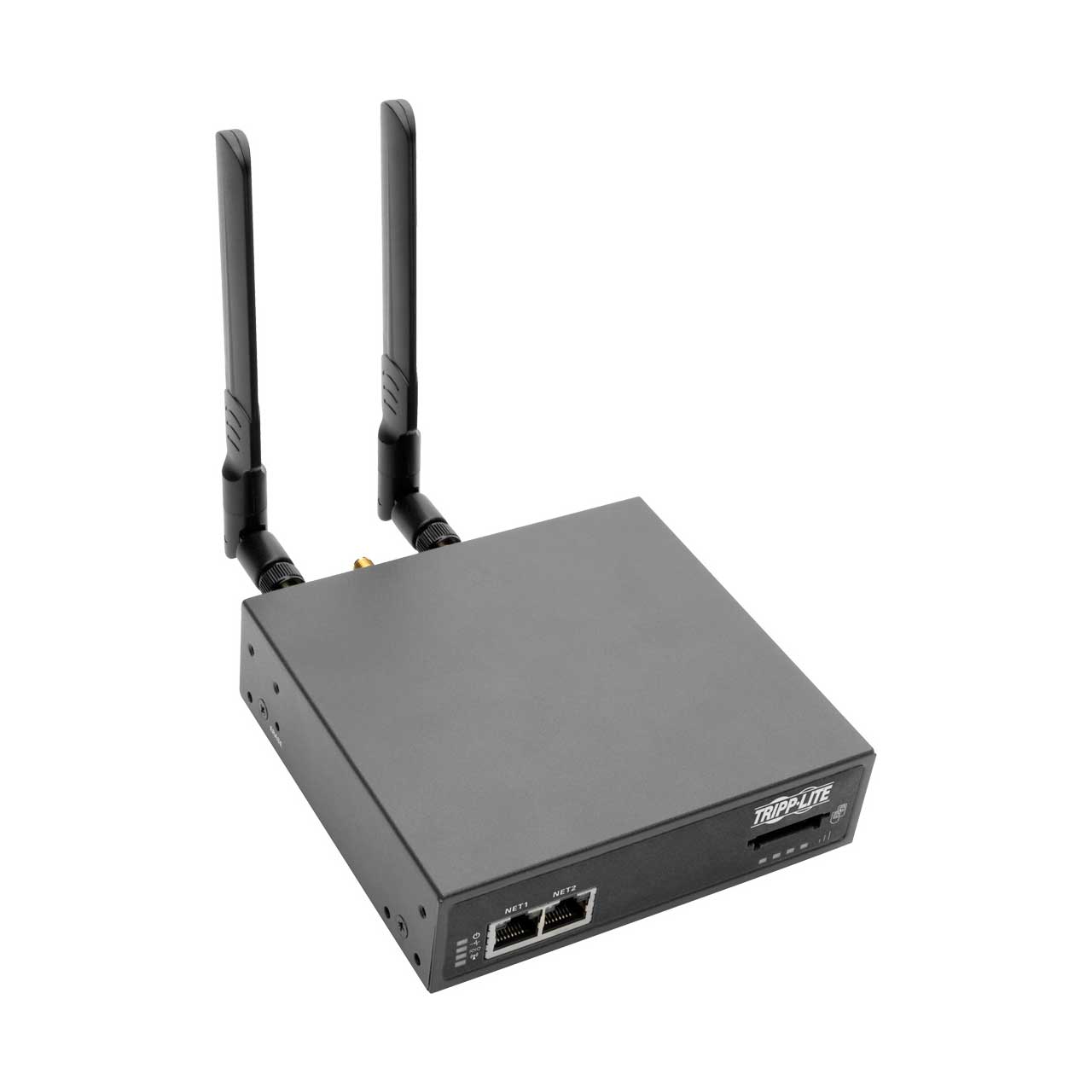

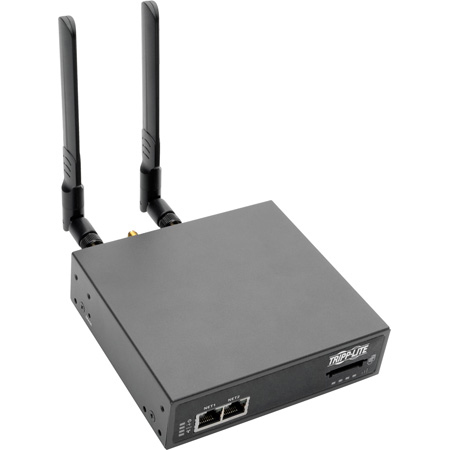

      • (2) Antenna blades

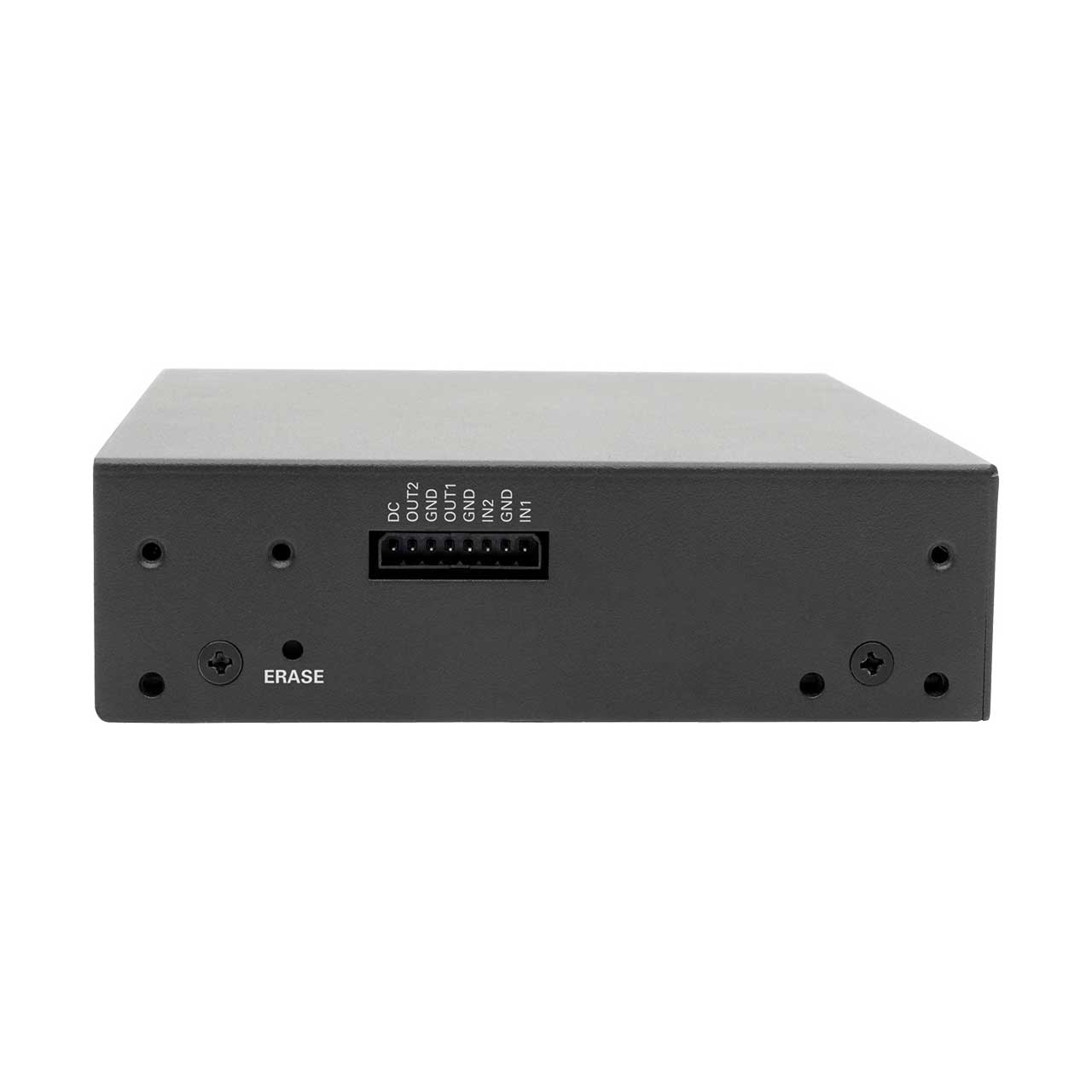

      • Terminal block
      • Dual-SIM cradle
      • DB9F to RJ45 crossover serial adapter
      • External power supply w/4 ft. cord (Input: 100-240V, 50/60 Hz, 0.4A; Output: 12V 1.25A)
      • (4) International plug adapters (North America, Europe, U.K., Australia)
      • Rack-mounting hardware
      • (4) Rubber feet
      • Quick Start Guide

    • Warranty:

      • 2-year

    • GTIN:

      0037332206237
