Tripp Lite DWM1742MA Swivel/Tilt Wall Mount with Arms for 17 Inch to 42 Inch TVs and Monitors

DWM1742MA - Overview

• Features:

  • Mounts Your TV or Monitor to the Wall
  • Fits most flat-panel televisions, monitors and other displays from 17 to 42 inch
  • Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
  • Full-motion swivel arm adjusts for angle
  • Mounting hardware included Convenient One-Touch Adjustment
  • 180° swivel, -15° to +15° tilt and -3° to +3° screen level adjustment capability provides comfortable viewing from multiple angles Durable Metal Construction
  • Supports up to 77 lb.
  • Scratch-resistant powder-coated finish blends with any décor
  • Display cables attach to mount to reduce clutter VESA Compliance
  • Supports the following VESA mounting hole patterns: 75 x 75 mm, 100 x 100 mm, 200 x 100 mm and 200 x 200 mm


• Specifications:

  • Mounting Location: Wall
  • Unit Weight (lbs.): 7.88
  • Unit Weight (kg): 3.57
  • Color: Black
  • Screen Size Compatibility (in.): 17 - 42
  • Screen Size Compatibility (cm): 43.18 - 106.68
  • VESA Pattern (mm): 75x75; 100x100; 200x100; 200x200
  • Motion: Full
  • Degrees of Motion: -15/+15 Tilt; 180 Swivel; -3/+3 Level Adjustment
  • Min/Max Arm Extension (in.): 2.21 min to 20.08 max
  • Min/Max Arm Extension (cm): 5.6 min to 51 max
  • Maximum Weight Capacity (lbs.): 77
  • Maximum Weight Capacity (kg): 35
  • Tools Necessary: Yes
  • Cord Management: No
  • Product Warranty Period (Worldwide): 5-year limited warranty

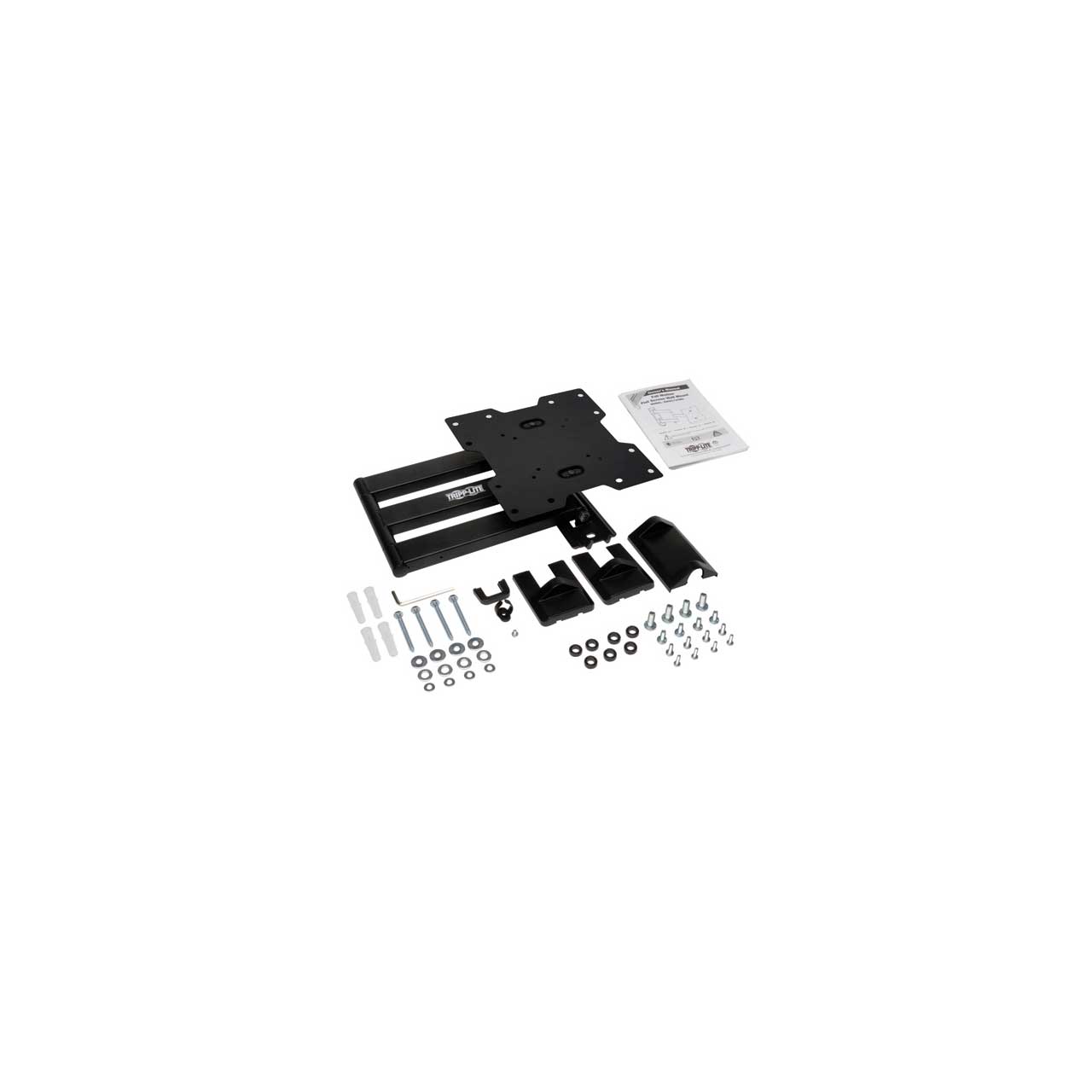

• Item Includes:

  • Arm assembly
  • (2) Top/bottom covers
  • Middle cover
  • Mounting template
  • Cable cover
  • Cable clip
  • M4 x 5 screw
  • (4) M4 x 14 screws
  • (4) M5 x 14 screws
  • (4) M6 x 14 screws
  • (4) M8 x 20 screws
  • (4) D5 washers
  • (4) D8 washers
  • (8) Small spacers
  • (4) Anchor bolts
  • (4) Concrete anchors
  • (4) D6 washers
  • Hex key
  • Owner’s manual


• Warranty:

  • 5 Year


• GTIN:

  0037332183545
