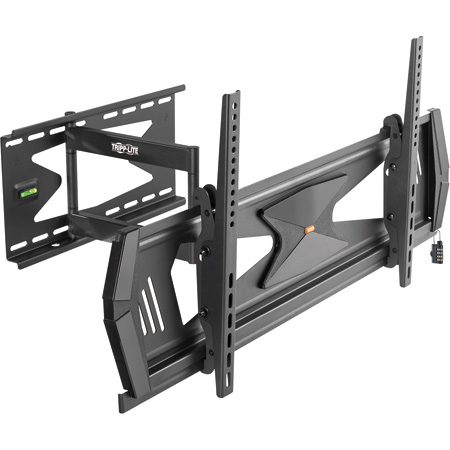

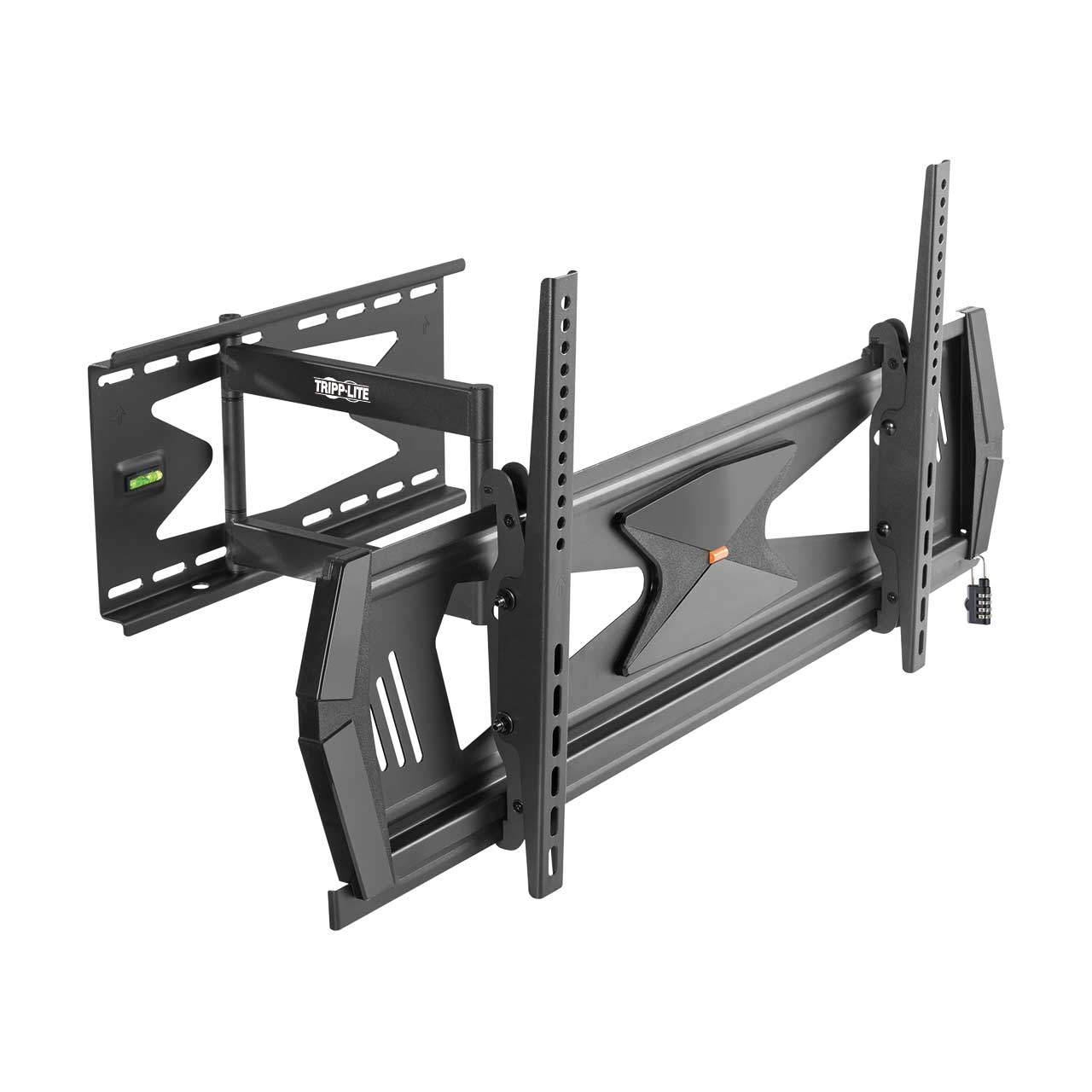

Tripp Lite DWMSC3780MUL Heavy-Duty Full-Motion Security TV Wall Mount for 37 to 80 Inch Flat or Curved TVs

ITEM #: TRL-DWMSC3780MUL MFG #: DWMSC3780MUL

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$279.46

Our Price:

$209.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    DWMSC3780MUL - Overview

    Security Wall Mount Hangs Your Flat-Panel or Curved-Screen TV or Monitor
    Tripp Lite DWMSC3780MUL is ideal for home theaters, classrooms, conference rooms, hotels, bars, restaurants or anywhere else you may want to show off a television or monitor, this heavy-duty TV wall mount is hidden out of sight behind the display for a sleek, professional appearance. It fits most flat-panel or curved-screen displays from 37 to 80 inches and up to 88 pounds. Mounting hardware is included.

    Durable All-Metal Construction Provides Convenient Cable Access
    The curved-TV wall mount is constructed from heavy-duty steel with a powder-coated black finish that resists scratches. Rear openings with smooth edges enable easy access to cables. A built-in bubble level helps ensure your display is evenly mounted. This heavy-duty wall mount is function- and weight-tested to 200 pounds in accordance with UL Standard 2442.

    Designed to Keep Your Display Safe and Secure
    This security wall mount was conceived with your television or monitor's safety in mind, especially if the display is located in a public area with much unguarded traffic, such as a library, classroom or hotel lobby. It comes with a solid steel security bar that slides through the mounting brackets and is secured into place with an included four-position combination lock.

    Tilt and Swivel Features Let You Adjust the Viewing Angle to Your Specifications
    The full-motion TV wall mount allows adjustment of your display's horizontal angle from -10° to +5°. It also swivels your monitor or television 90° left to right. This will minimize glare on the screen and allow you to customize the angle for comfortable viewing.

    Typical Applications:
    Mounting a flat- or curved-screen television or monitor in an office lobby, conference room, bar, restaurant, airport or anywhere else digital signage is desired
    Securing an expensive display in a hotel lobby, classroom, library, hospital, truck stop or other public area with much foot traffic

    • Features:

      • Accepts most popular flat- or curved-screen displays from 37 to 80 in. up to 88 lb.
      • Function- and weight-tested in accordance with UL Standard 2442 up to 200 lb.
      • Solid steel security bar and included combo lock deter tampering and theft
      • Open architecture and built-in level enable easy cable access and accurate leveling
      • Tilts -10° to +5°, swivels 90° to provide comfortable custom viewing angles
      • 5-year limited warranty

    • Specifications:

      • Physical
      • Color: Black
      • Degrees of Motion: -10/+5 Tilt; 90 Swivel
      • Material of Construction: Steel
      • Maximum Screen Size (in.): 80
      • Maximum Weight Capacity (lbs.): 200
      • Minimum Screen Size (in.): 37
      • Motion: Full
      • Mounting Location: Wall
      • Number of Displays: 1
      • Shipping Dimensions (hwd / in.): 39.40 x 13.20 x 2.70
      • Shipping Weight (lbs.): 23.60
      • Unit Dimensions (hwd / in.): 21.6 x 38.8 x 17.3
      • Unit Weight (lbs.): 22
      • VESA Pattern (mm): 300x200; 300x300; 300x400; 300x500; 300x600; 300x700; 300x800; 400x200; 400x300; 400x400; 500x200; 500x300; 500x400; 600x300; 600x400; 700x300; 700x400; 800x300; 800x400

        Features & Specifications
      • Tools Necessary: Yes

        Special Features
      • Cord Management: No

        Standards & Compliance
      • Approvals: RoHS3, REACH and CE

    • Item Includes:

      • 1x Wall plate
      • 2x Adapter brackets
      • 2x Security bar
      • 2x Wall plate level
      • 2x End caps
      • 4x End cap screws
      • 2x Anti-skid blocks
      • 4x M5 x 14 screws
      • 4x M6 x 14 screws
      • 4x M6 x 30 screws
      • 4x M8 x 20 screws
      • 4x M8 x 30 screws
      • 4x Washers
      • 8x Small spacers
      • 4x Large spacers
      • 5x Anchor bolts
      • 5x Concrete anchors
      • 5x 20 mm washers
      • 1x Combination lock
      • 1x Owner's manual

    • Warranty:

      • 5-year limited warranty

    • GTIN:

      0037332225061
