Tripp Lite DWT60100XX Tilt Wall Mount for 60 Inch to 100 Inch TVs and Monitors

ITEM #: TRL-DWT60100XX MFG #: DWT60100XX

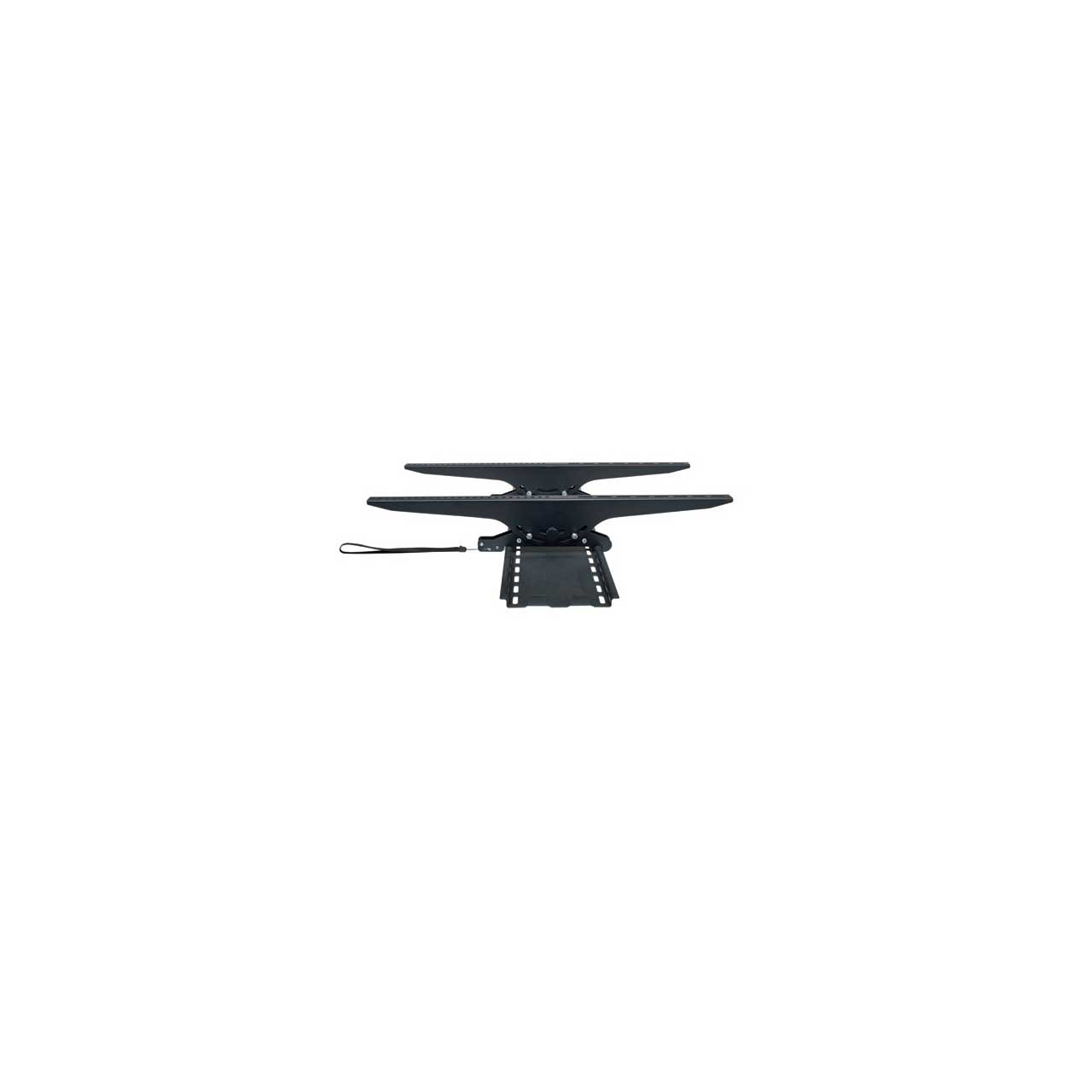

Primary Image

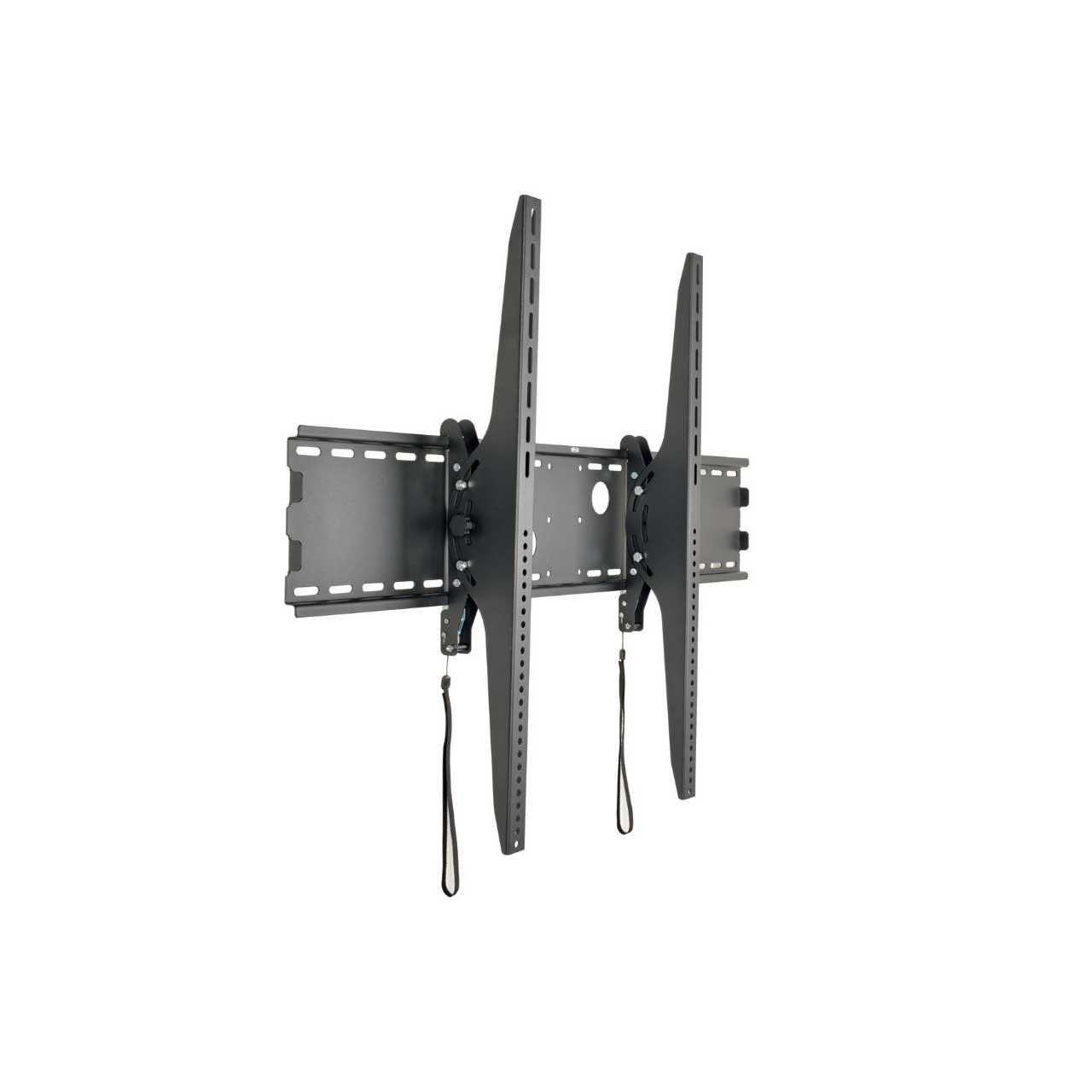

  • Product Image Thumbnail 1 of 4

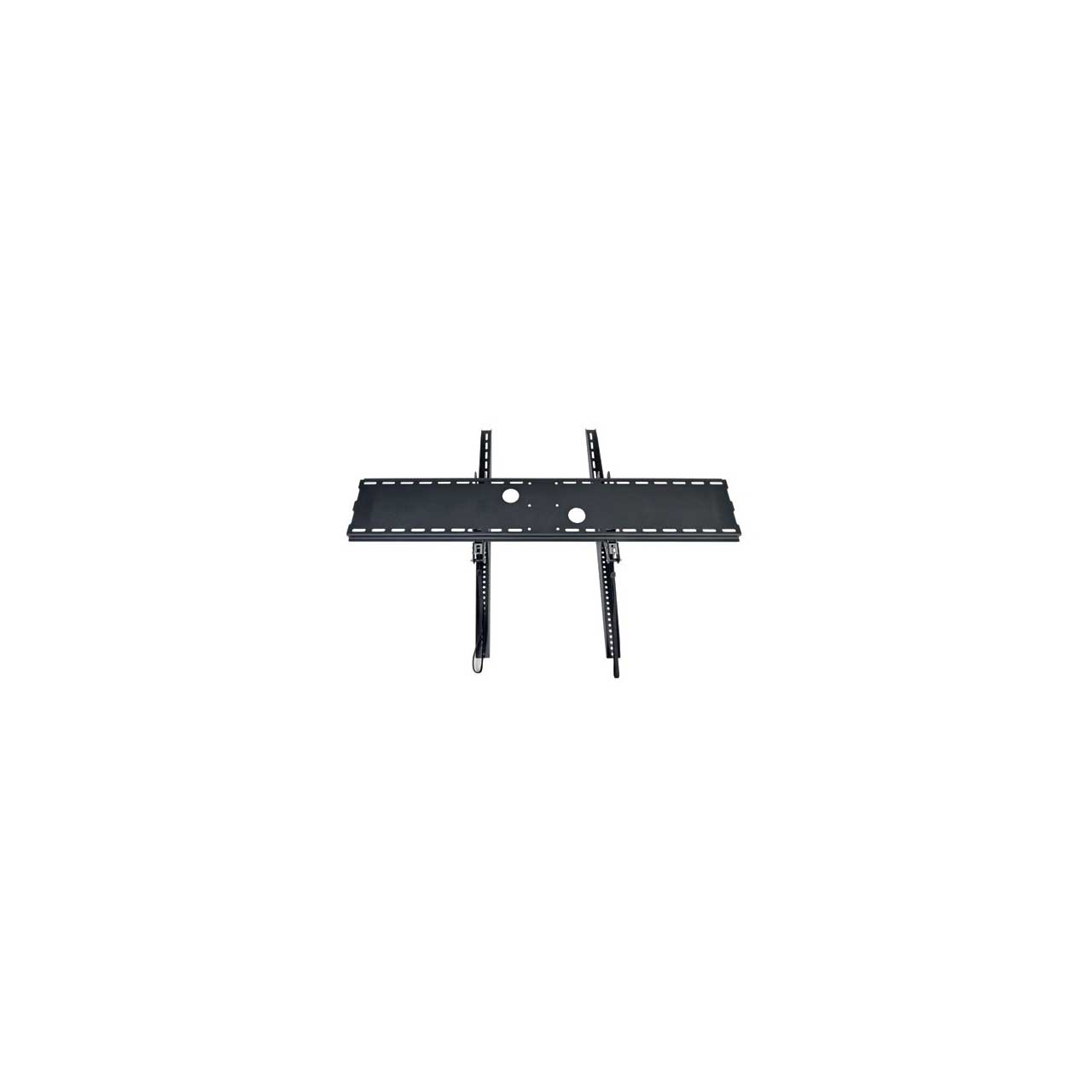

  • Product Image Thumbnail 2 of 4

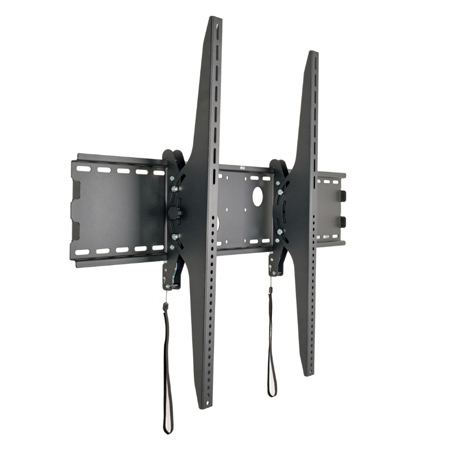

  • Product Image Thumbnail 3 of 4

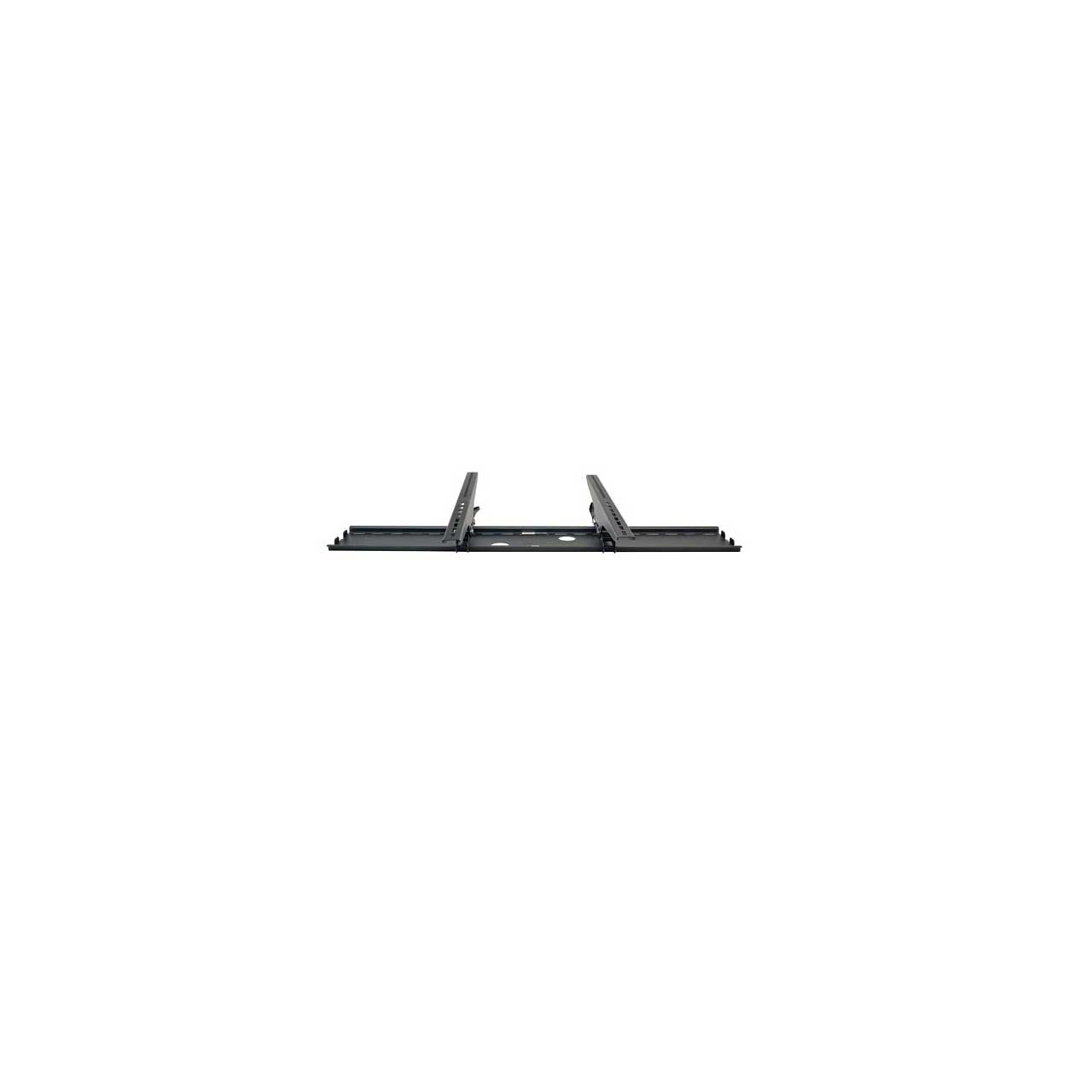

  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$214.59

Our Price:

$173.00

Availability: In Stock
iAvailability Description Popup


    DWT60100XX - Overview

    The VESA-compliant DWT60100XX Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 60 to 100 inches. A -15° to +15° tilt capability minimizes glare and provides comfortable viewing from multiple angles. Low-profile mount is concealed behind the display to give a sleek, professional appearance.

    Display brackets with connected straps adjust to compensate for off-center wall studs. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 350 pounds. Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm, 800 x 400 mm, 800 x 600 mm, 800 x 800 mm, 1000 x 400 mm, 1000 x 600 mm and 1000 x 800 mm.

    • Features:

      • Mounts Your TV or Monitor to the Wall
      • Fits most flat-panel televisions, monitors and other displays from 60 to 100 inch
      • Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
      • Mounts out of sight behind display for sleek, professional appearance
      • Mounting hardware included Convenient One-Touch Adjustment
      • -15° to +15° tilt capability provides comfortable viewing from multiple angles
      • Improves viewing angles in applications where audience is below the display Durable Metal Construction
      • Supports up to 350 lb.
      • Adjustable display brackets with connected straps compensate for off-center wall studs
      • Scratch-resistant powder-coated finish VESA Compliance
      • Supports the following VESA mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm, 800 x 400 mm, 800 x 600 mm, 800 x 800 mm, 1000 x 400 mm, 1000 x 600 mm and 1000 x 800 mm

    • Specifications:

      • Mounting Location: Wall
      • Unit Dimensions (hwd / in.): 32.76 x 44.88 x 5.12
      • Unit Dimensions (hwd / cm): 83.2 x 113.0 x 113.0
      • Unit Weight (lbs.): 17.36
      • Unit Weight (kg): 7.87
      • Color: Black
      • Screen Size Compatibility (in.): 60 - 100
      • Screen Size Compatibility (cm): 152.4 - 254
      • VESA Pattern (mm): 200x200; 300x300; 400x200; 400x400; 600x400; 800x400; 800x600; 1000x400; 1000x600; 1000x800
      • Motion: Tilt
      • Degrees of Motion: -1
      • Maximum Weight Capacity (lbs.): 350
      • Maximum Weight Capacity (kg): 159
      • Tools Necessary: Yes
      • Cord Management: No
      • Product Warranty Period (Worldwide): 5-year limited warranty

    • Item Includes:

      • Wall plate
      • Mounting template
      • (2) Adapter brackets
      • (2) Tilt adjusting knobs
      • (4) M5 x 14 screws
      • (4) M6 x 14 screws
      • (4) M6 x 30 screws
      • (4) M8 x 20 screws
      • (4) M8 x 30 screws
      • (4) Washers
      • (8) Small spacers
      • (4) Big spacers
      • (6) Anchor bolts
      • (6) Concrete anchors
      • (6) D6 washers
      • Owner’s manual

    • Warranty:

      • 5 Year

    • GTIN:

      0037332186683
