Tripp Lite ECO650LCD 650VA 325W UPS Eco Green Battery Back Up LCD 120V USB RJ11 PC
  • Tripp Lite ECO650LCD 650VA 325W UPS Eco Green Battery Back Up LCD 120V USB RJ11 PC
  • Tripp Lite ECO650LCD 650VA 325W UPS Eco Green Battery Back Up LCD 120V USB RJ11 PC
  • Tripp Lite ECO650LCD 650VA 325W UPS Eco Green Battery Back Up LCD 120V USB RJ11 PC
  • Tripp Lite ECO650LCD 650VA 325W UPS Eco Green Battery Back Up LCD 120V USB RJ11 PC
  • Tripp Lite ECO650LCD 650VA 325W UPS Eco Green Battery Back Up LCD 120V USB RJ11 PC

Questions? Ask a Markertek Expert:
800-522-2025 Email

Tripp Lite ECO650LCD 650VA 325W UPS Eco Green Battery Back Up LCD 120V USB RJ11 PC

Manufacturer: Tripp Lite

Item #: TRL-ECO650LCD   •   MFG #: ECO650LCD



List Price:$125.10
Our Price:$88.81

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

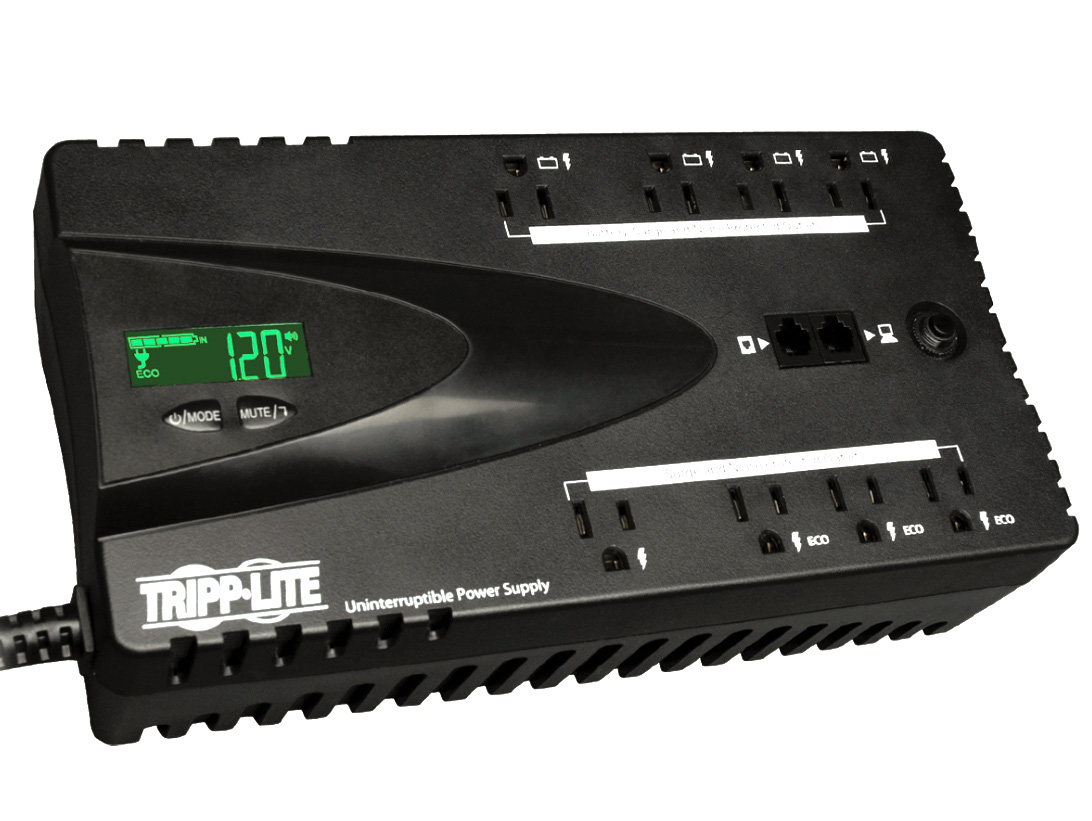

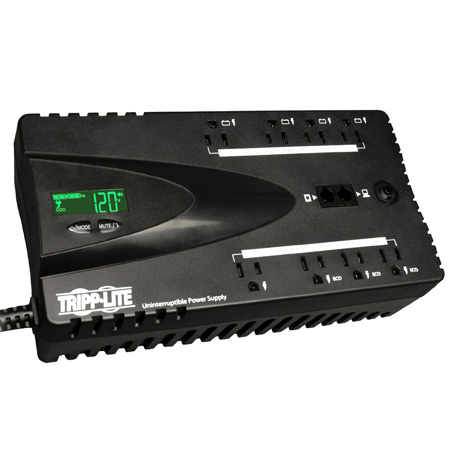

    The ECO650LCD ultra-compact green UPS offers complete protection from blackouts, voltage fluctuations and transient surges. Interactive LCD user interface offers detailed UPS and site electrical data, including input/output voltage, estimated runtime remaining, load percentage, load wattage and battery charge level. Energy saving ECO outlets give users the option to automatically power off unused desktop accessories like a printer and audio speakers as the computer connected via USB goes to low-power sleep or shutdown modes. 99% full load efficiency rating offers energy savings and cool operating temperatures. Green eco-friendly design meets strict RoHS environmental standards. Provides uninterruptible transfer to battery derived AC output during power failures and voltage fluctuations with enough runtime to save and shutdown connected equipment without data loss. Space saving, ultra-compact desktop or wall mount compatible housing. Includes 4 battery supported outlets for computer, monitor and two vital system accessories, plus 4 additional surge suppression-only outlets for accessories not requiring battery support. Three surge-only outlets marked “ECO” can be configured to automatically power-off within 3 minutes of the connected computer entering sleep or shutdown mode. USB port monitors computer power status for ECO power savings and enables direct integration with built-in power management and auto-shutdown features of Windows and Mac OS X. PowerAlert software is also available via free download from www.tripplite.com to provide advanced auto-shutdown, UPS monitoring and data saving options. USB cable included. Built-in single line RJ11 phone suppression protects modem, fax machine, cordless phone or other accessories with a dial-up/DSL phone connection. Built-in interactive LCD screen offers continuous power and UPS status information. Audible alarm warns of power failure conditions. Self-test, display brightness, alarm disable and LCD information display scrolling options are controllable via interactive LCD user interface. 650VA / 325 watt UPS capacity supports a 100 watt entry-level PC with small monitor for up to 10 minutes during power fail conditions. $100,000 connected equipment insurance (USA, Puerto Rico, & Canada Only).


    • Specifications

      • Output Volt Amp Capacity (VA) 650
      • Output Watt Capacity (Watts) 325
      • Nominal Output Voltage(s) Supported 115V; 120V
      • Frequency Compatibility 60 Hz
      • Output Voltage Regulation (Battery Mode) 115V (+/- 5%)
      • Output Receptacles (8) 5-15R
      • UPS Output Receptacles (Surge Suppression Only) 4 UPS outlets, 4 surge-only outlets
      • Hot-Swap PDU options PDUB15 (2U / 8 5-15R outlets)
      • Output AC Waveform (AC Mode) Sine wave
      • Output AC Waveform (Battery Mode) PWM sine wave
      • Rated input current (Maximum Load) 10A
      • Nominal Input Voltage(s) Supported 120V AC
      • UPS Input Connection Type 5-15P; Right-Angled
      • Input Circuit Breakers 10A
      • UPS Input Cord Length (ft.) 6
      • UPS Input Cord Length (m) 1.8
      • Recommended Electrical Service 15A 120V
      • Input Phase Single-Phase
      • Half Load Runtime (min.) 5.3 min. (160w)
      • DC System Voltage (VDC) 12

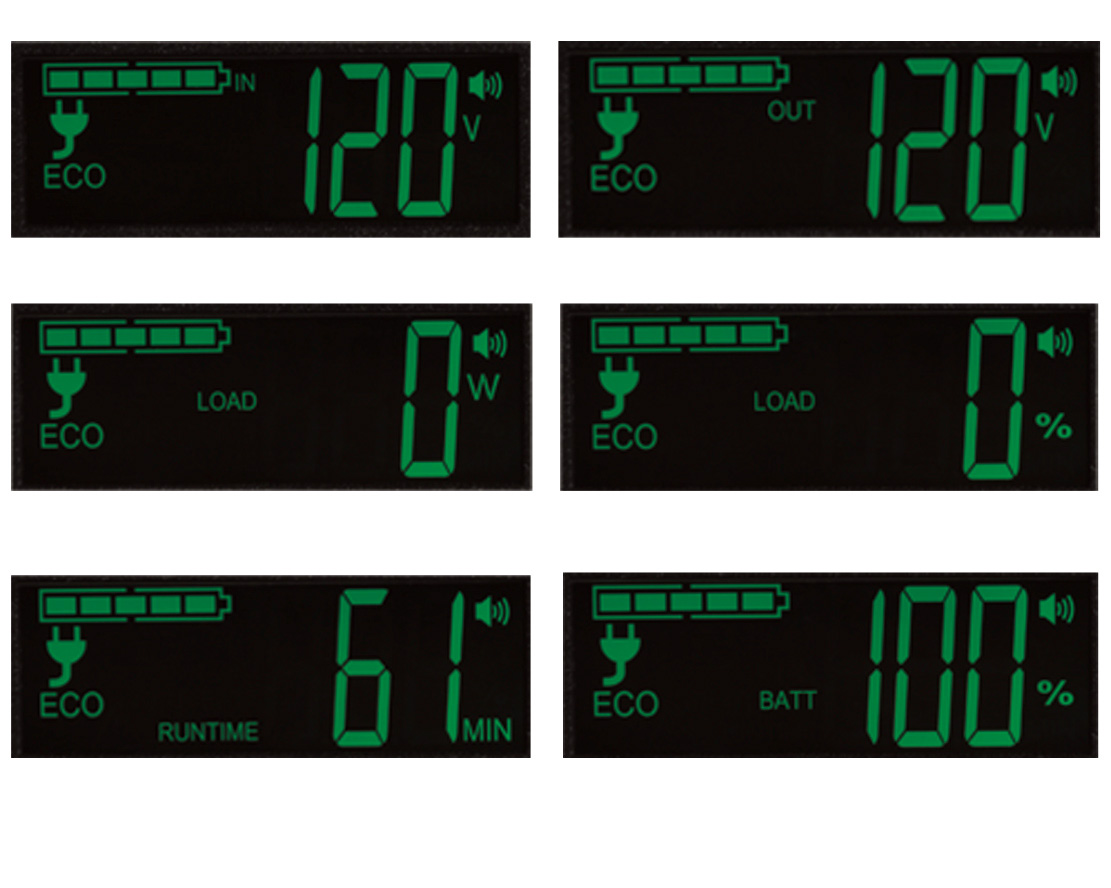

      • Front Panel LCD Display Front panel LCD reports Input voltage, Output voltage, Estimated runtime, Load percentage, Load wattage and Battery charge percentage; Also supports configuration of ECO energy-saving feature, alarm silence mode, LCD brightness, information display scrolling and UPS self-test operation
      • Switches Set of two switches offers complete UPS control; ON / OFF / MODE switch offers UPS power off/on control and LCD screen mode selection; MUTE / SELECT button momentarily silences alarm during a power failure and value selection for LCD interface options
      • Alarm Cancel Operation Alarm-cancel switch temporarily silences alarm during a power failure; Silent-alarm mode setting is available as an LCD settable option
      • Audible Alarm Audible alarm indicates power-failure and overload status
      • UPS AC Suppression Joule Rating 420
      • UPS AC Suppression Response Time Instantaneous
      • UPS Dataline Suppression 1 line TEL/DSL (1 in / 1 out)
      • EMI / RFI AC Noise Suppression Yes
      • Installation Form Factors Supported with Included Accessories Tower; Ultra-compact desktop
      • Primary Form Factor Desktop

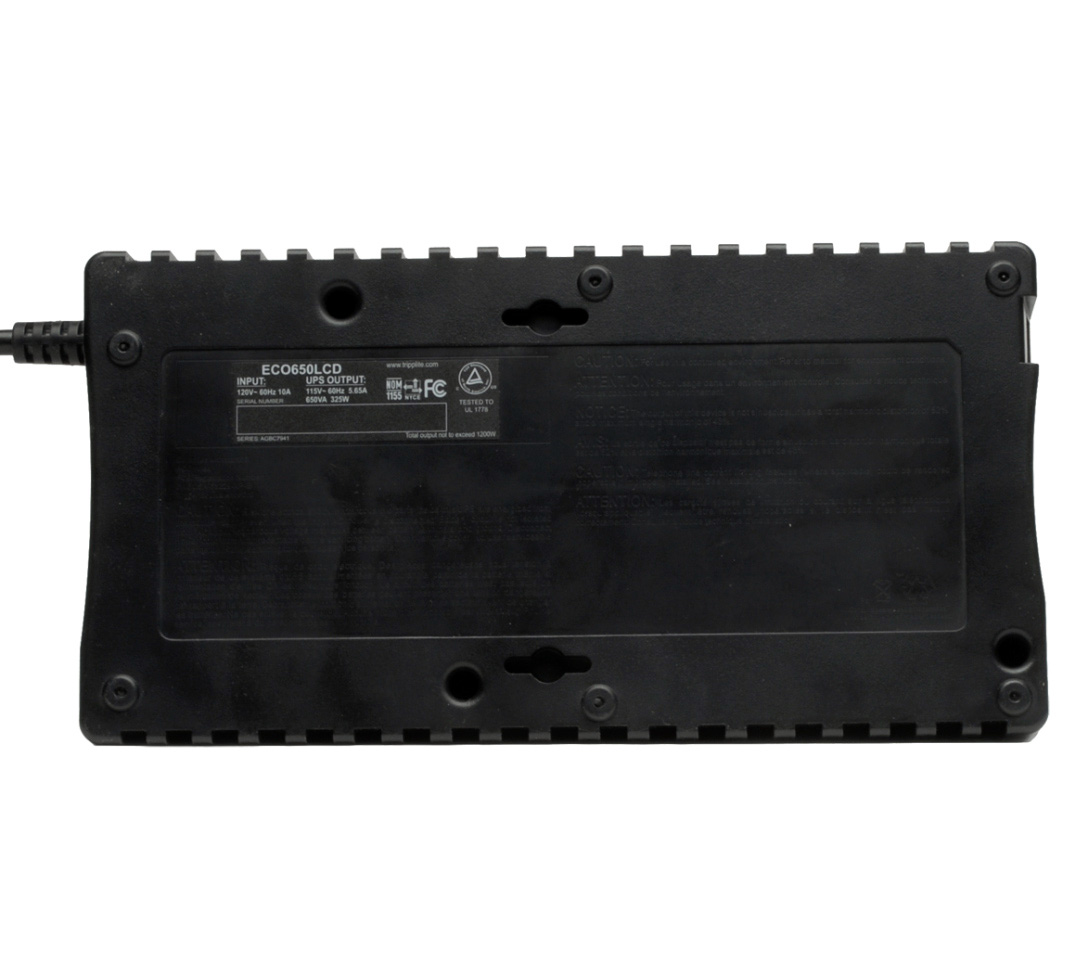

      • UPS Power Module Dimensions (hwd, in.) 3.5 x 10.75 x 5.75
      • UPS Power Module Dimensions (hwd, cm) 8.9 x 27.3 x 14.6
      • UPS Power Module Weight (lbs.) 4.8
      • UPS Power Module Weight (kg) 2.2
      • UPS Shipping Dimensions (hwd / in.) 4.25 x 13 x 8
      • UPS Shipping Dimensions (hwd / cm) 10.8 x 33 x 20.3
      • Shipping Weight (lbs.) 5.6
      • Shipping Weight (kg) 2.5
      • UPS Housing Material Plastic
      • Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
      • Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
      • Relative Humidity 0 to 95%, non-condensing
      • AC Mode BTU / Hr. (Full Load) 17
      • AC Mode Efficiency Rating (100% Load) 0.99
      • Communications Interface USB (HID enabled)
      • PowerAlert Software Free download from www.tripplite.com

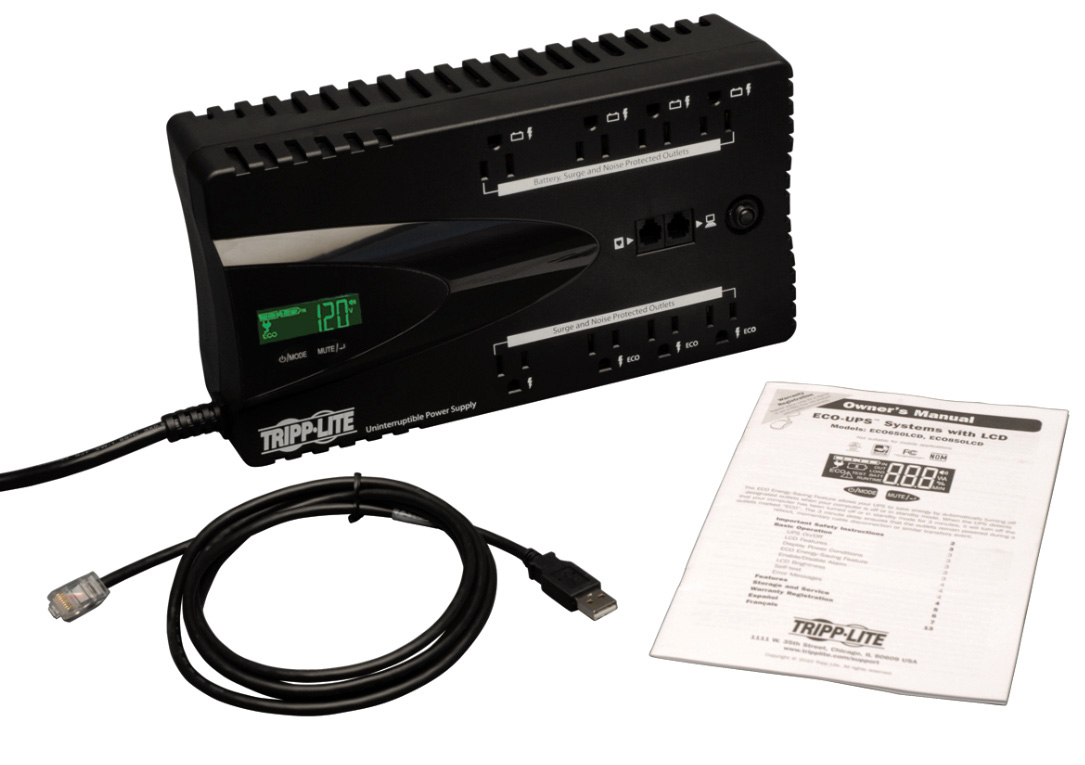

      • Communications Cable USB interface cable included
      • WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
      • Network UPS Tools Compatibility NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
      • Transfer Time AC to battery mode: 6 milliseconds / Battery to AC mode: 3 milliseconds
      • Low Voltage Transfer to Battery Power (Setpoint) 99
      • High Voltage Transfer to Battery Power (Setpoint) 139
      • Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported
      • Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS; Power saving auto-shutoff ECO outlets
      • UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI); Meets FCC Part 68 / Industrie Canada (telecommunications); ROHS (Restriction of Hazardous Substances); ENERGY STAR Qualified
      • Connected Equipment Insurance (U.S., Canada & Puerto Rico) $100,000 Ultimate Lifetime Insurance

    • Warranty

      • 3-year limited warranty
