Tripp Lite SMART500RT1UTAA TAA-Compliant SmartPro 120V 500VA 300W Line-Interactive UPS 1U Rack/Tower
  • Tripp Lite SMART500RT1UTAA TAA-Compliant SmartPro 120V 500VA 300W Line-Interactive UPS 1U Rack/Tower
  • Tripp Lite SMART500RT1UTAA TAA-Compliant SmartPro 120V 500VA 300W Line-Interactive UPS 1U Rack/Tower

Questions? Ask a Markertek Expert:
800-522-2025 Email

Tripp Lite SMART500RT1UTAA TAA-Compliant SmartPro 120V 500VA 300W Line-Interactive UPS 1U Rack/Tower

Manufacturer: Tripp Lite

Item #: TRL-SMART500RT1U   •   MFG #: SMART500RT1UTAA



List Price:$358.20
Our Price:$247.16

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Tripp Lite's SMART500RT1UTAA intelligent, line-interactive rack/tower uninterruptible power supply prevents data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Requires only one rack space (1U) in a 2 or 4 post rack, with included accessories for upright tower placement. Large internal batteries offer 14.6 minutes half load runtime and 3.2 minutes at full load. Maintains regulated 120V nominal output without using battery power during brownouts as low as 90V.

    500VA/300 watt power handling capability is compatible with networking, telecom and other sensitive electronic applications. Includes 6 UPS supported outlets with a single outlet load bank that can be individually controlled via software interface to reboot select equipment on demand or shed less significant loads to extend battery runtime for more critical equipment. Includes 1 surge-only outlet for peripherals not requiring battery backup. Supports simultaneous remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling.

    Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter. Emergency Power Off (EPO) interface offers option for instantaneous power-off of UPS and connected equipment in the case of fire or emergency situation. Multi-function audible alarms and set of 5 front panel LEDs offer at-a-glance notification of UPS and line power status. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges and line noise. Attractive all-black color scheme.


    • Features

      • Federal Trade Agreements Act / TAA compliant for GSA schedule purchases
      • Tripp Lite SMART500RT1UTAA .5 kVA / 500VA / 300 watt line interactive UPS
      • 1U rack / tower compatible form factor

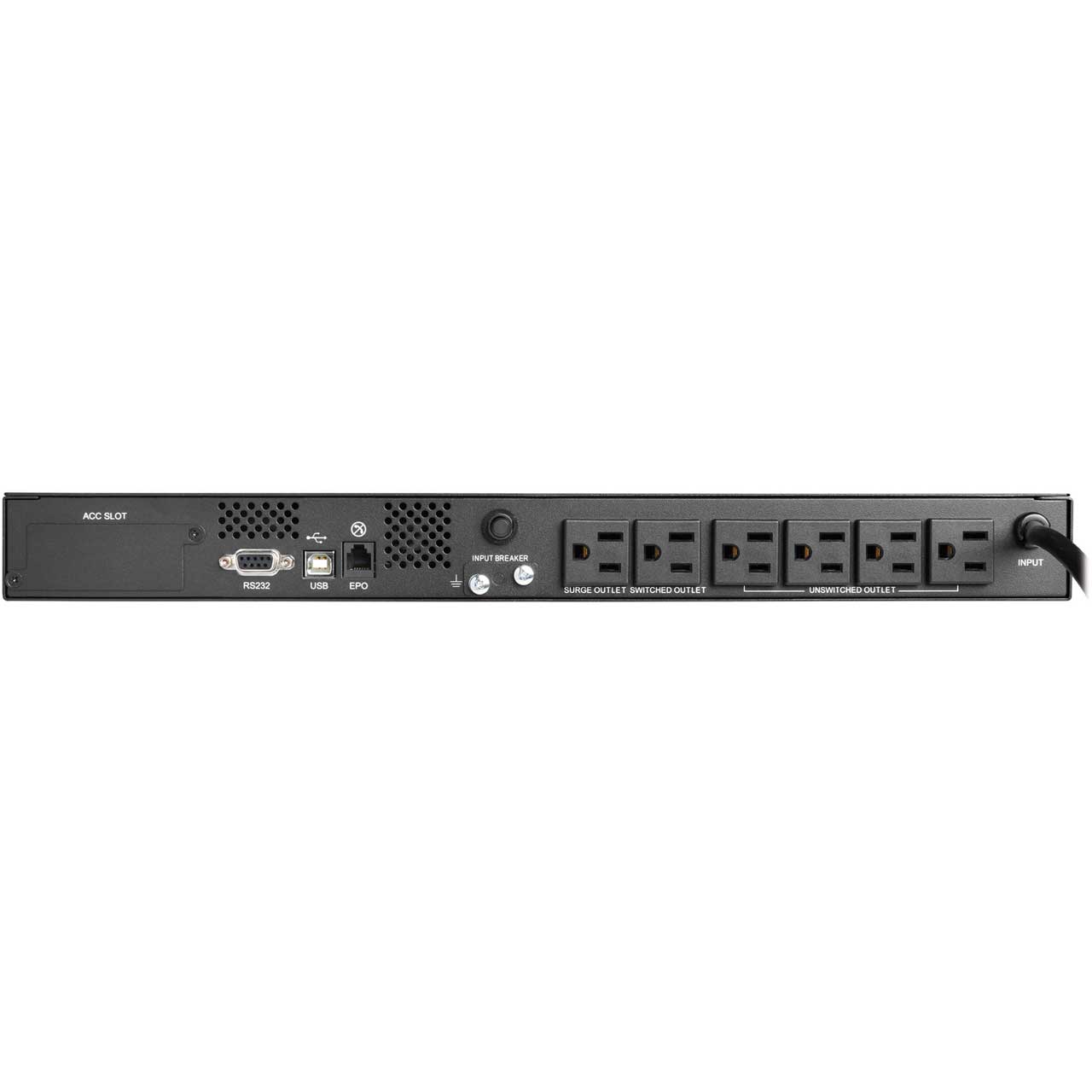

      • NEMA 5-15P input connection; 7 NEMA 5-15R output receptacles
      • Installed depth of only 11.8 in / 29.8 cm
      • Large internal batteries offer runtimes of 14.6 minutes at half load (250VA/150 watts) and 3.2 minutes at full load (500VA/300 watts)
      • Maintains regulated 120V nominal output during brownouts as low as 90V
      • Includes 6 UPS-supported outlets and 1 surge-only outlet
      • One of the UPS supported outlets is switched for remote load shedding or rebooting of an individual device
      • PowerAlert UPS monitoring software enables detailed site power and UPS status updates with support for unattended shutdown of connected systems as UPS batteries become depleted
      • Supports detailed monitoring of equipment load levels,self-test data, and utility power condition via built-in RS-232 and USB interfaces
      • Optional SNMPWEBCARD offers communications and control via secure remote web and network interfaces
      • Supports Tripp Lite's WatchDog software application to restore operation to locked equipment through soft reboot of application, OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications (requires optional WATCHDOGSW)
      • Emergency Power Off (EPO) interface with cable

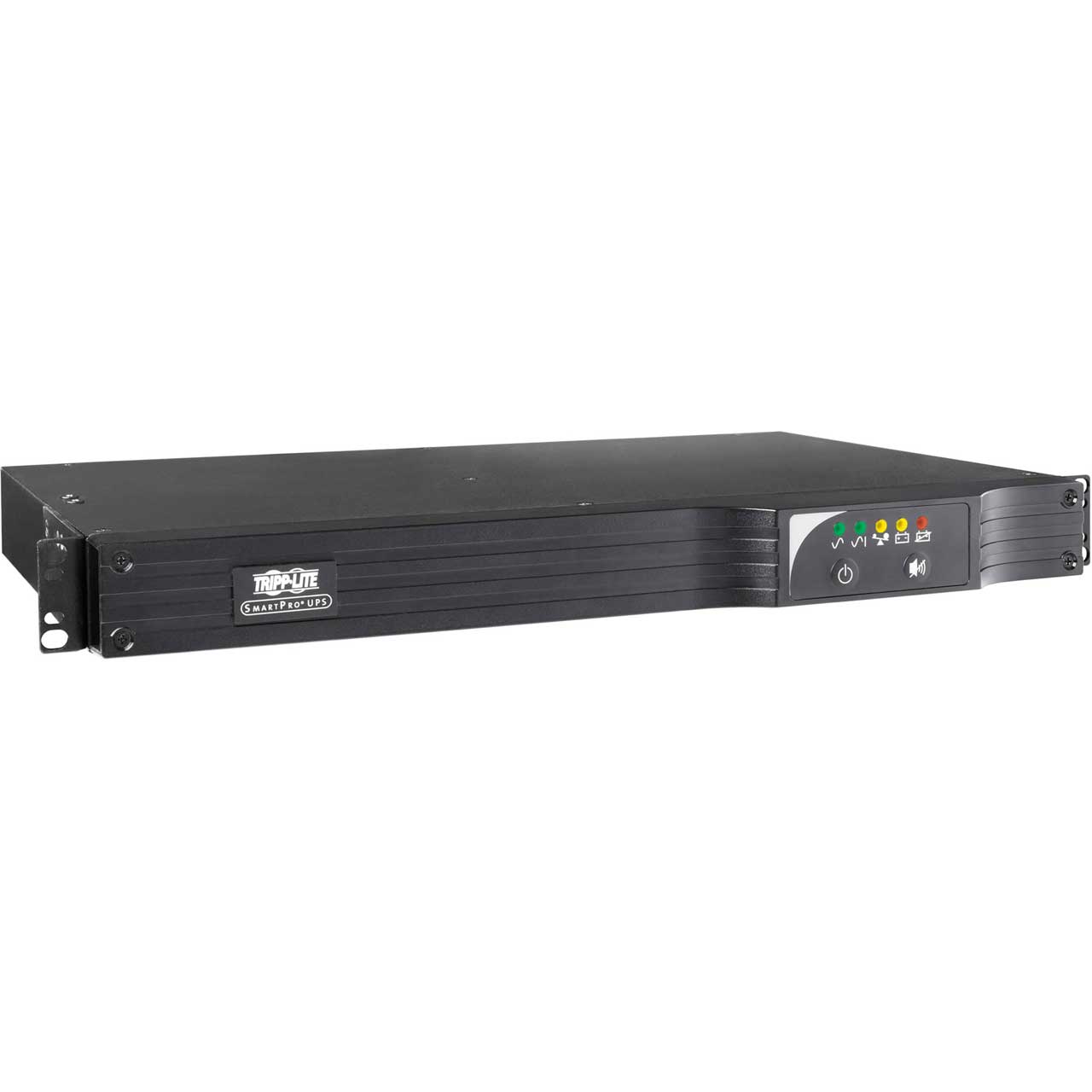

      • Multi-function audible alarms and set of 5 front panel LEDs
      • Network-grade AC surge suppression
      • Field-replaceable, hot-swappable internal UPS batteries

    • Specifications

      • Output Volt Amp Capacity (VA): 500
      • Output Watt Capacity (Watts): 300
      • Nominal Output Voltage(s) Supported: 110V; 115V; 120V
      • Nominal Voltage Details: 120v nominal output in battery mode
      • Frequency Compatibility: 60 Hz
      • Output Voltage Regulation (Line/Battery Mode): -15%, +13%; +/- 5%
      • Output Receptacles: (6) 5-15R
      • UPS Output Receptacles (Surge Suppression Only): 6 UPS outlets, 1 surge-only outlet
      • Load Management Receptacles: One switchable single-outlet 5-15R load bank
      • Output AC Waveform (AC/Battery Mode): Sine wave/PWM sine wave
      • Rated input current (Maximum Load): 5.6A
      • Nominal Input Voltage(s) Supported: 120V AC
      • UPS Input Connection Type: 5-15P
      • Input Circuit Breakers: 15A
      • UPS Input Cord Length (ft.): 10
      • Recommended Electrical Service: 15A 120V
      • Input Phase: Single-Phase
      • Full/Half Load Runtime (min.): 3.2 min. (300w)/14.6 min. (150w)
      • DC System Voltage (VDC): 12
      • Battery Recharge Rate (Included Batteries): Less than 4 hours from 10% to 90%
      • Internal UPS Replacement Battery Cartridge: RBC62-1U
      • Battery Replacement Description: Hot-swappable, user replaceable batteries
      • Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with input voltage as low as 90
      • Undervoltage Correction: Input voltages between 90 and 108 are boosted by 14%
      • Switches: 2 Switches control off/on power status and alarm-cancel/self-test operation
      • LED Indicators: 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
      • UPS AC Suppression Joule Rating: 567 joules
      • UPS Dataline Suppression: 1 line TEL/DSL (1 in / 1 out)
      • EMI / RFI AC Noise Suppression: Yes
      • AC Suppression Joule Rating: 567
      • AC Suppression Response Time: Instantaneous
      • Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount; 2 post 19 inch rackmount
      • Primary Form Factor: Rackmount
      • UPS Power Module Dimensions (hwd, in.): 1.73 x 17.32 x 11.26
      • Minimum Required Rack Depth (inches): 14.3
      • UPS Power Module Weight (lbs.): 17.6
      • UPS Shipping Dimensions (hwd / in.): 5 x 22.5 x 16
      • Shipping Weight (lbs.): 19.9
      • UPS Housing Material: Steel
      • Operating Temperature: +32 to +104°F
      • Storage Temperature: +5 to +122°F
      • Relative Humidity: 0 to 95%, non-condensing
      • AC/Battery Mode BTU / Hr. (Full Load): 44/360
      • AC Mode Efficiency Rating (100% Load): 0.94
      • Communications Interface: USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
      • Network Management Cards: SNMPWEBCARD; TLNETCARD; WEBCARDLX
      • Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions
      • WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
      • Transfer Time: 2-4 milliseconds
      • Low Voltage Transfer to Battery Power (Setpoint): 90
      • High Voltage Transfer to Battery Power (Setpoint): 136
      • Product Warranty Period (Worldwide): 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.

    • Item Includes

      • SMART500RT1UTAA UPS System
      • Mounting hardware
      • Cabling for USB & DB9 monitoring and EPO switching
      • PowerAlert unattended shutdown and UPS/Power monitoring software
      • Instruction manual

    • Warranty

      • 2 Year
