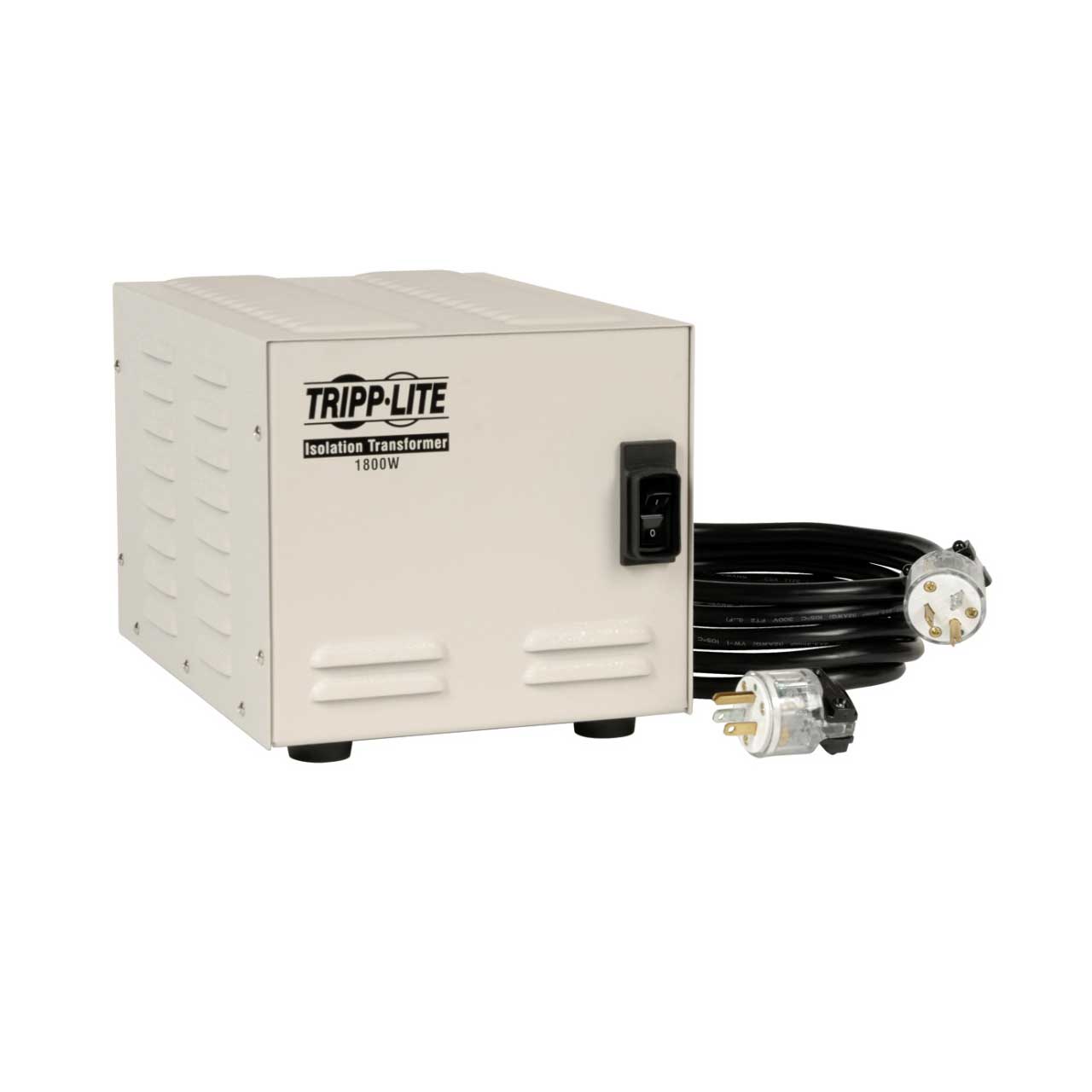

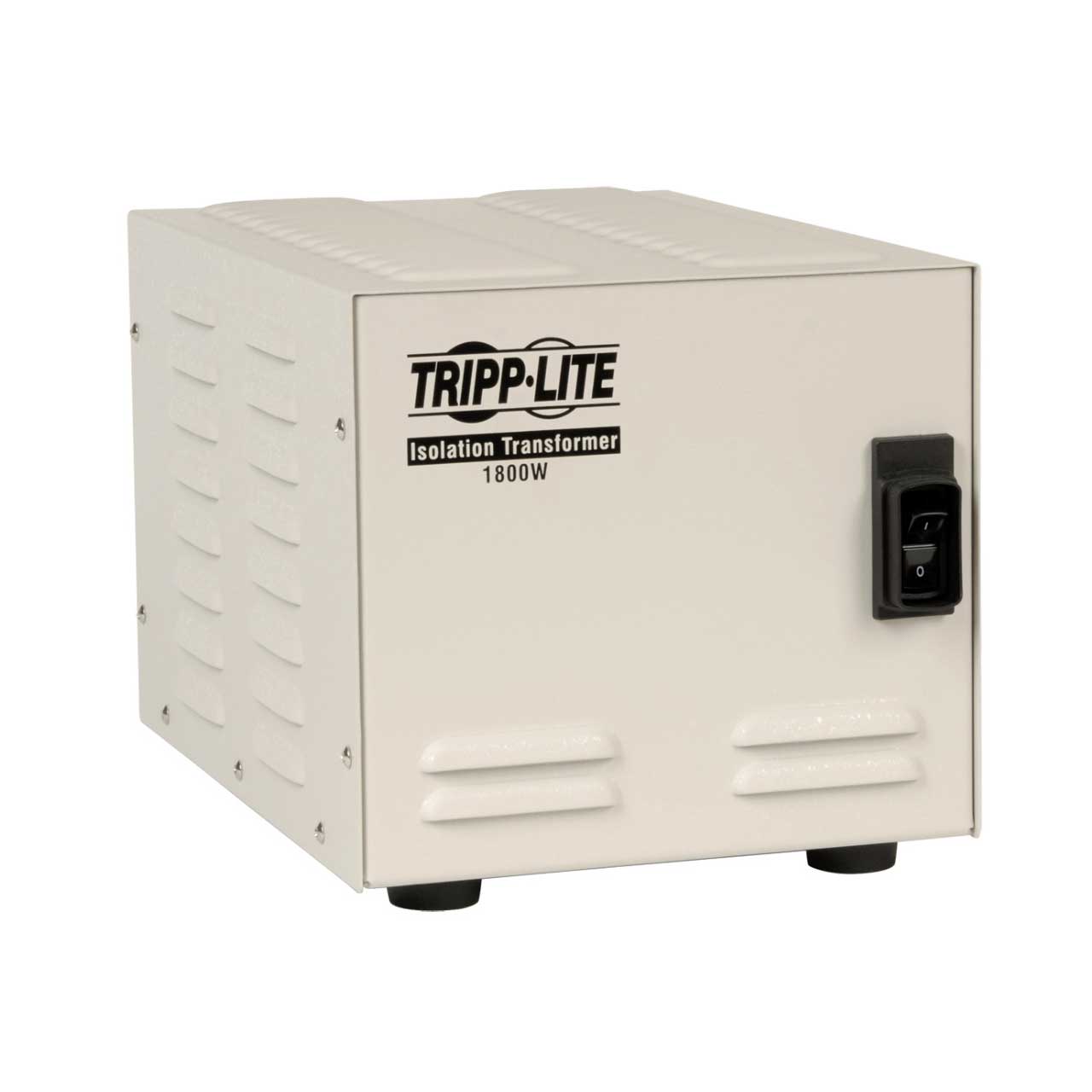

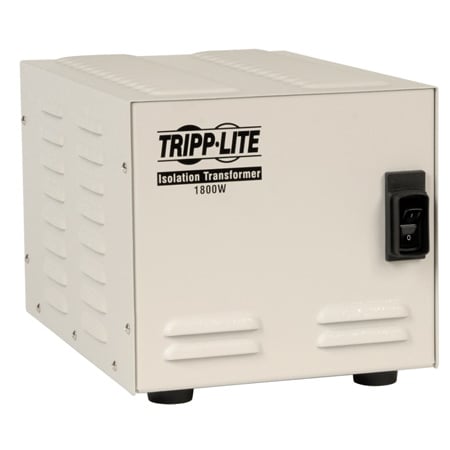

Tripp Lite IS1800HG Isolation Transformer 1800W Medical Surge 120V 6 Outlet TAA GSA

ITEM #: TRL-IS1800HG MFG #: IS1800HG

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,250.00

Our Price:

$829.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    IS1800HG - Overview

    Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of sensitive electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment, and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Active transformer filtering provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS1800HG includes 6 widely spaced NEMA 5-15R hospital-grade output receptacles, a 10-ft. power cord, hospital-grade input plug, circuit breaker overload protection, and lighted power switch. Rugged all-metal unit housing; ships ready for placement in any industrial, medical, office or network environment. PLUG/OUTLETS: Input - NEMA 5-20P Hospital Grade; Output - 6 NEMA 5-20R Hospital Grade ELECTRICAL: 120V AC, 60Hz, 2.1A (Requires NEMA 5-15R wall receptacle)

    • Features:

      • The IS1800HG Medical Grade Isolation Transformer offers line isolation and continuous noise filterin
      • Internal low-impedance isolation transformer with Faraday shield offers 100% isolation from the input AC line
      • Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator Hospital Grade transformers ideal for the protection of sensitive electronic equipment in patient-care areas.
      • Reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral to ground bonding eliminates common mode noise, providing an isolated ground reference for sensitive equipment
      • Serves as an inexpensive alternative to dedicated circuits and site electrical upgrades

    • Specifications:

      • Efficiency 0.96
      • Let-through Voltage (Combination Wave) L-N: 250V L-G: 250V N-G: 0.5V
      • Let-through Voltage (Ring Wave) L-N: 20V L-G: 20V N-G: 0.5V
      • Noise Suppression Rating 35-65 DB
      • Nominal Voltage / Frequency 120V / 60Hz
      • Over Current Protection 1x thermal, 2 pole, 10 amp
      • Shipping Weight 58.00 lbs. / 26.31 kg
      • Suppression Joule Rating 1190 (1020 input / 170 output)
      • Surge Test Conditions Per ANSI/IEEE C62.41 - IEEE587 Cat. A & B test waveforms
      • Total Harmonic Distortion Less than 1%
      • VA / Watt Capacity 1800
      • Transformer Type Hospital Grade, low impedance transformer-based line isolation transformer

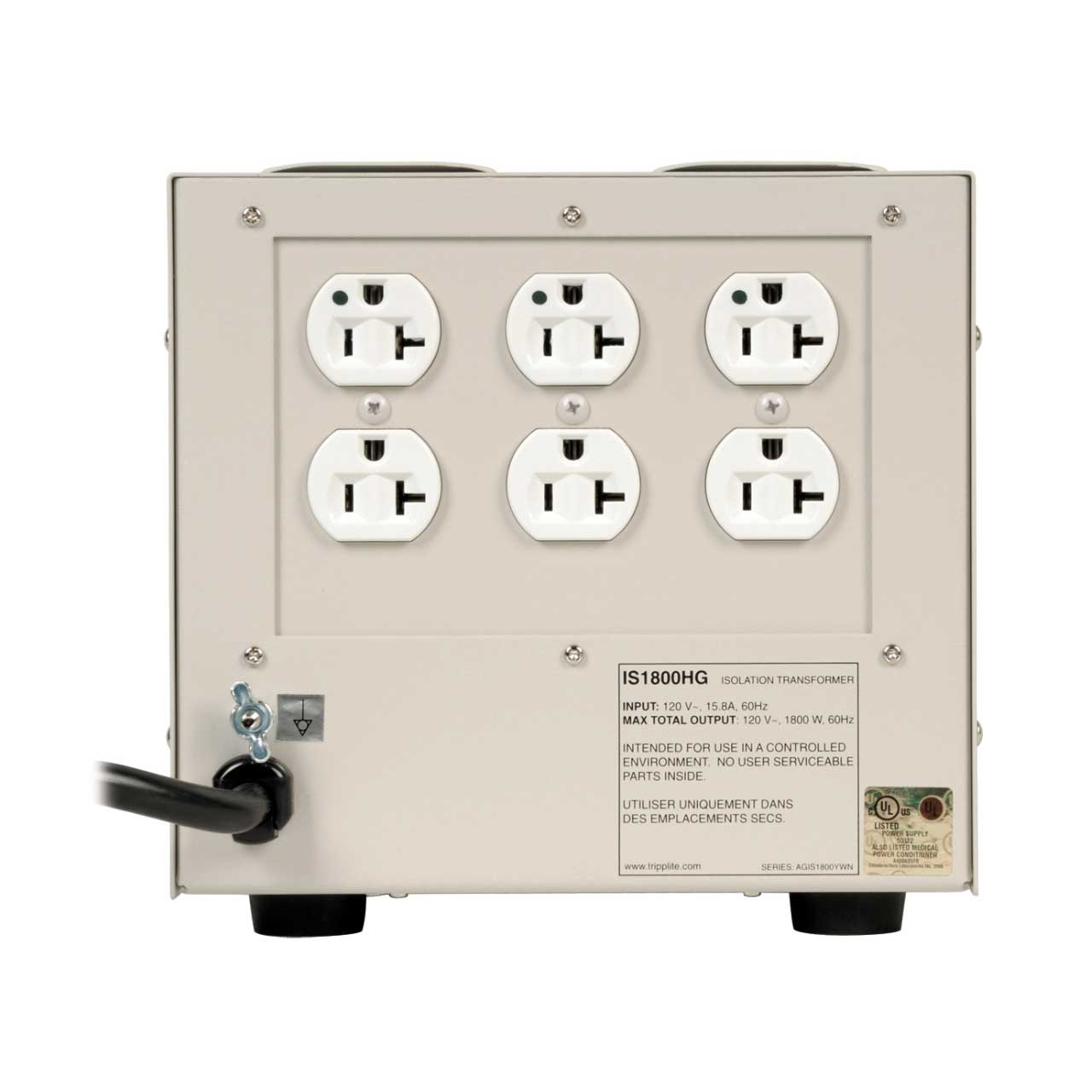

      • Output Receptacles (6) 5-20R-HG
      • Ouput Amp Capacity 15
      • Input Cord Length (ft.) 10
      • Input Cord Length (m) 3.05
      • Input Plug Type NEMA 5-20P-HG
      • Leakage Current Less than 100 microamps
      • Unit Dimensions (hwd / in.) 7.75 x 8.25 x 12.25
      • Unit Dimensions (hwd / cm) 19.69 x 20.96 x 31.11
      • Cooling Method Convection
      • Form Factors Supported Tower
      • Certifications Tested to UL60601-1
      • Product Warranty Period (Worldwide) 2-year limited warranty

    • GTIN:

      0037332116222
