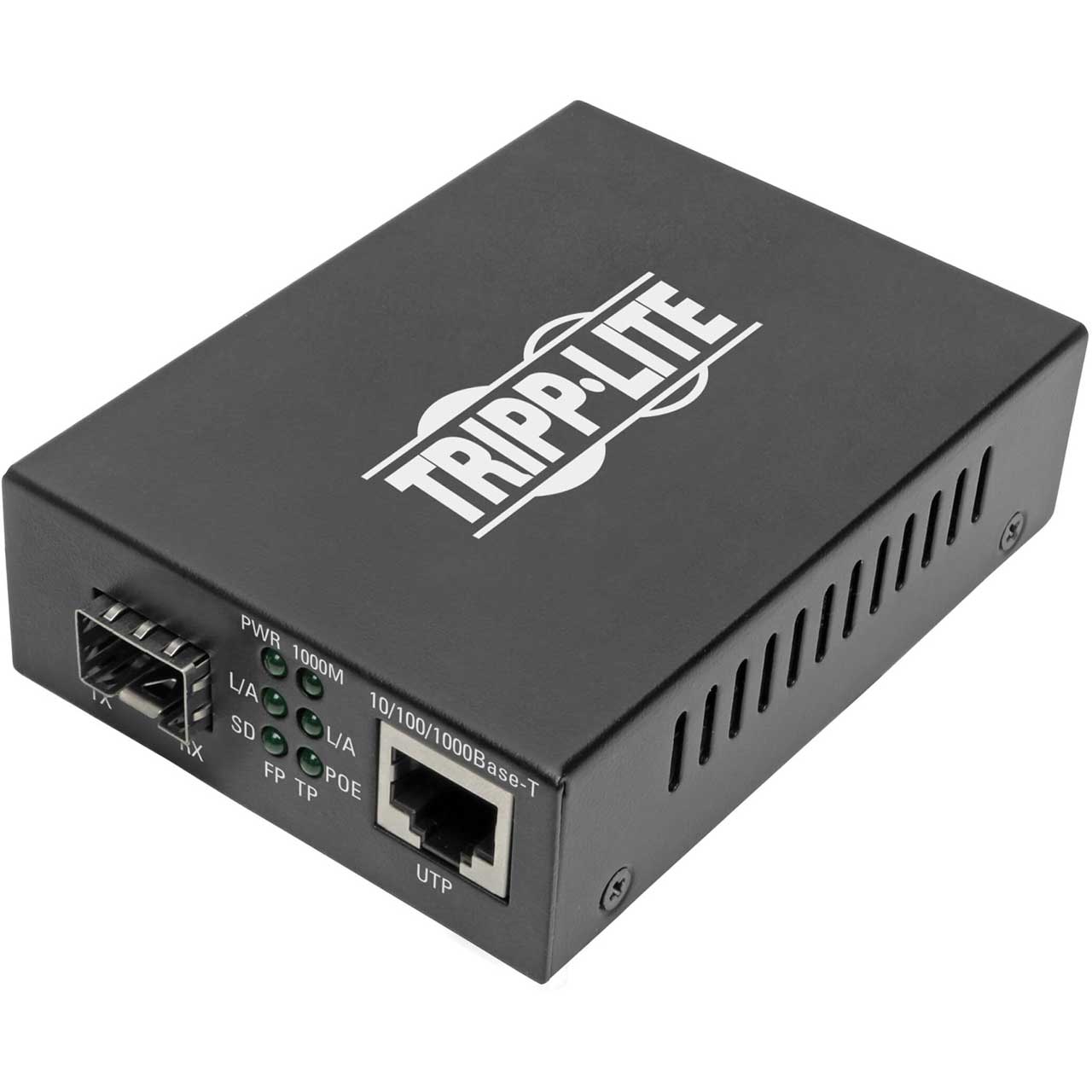

Tripp Lite N785-P01-SFP Gigabit SFP Fiber to Ethernet Media Converter - POE+ - 10/100/1000 Mbps

ITEM #: TRL-N785-P01-SFP MFG #: N785-P01-SFP

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    N785-P01-SFP - Overview

    Customizable Media Converter Extends Power and Data to a PoE+ Device via Fiber Cable

    This economical unit converts a singlemode or multimode fiber optical signal to a copper Ethernet signal that extends both power (48 VDC) and 10/100/1000 Mbps Gigabit Ethernet to a PoE+ (Power over Ethernet) device. Because Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-P01-SFP with fiber cable to reach greater distances. This could include providing both data and power to PoE and PoE+ devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices.

    Works in Tandem with Tripp Lite's N785-Series (Non-PoE) Media Converters. The N785-P01-SFP lets you choose a transceiver that suits your system, while also delivering power to your PoE+ device (Tripp Lite's N286-01GSX-MDLC and N286-01GLX-SLX transceivers sold separately). It connects to a Tripp Lite N785-Series non-PoE media converter using your choice of singlemode or multimode cabling. It also delivers data and power to a 10/100/1000 Mbps PoE device up to 100 meters (328 feet) away using Cat5e/6 cabling (such as Tripp Lite's N001- or N201-Series cables).

    Supports Power over Ethernet to Save You Money and Give You More Installation Choices.
    PoE saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings.

    Supports Auto-Sensing of Network Speed and Other Advanced Functions.
    Monitoring and controlling your network nodes is easy with the N785-P01-SFP's advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDI-X configuration. Six LEDs indicate the converter's power, PoE, Ethernet network and fiber link statuses at a glance. Link fault pass through (LFP) monitors all ports to ensure link status remains active.

    Completely Plug-and-Play with No Additional Software Required for Connection.
    The compact metal converter is easy to install and set up with no software or drivers required. The included power supply connects to a convenient AC outlet with no computer or other signal source needed.

    System Requirements
    10/100/1000 Mbps Gigabit Ethernet network
    Singlemode or multimode transceiver (such as Tripp Lite's N286-01GSX-MDLC or N286-01GLX-SLX)
    Tripp Lite N785-Series media converter (without PoE)

    • Specifications:

      • Product Type: Fiber to PoE
      • Technology: Cat5/5e, Cat6, Cat6a, Multimode, PoE, Singlemode
      • Mode Type: Multimode, Singlemode
      • Accessories (Included): External Power Supply (Input: 100-240V, 50/60Hz, 1.5A, Output: 48V/1.25A
      • Network Ports: RJ45 (FEMALE), SFP (FEMALE)
      • AC Adapter: Input: 100-240V, 50/60Hz, 1.5A, Output: 48V, 1.25A
      • External Power Supply Input Specs (V / Hz / A): 100-240V, 50/60Hz, 1.5A
      • External Power Supply Output Specs (V / A): 48V/1.25A
      • External Power Supply Cord Length (ft.): 3.6
      • External Power Supply Cord Length (m.): 1.1

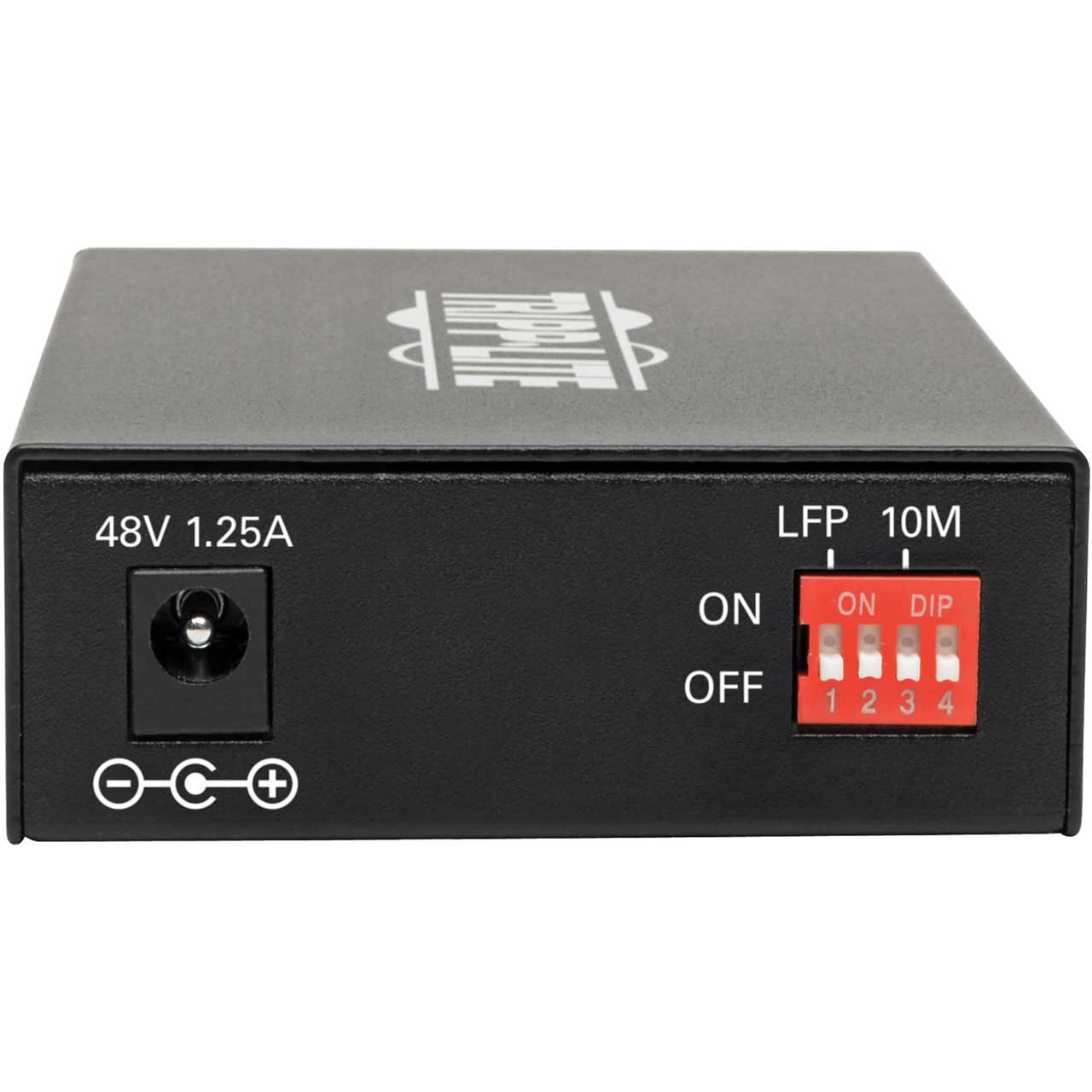

      • DC Barrel Plug OD: 5.5 x 2.1 x 10mm, Positive Pin, Negative Sleeve
      • External Power Supply Plug(s): NEMA 5-15P North America

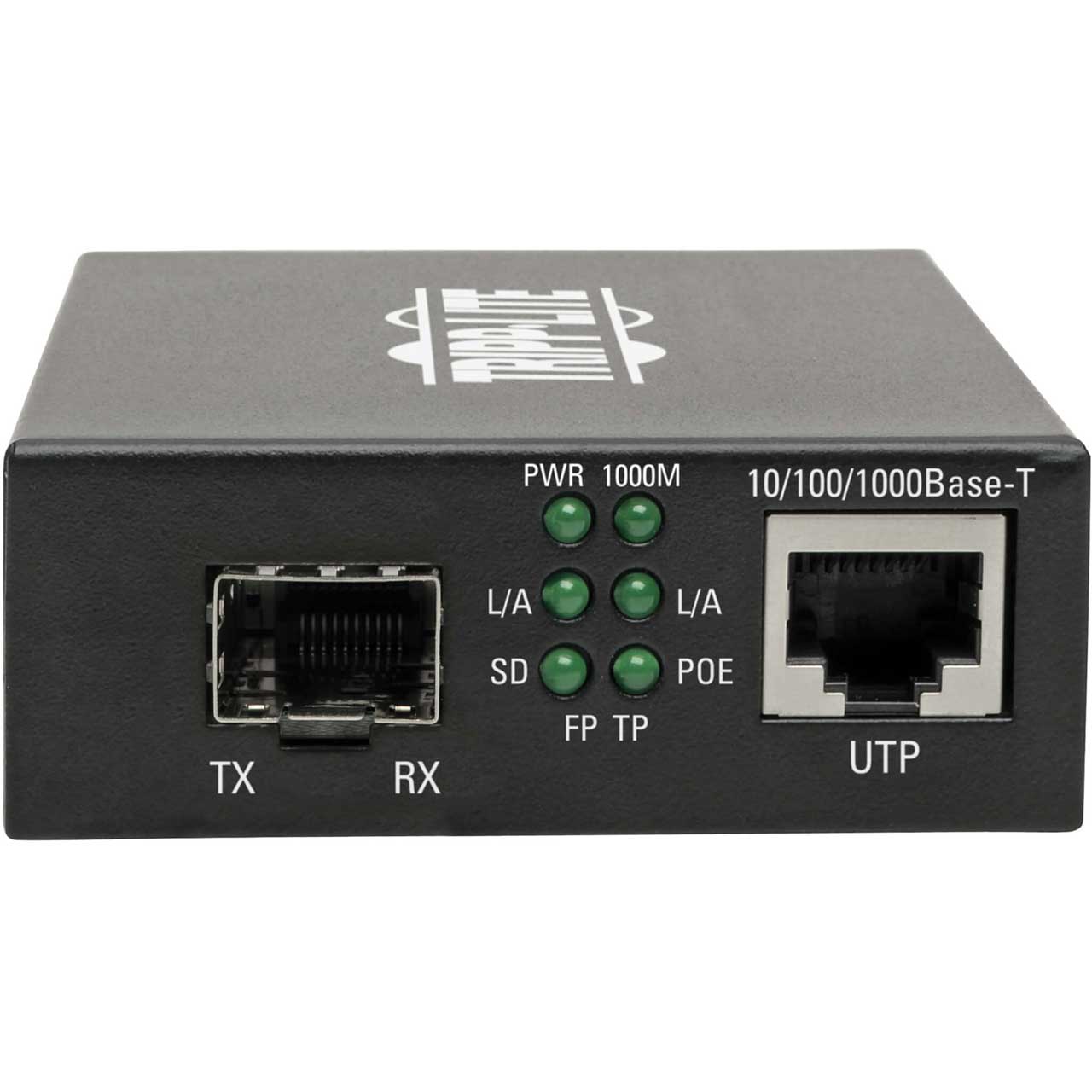

      • LED Indicators: PWR (Power LED), 1000M (UTP port speed LED), PoE (PoE status LED), SD (Fiber signal LED), L/A TP (UTP Port link status LED), L/A FP (Fiber port link status LED).
      • Color: Black
      • Power Cord Color: Black
      • Unit Dimensions (hwd / in.): 0.980 x 3.740 x 2.760
      • Unit Packaging Type: Box
      • Unit Weight (lbs.): 0.44
      • Housing: Metal
      • Operating Temperature Range: -4 to 140°F (-20 to 60°C)
      • Storage Temperature Range: -4 to 158°F (-20 to 70°C)
      • Relative Humidity: 5% to 90% RH, Non-Condensing
      • Network Compatibility: 10 Mbps, 100 Mbps (Fast Ethernet), 1 Gbps (Gigabit)
      • Network Speed Details: 10 Mbps, 100 Mbps, 1000 Mbps
      • Transmission Distance: Depends on transceiver used
      • IEEE Standards Supported: 802.3, 802.3u, 802.3ab, 802.3z, 802.3at, 802.3af
      • Wavelength Division: Multiplexing (WDM)
      • Side A - Connector 1: RJ45 (FEMALE)
      • Side B - Connector 1: SFP (FEMALE)
      • PoE Type: Type 2 PoE+ (30W, IEEE 802.3at)
      • Data Transfer Rate: 1 Gbps, 10 Mbps, 100 Mbps
      • Auto MDIX Support: Yes
      • DIN Mountable: No
      • Working Mode: Full/Half Duplex

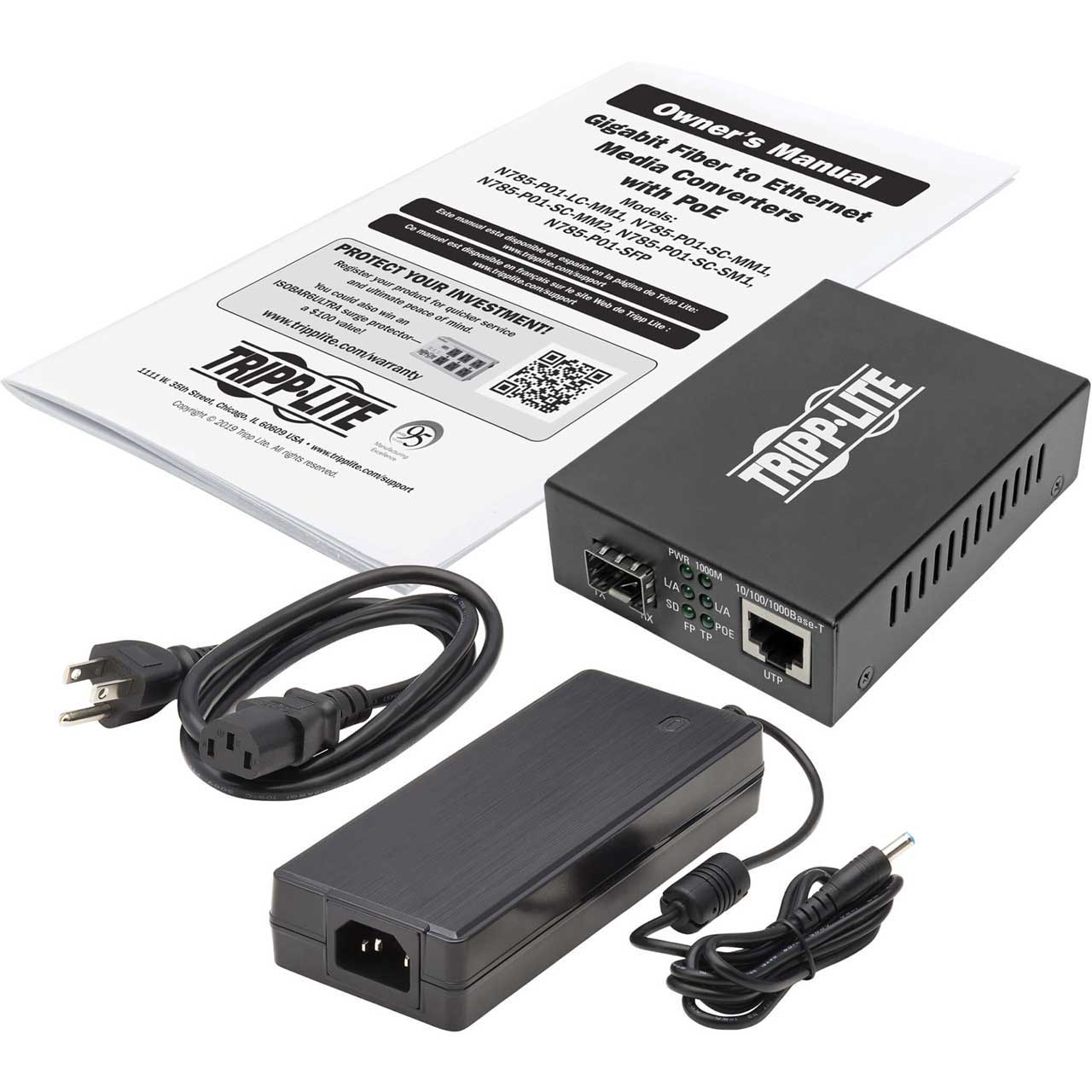

    • Item Includes:

      • N785-P01-SFP Gigabit SFP Fiber to Ethernet Media Converter.
      • External power supply with 3.6 ft. (1.1 m) cord and NEMA 5-15P plug (Input: 100-240V, 50/60 Hz, 1.5A; Output: 48V 1.25A).
      • Owner's manual.
