Tripp Lite NGS24C2POE 10/100/1000Mbps Port Gigabit L2 Web-Smart Managed PoE plus Switch 300W 2 Dedicated Gigabit 52 Gbps
  • Tripp Lite NGS24C2POE 10/100/1000Mbps Port Gigabit L2 Web-Smart Managed PoE plus Switch 300W 2 Dedicated Gigabit 52 Gbps
  • Tripp Lite NGS24C2POE 10/100/1000Mbps Port Gigabit L2 Web-Smart Managed PoE plus Switch 300W 2 Dedicated Gigabit 52 Gbps
  • Tripp Lite NGS24C2POE 10/100/1000Mbps Port Gigabit L2 Web-Smart Managed PoE plus Switch 300W 2 Dedicated Gigabit 52 Gbps
  • Tripp Lite NGS24C2POE 10/100/1000Mbps Port Gigabit L2 Web-Smart Managed PoE plus Switch 300W 2 Dedicated Gigabit 52 Gbps
  • Tripp Lite NGS24C2POE 10/100/1000Mbps Port Gigabit L2 Web-Smart Managed PoE plus Switch 300W 2 Dedicated Gigabit 52 Gbps

Questions? Ask a Markertek Expert:
800-522-2025 Email

Tripp Lite NGS24C2POE 10/100/1000Mbps Port Gigabit L2 Web-Smart Managed PoE plus Switch 300W 2 Dedicated Gigabit 52 Gbps

Manufacturer: Tripp Lite

Item #: TRL-NGS24C2POE   •   MFG #: NGS24C2POE



List Price:$655.16
Our Price:$430.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The energy-efficient NGS24C2POE 24-Port Gigabit L2 Web-Smart Managed PoE+ Network Switch features 24 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for convenient plug-and-play capability. Each port can be configured to supply up to 30W of PoE+ (Power over Ethernet) via network cable to connected high-wattage devices, such as VoIP phones, wireless access points and security cameras. Two dedicated mini-GBIC SFP ports are also included for uplinking data to other switches via optical fiber or copper.

    Easy-to-read LEDs indicate connection and activity status for each port. Built-in web-smart management software gives you remote access to monitor and control each connected device via secure web-based interface. Each port supports up to 2 Gbps with full duplex.

    The heavy-duty metal housing mounts into 1U of an EIA-standard 19-inch rack using the included brackets and user-supplied hardware. Or attach the included rubber feet to the bottom of the unit for installation on a flat desktop surface. The five-foot input cord with NEMA 5-15P plug connects to a protected UPS, generator or mains input AC source.


    • Features

      • Enterprise Managed Network Switch
      • 24 twisted-pair RJ45 Gigabit Ethernet ports for connecting data-intensive devices
      • Auto-negotiable 10/100/1000 Mbps
      • Automatic MDI/MDIX cross-over detection
      • 52 Gbps switching capacity (2 Gbps per port with full duplex)
      • Easy-to-read LEDs indicate connection and activity status for each port
      • Supports 9k jumbo frames
      • Supports MAC address auto-learning and auto-aging up to 8,000 addresses
      • Advanced Enterprise-level and L2 management features
      • 300W Total PoE+ Budget
      • Each RJ45 port can be configured to supply in-line power to connected devices, such as VoIP phones, wireless access points and security cameras
      • 30W maximum per port
      • Built-In Web-Smart Management Software
      • Remote access allows monitoring and control of connected equipment via simple Web interface
      • VLAN, trunking, VPN, port monitoring and other features improve network efficiency and performance
      • Dual Dedicated Mini-GBIC SFP Ports
      • Connect to Mini-GBIC SFP modules for uplinking to other switches via optical fiber or copper
      • LEDs indicate interface traffic
      • Compliant with IEEE Standards
      • Meets IEEE 802.3ab, 802.3i, 802.3u, 802.3x, 802.3, 802.1q, 802.1p, 802.3af and 802.3at standards
      • Versatile Installation Options
      • Fanless metal housing mounts in 1U of EIA-standard 19 in. racks
      • Supports desktop installation using included rubber feet on flat surface
      • 5 ft. power cord with NEMA 5-15P plug connects to compatible AC power source

    • Specifications

      • Input
      • Electrical Consumption: 450 watts max.
      • Input Plug Features: Detachable input cord
      • Input Cord Length (ft.): 5
      • Input Cord Length (m): 1.52
      • Voltage Compatibility (VAC): 100; 110; 120; 127; 208/240
      • Input Phase: Single-Phase
      • Input Plug Type: NEMA 5-15P

        User Interface, Alerts & Controls
      • Switches: 1 included switch enables factory reset
      • LED Indicators: Power LED (Red); One connection/activity LED per RJ-45 port (Amber indicates 10/100Mbps link; Green indicates 1000Mbps link; LEDs flash to indicate port activity); One POE port per RJ-45 port (Green when POE is active; Blinks when port is overloaded); Two LEDs indicate SFP connection (Green)

        Physical
      • Primary Form Factor: Desktop; Rackmount
      • Minimum Required Rack Depth (inches): 8.19
      • Minimum Required Rack Depth (cm): 20.80
      • Unit Dimensions (h x w x d): 1.73" x 17.32" x 8.19"
      • Unit Weight (lbs.): 6.84
      • Color: Black
      • Minimum Required Rack Depth (mm): 208
      • Network Switch Ports: 26; (24) 10/100/1000 (RJ45); (2) Dedicated SFP

        Environmental
      • Storage Temperature Range: -40 to 158° F
      • Relative Humidity: 10 to 90% (Non-condensing)
      • Operating Elevation (ft.): 10,000
      • Operating Temperature: 32 to 104° F
      • Operating Elevation (m): 3,000

    • Item Includes

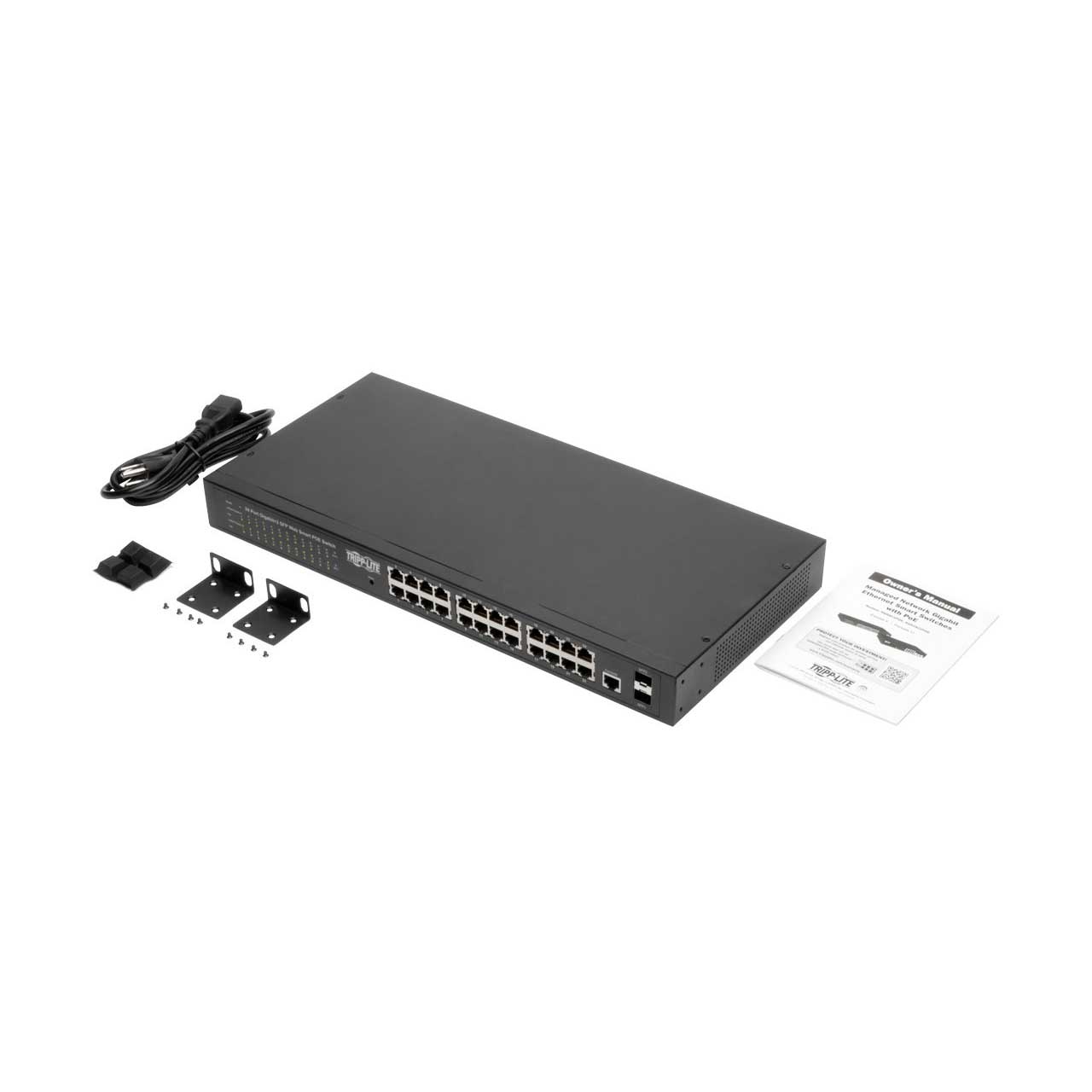

      • NGS24C2POE 24-Port Gigabit L2 Web-Smart Managed PoE+ Network Switch
      • Detachable AC power cord w/NEMA 5-15P plug, 5 ft.
      • (2) Rack-mounting brackets
      • (8) Screws
      • (4) Rubber feet
      • Owner's manual

    • Warranty

      • 5 Year Limited

    • GTIN:

      0037332194862
