Tripp Lite PDUMH32HVAT TAA-Compliant 7.4kW Single-Phase ATS/Metered PDU 230V Outlets 2 IEC309 32A Blue Cords Rackmount
  • Tripp Lite PDUMH32HVAT TAA-Compliant 7.4kW Single-Phase ATS/Metered PDU 230V Outlets 2 IEC309 32A Blue Cords Rackmount
  • Tripp Lite PDUMH32HVAT TAA-Compliant 7.4kW Single-Phase ATS/Metered PDU 230V Outlets 2 IEC309 32A Blue Cords Rackmount
  • Tripp Lite PDUMH32HVAT TAA-Compliant 7.4kW Single-Phase ATS/Metered PDU 230V Outlets 2 IEC309 32A Blue Cords Rackmount
  • Tripp Lite PDUMH32HVAT TAA-Compliant 7.4kW Single-Phase ATS/Metered PDU 230V Outlets 2 IEC309 32A Blue Cords Rackmount
  • Tripp Lite PDUMH32HVAT TAA-Compliant 7.4kW Single-Phase ATS/Metered PDU 230V Outlets 2 IEC309 32A Blue Cords Rackmount

Questions? Ask a Markertek Expert:
800-522-2025 Email

Tripp Lite PDUMH32HVAT TAA-Compliant 7.4kW Single-Phase ATS/Metered PDU 230V Outlets 2 IEC309 32A Blue Cords Rackmount

Manufacturer: Tripp Lite

Item #: TRL-PDUMH32HVAT   •   MFG #: PDUMH32HVAT



List Price:$1,323.00
Our Price:$845.25

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

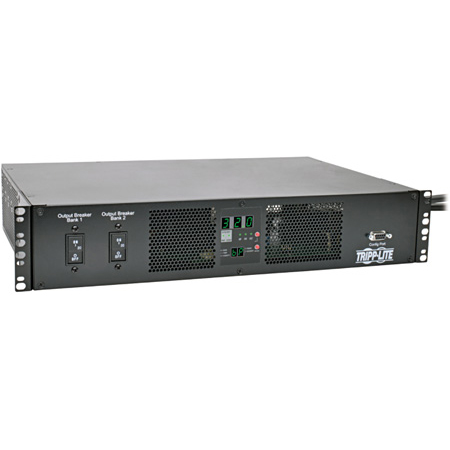

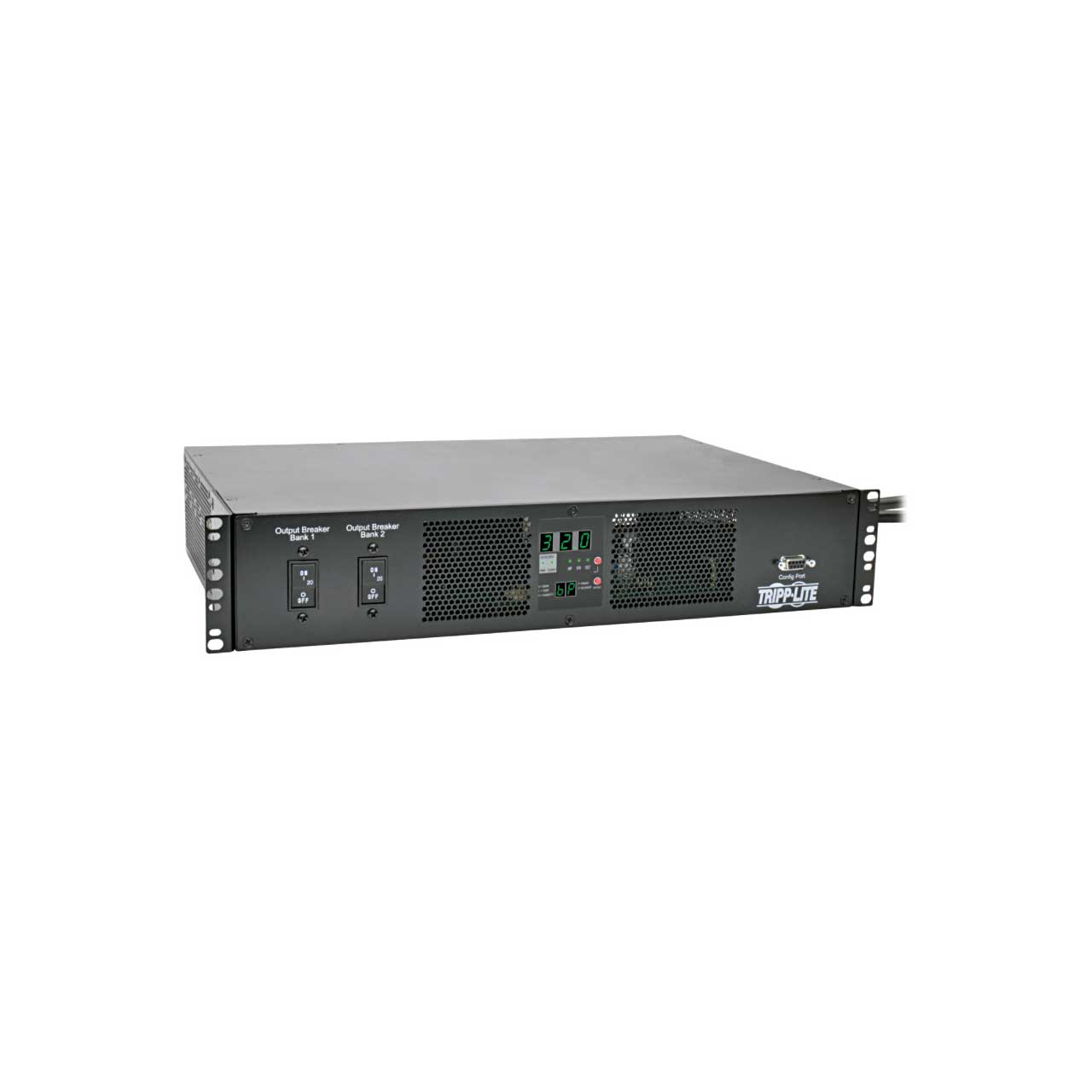

    The PDUMH32HVAT 7.4kW Single-Phase 230V ATS/Switched PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 2U of space in EIA-standard racks and features 18 outlets (16 C13 and two C19) in two load banks, each bank protected by a 20A circuit breaker.

    Dual 3-meter input cords with IEC309 32A Blue (2P+E) plugs connect to separate primary and secondary single-phase 230V power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1–5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption. Multifunction digital display with LED indicators reports output current, voltage, power factor and kW loading information.


    • Features

      • Primary and Secondary Inputs for Power Redundancy
      • Provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations
      • Dual 3m input cords with IEC309 32A Blue (2P+E) plugs connect to separate primary and secondary single-phase power sources Automatic Transfer Switching
      • Dynamic solid-state (TRIAC) automatic transfer switching
      • Switches to secondary power source if primary source fails or becomes unstable
      • 1–5 ms transfer time ensures uninterrupted operation of connected equipment
      • Built-in processor monitors both sources and prevents switching if secondary source is unavailable or of lower quality than primary source Multifunction Digital Display
      • Front-panel digital display with LED indicators reports output current, voltage, power factor and kW loading information 20A Circuit Breakers
      • Protect each of 2 single-phase output banks
      • Front-panel LED indicates when breaker has tripped Cord Retention Brackets
      • Secures equipment power cords to reduce cable clutter and increase accessibility to connected components Mounts Horizontally in 2U of Rack Space
      • Compatible with EIA-standard 19 in. 4-post racks and rack enclosures TAA-Compliant
      • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

    • Specifications

      • PDU Type: Metered; Auto-Transfer Switch
      • Output Capacity Details: 7.7kW (240V), 7.4kW (230V), 7.0kW (220V), 6.7kW (208V), 6.4kW (200V); 32A maximum
      • Frequency Compatibility: 50 / 60 Hz
      • Output Receptacles: (16) C13; (2) C19
      • Output Nominal Voltage: 200, 208, 220, 230, 240V nominal, single phase
      • Overload Protection: Includes two 20A output circuit breakers; Breaker 1 controls the upper row of 9 outlets (8 C13, 1 C19); Breaker 2 controls the lower row of outlets (8 C13, 1 C19)
      • PDU Input Voltage: 200; 208; 220; 230; 240
      • Recommended Electrical Service: 32A 230V
      • Maximum Input Amps: 32
      • Input Connection Type: Two labelled IEC309 32A Blue cables support Primary and Secondary input connections

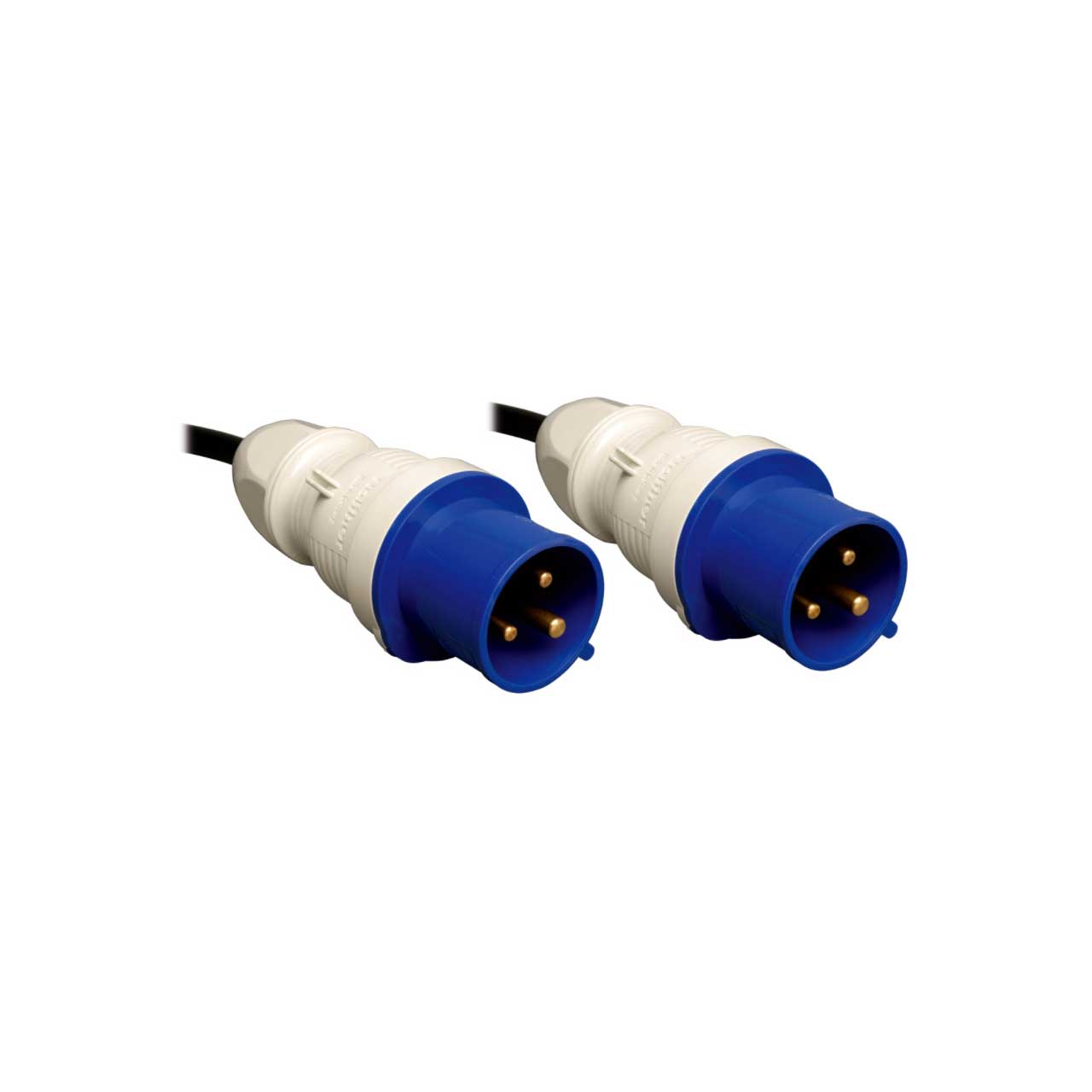

      • PDU Plug Type: (2) IEC-309 32A BLUE (2P+E)
      • Input Cord Length (ft.): 10
      • Input Cord Length (m): 3.05
      • Input Phase: Single-Phase
      • Front Panel LCD Display: Digital display reports output amps in 4 separately metered loading segments (BANK 1: Outlets #1-9; BANK 2: Outlets #10-18), whole-PDU output kW load level and input voltage on primary and secondary input lines
      • Front Panel LEDs: Front panel LEDs confirm amp / kilowatt / voltage reporting information
      • Switches: ENTER and MODE switches toggle the digital display to show output amps (Banks 1-4), total kW output and input voltage (primary, secondary)
      • Minimum Required Rack Depth (inches): 16
      • Shipping Dimensions (hwd / in.): 7.7 x 16.7 x 19.3
      • Shipping Weight (lbs.): 20.3
      • Unit Dimensions (hwd / in.): 3.5 x 17.5 x 12.5
      • Unit Weight (lbs.): 13.7
      • Material of Construction: Metal
      • Form Factors Supported: 2U rackmount
      • PDU Form Factor: Horizontal (1U, 2U, etc)
      • Minimum Required Rack Depth (mm): 406
      • Storage Temperature Range: 5 to 122°F
      • Relative Humidity: 5 to 95% (non-condensing)
      • Operating Elevation (ft.): 0-10,000
      • Certifications: Tested to CE / IEC 60950-1, EN CLASS A (Emissions), NOM (Mexico), RoHS Complaint, TAA Compliant
      • Product Warranty Period (Worldwide): 2-year limited warranty

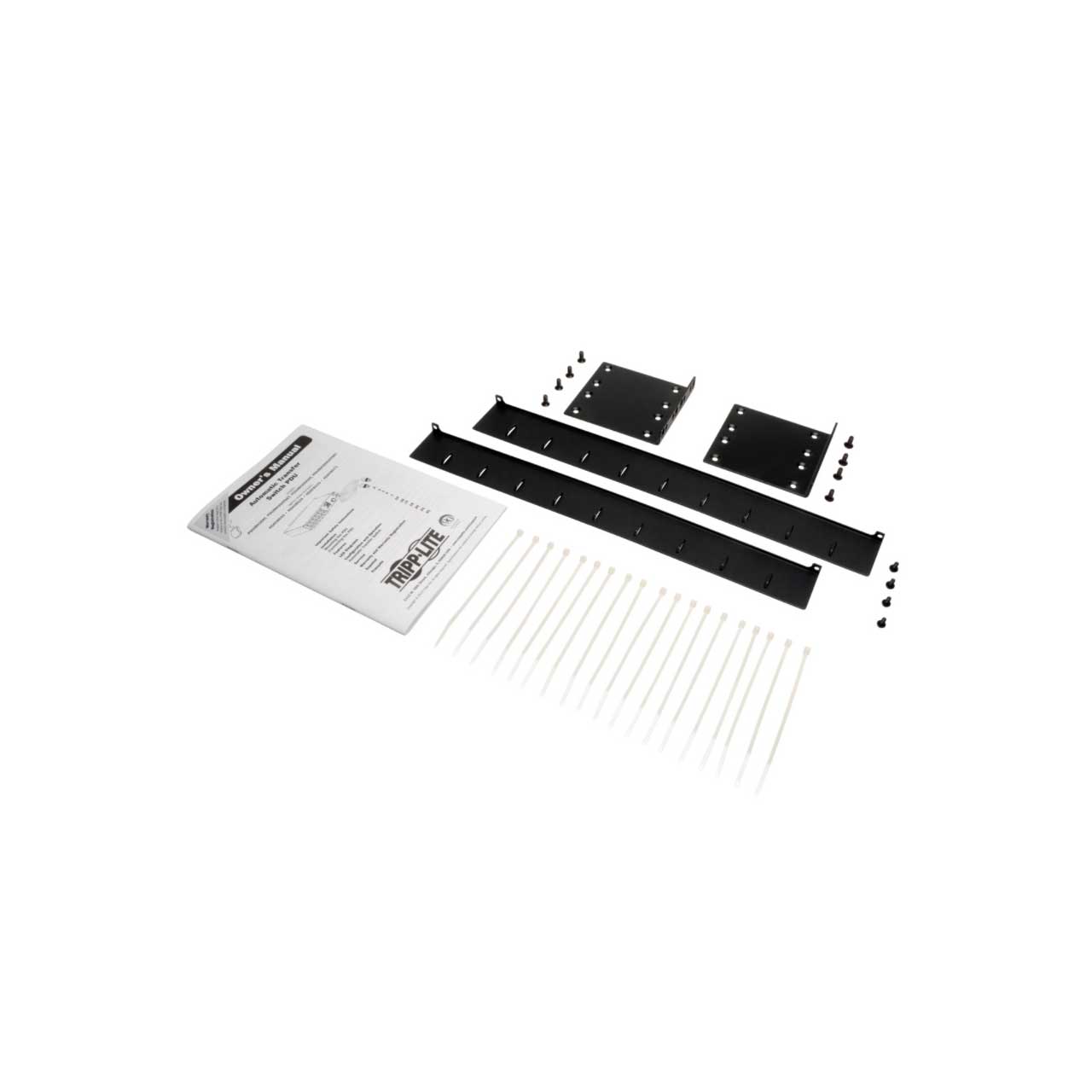

    • Item Includes

      • PDUMH32HVAT 7.4kW Single-Phase 230V ATS/Switched PDU
      • Rack-mounting brackets
      • Cord retention brackets
      • Cable ties
      • Owner’s manual

    • Warranty

      • 2 Year
