Tripp Lite PDUMNH32HV PDU Monitored 230V 7.3kW 32A 12 C13; 4 C19 IEC-309 Horizontal 2U
  • Tripp Lite PDUMNH32HV PDU Monitored 230V 7.3kW 32A 12 C13; 4 C19 IEC-309 Horizontal 2U
  • Tripp Lite PDUMNH32HV PDU Monitored 230V 7.3kW 32A 12 C13; 4 C19 IEC-309 Horizontal 2U
  • Tripp Lite PDUMNH32HV PDU Monitored 230V 7.3kW 32A 12 C13; 4 C19 IEC-309 Horizontal 2U
  • Tripp Lite PDUMNH32HV PDU Monitored 230V 7.3kW 32A 12 C13; 4 C19 IEC-309 Horizontal 2U
  • Tripp Lite PDUMNH32HV PDU Monitored 230V 7.3kW 32A 12 C13; 4 C19 IEC-309 Horizontal 2U

Questions? Ask a Markertek Expert:
800-522-2025 Email

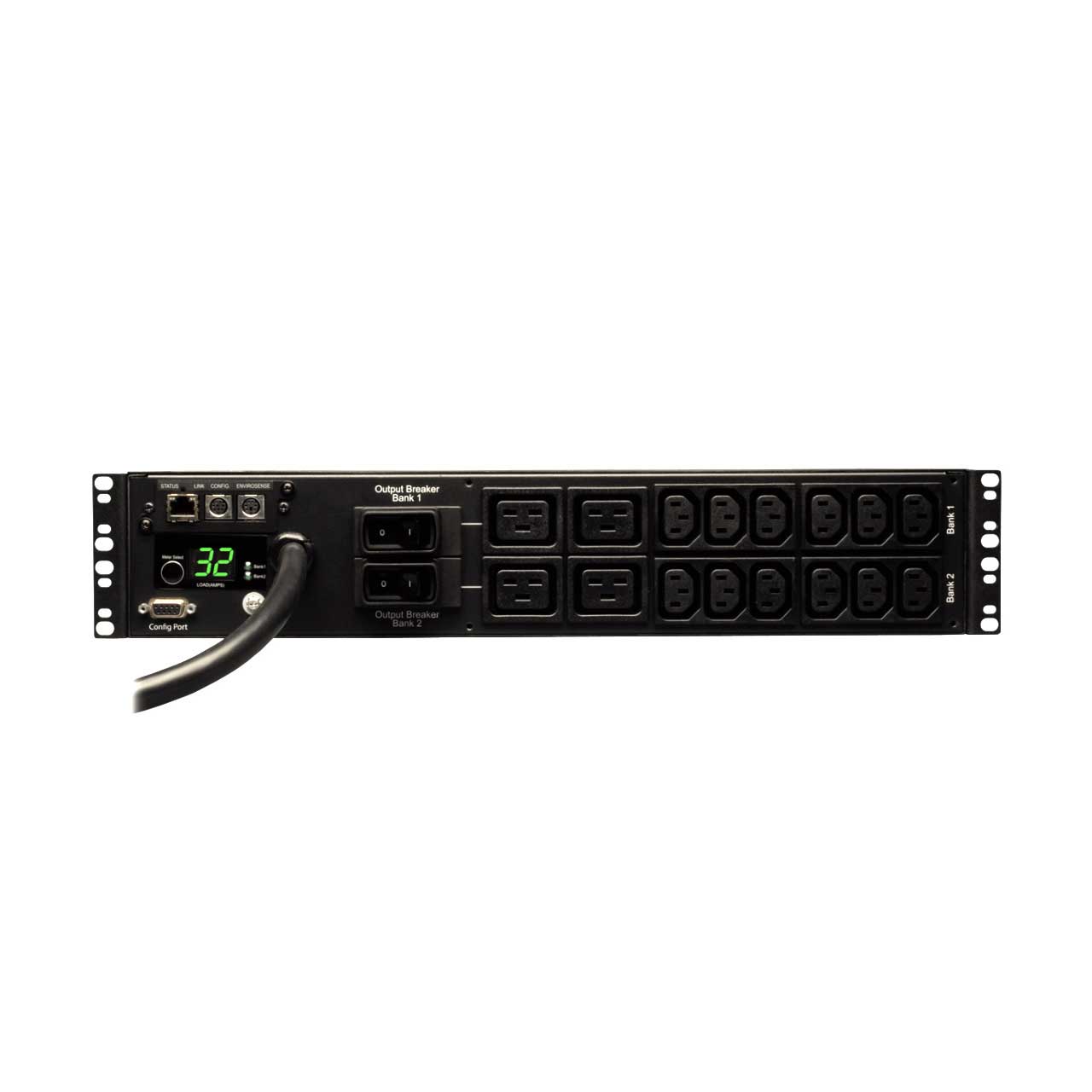

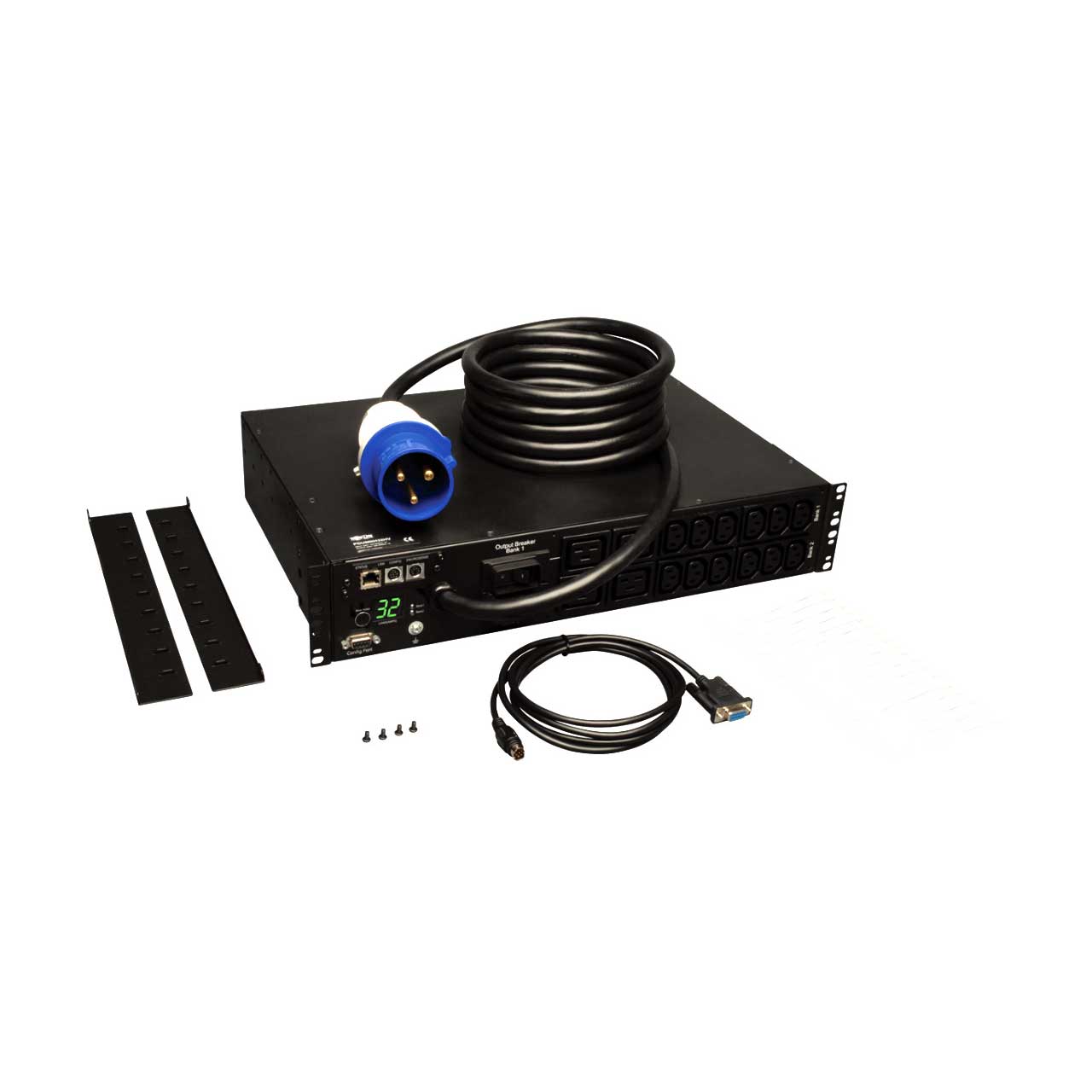

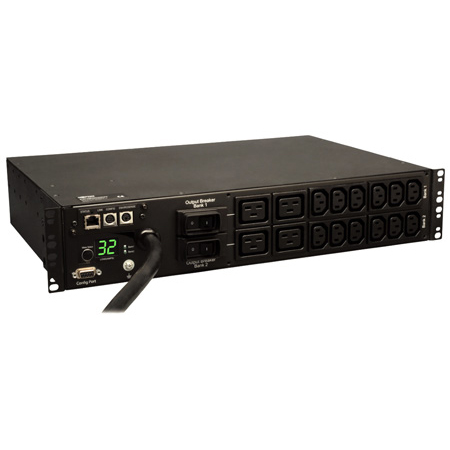

Tripp Lite PDUMNH32HV PDU Monitored 230V 7.3kW 32A 12 C13; 4 C19 IEC-309 Horizontal 2U

Manufacturer: Tripp Lite

Item #: TRL-PDUMNH32HV   •   MFG #: PDUMNH32HV



List Price:$878.40
Our Price:$606.10

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!





    Tripp Lite single phase Monitored PDU / Power Distribution Unit offers real-time remote monitoring of voltage, frequency and load levels via built-in network connection. PowerAlert interface supports custom notification of user-specified remote conditions via email, secure web, SNMP, Telnet or SSH interface. PDU lighted digital display enables visual monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.


    • Features

      • 32A 7.3kW single phase 230V Monitored Power Distribution Unit / PDU

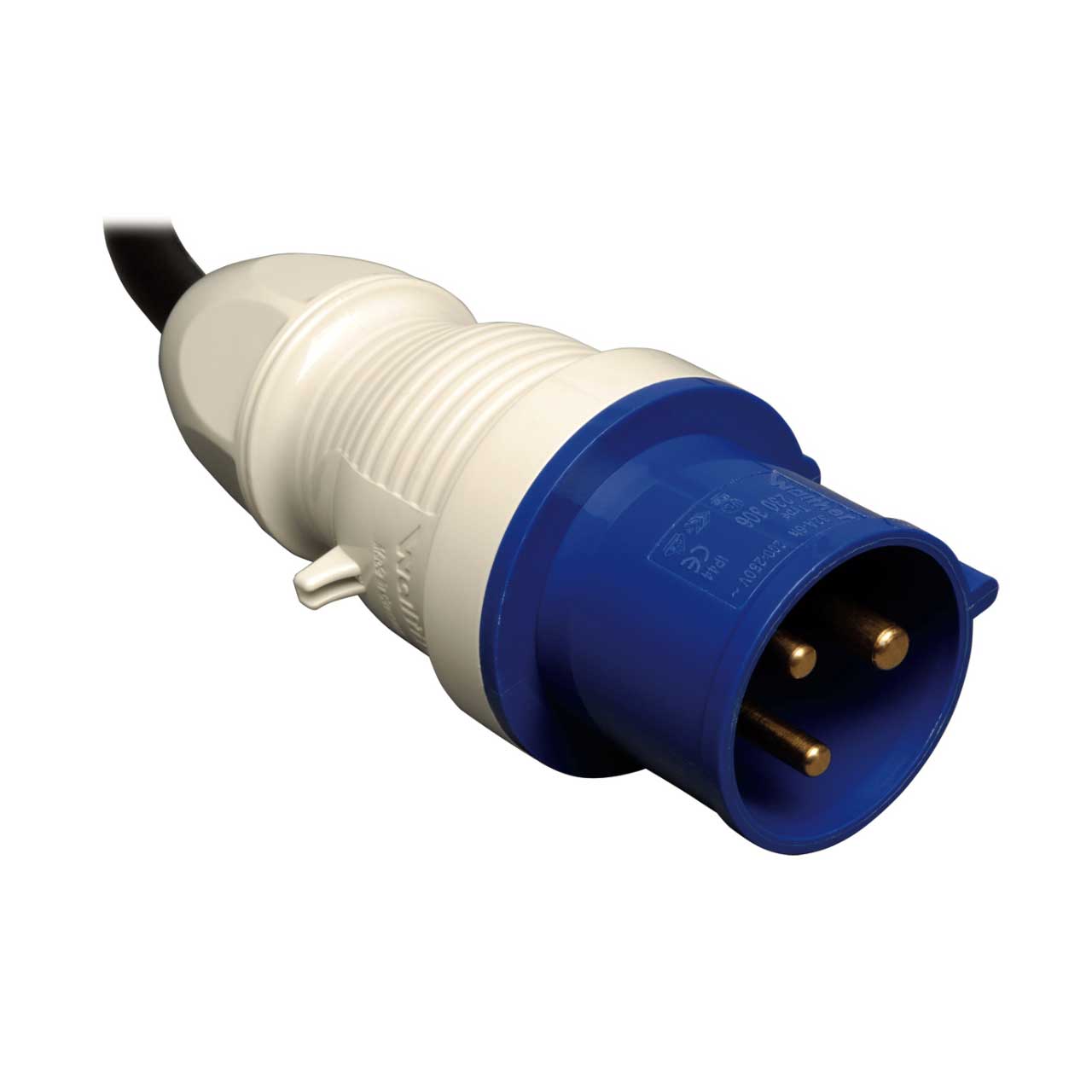

      • Attached Blue IEC-309 32A (2P+E) input plug with 3.65m line cord
      • 2U horizontal rackmount format
      • 16 outlets (12 C13, 4 C19)
      • Lighted display with select button reports output power consumption in amps in 3 segments (bank 1, bank 2 and total)

    • Specifications

      • Style Rackmount
      • PDU Type Monitored
      • Output Capacity Details 7.4kW; 32A maximum
      • Frequency Compatibility 50 / 60 Hz
      • Output Receptacles (12) C13; (4) C19
      • Output Nominal Voltage 230V
      • Overload Protection Outlets are arranged in two banks of 8 (6 C13, 2 C19 per bank); Each bank is protected by a separate 20A circuit breaker
      • Outlet Type IEC-C13, IEC-C19
      • PDU Input Voltage 230
      • Recommended Electrical Service 32A 230V
      • Maximum Input Amps 32
      • PDU Plug Type IEC-309 32A BLUE (2P+E)
      • Input Cord Length (ft.) 12
      • Input Cord Length (m) 3.65
      • Input Phase Single-Phase
      • Front Panel LCD Display Front panel LEDs indicat which loading segment the digital LCD current display is reporting; Bank 1 LED indicates the meter is reporting load level for outlets 1-8; Bank 2 LED indicates the meter is reporting load level for outlets 9-16; Both LEDs lighted indicates the meter is reporting load level for all outlets combined
      • Front Panel LEDs Two LEDs with toggle button identify which bank the visual current meter is reporting (Bank 1, Bank 2 or Banks 1 & 2 combined)
      • Switches Pressing the display toggle switch advances the local display of power consumption for the 3 reported segments: Bank 1, Bank 2 and Banks 1+2 combined
      • Shipping Dimensions (hwd / in.) 8 x 20.5 x 17
      • Shipping Dimensions (hwd / cm) 20.3 x 113 x 80.6
      • Shipping Weight (lbs.) 16.9
      • Shipping Weight (kg) 7.6
      • Unit Dimensions (hwd / in.) 3.5 x 17.5 x 12.5
      • Unit Dimensions (hwd / cm) 8.9 x 44.5 x 31.75
      • Unit Weight (lbs.) 13.7
      • Unit Weight (kg) 6.2
      • Material of Construction Metal
      • Form Factors Supported 2U rackmount
      • PDU Form Factor Horizontal (1U, 2U, etc)
      • Storage Temperature Range 5 to 122F (-15 to 50C)
      • Relative Humidity 5-95% non-condensing
      • Operating Elevation (ft.) 0-10,000
      • Operating Elevation (m) 0-3000
      • SNMP Compatibility Yes, pre-installed SNMPWEBCARD provides remote monitoring via web, telnet, and SNMP management systems
      • TAA Compliant Option TAA Compliant Version Available - Order Tripp Lite PDUMNH32HVTAA
      • Certifications Tested to CE (IEC 60950-1), RoHS compliant
      • Product Warranty Period (Worldwide) 2-year limited warranty
