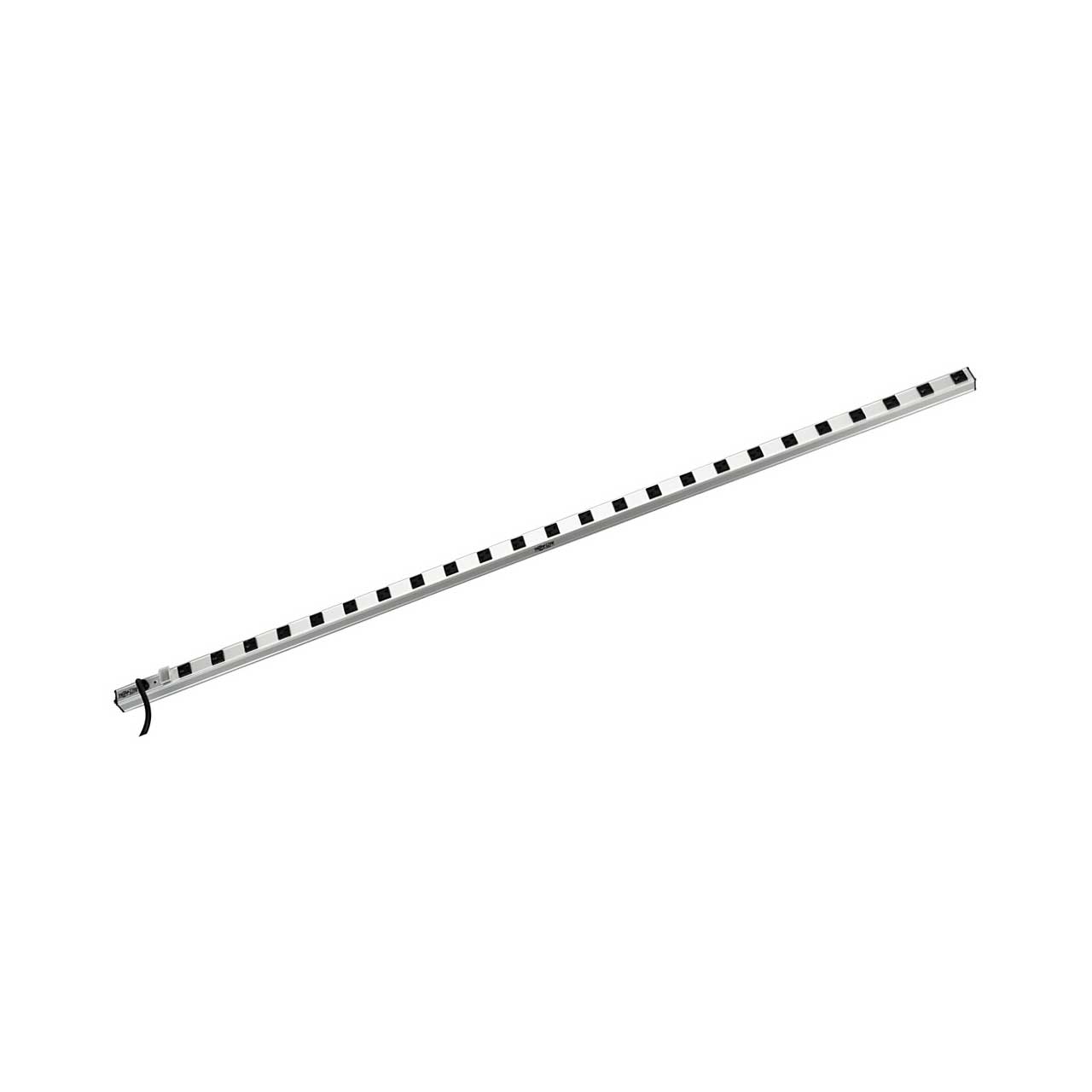

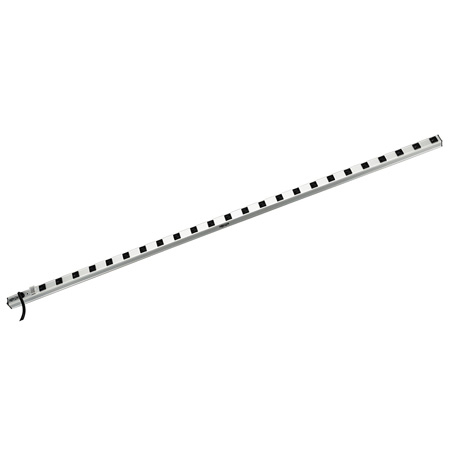

Tripp Lite PS7224-20 Power Strip 120V 22 5-15R; 2 5-20R 15ft Cord Vertical Metal 0URM

ITEM #: TRL-PS7224-20 MFG #: PS7224-20

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Tripp Lite
Free Shipping with $49 Minimum Order

List Price:

$184.70

Our Price:

$134.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Shipment of this item is subject to a separate oversized-package carrier surcharge.
Report Lower PriceLarge Quantity Quote

PS7224-20 - Overview

Tripp Lite's PS7224-20 power strip offers 20 amp, 120V multi-outlet AC power distribution in a convenient 72 inch mountable housing. Offers horizontal or vertical power distribution in rackmount, raceway and workbench applications. Includes 24 output receptacles with 2.795 inch center-to-center spacing, 15 ft AC line cord and lighted power switch with locking transparent cover to prevent accidental shutoff. Sturdy all-metal extruded aluminum housing stands up to demanding network, laboratory or factory environments. INPUT/OUTPUT: Input: NEMA 5-20P/Output: 22 NEMA 5-15R & 2 NEMA 5-20RELECTRICAL: 120V AC, 50/60Hz, 20A FORMAT: 72 in. corded, mountable power strip

  • Features:

    • Versatile all-metal 72 inch format with outlets arranged in a single row
    • Knockout panels for 3/4 inch conduit fittings allow permanent hardwire installation
    • Ideal for horizontal or vertical raceway style power distribution in office, workbench, industrial, networking and telecom applications
    • 24 outlets total, 2 NEMA 5-15/20R (20A) and 22 NEMA 5-15R (15A)


  • Specifications:

    • Style Strip
    • Frequency Compatibility 50 / 60 Hz
    • Output Receptacles (2) 5-15/20R; (22) 5-15R
    • Output (Watts) 2400
    • Circuit Breaker (amps) 20
    • Outlet Spacing 2.795 in.
    • Nominal Input Voltage(s) Supported 120V AC
    • Recommended Electrical Service 20A 120V
    • Input Connection Type Nema 5-20P
    • Input Plug Features Black
    • Input Cord Length (ft.) 15
    • Input Cord Length (m) 4.572
    • Input Cord Gauge Type 12/3 SJT
    • Voltage Compatibility (VAC) 120
    • Switches Lighted 2 position switch controls power to all outlets
    • Locking Switch Cover Transparent on/off switch cover prevents accidental turn-off
    • Unit Dimensions (hwd / in.) 72 x 1.5 x 1.5
    • Unit Dimensions (hwd / cm) 183 x 3.8 x 3.8
    • Unit Weight (lbs.) 6.5
    • Unit Weight (kg) 2.951
    • Material of Construction Aluminum
    • Included Mounting Accessories Includes mounting clips
    • Receptacle Color Black
    • Color (AC Line Cord) Black
    • Form Factors Supported Supports vertical or horizontal mounting in rack enclosures, raceways and a variety of other applications
    • Outlets Measurement (Center to Center) 72mm
    • UL1363 (Power Tap) UL1363
    • cUL / CSA (Canada) cUL
    • Product Warranty Period (Worldwide) Lifetime limited warranty


  • GTIN:

    0037332011527
