Tripp Lite SM1000RM1UTAA TAA SmartPro 120V 1kVA 800W Line-Interactive Sine Wave UPS 1U Network Card Options

ITEM #: TRL-SM1000RM1UTA MFG #: SM1000RM1UTAA

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$1,247.00

Our Price:

$766.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    SM1000RM1UTAA - Overview

    The SM1000RM1UTAA SmartPro 120V 1kVA 800W Line-Interactive Sine Wave UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up servers and network storage devices, the SM1000RM1UTAA switches to 1kVA/800W battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.

    Two of the six NEMA 5-15R outlets may be switched off remotely to reboot equipment or shed nonessential loads to maximize battery backup time for mission-critical equipment. The internal battery provides 14 minutes of support at half load (400W) and four minutes at full load (800W). Operating with a high 99% line mode efficiency, the ENERGY STAR-certified SM1000RM1UTAA saves you money by meeting strict EPA guidelines. Automatic voltage regulation (AVR) maintains 120V nominal output over an input range of 83V to 147V without using battery power.

    EMI/RFI noise filtering improves your equipment’s performance and prevents damage. A 450-joule surge suppression rating protects your equipment from harmful power surges. With Tripp Lite’s included PowerAlert software, the SM1000RM1UTAA enables safe unattended system shutdown and file saves in case of a prolonged power failure. Adding an optional network management card, such as Tripp Lite’s SNMPWEBCARD (sold separately), permits remote management and status alerts.

    • Features:

      • Protects Mission-Critical Rackmounted Equipment
      • Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware
      • Audible alarm signals loss of utility power, overload and low battery

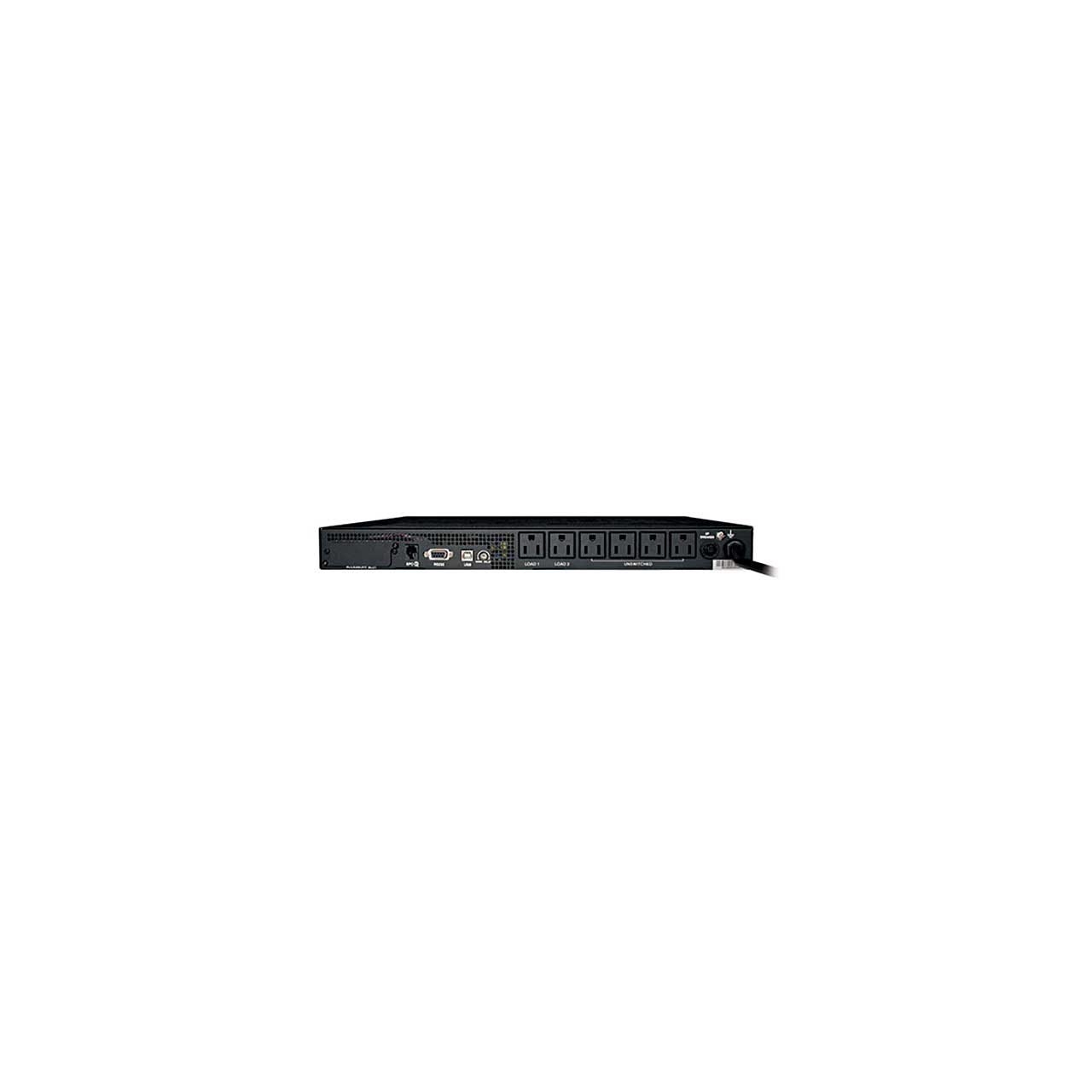

      • 6 NEMA 5-15R outlets
      • 10 ft. power cord with 120V NEMA 5-15P input
      • 450-joule surge suppression rating Reliable Battery Backup
      • Supports half load up to 14 min. and full load up to 4 min.
      • Internal batteries designed for hot-swap field replacement Switchable Outlets
      • 2 load banks, each with one outlet controllable remotely to reboot equipment or shed nonessential loads Automatic Voltage Regulation (AVR)
      • Maintains 120V nominal output over input range of 83V–147V without using battery power EMI/RFI Line Noise Filtering
      • Removes electromagnetic and radio frequency interference that can disrupt or damage equipment’s performance ENERGY STAR Certification
      • 99% line mode efficiency saves money and energy and protects environment by meeting strict EPA efficiency guidelines LED Indicators

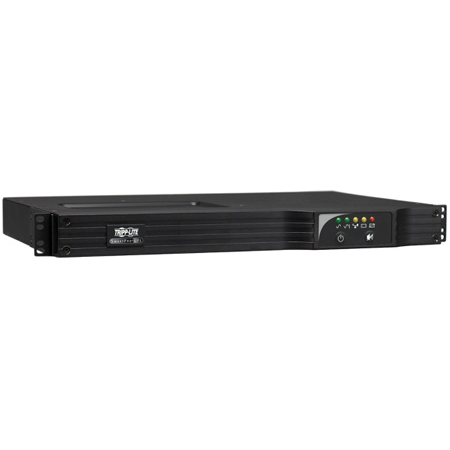

      • Front-panel LEDs signal power, voltage correction, load level and battery charge state SNMP/Web Capability
      • Optional network management card, such as Tripp Lite’s
      • SNMPWEBCARD (sold separately), permits remote management and status alerts Communications Ports
      • USB and DB9 ports combine with included PowerAlert software to monitor operating conditions, monitor AC power, and enable safe unattended system shutdown and file saves in case of a prolonged power failure
      • EPO port supports emergency shutdown in large facilities Versatile Installation Options
      • Hardware included for mounting in 1U of EIA-standard 19 in. 2- or 4-post rack
      • Optional 4POSTRAILKIT1U accessory available for extra support in 4-post installations TAA Compliant
      • Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases

    • Specifications:

      • Output Volt Amp Capacity (VA): 1000
      • Output Watt Capacity (Watts): 800
      • Power Factor: 0.8
      • Nominal Voltage Details: 120v nominal output in battery mode
      • Frequency Compatibility: 60 Hz
      • Output Voltage Regulation (Line Mode): -21%, +8%
      • Output Voltage Regulation (Battery Mode): +/- 5%
      • Output Receptacles: (6) 5-15R
      • Load Management Receptacles: Two switchable single-outlet 5-15R load banks
      • Output AC Waveform (AC/Battery Mode): Sine wave/Pure Sine wave
      • Rated input current (Maximum Load): 9.0A
      • Nominal Input Voltage(s) Supported: 120V AC
      • UPS Input Connection Type: 5-15P
      • Input Circuit Breakers: 15A
      • Recommended Electrical Service: 15A 120V
      • Input Cord Length (ft.): 10
      • Input Phase: Single-Phase
      • Full/Half Load Runtime (min.): 4 min. (800w); 14 min. (400w)
      • DC System Voltage (VDC): 24
      • Internal UPS Replacement Battery Cartridge: RBC69-1U
      • Battery Replacement Description: Hot-swappable, user replaceable batteries
      • Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147
      • Overvoltage Correction: Input voltages between 128 and 147 are reduced by 12%
      • Undervoltage Correction: Input voltages between 83 and 107 are boosted by 14%
      • Switches: 2 Switches control off/on power status and alarm-cancel/self-test operation
      • Alarm Cancel Operation: Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
      • LED Indicators: 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
      • UPS AC Suppression Joule Rating: 450 joules
      • UPS Dataline Suppression: 1 line TEL/DSL or Ethernet
      • EMI / RFI AC Noise Suppression: Yes
      • AC Suppression Response Time: Instantaneous
      • Primary Form Factor: Rackmount
      • UPS Power Module Dimensions (hwd, in.): 1.75 x 17.5 x 16.75
      • Minimum Required Rack Depth (inches): 19.8
      • UPS Power Module Weight (lbs.): 32
      • UPS Shipping Dimensions (hwd/in.): 6.2 x 23.5 x 22.5
      • Shipping Weight (lbs.): 36
      • Cooling Method: Fan
      • UPS Housing Material: Steel
      • Operating Temperature: +32 to +104° F
      • Storage Temperature: +5 to +122° F
      • Relative Humidity: 0 to 95%, non-condensing
      • AC Mode BTU / Hr. (Full Load): 39
      • Battery Mode BTU / Hr. (Full Load): 816
      • AC Mode Efficiency Rating (100% Load): 0.99
      • Communications Interface: USB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
      • Network Management Cards: SNMPWEBCARD; TLNETCARD; WEBCARDLX
      • WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
      • Transfer Time: 5 milliseconds AC to DC; 1 millisecond DC to AC
      • Low/High Voltage Transfer to Battery Power (Setpoint): 83/147
      • Product Warranty Period (Worldwide): 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
      • Connected Equipment Insurance (U.S., Canada & Puerto Rico): $250,000 Ultimate Lifetime Insurance

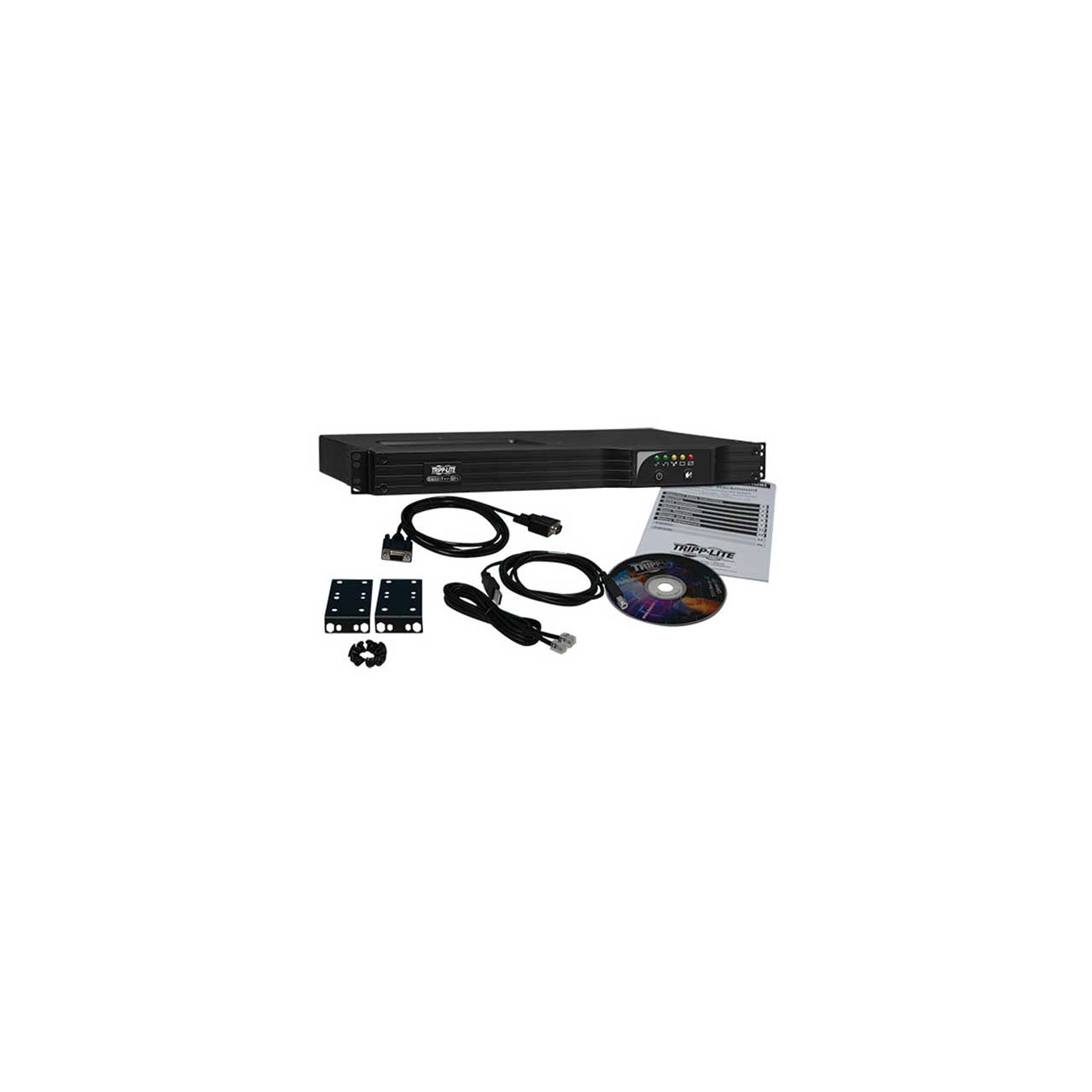

    • Item Includes:

      • SM1000RM1UTAA SmartPro 120V 1kVA 800W Line-Interactive Sine Wave UPS
      • USB cable
      • DB9 cable
      • EPO cable
      • PowerAlert software
      • Mounting hardware
      • Owner’s manual

    • Warranty:

      • 2 Year

    • GTIN:

      0037332184184
