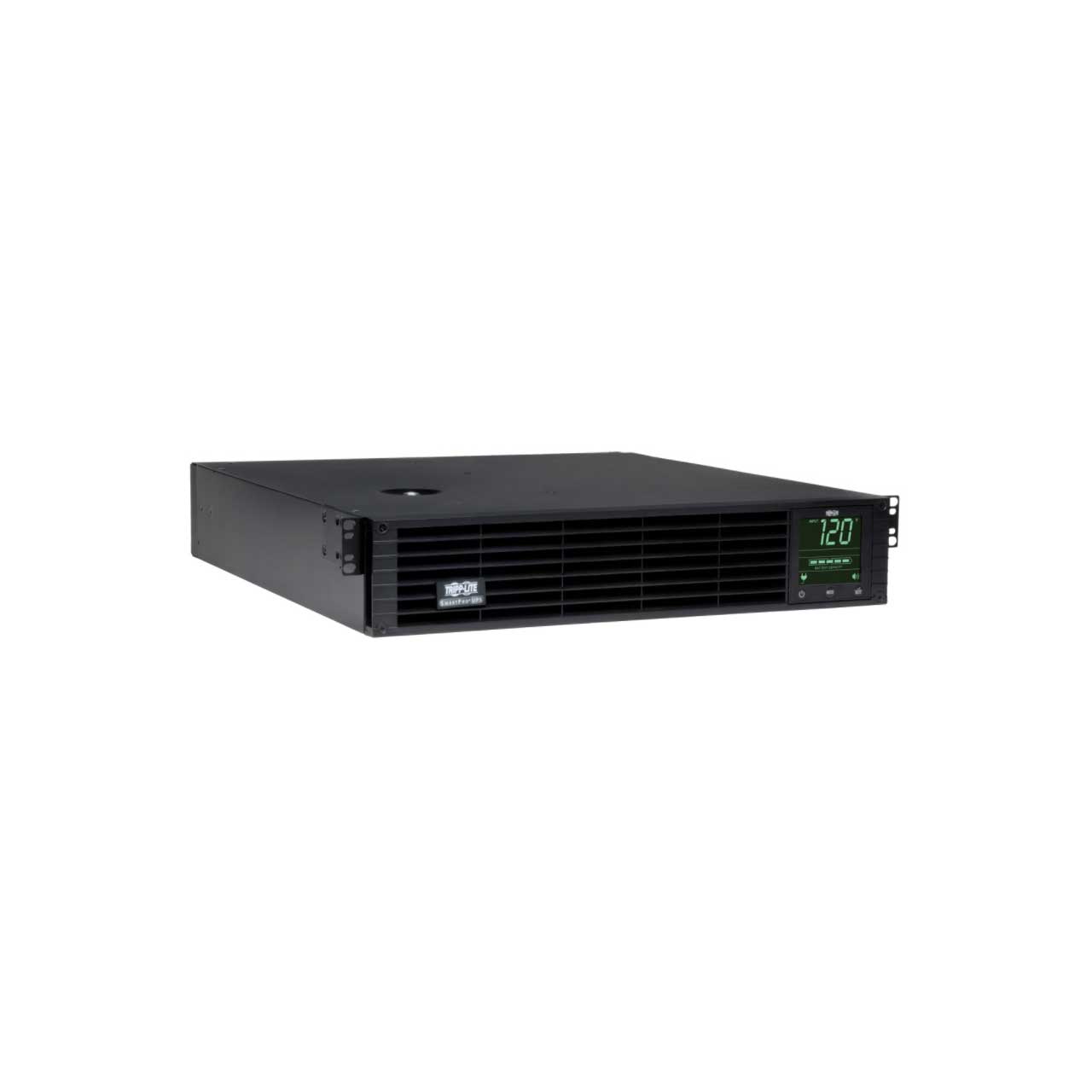

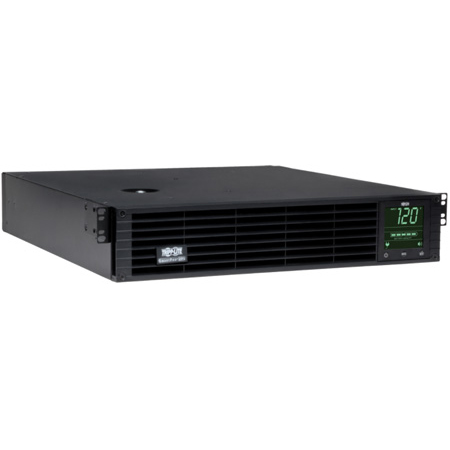

Tripp Lite SM2200RMXL2UTAA TAA SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine - UPS Extended Run Network Card Options

Manufacturer: Tripp Lite

Item #: TRL-SM2200RMXL2T   •   MFG #: SM2200RMXL2UTAA



List Price:$1,598.40
Our Price:$1,021.20

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The SM2200RMXL2UTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions.

    Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Communications interfaces support communications via USB, DB9 serial and a slot for an optional network management card, such as Tripp Lite's SNMPWEBCARD. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X.

    Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.


    • Features

      • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
      • Tripp Lite SMART2200RMXL2U line interactive 2U rack/tower UPS with 2200VA / 2.2kVA / 1920W capacity and extended runtime optionsLine interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 145V
      • NEMA 5-20P input plug; 4 NEMA 5-15/20R and 4 5-15R output receptacles, Two independently switched output load banks
      • Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
      • High 96% efficiency rating in line-power mode offers reduced power consumption and BTU emisssions
      • Internal batteries offer 12 minutes at 50% load (960W) and 4.5 minutes at 100% load (1920W)
      • Hot-swappable, user-replaceable internal batteries and external battery packs can be replaced with no disruption to connected equipment

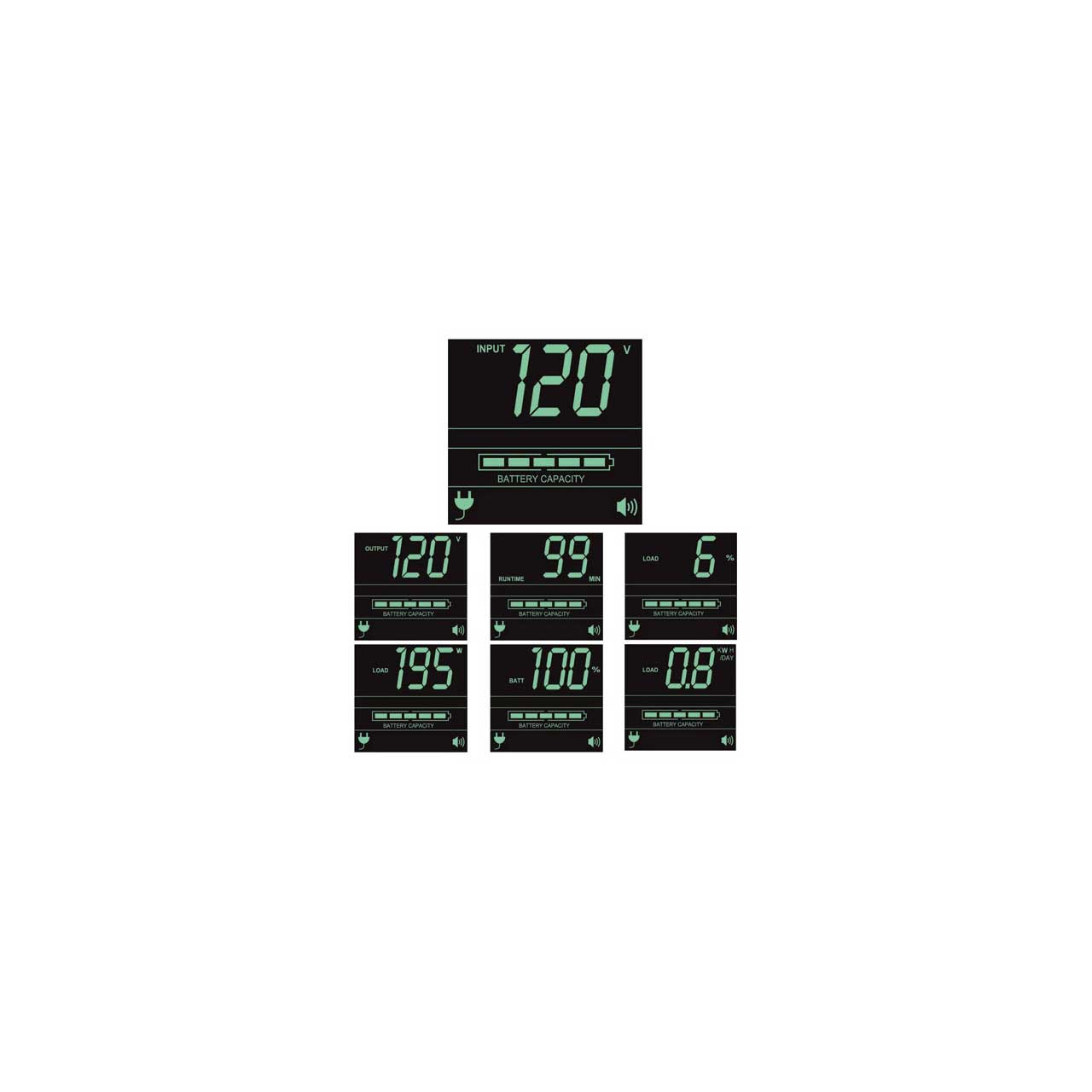

      • Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information
      • LCD interface also supports a number of advanced user setup and operating preferences
      • Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables 2 post rackmount/wallmount installation; Optional 2-9USTAND enables tower placement
      • HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X

    • Specifications

      • Output Volt Amp Capacity (VA): 2200
      • Output Watt Capacity (Watts): 1920
      • Power Factor: 0.87
      • Nominal Output Voltage(s) Supported: 110V; 115V; 120V
      • Frequency Compatibility: 60 Hz
      • Output Voltage Regulation (Line/Battery Mode): -14%, +6%; +/- 5%
      • Output Receptacles: (4) 5-15R; (4) 5-15/20R
      • Load Management Receptacles: Two switched single outlet load banks (1 5-15/20R & 1 5-15R)
      • Output AC Waveform (AC/Battery Mode): Sine wave/Pure Sine wave
      • Rated input current (Maximum Load): 16A (120V)
      • Nominal Input Voltage(s) Supported: 120V AC
      • UPS Input Connection Type: 5-20P
      • UPS Input Cord Length (ft.): 10
      • Recommended Electrical Service: 20A 120V
      • Input Phase: Single-Phase
      • Full Load Runtime (min.): 4.5 min. (1920w)
      • Half Load Runtime (min.): 12 min. (960w)
      • DC System Voltage (VDC): 48
      • Battery Recharge Rate (Included Batteries): Less than 4.5 hours from 10% to 90%
      • Internal UPS Replacement Battery Cartridge: RBC94-2U
      • Battery Replacement Description: Hot-swappable, user replaceable batteries
      • Expandable Runtime: Yes
      • Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145
      • Overvoltage Correction: Voltage reduction of 12% applies when input is between 127 and 145
      • Undervoltage Correction: Voltage boost of 12% applies when input voltage is between 96 and 108
      • Severe Undervoltage Correction: Voltage boost of 24% applies when input voltage is between 83 and 95
      • Front Panel LCD Display: Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)
      • Switches: Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
      • UPS AC Suppression Joule Rating: 570
      • UPS AC Suppression Response Time: Instantaneous
      • EMI / RFI AC Noise Suppression: Yes
      • UPS Power Module Dimensions (hwd, in.): 3.46 x 17.32 x 19.29
      • Minimum Required Rack Depth (inches): 26.3
      • UPS Power Module Weight (lbs.): 57.6
      • UPS Shipping Dimensions (hwd / in.): 9.1 x 22.44 x 24.2
      • Shipping Weight (lbs.): 68.8
      • Cooling Method: Fan
      • UPS Housing Material: Steel
      • Operating Temperature: +32 to +104°F
      • Storage Temperature: +5 to +122°F
      • Relative Humidity: 0 to 95%, non-condensing
      • AC Mode BTU / Hr. (Full Load): 306
      • Battery Mode BTU / Hr. (Full Load): 1157
      • Communications Interface: USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
      • Network Management Cards: SNMPWEBCARD; TLNETCARD; WEBCARDLX
      • Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions
      • WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
      • Transfer Time: 5 milliseconds (line to battery mode); 1 millisecond (battery to line mode)
      • Low/High Voltage Transfer to Battery Power (Setpoint): 83/145
      • Product Warranty Period (Worldwide): 2-year limited warranty

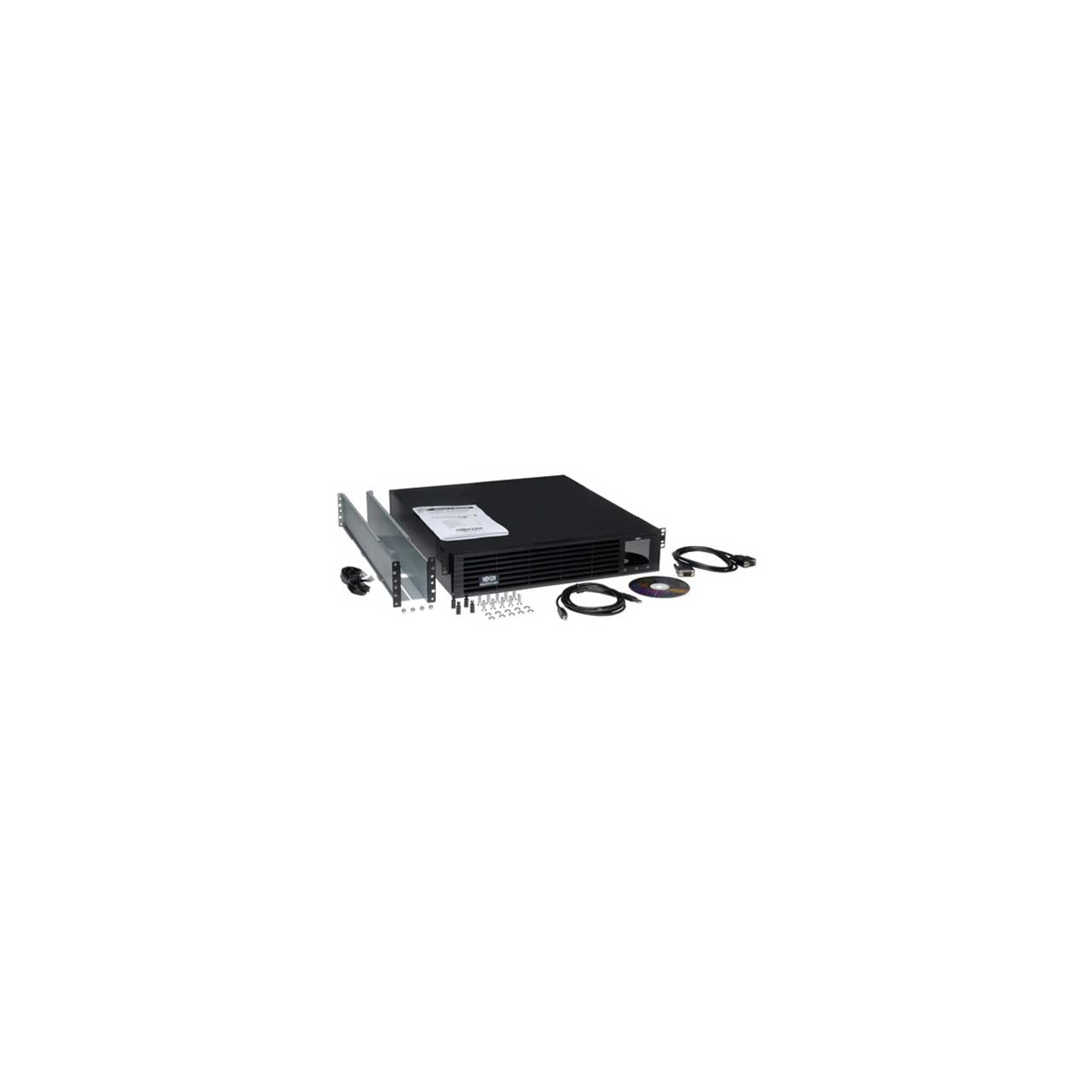

    • Item Includes

      • SM2200RMXL2UTAA TAA Compliant UPS system
      • PowerAlert software with USB, Serial & EPO cabling
      • 4 post installation kit
      • Owner's manual

    • Warranty

      • 2 Year
